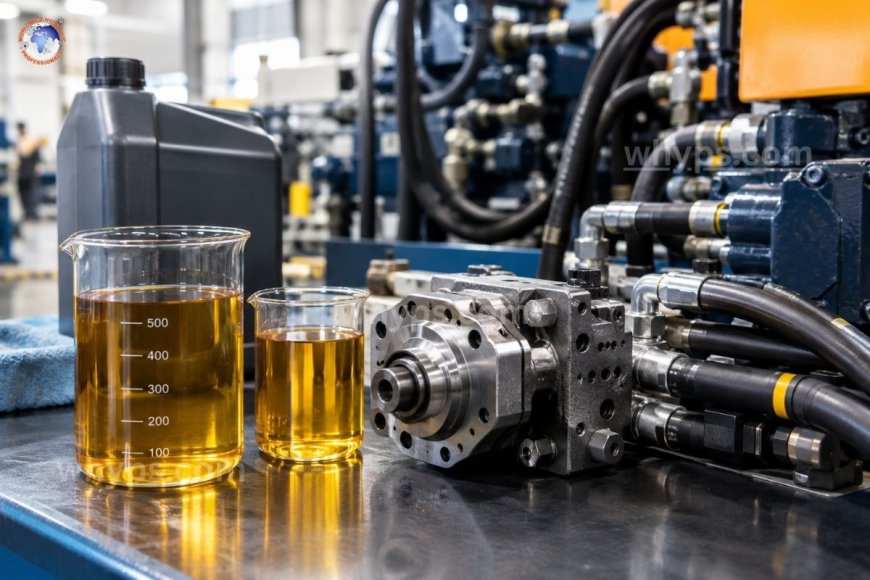

Advanced anti-wear hydraulic fluids for high-pressure systems

Advanced anti-wear (AW) hydraulic fluids combine a high-quality base oil with additives such as zinc dialkyldithiophosphate (ZDDP) or ashless phosphorus-sulfur chemistry. These additives form a sacrificial protective film on metal surfaces, which prevents metal-to-metal contact in pumps, valves, and motors operating above roughly 140 bar (2,000 psi). Choosing the right AW fluid, with the correct viscosity grade, cleanliness level, and seal compatibility, is one of the most effective ways to extend component life and avoid costly downtime in high-pressure hydraulic systems.

Why high-pressure systems demand more from hydraulic fluid?

Modern hydraulic equipment is built to deliver more power from smaller components. Pressures of 250 to 350 bar (3,600 to 5,000 psi) are now common in mobile machinery, injection molding machines, presses, and industrial power packs. Higher pressure brings tighter clearances, higher contact stresses, and more heat. Under these conditions the fluid film separating moving parts can thin out or break down momentarily, a state called boundary lubrication.

Boundary lubrication is where anti-wear additives earn their place. Gear pumps, vane pumps, and axial piston pumps all contain sliding contacts, such as vane tips against the cam ring, piston shoes against the swashplate, and gear teeth against housings. Without an adequate protective film, these surfaces experience abrasive and adhesive wear. The result is lower volumetric efficiency, rising internal leakage, higher operating temperatures, and eventually pump failure.

How anti-wear additives work

Anti-wear additives are chemically reactive compounds that stay inert in the bulk fluid until heat and pressure at a contact point activate them. At that point they react with the metal surface and build a thin, sacrificial film, often only a few nanometers thick. When asperities touch, the film shears instead of the base metal, protecting the underlying component.

Zinc-based (ZDDP) formulations

ZDDP has been the industry standard for decades. It delivers excellent wear protection, antioxidant behavior, and good cost-performance. Zinc-based AW fluids are widely specified for vane and piston pumps in industrial service. However, they can be sensitive to water, may form deposits if the fluid overheats, and can attack some yellow metals such as bronze or silver-plated parts at elevated temperatures.

Ashless (zinc-free) formulations

Ashless anti-wear fluids use organic phosphorus and sulfur chemistry without metallic zinc. They offer strong hydrolytic stability, lower sludge formation, and better environmental and disposal profiles. Many are preferred in systems with silver-plated servo valve components or in applications where zinc residue is a concern. Performance varies by formulation, so confirm pump manufacturer approval before switching.

Key properties of advanced AW hydraulic fluids

Not every fluid labeled "anti-wear" performs equally under extreme pressure. When evaluating high-pressure grades, focus on these characteristics.

Wear protection performance

Look for fluids that meet or exceed recognized pump tests. The Vickers 35VQ25 vane pump test and the Denison T6H20C vane pump test are widely cited benchmarks for severe vane-pump service. Specifications such as ISO 11158 (HM category), DIN 51524 Part 2, and Eaton or Parker Denison HF-0, HF-1, and HF-2 requirements give a standardized way to compare products. For piston pumps operating at the upper end of the pressure range, fluids that also pass the Bosch Rexroth RE 90220 or equivalent OEM approvals offer extra assurance.

Thermal and oxidation stability

Heat is the enemy of any hydraulic fluid. For every 10°C (18°F) rise above about 60°C (140°F), oxidation rates roughly double. Oxidized oil thickens, forms acids, and leaves varnish on servo and proportional valve spools, leading to sticking and erratic response. Advanced AW fluids use premium Group II or Group III base oils with strong antioxidant packages to resist this degradation and extend drain intervals.

Hydrolytic stability and water tolerance

Water contamination can cause some zinc-based additives to break down into acidic by-products and insoluble sludge. Hydrolytically stable formulations hold up better in humid environments, outdoor equipment, and systems with condensation in the reservoir. Good demulsibility, meaning the fluid's ability to shed water quickly, is equally important so that free water can be drained from the tank.

Shear-stable viscosity index

High-pressure systems expose fluid to intense shear in pump clearances and valve orifices. High-VI fluids that contain polymer thickeners can lose viscosity permanently if the polymer breaks down. Shear-stable fluids maintain their viscosity grade over thousands of hours, preserving the lubricating film and keeping volumetric efficiency steady.

Air release and foam control

Entrained air compresses violently at high pressure, causing noise, cavitation, and microdieseling, which is the explosive burning of air bubbles that scorches oil and seals. Strong air-release properties and effective anti-foam additives help avoid these effects.

Selecting the right viscosity grade

Viscosity is as important as additive chemistry. A fluid that is too thin fails to separate surfaces at operating temperature, while one that is too thick causes cavitation, sluggish response, and wasted energy. Most pump manufacturers recommend an operating viscosity between 16 and 36 cSt, with an optimum range often near 25 cSt.

Common ISO grades include:

• ISO VG 32: Suited to moderate climates and indoor industrial equipment.
• ISO VG 46: The most widely used grade for general industrial and mobile applications.
• ISO VG 68: Preferred for hot climates, heavily loaded systems, or equipment with elevated operating temperatures.

Check the viscosity at both cold-start and peak operating temperature. If the equipment sees wide temperature swings, a high viscosity index fluid (VI of 140 or above) will keep viscosity in range more consistently.

Compatibility with seals and system materials

Advanced AW fluids should be compatible with the elastomers in your system. Most mineral-based AW fluids work well with NBR (nitrile) and FKM (Viton) seals. Some synthetic or ashless formulations may behave differently with certain polyurethanes or older seal compounds, causing swelling, shrinkage, or hardening. Always verify compatibility with the seal and hose manufacturers, especially when converting an existing system to a new fluid chemistry. Avoid mixing different fluid types, since additive packages can clash and drop out of solution.

Cleanliness: The other half of wear protection

Even the best anti-wear fluid cannot compensate for contamination. Hard particles bridge tight clearances and cut surfaces through three-body abrasion. High-pressure pumps and servo valves typically need cleanliness targets such as ISO 4406 18/16/13 or cleaner. Achieve this with proper filtration, using beta-rated filters of suitable micron size, sealed breathers, and clean filling practices. Pair routine oil analysis with filter change schedules to catch problems early.

Best practices for maximizing fluid and component life

• Follow OEM specifications first. Pump and valve manufacturers publish approved fluid lists for a reason.
• Control temperature. Keep reservoir temperatures below about 65°C (150°F) where possible, using coolers and properly sized reservoirs.
• Run regular oil analysis. Track viscosity, acid number, water content, particle count, and wear metals to spot degradation before failure.
• Keep water out. Use desiccant breathers and inspect seals and coolers for leaks.
• Avoid cross-contamination. Use dedicated, labeled transfer equipment for each fluid type.
• Flush when changing chemistries. Remove residual oil and sludge before filling with a new fluid type.

1. What makes a hydraulic fluid "anti-wear"?

An anti-wear hydraulic fluid contains additives, typically zinc-based or ashless phosphorus-sulfur compounds, that form a protective film on metal surfaces under heat and pressure. This film reduces metal-to-metal contact and wear in pumps, motors, and valves.

2. Are AW fluids necessary for all high-pressure hydraulic systems?

Most high-pressure systems with vane, gear, or piston pumps benefit from AW protection. Some systems using specialized fluids such as fire-resistant or biodegradable types rely on different additive chemistry, so always follow the equipment manufacturer's recommendation.

3. Is zinc-free hydraulic oil as good as zinc-based oil?

Well-formulated ashless fluids can match or exceed zinc-based fluids in wear protection and hydrolytic stability. Performance depends on the specific product and pump type, so verify OEM approvals and test data before choosing.

4. How often should AW hydraulic fluid be changed in high-pressure systems?

There is no single interval. Change frequency depends on operating temperature, contamination, and fluid quality. Condition-based changes guided by regular oil analysis, covering viscosity, acid number, water, and particle count, are more reliable than fixed hours alone.

5. Can I mix different anti-wear hydraulic fluids?

Mixing is not recommended. Different additive packages and base oils can be incompatible, leading to additive dropout, foaming, sludge, and reduced wear protection. If a changeover is needed, drain and flush the system and follow the new fluid supplier's guidance.
