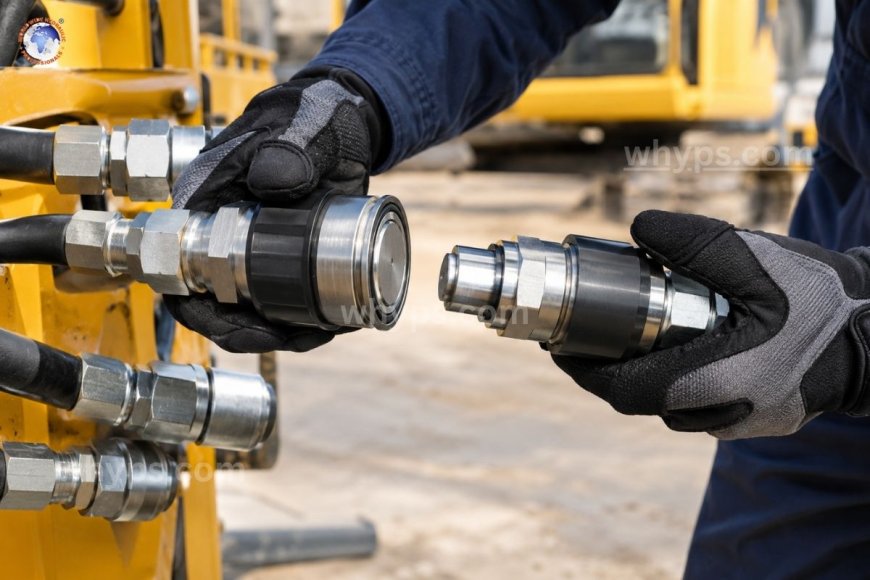

Dry-break hydraulic couplings for spill-free fluid transfer

Dry-break hydraulic couplings for spill-free fluid transfer

Dry-break hydraulic couplings are quick-connect couplings with a self-sealing valve in each half. Both valves close before the halves separate, so little or no oil escapes when you connect or disconnect. This keeps fluid off the floor and out of the environment, protects the system from contamination and air ingress, and makes frequent connections cleaner, safer, and faster. They are the preferred choice wherever hoses and tools are changed often or spills are costly.

Why spill-free fluid transfer matters

Every time a standard hydraulic line is disconnected, there is a risk of oil loss. A few drops per connection may sound minor, but across hundreds of connections a year the cost adds up in lost fluid, cleanup labor, slip hazards, and environmental liability. In industries such as agriculture, construction, forestry, and marine work, a spill can also mean regulatory penalties and damage to soil or water.

There is a second, less visible problem. An open coupling face invites dirt, moisture, and air into the circuit. Contamination is one of the leading causes of hydraulic component wear, so every unprotected disconnection is a small threat to pumps, valves, and cylinders. Dry-break couplings address both problems at once.

What is a dry-break hydraulic coupling?

A dry-break coupling is a two-part quick-connect assembly made up of a male half (the nipple or plug) and a female half (the body or socket). Each half contains a spring-loaded valve that stays closed until the two halves are fully engaged. When they separate, the valves close first, trapping fluid inside the lines.

The term "dry break" describes the result: the connection breaks without a wet release. In practice, a very small residual film of oil may remain on the faces, but it is far below what a conventional poppet-style coupling releases.

Dry-break vs. standard quick couplers

Standard poppet couplers have exposed valve stems and recessed faces that trap oil and dirt. When disconnected, they often release a small burst of fluid, and the faces are hard to wipe clean. Dry-break designs, especially flat-face types, have smooth mating surfaces that can be wiped before connection and that seal cleanly on separation.

How dry-break couplings work

Connection sequence

As the male half is pushed into the female half, the two flat faces meet and align. The valves then open together, only after the seals have engaged. Because the sealing happens before the flow path opens, fluid has nowhere to escape, and outside air cannot enter.

Disconnection sequence

When the locking mechanism is released and the halves pull apart, the sequence reverses. The valves close and seal first, and the halves separate only afterward. Fluid stays in the hose, and the system stays closed.

Locking mechanisms

Common locking styles include:

  • Push-to-connect with sleeve release: the operator slides back an outer sleeve to disconnect. Fast and ideal for frequent changes.
  • Ball-locking systems: steel balls engage a groove in the male half, giving a secure hold under high pressure.
  • Threaded or screw-to-connect: a threaded collar draws the halves together, offering high pressure ratings and easier connection of lines that are under residual pressure.

Key benefits of dry-break couplings

Reduced spillage and environmental risk

The most obvious benefit is containment. Less oil on the ground means fewer cleanup tasks, lower fluid consumption, and a smaller chance of environmental incidents. For operators working near waterways, farmland, or sensitive sites, this is often the deciding factor.

Better contamination control

Flat-face designs can be wiped clean before every connection. Since the valve closes flush with the face, there are no crevices to trap dirt. Keeping particles out of the circuit supports longer component life and helps maintain target cleanliness levels.

Less air ingress

When couplings open only after sealing, air is not drawn into the line. This reduces foaming, spongy actuator response, and cavitation risk, particularly on tools and attachments that are changed regularly.

Improved operator safety

High-pressure oil can cause serious injection injuries, and oil on walking surfaces creates slip hazards. Dry-break couplings limit both. Many designs also allow connection under residual pressure, which reduces the need for operators to relieve trapped pressure by hand.

Faster, cleaner changeovers

Quick, one-handed operation with no rags or drip pans shortens attachment changes. For fleets and rental equipment, this translates directly into saved labor hours.

Typical applications

Dry-break couplings are used wherever hydraulic lines are connected and disconnected regularly:

  • Agricultural equipment: tractor-to-implement connections for loaders, seeders, sprayers, and balers.
  • Construction and earthmoving: excavator and skid-steer attachments such as breakers, augers, and grapples.
  • Forestry and material handling: quick change of tools and trailers.
  • Portable hydraulic tools: rescue tools, torque wrenches, and pumps that are connected to power units on site.
  • Industrial test benches and fluid transfer systems: where cleanliness and repeatability are critical.
  • Marine and offshore systems: where any discharge of oil is tightly controlled.

How to select the right dry-break coupling

Pressure rating

Choose a coupling with a working pressure above the highest expected system pressure, including spikes. Check both the working and burst pressure figures and leave a margin for pressure surges.

Flow rate and pressure drop

Undersized couplings restrict flow, generate heat, and waste energy. Match the coupling size to the required flow rate and review the manufacturer's pressure drop curve at your operating flow.

Size and port connection

Select the nominal size and the end connection (such as NPT, BSPP, JIC, or ORFS) to match your hoses and ports. A mismatch here is a common source of leaks.

Seal material and fluid compatibility

Nitrile (NBR) seals suit most mineral-oil systems, while FKM suits higher temperatures and some synthetic or fire-resistant fluids. Always confirm compatibility with your specific fluid.

Body material and environment

Steel with corrosion-resistant plating suits general industrial duty, while stainless steel is better for marine, food-grade, or chemical environments. Consider temperature extremes, washdown, and outdoor exposure.

Standards and interchangeability

Look for couplings that conform to recognized standards, such as ISO 16028 for flat-face couplings and ISO 7241 for dry-break quick-release types. Standardized dimensions make it possible to mix equipment from different manufacturers with confidence.

Installation and maintenance best practices

Keep faces clean

Wipe both faces with a lint-free cloth before connecting, and always fit protective dust caps when halves are disconnected. This is the simplest and most effective habit for protecting the system.

Inspect regularly

Check seals, locking sleeves, and valve faces for nicks, scoring, or wear during routine maintenance. Replace worn seals before they begin to leak, and watch for weeping around the connection as an early warning sign.

Avoid side loading

Hose weight and tight bends place stress on the coupling. Use proper routing, support, and strain relief to prevent premature wear and leakage.

Respect pressure and temperature limits

Exceeding ratings shortens seal life and can lead to sudden failure. Use pressure-relief and surge control where needed.

Common mistakes to avoid

  • Mixing incompatible coupling series or standards, which causes poor sealing or no connection at all
  • Ignoring dust caps, which allows contamination to bypass the very benefit you paid for
  • Selecting on price alone and ending up with a coupling that restricts flow
  • Using couplings beyond their temperature or fluid compatibility limits
  • Skipping inspection until a visible leak appears

Dry-break hydraulic couplings give equipment owners a practical way to transfer fluid cleanly, protect system cleanliness, and cut the cost and risk of spills. By choosing the correct size, pressure rating, seal material, and standard, and by keeping the faces clean and inspected, you can enjoy reliable, spill-free connections across the life of your equipment.

1. What is the difference between a dry-break coupling and a flat-face coupling?

Dry-break describes the function: minimal fluid loss on disconnection. "Flat-face" describes a design with smooth, flush mating surfaces. Most modern dry-break couplings are flat-face designs, since the flush face is what allows them to be wiped clean and to seal without trapping fluid.

2. Can dry-break couplings be connected under pressure?

Many designs can be connected under residual pressure, and some are specifically built for it. Always check the manufacturer's rating, as the allowable connection pressure varies by model and size.

3. Do dry-break couplings cause a larger pressure drop?

They can if undersized, because internal valves add some restriction. Choosing a size matched to your flow rate and checking the pressure drop curve keeps energy loss low. Many flat-face designs are engineered for a low pressure drop.

4. Are dry-break couplings completely leak-free?

They are designed to be near spill-free, but a thin oil film can remain on the faces after disconnection. Wiping the faces and using dust caps handles this residue. Worn or damaged seals will cause leaks, so regular inspection matters.

5. How often should dry-break couplings be inspected or replaced?

Inspect them as part of routine maintenance, and always before heavy-use periods. Replace seals or the full coupling when you see wear, scoring, weeping, or difficulty connecting. Frequent use, dirty environments, and high pressure all call for shorter inspection intervals.
