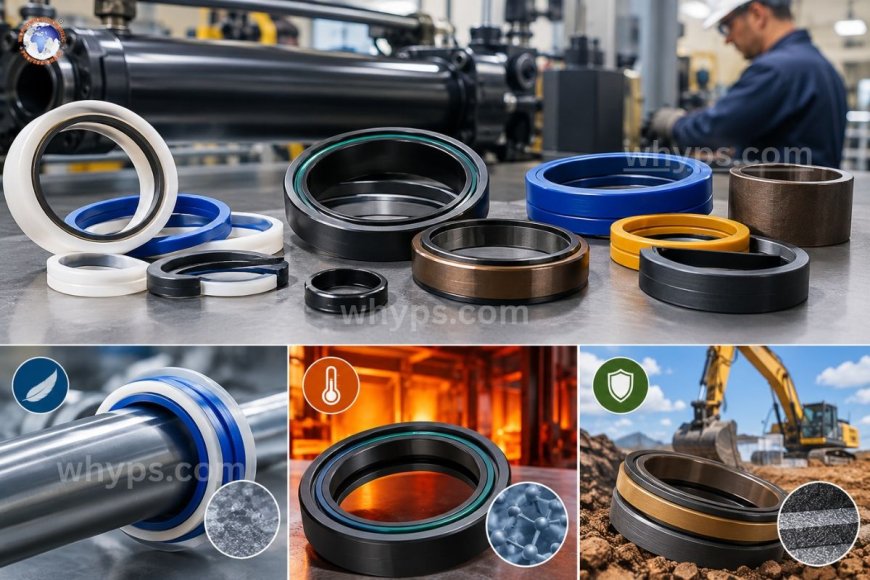

Advanced hydraulic seal materials in 2026: Low-friction, high-temperature, and wear-resistant designs

Advanced hydraulic seal materials in 2026 fall into three performance groups: low-friction compounds (filled PTFE and slipper-seal designs), high-temperature elastomers (HNBR, FKM, and FFKM), and wear-resistant materials (polyurethane, polyester elastomers, and composite wear rings). No single material wins on every measure, so the best seal is the one matched to your pressure, speed, temperature, fluid, and contamination level.

Why are seal materials under more pressure in 2026?

Hydraulic equipment is being asked to do more with less. Machines run at higher pressures to shrink component size, duty cycles are longer, and electro-hydraulic systems demand smooth, repeatable motion. At the same time, operators expect longer service intervals and fewer unplanned stoppages. Seals sit at the center of all of this, because they are the components that separate pressurized fluid from the outside world and one chamber from another.

A seal that fails early rarely fails alone. Leakage wastes fluid, lets contamination in, and often scores the rod or bore, turning a low-cost seal replacement into a cylinder rebuild. That is why material selection has moved from a purchasing detail to an engineering decision.

Low-friction seal materials and designs

Friction matters for more than efficiency. Excess friction generates heat, accelerates wear, and causes stick-slip, the jerky start-stop motion that ruins positioning accuracy in servo-hydraulic and proportional-valve systems.

Filled PTFE compounds

PTFE has one of the lowest friction coefficients of any engineering polymer. Pure PTFE is soft and prone to creep, so seal makers blend it with fillers to improve strength and wear life. Common choices include:

• Bronze-filled PTFE: high load capacity and good heat conduction, suited to higher pressures and speeds.
• Carbon- and graphite-filled PTFE: good dry-running behavior and compatibility with softer mating surfaces.
• Glass-filled PTFE: improved wear resistance, though it can be abrasive on softer rods.
• Modified PTFE: newer formulations designed for better creep resistance and lower leakage.

Energized and slipper seal designs

PTFE alone has little elasticity, so it is normally paired with an elastomer O-ring or a metal spring that keeps the sealing lip in contact. This energized design combines the low friction of PTFE with the sealing force of rubber. Slipper seals, step seals, and similar profiles are widely used for dynamic piston and rod applications where smooth breakaway matters.

Surface finish still matters

Even the best low-friction compound performs poorly against a badly finished surface. Rods that are too rough wear seals quickly, while surfaces that are too smooth can fail to retain a lubricating film. Matching the seal material to the recommended rod finish and coating is just as important as choosing the compound.

High-temperature seal materials

Heat is one of the biggest causes of seal failure. As temperature climbs, elastomers harden, lose elasticity, and develop compression set, which means they stop springing back after being squeezed. Fluid oxidation also speeds up, producing acidic by-products that attack seal compounds.

HNBR

Hydrogenated nitrile (HNBR) improves on standard NBR with better heat, ozone, and wear resistance while keeping good compatibility with mineral oils. It is a common upgrade for demanding mobile and industrial equipment that runs hotter than standard nitrile handles comfortably.

FKM (Fluoroelastomer)

FKM is a go-to material for elevated temperatures and many synthetic fluids, with strong resistance to heat and chemicals. Its limits are cold-temperature flexibility and compatibility with certain fluids, so always check the specific compound against your hydraulic fluid.

FFKM (Perfluoroelastomer)

FFKM offers the broadest chemical resistance combined with very high temperature capability. It is expensive, so it is typically reserved for critical applications where downtime or fluid compatibility problems cost far more than the seal itself.

PTFE and PEEK for extreme conditions

PTFE-based seals handle a very wide temperature range, and PEEK is increasingly used for backup rings and anti-extrusion elements because it keeps its stiffness at high temperature and pressure. Together they let designers handle heat and extrusion gaps that would destroy an ordinary elastomer.

Always confirm temperature limits with the manufacturer's data for the exact compound and fluid, since published ranges vary between formulations.

Wear-resistant seal materials and designs

In many fields, abrasion and contamination, not heat, decide how long a seal lasts. Excavators, mining equipment, and agricultural machinery work in dust, mud, and grit, so wear resistance is the priority.

Polyurethane and polyester elastomers

Polyurethane is known for outstanding abrasion, tear, and extrusion resistance, which makes it a staple for rod seals, wipers, and buffer seals in heavy-duty cylinders. Its weaknesses are heat and hydrolysis, meaning it can degrade in hot, wet conditions or with some water-based fluids. Polyester-based thermoplastic elastomers offer a useful middle ground, with better heat and hydrolysis resistance than standard polyurethane while keeping strong mechanical toughness.

Wear rings and guide elements

A seal can only last if the rod and piston stay centered. Wear rings made from fabric-reinforced phenolic, filled PTFE, or high-performance polymers absorb side loads and keep metal from touching metal. Choosing the right guide material protects both the seals and the cylinder surfaces.

Wipers and contamination exclusion

A good wiper or scraper is the first line of defense. Dual-lip and metal-cased wipers keep abrasive particles from being dragged into the seal system, extending the life of everything behind them.

How to choose the right material

Start with the operating conditions and work outward:

1. Fluid type: mineral oil, water-glycol, HFD fluids, or biodegradable esters each limit your choices.
2. Temperature range: consider both normal operating and peak temperatures, including cold starts.
3. Pressure and extrusion gap: high pressure calls for backup rings or harder compounds.
4. Speed and duty cycle: fast or continuous motion favors low-friction compounds.
5. Contamination level: dirty environments call for abrasion-resistant materials and strong wipers.
6. Hardware condition: rod finish, coating, and gland geometry must suit the seal.

In practice, many cylinders use a combination: a PTFE-based piston seal for low friction, a polyurethane rod seal for toughness, and a dedicated wiper and wear ring to protect both.

What to watch beyond 2026

Seal technology continues to evolve in a few clear directions. Material suppliers are refining compounds that balance friction, heat, and wear in a single package. Condition monitoring is moving closer to the seal, with leakage and temperature trends helping teams replace parts before failure. Additive manufacturing is helping with prototyping and low-volume custom parts. Regulatory attention on fluoropolymers is also pushing the industry to watch material availability and look at alternatives where performance allows.

1. Which hydraulic seal material has the lowest friction?

Filled PTFE compounds generally offer the lowest friction among common hydraulic seal materials, especially when used in energized or slipper-seal designs.

2. What is the best seal material for high temperatures?

FKM and FFKM suit high temperatures, with FFKM offering the widest chemical and heat capability at a higher cost. HNBR is a cost-effective upgrade for moderately hot mineral-oil systems, and PTFE handles very wide temperature ranges.

3. Why do polyurethane seals fail in hot, wet systems?

Standard polyurethane can suffer hydrolysis when exposed to heat and moisture, which softens and breaks down the material. Hydrolysis-resistant polyurethane or polyester-based elastomers are better choices in those conditions.

4. How does temperature affect hydraulic seal life?

Higher temperatures speed up hardening, compression set, and fluid oxidation, while very low temperatures reduce elasticity and can cause leakage at start-up. Choosing a compound rated for your full temperature range is essential.

5. Can one seal material handle low friction, high heat, and heavy wear?

Rarely. Most designs trade off one property for another, so engineers combine materials, such as PTFE piston seals, polyurethane rod seals, and composite wear rings, to meet all three needs in a single cylinder.
