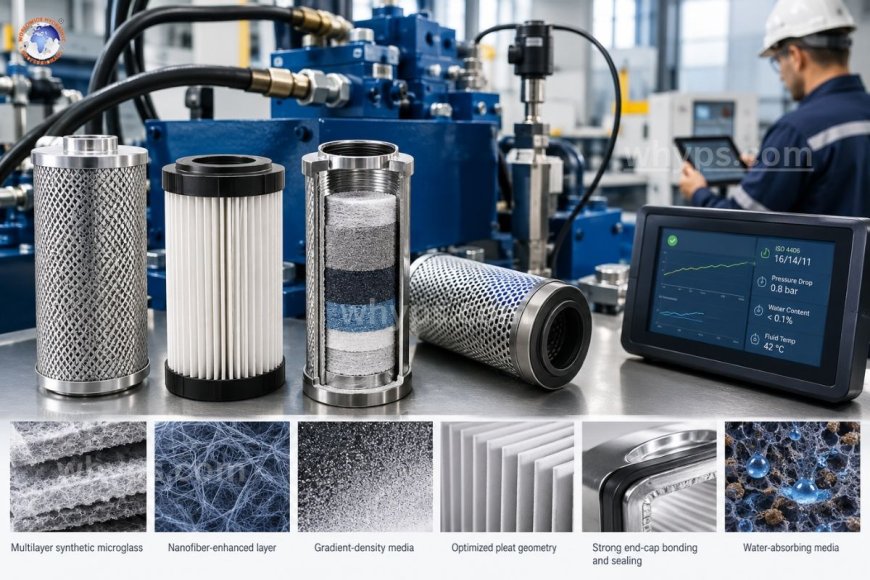

High-efficiency hydraulic filter elements: new media and contamination control technologies

High-efficiency hydraulic filter elements use advanced media, such as multilayer synthetic microglass, nanofiber-enhanced layers, and gradient-density constructions, to capture more fine particles with lower pressure drop and longer service life. Paired with condition monitoring and realistic ISO 4406 cleanliness targets, they protect pumps, valves, and cylinders from wear, reduce unplanned downtime, and lower total cost of ownership.

Why contamination control matters more than ever?

Modern hydraulic systems run at higher pressures, with tighter clearances and faster response than equipment built a generation ago. Servo and proportional valves can operate with clearances of just a few microns, and high-pressure piston pumps depend on thin oil films to prevent metal-to-metal contact. In this environment, the particles that do the most damage are often the ones you cannot see.

Industry experience consistently links a large share of hydraulic failures to fluid contamination. Hard particles bridge clearances and cause abrasive wear, silt can stick to valve spools, and water and oxidation by-products accelerate fluid degradation. Because wear generates more particles, a contaminated system tends to deteriorate faster over time.

This is why filter element technology has advanced so quickly. The goal is no longer just "filter the oil" but to hold a target cleanliness level reliably, across the full life of the element, under real duty cycles.

What "high-efficiency" actually means

Before comparing new technologies, it helps to understand how efficiency is measured.

Beta ratio and ISO 16889

The multi-pass test defined in ISO 16889 challenges a filter with continuous contaminant injection and counts particles upstream and downstream. The result is the beta ratio (βx(c)), the number of particles larger than size x upstream divided by the number downstream. For example, β10(c) = 200 means that only 1 in 200 particles at or above 10 microns passes through, an efficiency of 99.5%. A β of 1,000 equals 99.9%.

Cleanliness codes (ISO 4406)

Efficiency only matters relative to a target. ISO 4406 expresses fluid cleanliness as three range numbers (for example, 18/16/13) representing particle counts at 4, 6, and 14 microns. Component manufacturers publish recommended cleanliness codes, and the filter element should be selected to reach and hold that target.

Dirt-holding capacity and pressure drop

Two other metrics separate good elements from great ones. Dirt-holding capacity is how much contaminant the element can absorb before reaching terminal differential pressure. Initial pressure drop indicates how much energy the element wastes and how easily it handles cold starts. High-efficiency media aim to improve all three at once, which was traditionally a trade-off.

New filter media technologies

Multilayer synthetic microglass

Traditional cellulose media have largely given way to microglass fibers because glass can be drawn into extremely fine, uniform fibers. Newer elements stack multiple layers of microglass with different fiber diameters and pore structures. Coarser upstream layers trap larger particles and protect the finer downstream layers, which capture small particles. Resin systems that bind the fibers have also improved, helping the media resist fiber migration and maintain structure under pressure surges.

Nanofiber-enhanced layers

Nanofiber technology adds an ultra-thin layer of fibers, often only a few hundred nanometers in diameter, to a conventional support substrate. Because the fibers are so fine, they capture very small particles at the surface while maintaining high porosity. The result is higher efficiency at fine micron ratings without the large pressure-drop penalty that comes from simply making media denser. Nanofiber layers can also help with surface loading, keeping captured particles near the upstream face rather than driving them deep into the media.

Gradient-density and depth media

Gradient-density constructions progressively tighten pore size from the inlet to the outlet of the media. Instead of loading up at one surface, the contaminant is distributed throughout the depth of the element. This increases dirt-holding capacity and extends element life, especially in systems with high ingression rates such as mobile equipment, mining, and steel mills.

Water-absorbing and specialty media

Some elements incorporate super-absorbent polymers that capture free water along with particulates, which is useful for systems exposed to condensation, washdown, or poor sealing. For fire-resistant fluids and water-glycol systems, media and seal materials must also be chemically compatible. Stainless-steel mesh and sintered metal elements remain relevant for high-temperature, high-pressure, or cleanable applications.

Element construction improvements

Media is only part of the story. Several construction advances help elements deliver consistent real-world performance:

• Optimized pleat geometry: Better pleat spacing and support increase usable surface area and reduce flow restrictions in the pleat pack.
• Stronger support layers and cores: Higher collapse ratings (tested per ISO 2941) help elements survive cold starts and high differential pressures.
• Improved end-cap bonding and sealing: Reliable bonding prevents bypass paths around the media, and tested fabrication integrity (ISO 2942) confirms element quality.
• Flow-fatigue resistance: ISO 3724 testing verifies that the media pack tolerates cyclic flow without damage, which matters in systems with fluctuating loads.
• Metal-free or fully incinerable designs: These simplify disposal and reduce environmental burden.

Smart contamination control

The second major shift is from reactive to predictive filtration. Instead of changing elements on a fixed schedule, many operations now monitor the fluid and the filter continuously.

• Differential pressure sensors and indicators: Electronic transducers log pressure drop trends, so you can predict when an element will reach terminal pressure rather than waiting for a visual indicator.
• Inline particle counters: These provide near real-time ISO 4406 codes, so a sudden rise in contamination triggers an investigation before components are damaged.
• Water and fluid-condition sensors: Moisture and temperature sensors detect ingression and thermal stress early.
• IoT and remote monitoring: Data feeds into maintenance platforms, enabling condition-based filter changes and trend analysis across fleets.

The practical benefit is fewer unnecessary changes, fewer unexpected breakdowns, and a clearer picture of where contamination is entering the system.

Practical selection guidance

Use these steps when evaluating a high-efficiency element:

1. Start with the target cleanliness code. Check the most sensitive component's requirement, such as servo valves or variable-displacement pumps.
2. Match the beta rating to the target. Look for validated ISO 16889 data at the relevant micron size, not just a nominal rating.
3. Consider the duty cycle. High ingression, frequent cold starts, or shock loads favor higher dirt-holding capacity and stronger construction.
4. Check fluid compatibility. Confirm the media, resin, and seals suit mineral oil, synthetic fluids, biodegradable esters, or water-based fluids.
5. Select the right placement. Pressure, return-line, off-line (kidney-loop), and breather filtration each play a different role, and the best systems combine them.
6. Evaluate total cost, not just element price. Longer life, less downtime, and extended component life often outweigh a higher purchase price.

Common mistakes to avoid

• Choosing a finer micron rating without checking the pressure drop and housing capacity.
• Relying on nominal ratings that do not reflect actual capture efficiency.
• Ignoring new-oil cleanliness. Fresh fluid is often dirtier than the system target and should be filtered when added.
• Skipping breather filtration, which lets airborne dust and moisture undo the work of the main filters.
• Replacing elements by calendar alone instead of by differential pressure and fluid condition.

High-efficiency hydraulic filter elements are a clear example of engineering that pays for itself. Multilayer microglass, nanofiber layers, and gradient-density media allow cleaner fluid with lower energy loss and longer element life, while sensors and particle counters make contamination visible in real time. Operations that define a cleanliness target, choose validated media, and monitor performance consistently see longer component life, fewer failures, and more predictable maintenance.

1. What is a high-efficiency hydraulic filter element?

It is a filter element, typically using multilayer microglass or nanofiber-enhanced media, that achieves high beta ratios (such as β10(c) ≥ 200) at fine micron sizes while maintaining low pressure drop and high dirt-holding capacity.

2. How does nanofiber media improve hydraulic filtration?

Nanofiber layers capture very small particles at the media surface using extremely fine fibers, which raises efficiency without making the media significantly denser. This helps maintain low pressure drop and can extend element life.

3. What beta ratio should I look for?

It depends on the cleanliness target of your most sensitive component. Many systems use β10(c) = 200 or higher, while servo or high-pressure systems often need finer ratings such as β4(c) or β5(c) at 200 or more. Always confirm ISO 16889 test data.

4. How often should high-efficiency filter elements be changed?

Change them based on differential pressure, particle count trends, and fluid analysis rather than a fixed schedule. Follow the manufacturer's terminal pressure guidance, and replace elements at the first sign of bypass or abnormal pressure behavior.

5. Are high-efficiency elements worth the higher cost?

In most cases, yes. Cleaner fluid reduces wear on pumps, valves, and cylinders, while longer element life and fewer breakdowns typically lower the total cost of ownership compared with lower-efficiency alternatives.
