Hydraulic systems play a vital part in modern construction machinery, industrial equipment, agricultural machinery, and other manufacturing processes. They rely on hydraulic fluids to power and control parts like motors, pumps, cylinders, and valves. But one of the most significant dangers to the effectiveness and durability of a hydraulic system is contamination. Small particles like dust and pieces of metal, water, and various other impurities could get into the system, causing severe harm.

Contaminants can trigger premature wear, lower efficiency, component failure, and lengthy downtime. To avoid these problems, hydraulic systems employ special filtration devices that eliminate contamination from the water. One of the most essential types of filtration equipment is suction filters, pressure filters, or return line filters. Each of them is designed for a specific function and is installed at various locations within the hydraulic circuit.

Understanding the distinctions between the three types of filters can help maintenance and engineering professionals create robust systems and ensure the highest performance. This article offers a thorough comparison between suction, pressure, and the return line filter. It explains the way they function, where they're placed, as well as their benefits and disadvantages.

Importance of filtration in hydraulic systems

Hydraulic systems require clear fluids to function efficiently. A lot of hydraulic components work with extremely precise tolerances. Even tiny particles could scratch surfaces, block valves, or decrease the efficiency of the system. The system is contaminated in a variety of ways:

• During the filling of fluids

• Through damaged seals

• From dust and dirt from the environment

• Wear and tear of internal components

• Through maintenance activities

In the absence of proper filtering, these contaminants can circulate constantly through the system, causing the system to suffer from damage that is progressive. Filtration equipment ensures that hydraulic fluid stays free of contaminants and safe for the components of the system.

Strategically placing filters at different points within the hydraulic circuit allows it to eliminate contaminants prior to reaching critical components.

Suction filters

What is a suction filter?

The suction filter can be fitted on the intake side of the pump. It is located on the other side of the pump to keep huge amounts of contaminants from entering the pump.

Since the filter is situated in the area of suction of the pump, it is operated at a low pressure and needs to allow fluid from the hydraulic system to flow freely into the pump, without any restriction.

How suction filters work

The suction filter is able to remove large particles prior to when the hydraulic fluid gets into the pump. They typically employ an element of filtration that is coarse, designed to capture contaminants and maintain little resistance to flow.

If the suction filters become overly restrictive or clogged, it could deprive your pump of creating cavitation. Cavitation may cause the pump to vibrate, produce noise, decrease efficiency, and cause severe damage to the pump.

Advantages of suction filters

Suction filters provide several advantages when used in hydraulic equipment:

• Make sure that your pumps are protected from particles

• Simple design and comparatively affordable cost

• Installation and maintenance are simple.

• Reduce the possibility of damage to the pump caused by debris

They are the primary line of defense within the circuit of hydraulics.

Limitations of suction filters

Despite their benefits, they also come with many drawbacks.

• A limited degree of filtration accuracy

• Not able to remove very fine particles

• Cavitation risk for pumps when the pump is blocked

• Could impede fluid flow if inadequately designed

Due to these limitations, suction filters are typically combined with other filtering methods within the system.

Pressure filters

What is a pressure filter?

Pressure filters are positioned just downstream from the pump, on the high-pressure side of the process. Its primary purpose is to filter out fine contaminants prior to the fluid reaching vulnerable components like actuators, control valves, and hydraulic motors.

Pressure filters work under extreme pressure and have to be constructed to withstand the system's operational conditions.

How pressure filters work

The hydraulic fluid that leaves the pump goes through the pressure filter before it enters the other parts of the process. The filter is designed to capture tiny particles and other contaminants that can damage precision parts.

Pressure filters usually provide fine filtration. They are often capable of collecting particles that are as small as 3-10 microns.

These filters are typically packed with features, such as:

• Bypass valves

• clogging indicators

• High-strength filter housings

The bypass valve allows the fluid to flow even if the filter is blocked and prevents the system from shutting down.

Advantages of pressure filters

Pressure filters have a variety of key advantages:

• Filter high-efficiency

• Be sure to protect the delicate hydraulic components

• Get rid of extremely small amounts of contaminants

• Enhance system reliability and prolong the life span

Since they eliminate extremely small particles, they are crucial in modern systems of hydraulics that utilize precision valves and servo systems.

Limitations of pressure filters

While pressure filters are extremely efficient, they have a few disadvantages:

• More expensive than suction filters

• The complexity of the system has increased

• Need stronger housings to withstand the pressures of high.

• Regular maintenance is necessary

Despite these difficulties, pressure filters are crucial in any system where the protection of components is essential.

Return line filters

What is a return line filter?

The return line filters are inserted into the line that returns to the system between the components of the system, as well as the reservoir.

Its main function is to wash the hydraulic fluid prior to it going back to the reservoir.

Return line filters filter out contaminants produced during system operation and prevent them from entering the loop of circulation.

How return line filters work

As the hydraulic fluid flows back towards the reservoir, it flows over the return filters. The filter is designed to remove contaminants that could have gotten into the system during operation or have been caused by wear and tear of components.

Return line filters usually offer medium-to-fine removal of particles before the liquid is pumped into the reservoir.

They are popular since they operate at low pressure and are simple to maintain.

Advantages of return line filters

Return line filters provide several advantages:

• Eliminate any contaminants that may have been generated during operations

• Maintain reservoir cleanliness

• Reduce overall levels of contamination

• Lower price compared to pressure filters

• Operate under lower pressure conditions

These filters play a crucial part in ensuring long-term system hygiene.

Limitations of return line filters

Return line filters come with some limitations:

• Do not protect components from the contaminant that is generated in the upstream

• They may not be able to capture contaminants before they get to sensitive components

• Ensure that your system is running properly to ensure effective filtering

In this way, filtering the return line is often employed in conjunction with pressure filters within crucial systems.

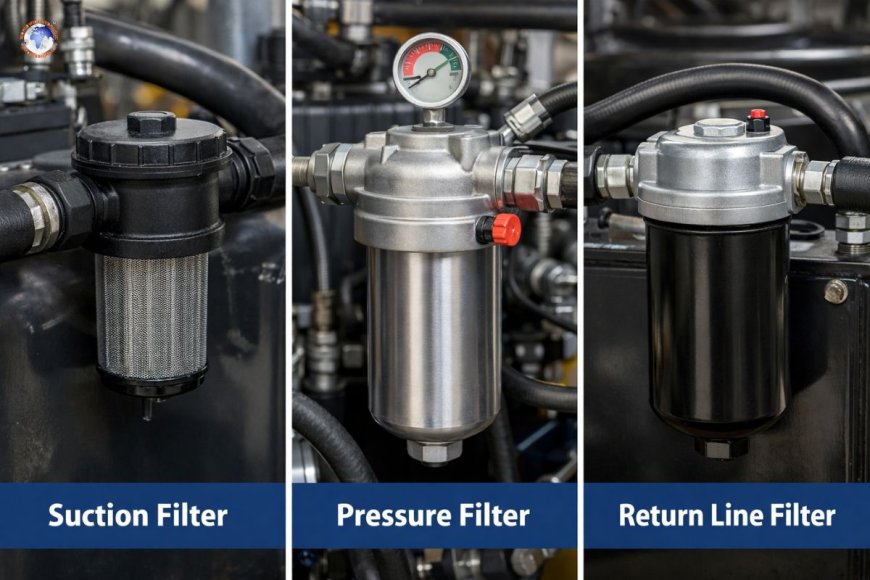

Key differences between suction, pressure, and return line filters

Although all three filters can be utilized to ensure the cleanliness of fluids, they differ in their locations, functions, and performance.

Location in the hydraulic system

Suction filters are fitted prior to the pump. Pressure filters are placed just after the pump. Return line filter systems are placed within the line that returns fluid to the reservoir.

Filtration precision

Suction filters usually provide coarse filtration. Pressure filters provide extremely fine filtration, while return line filters provide medium-to-fine filtering.

Operating pressure

Suction filters operate at low pressure, while pressure filters function under high pressure. return line filters function under high or medium pressure.

Primary purpose

Suction filters guard the pump, while pressure filters safeguard the system's components that are sensitive, and return line filters help maintain the cleanliness of the reservoir.

Choosing the right filter for a hydraulic system

Deciding on the best method of filtration is based on many elements, including the design of the system, as well as the sensitivity to contamination and the operating conditions.

The most important considerations are:

• Level of required filtration

• The pressure of the system and its flow

• The types of components of hydraulics

• Maintenance needs

• Operating environment

In the majority of hydraulic systems, the combination of filters is employed to ensure the complete control of contamination.

A typical filtration set-up could comprise:

• A suction strainer, filter, or strainer to ensure the pump is protected

• A pressure filter for the protection of valves and actuators

• Filtering the return line is used to cleanse the fluid prior to it entering the reservoir.

This filtration technique is multi-stage and dramatically improves the reliability of the system.

Modern filtration technologies

Technology advancements in filtration have improved the efficiency of hydraulic filters. Modern filters can contain features like:

• High-capacity filter elements for filters

• synthetic media for filtration

• clogging indicators

• Smart condition monitoring systems for monitoring smart conditions

• integrated bypass protection

These new technologies help maintenance teams to monitor the performance of filters and to replace components before issues develop.

Modern industrial systems employ condition monitoring methods to monitor the cleanliness of fluids and the health of filters in real-time.

Maintenance considerations

A regular maintenance schedule is vital to ensure that the hydraulic filters work effectively. Regular inspections and replacements of filter elements can prevent the buildup of contaminants and eventual system failures.

Common maintenance methods are:

• Monitoring filter clogging indicators

• Checking pressure drop across filters

• Replacement of filter elements at the recommended intervals

• Maintaining reservoir cleanliness

• Making use of premium hydraulic fluid

Regular maintenance can prolong the lifespan of hydraulic components and help reduce the chance of unexpected downtime.

Filtration is an essential aspect of the design and maintenance of hydraulic systems. Pressure filters, suction filters, return line filters, and pressure filters all have their own unique functions in ensuring clean fluids and ensuring the safety of the system's components.

Suction filters are the first line of defense of the hydraulic pump by eliminating large particles of dirt. Pressure filters provide high-efficiency filtration, which shields the components against small particles. Return line filters cleanse the fluid before returning to the reservoir, assisting in keeping the system clean.

Each type of filter is unique and has advantages and disadvantages when used together; they form an effective strategy for controlling contamination. This multi-faceted approach will ensure that the hydraulic system functions effectively, efficiently, and at a minimal cost.

As the hydraulic system continues to improve to become better and more efficient, the need for effective filtration will only grow. When choosing the appropriate mix of suction as well as return line filter maintenance, engineering professionals can greatly improve the efficiency of their system, reduce maintenance costs, and prolong the lifespan of equipment.
