Single-lip vs double-lip hydraulic rod seals: what is the difference?

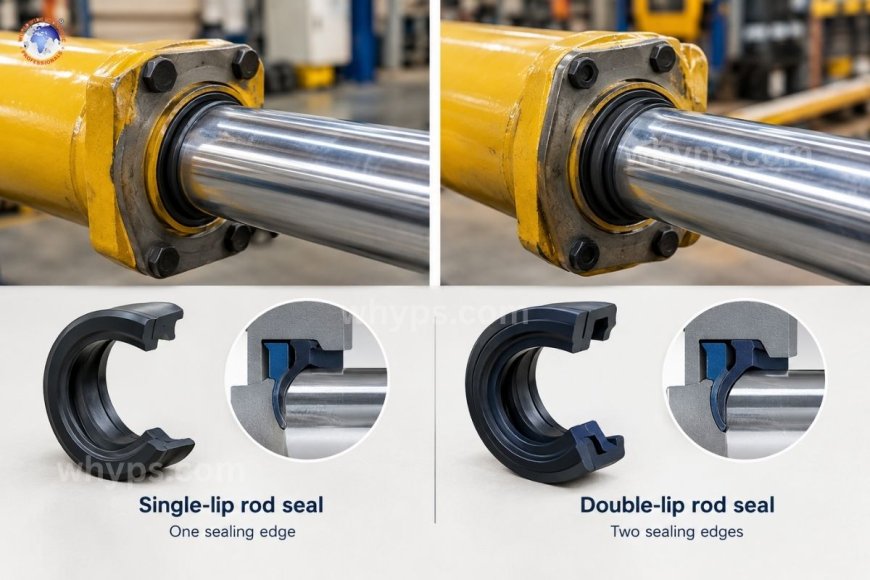

A single-lip hydraulic rod seal has one sealing edge pressed against the piston rod, while a double-lip rod seal has two sealing edges working in sequence. Single-lip designs are simpler, lower in friction, and cost-effective for standard duty. Double-lip designs add a secondary lip for redundancy, better leakage control, and longer life in demanding, high-pressure, or contaminated applications. The rod seal is the component that decides whether a hydraulic cylinder stays clean and dry or leaves a trail of oil on the shop floor. Every time the rod extends and retracts, the seal has to hold back system pressure while allowing a thin lubricating film to pass without letting oil escape. The number of sealing lips on that seal changes how well it manages that balance. This guide explains the difference between single-lip and double-lip hydraulic rod seals, where each performs best and how to choose between them.

What does a hydraulic rod seal do?

A rod seal sits in a groove in the cylinder head (gland) and contacts the moving piston rod. Its job is to:

• Contain pressurized hydraulic fluid inside the cylinder
• Prevent external leakage along the rod
• Control the thin oil film that lubricates the seal itself
• Resist extrusion, wear, and heat over millions of cycles

Because the rod moves in and out of the cylinder, the seal operates under dynamic conditions. Pressure, speed, temperature, surface finish, and fluid cleanliness all influence how long it lasts. The lip geometry is the first design choice that shapes this performance.

What is a single-lip hydraulic rod seal?

A single-lip rod seal has one dynamic sealing edge that contacts the rod. The most common example is the U-cup, whose lip is energized by system pressure. As pressure rises, the lip is pushed more firmly against the rod, so sealing force increases with load. Some designs add an O-ring or elastomer energizer behind the lip to maintain contact at low pressure.

Advantages of single-lip seals

• Lower friction. One contact edge means less drag, smoother motion, and less heat buildup.
• Simple, compact design. They fit standard grooves and are widely available in common sizes and materials.
• Lower cost. Fewer features make them economical for general-purpose cylinders.
• Easy installation. A single lip is less prone to misassembly and is simpler to inspect.

Limitations of single-lip seals

• No built-in redundancy. If the lip wears or is nicked by contamination, leakage begins immediately.
• Sensitive to rod condition. Scoring, pitting, or poor surface finish can damage the single sealing edge.
• Limited tolerance for pressure spikes. Sudden surges can cause the lip to extrude or flutter.
• Possible film leakage. At high speed, the oil film dragged out on the outstroke may exceed what the single lip can return.

What is a double-lip hydraulic rod seal?

A double-lip rod seal uses two sealing edges, usually a primary lip facing the pressure side and a secondary lip behind it. Depending on the design, the two lips may be molded into one body or arranged as a primary seal paired with a buffer element. The primary lip does most of the work, while the secondary lip catches residual fluid and acts as a back-up barrier.

Advantages of double-lip seals

• Redundancy. If the first lip wears or is slightly damaged, the second continues to seal, so leakage develops gradually rather than suddenly.
• Better leakage control. The second lip reduces the oil film that escapes on the outstroke, helping keep the rod dry.
• Improved stability. Two contact points resist twisting and rolling in the groove.
• Longer service life in tough duty. The shared load and secondary barrier help in dirty, high-cycle or shock-loaded cylinders.

Limitations of double-lip seals

• Higher friction. Two contact edges increase drag, which can cause stick-slip at low speed and more heat at high speed.
• Trapped pressure risk. If fluid becomes trapped between lips, pressure can build up and damage the seal unless the design includes relief features.
• Higher cost and complexity. Tighter groove tolerances and more precise installation are needed.
• Tighter fit requirements. They are less forgiving of the wrong groove size or poor rod alignment.

Single-lip vs. double-lip rod seals at a glance

How to choose between single-lip and double-lip seals

No design is universally better. The right choice depends on the duty cycle and the cost of a leak.

Choose a single-lip seal when

• Operating pressure is low to moderate, and shocks are rare
• Low friction and smooth, responsive motion matter
• The environment is clean, and the rod finish is well maintained
• Cost and ease of replacement are priorities
• Examples include light industrial presses, small lifting equipment, and hand-operated systems

Choose a double-lip seal when

• Pressure is high, or pressure spikes are common
• External leakage is unacceptable, such as in food, indoor, or environmentally sensitive settings
• Contamination, dust, or abrasives are present
• The cylinder runs long, high, or heavy duty cycles
• Examples include mobile and construction equipment, mining machinery, injection molding machines, and steel mill cylinders

A useful rule: if a small leak is an inconvenience, a single-lip seal is often enough. If a small leak is a safety, cleanliness, or downtime problem, the added protection of a double-lip design usually pays for itself.

Material and pressure considerations

Lip count is only one part of seal performance. Material selection matters just as much:

• Polyurethane (PU) offers excellent wear and extrusion resistance and is common in both single- and double-lip rod seals for general hydraulic oils.
• Nitrile (NBR) is economical and works well with mineral oils at moderate temperatures.
• FKM (Viton) handles higher temperatures and aggressive or synthetic fluids.
• PTFE-based lips provide very low friction and wide chemical compatibility, often used in high-speed or high-pressure designs.

At higher pressures, back-up rings and proper clearance control are important to prevent extrusion, regardless of lip count. Always confirm that the seal material is compatible with the hydraulic fluid, temperature range, and operating pressure.

Installation and maintenance tips

Even the best seal fails early if installed poorly. To get full life from either design:

1. Inspect the rod and groove. Check for scratches, pitting, burrs, and sharp edges. A damaged rod will destroy any lip.
2. Use installation tools. Avoid screwdrivers or sharp tools that can nick the lip.
3. Lubricate before assembly. Use clean hydraulic fluid or a compatible assembly lubricant to prevent dry start-up damage.
4. Match the groove dimensions. Use the manufacturer's recommended groove width, depth, and tolerances, especially for double-lip profiles.
5. Keep contamination out. Pair the rod seal with a suitable wiper and keep fluid clean to protect all sealing edges.
6. Monitor for early leakage. A slight film or weeping is an early warning to plan a seal change before it becomes a failure.

The difference between single-lip and double-lip hydraulic rod seals comes down to simplicity versus protection. Single-lip seals deliver low friction, low cost, and easy installation for standard applications. Double-lip seals add a secondary barrier that improves leakage control, stability, and reliability when pressure, contamination, or duty cycle are demanding. Match the seal to the application, confirm material and groove compatibility, and install it carefully, and either design can deliver long, leak-free service.

1. What is the main difference between single-lip and double-lip rod seals?

A single-lip rod seal has one sealing edge against the rod, while a double-lip seal has two. The second lip provides back-up sealing and better control of the oil film that escapes on the outstroke.

2. Are double-lip rod seals always better than single-lip seals?

No. Double-lip seals offer better leakage control and redundancy, but they create more friction and cost more. For clean, moderate-duty cylinders, a single-lip seal is often the better and more economical choice.

3. Do double-lip seals cause more friction?

Yes. Two contact edges generate more drag than one, which can increase heat and cause stick-slip at low speeds. Low-friction materials such as PTFE can offset this in some designs.

4. Can I replace a single-lip rod seal with a double-lip seal?

Only if the groove dimensions and tolerances allow it. Double-lip profiles often need a different groove width or depth, so check the manufacturer's specifications before substituting.

5. How do I know when a rod seal needs replacing?

Watch for oil film or drips on the rod, wet rod wipers, gradual loss of fluid, or sluggish cylinder movement. Early weeping is a sign to schedule a seal change before the leak worsens.
