What are PTFE cap seals, and when should you use them?

PTFE cap seals are two-piece hydraulic seals made of a low-friction PTFE-based sealing ring (the "cap") that is pushed against the sealing surface by an elastomer O-ring energizer. You should use them when a standard rubber seal cannot cope with high speed, low friction requirements, aggressive fluids, or wide temperature swings, such as in servo-hydraulic cylinders, mobile equipment, presses, and systems running water-glycol or biodegradable fluids. Hydraulic seals rarely get attention until something leaks. Yet the choice between a simple elastomer seal and an engineered PTFE cap seal can decide whether a cylinder runs smoothly for years or needs rebuilding every few months. This guide explains what PTFE cap seals are, how they work, where they perform best, and where they are the wrong choice.

What are PTFE cap seals?

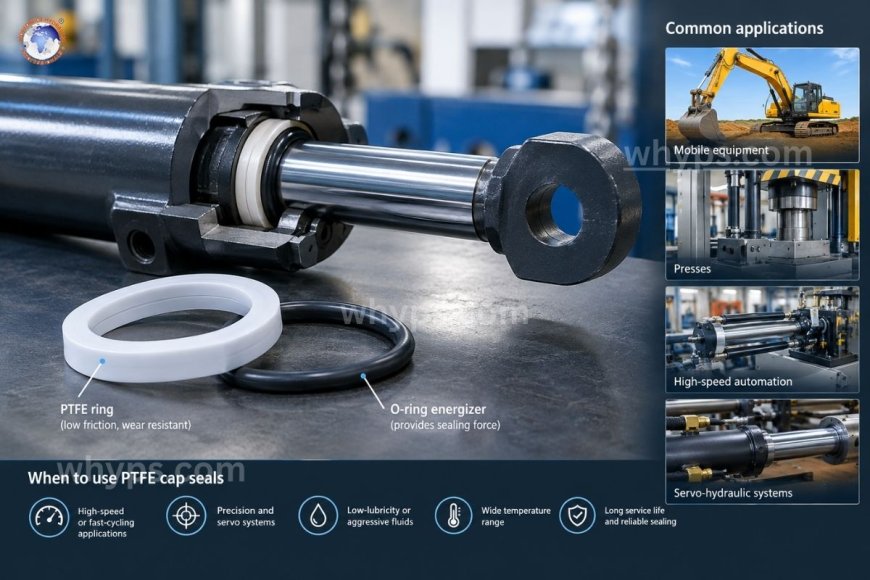

A PTFE cap seal, often called a slipper seal or by trade names such as Glyd Ring (piston) and Step Seal (rod), is a composite seal built from two parts:

• A PTFE or filled-PTFE ring that contacts the moving surface.
• An elastomer energizer, usually an O-ring in NBR, FKM, or EPDM, that sits behind the ring and keeps it pressed against the cylinder wall or rod.

The PTFE ring does the sealing against the moving surface. The elastomer does the springing. Splitting these jobs between two materials lets the seal combine the slipperiness of PTFE with the elastic recovery of rubber, something neither material can deliver alone.

PTFE cap seals are made in several profiles. Piston versions seal against the cylinder bore and are typically double-acting. Rod versions, often called step seals, seal against the piston rod and are usually installed as the primary seal ahead of a secondary lip seal or buffer.

How PTFE cap seals work

The PTFE cap

PTFE has one of the lowest coefficients of friction of any engineering plastic. It is also chemically inert and tolerates a very wide temperature range. Pure PTFE is soft, so manufacturers blend it with fillers such as bronze, glass fiber, carbon, or graphite to improve wear and extrusion resistance. The result is a ring that glides over the metal surface with very little breakaway force.

The elastomer energizer

PTFE alone has poor elastic memory. Once squeezed, it does not spring back. The O-ring behind it solves this by supplying a constant preload that holds the ring against the sealing surface even at zero pressure. As system pressure rises, it acts on the energizer and increases contact force in proportion, so the seal tightens as the load increases.

The O-ring also compensates for small amounts of wear and for minor eccentricity between the piston and bore, which helps the seal stay in contact throughout its life.

Key advantages of PTFE cap seals

Very low friction. Compared with rubber seals, PTFE caps need much less force to start moving and to keep moving. This reduces heat, saves energy, and gives smoother control.

No stick-slip. Because static and dynamic friction are nearly equal, the cylinder moves smoothly at slow speeds instead of jerking. This is critical for positioning accuracy.

High-speed capability. PTFE seals can run at piston speeds far beyond what elastomer seals tolerate, making them a good fit for fast-cycling machinery.

High pressure resistance. With correct fillers, a properly designed groove and tight extrusion gaps, PTFE cap seals can handle pressures that would extrude a rubber seal.

Wide temperature range. PTFE itself works from deep sub-zero conditions to roughly 200°C. The usable range of the complete seal is limited by the energizer, so choose FKM or another suitable compound for heat.

Broad chemical compatibility. PTFE resists nearly all hydraulic fluids, including mineral oils, synthetic esters, water-glycol, fire-resistant fluids, and bio-based oils.

Long service life. Low friction means less wear on both the seal and the metal surface, which extends intervals between rebuilds.

Limitations you should know

PTFE cap seals are not a universal upgrade. Understanding the trade-offs helps you avoid costly mistakes.

• Higher cost. They are more expensive than a basic O-ring or U-cup.
• Less elastic. PTFE does not recover well, so damage during installation can create permanent leak paths.
• Tighter surface requirements. Rods and bores need a good finish, hard plating, and correct tolerances.
• Slight leakage at low pressure. A PTFE ring may seep a little in static conditions compared with a tightly squeezed elastomer, so they are often paired with a secondary seal.
• Creep and cold flow. Under sustained load, unfilled PTFE can deform over time, so compound choice and groove design matter.
• Installation effort. Piston seals must be stretched over the piston and then sized back down, usually with a calibration tool.

When should you use PTFE cap seals?

High-speed and fast-cycling applications

When cylinders move quickly or cycle constantly, friction heat builds up fast. Elastomer seals can burn, harden, or wear out. PTFE caps run cooler and last longer, which is why they appear in injection molding machines, test rigs, and high-cycle automation.

Precision and servo-hydraulic systems

If your application needs accurate positioning or smooth low-speed motion, stick-slip is the enemy. The near-equal static and dynamic friction of PTFE gives a consistent, repeatable response. Servo and proportional valve systems, simulators, and press controls all benefit.

Low-lubricity or aggressive fluids

Water-glycol (HFC), phosphate ester, and some biodegradable fluids provide less lubrication than mineral oil, and some attack standard elastomers. PTFE tolerates these fluids and keeps friction low even when lubrication is limited.

Extreme temperatures

For cold-weather mobile equipment or hot industrial processes, PTFE stays functional where rubber stiffens or degrades. Choose an energizer that matches the temperature, for example, low-temperature NBR for cold or FKM for heat.

High-pressure cylinders

When pressure is high and a rubber seal would extrude into the clearance gap, a filled PTFE ring with anti-extrusion backup rings in the right geometry is a reliable solution.

Long stroke and long life requirements

Where downtime is costly, such as in steel mills, offshore equipment, and heavy presses, the longer life of PTFE seals often outweighs their higher purchase price.

When should you avoid PTFE cap seals?

Standard elastomer seals can be the better choice when:

• The application is low pressure, low speed, and low cost, like a simple jack.
• Zero leakage at standstill is mandatory without any secondary seal.
• Surfaces are rough, damaged, or lack hard plating.
• Installation conditions are cramped, with no way to use proper tools or calibrate the seal.
• The budget does not allow for a premium seal, and the duty cycle is mild.

Using a PTFE seal in the wrong setting is as wasteful as using a basic O-ring in a demanding one.

Choosing the right PTFE compound

The filler determines how the seal behaves:

• Bronze-filled: excellent wear and extrusion resistance for high pressure, but may not suit water-based fluids or soft mating surfaces.
• Glass-filled: good general-purpose choice with chemical resistance, but harder on softer metals.
• Carbon/graphite-filled: low friction and good with water-based fluids and dry conditions.
• Virgin PTFE: very low friction and suited to light duty or when contamination from fillers is not allowed.

Always match the compound to the fluid, pressure, speed, and mating material, and check manufacturer data for limits.

Installation and design best practices

Even the best seal fails if installed badly. Keep these points in mind:

1. Check the groove. Dimensions, corner radii, and surface finish must match the manufacturer's specification.
2. Control the extrusion gap. Excessive clearance can nibble the PTFE edge, so use backup rings at higher pressure.
3. Use installation tools. Sleeves, mandrels, and calibration tools prevent scratches and over-stretching.
4. Keep it clean. Remove burrs and sharp edges and flush out debris before assembly.
5. Protect the rod. Pair the seal with an effective wiper and keep the system fluid clean, because particles score PTFE and metal surfaces alike.
6. Allow recovery time. After stretching a piston seal, let it recover or calibrate it before inserting into the bore.

PTFE cap seals earn their place where speed, precision, temperature, pressure, or fluid chemistry push ordinary seals past their limits. They cost more up front and demand careful installation, yet they typically repay that investment through smoother operation, lower friction losses, and longer service life. For light-duty applications, a basic elastomer seal may be perfectly adequate. The best approach is to evaluate your operating conditions honestly, choose the compound and energizer carefully, and follow proper installation practice.

1. What is a PTFE cap seal?

A PTFE cap seal is a two-piece hydraulic seal consisting of a PTFE-based sealing ring and an elastomer O-ring energizer. The PTFE ring contacts the moving surface with very low friction, while the O-ring provides preload and elastic recovery.

2. What is the difference between a PTFE cap seal and an O-ring?

An O-ring is a single elastomer part that seals through compression, while a PTFE cap seal separates the sealing and energizing functions. This gives the cap seal much lower friction, no stick-slip, higher speed capability, and better resistance to extrusion and chemical attack.

3. Are PTFE cap seals suitable for high-pressure applications?

Yes, when the correct filled PTFE compound is used with proper groove design and tight extrusion gaps. Backup rings are often added at higher pressures to protect the seal edge from nibbling.

4. Can PTFE cap seals be used with water-glycol or biodegradable fluids?

Yes. PTFE is chemically resistant to nearly all hydraulic fluids, including water-glycol and many bio-based oils. Select an energizer compatible with the fluid and consider carbon or graphite-filled compounds for water-based systems.

5. Why do PTFE cap seals sometimes leak after installation?

Common causes include scratches or stretching damage during assembly, poor groove or surface finish, excessive extrusion gaps and failing to calibrate piston seals after stretching. Using proper installation tools and following the manufacturer's dimensions prevents most of these problems.
