Premium AW 32, AW 46, and AW 68 hydraulic oils: product comparison

AW 32, AW 46, and AW 68 hydraulic oils use the same anti-wear additive approach; the real difference is viscosity grade. The numbers are ISO VG ratings, meaning kinematic viscosities of roughly 32, 46, and 68 cSt at 40°C. AW 32 is the thinnest and suits cold starts and lighter-duty or high-speed systems. AW 46 is the all-round standard for most industrial and mobile equipment. AW 68 is the thickest and suits hot ambient conditions, heavy loads, and worn pumps. The right choice depends on operating temperature and the pump manufacturer's specification, not on habit.

What "AW" and the grade numbers mean

AW stands for anti-wear. These oils are mineral-based fluids blended with zinc-based (or ashless) anti-wear additives, rust and oxidation inhibitors, and demulsifiers. They are generally classified as HM or HLP fluids under ISO 11158 and DIN 51524 Part 2. The additive package protects gears, vane pumps, and piston pumps during boundary lubrication, when the oil film thins under load, heat, or start-up conditions.

The grade number is the ISO viscosity grade. Each grade allows a tolerance of about ±10% at 40°C, so AW 46 falls between roughly 41.4 and 50.6 cSt. A higher number means a thicker oil at the same temperature. Because viscosity falls as temperature rises, the same oil behaves very differently in a cold workshop and in a hot, tropical yard.

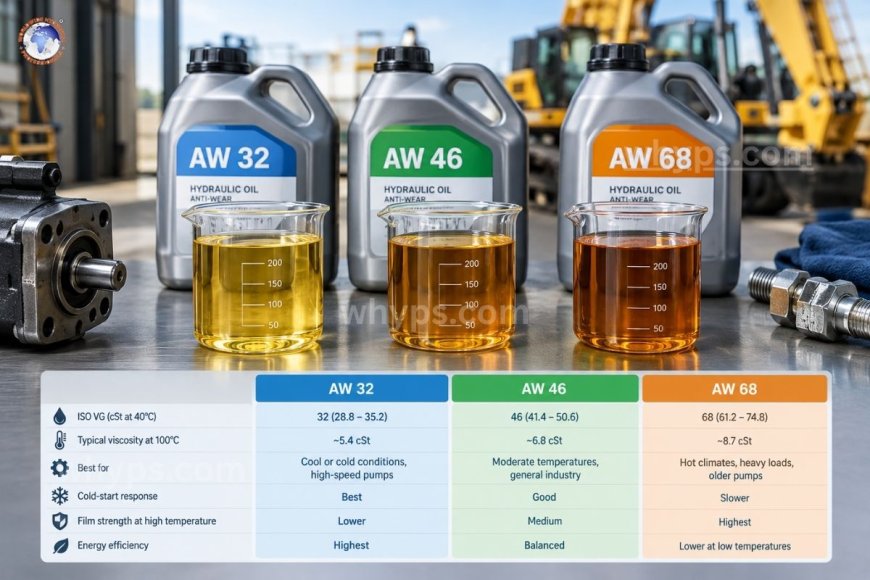

Side-by-side comparison

These figures are typical values. Always confirm exact numbers on the product data sheet.

AW 32 hydraulic oil

AW 32 flows easily, which reduces pump effort and improves response in cold conditions. It is a common choice for indoor machinery in temperature-controlled plants, cold-storage facilities, outdoor equipment in winter, and high-speed, low-pressure systems.

Strengths: fast cold-start circulation, lower energy loss from fluid friction, and quick actuator response.

Limitations: at high operating temperatures the film can thin too much, which raises internal leakage and wear risk. Systems that regularly run above about 60°C reservoir temperature are usually better served by a thicker grade.

AW 46 hydraulic oil

AW 46 is the most widely specified grade for a reason. It offers a workable balance between cold-start behavior and high-temperature film strength. Injection molding machines, hydraulic presses, machine tools, power packs, and many excavators and loaders are designed around it.

Strengths: broad temperature tolerance, wide OEM approval, and easy availability. If a manual says "mineral hydraulic oil" without a grade, AW 46 is frequently the intended baseline.

Limitations: it is a compromise. In very cold regions it can be sluggish at start-up, and in extremely hot conditions it may thin more than the system tolerates.

AW 68 hydraulic oil

AW 68 delivers the thickest protective film of the three. It is used in hot climates, in systems with high duty cycles, and in equipment with some internal wear, where a thicker oil helps maintain volumetric efficiency. Heavy mobile equipment working in high ambient temperatures, large presses, and older gear pumps often run on AW 68.

Strengths: strong film at elevated temperatures, reduced internal leakage in worn components, and good load-carrying protection.

Limitations: cold-start viscosity can be high enough to cause cavitation, sluggish response, and extra heat generation. Using AW 68 in a cool environment wastes energy and can starve the pump.

What makes an oil "premium"

Two oils sharing the same ISO grade can perform very differently. Premium formulations typically distinguish themselves in several ways:

• Higher-quality base oils with better oxidation stability, which slows sludge and varnish formation.
• Balanced additive chemistry that protects against wear without forming deposits or attacking yellow metals.
• Stronger demulsibility, so water separates quickly in the reservoir instead of emulsifying.
• Good air release and low foaming, which protects pumps from cavitation and aeration.
• Higher filterability, so fine filters do not clog prematurely.
• Shear-stable viscosity, particularly where viscosity index improvers are used.
• Longer drain intervals when backed by regular oil analysis.

Premium oil costs more per liter, but the savings usually show up in fewer filter changes, less downtime, and longer component life.

How to choose the right grade

Start with the equipment manual

The pump or system manufacturer's viscosity recommendation takes priority. Warranty terms often depend on it.

Match viscosity to operating temperature

Most pumps perform best when oil viscosity at operating temperature stays within a recommended window, commonly around 16 to 36 cSt, with an optimum near 25 to 30 cSt. Check the viscosity-temperature chart on the oil data sheet and compare it against your actual reservoir temperature, not only the ambient temperature.

Consider climate and duty cycle

A machine working outdoors in a hot, humid region with long daily run hours often needs a heavier grade than an identical machine in a cool factory. Likewise, intermittent cold starts favor the thinner option.

Factor in pump type and condition

Piston pumps are generally less forgiving of low viscosity, while vane pumps are sensitive to wear and anti-wear performance. A worn pump may regain efficiency with the next grade up, but only if cold-start and cavitation limits are respected.

Common mistakes to avoid

• Choosing by price or availability alone. A grade mismatch can cost far more than the oil saves.
• Going thicker "for protection." Excess viscosity increases heat and energy use and can cause cavitation.
• Mixing grades or brands without checking compatibility. Additive conflicts can cause foaming or deposits.
• Ignoring contamination control. Even the best oil cannot protect a system with poor filtration and breathers.
• Skipping oil analysis. Viscosity, acid number, water content, and particle counts reveal degradation before it causes failure.

AW 32, AW 46, and AW 68 are variations of the same protective chemistry, tuned for different temperature and load conditions. AW 32 favors cold starts and efficiency, AW 46 serves as the dependable general-purpose choice, and AW 68 provides added film strength for hot, heavy-duty work. Select the grade by manufacturer guidance and real operating temperature, invest in a quality formulation, and back it up with clean handling and routine oil analysis.

1. What is the main difference between AW 32, AW 46, and AW 68 hydraulic oil?

The difference is viscosity. AW 32, 46, and 68 have kinematic viscosities of about 32, 46, and 68 cSt at 40°C. The anti-wear additive technology is similar across the three.

2. Can I use AW 68 instead of AW 46 in my hydraulic system?

Only if the manufacturer allows it and the system runs hot enough to stay within the pump's viscosity window. In cooler conditions, AW 68 can cause sluggish response, cavitation, and extra heat.

3. Which grade is best for hot climates?

AW 46 or AW 68 is typically preferred, depending on reservoir temperature, duty cycle, and pump type. Verify against the viscosity-temperature curve and the equipment manual.

4. Can different AW grades be mixed?

Mixing grades of the same oil family produces an intermediate viscosity, but it is not good practice. Different brands may use incompatible additives, so drain and flush when changing grade or product.

5. How often should AW hydraulic oil be changed?

Intervals depend on operating hours, temperature, and contamination control. Many systems are changed every 2,000 to 4,000 hours, but oil analysis is the best way to set a condition-based interval.
