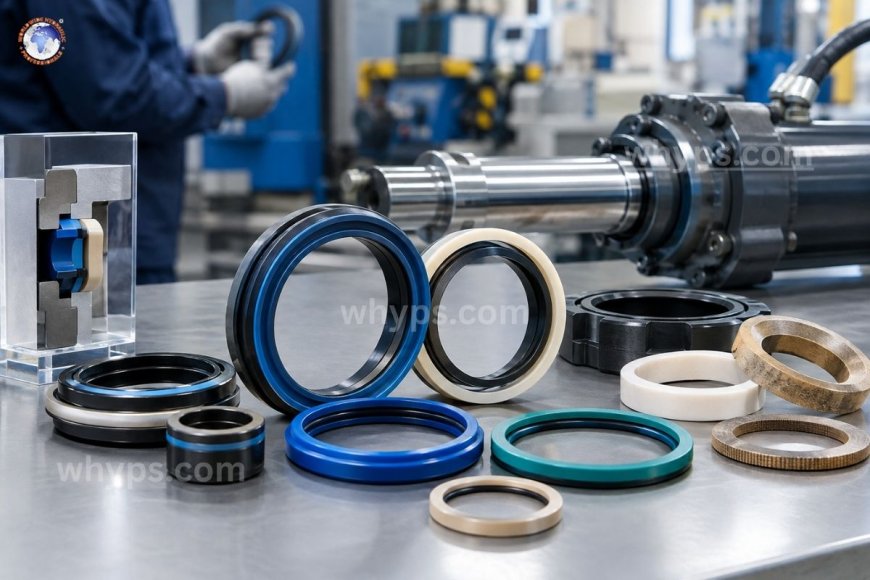

Next-generation hydraulic seals: advanced materials for high-pressure and low-friction applications

Next-generation hydraulic seals rely on advanced materials such as filled and modified PTFE, high-performance polyurethane, PEEK backup rings, hydrogenated nitrile (HNBR), and fluoroelastomers (FKM), often combined in multi-material designs. These materials resist extrusion at very high pressure, reduce friction and stick-slip, tolerate wider temperature ranges, and last longer than conventional NBR and standard polyurethane seals. Hydraulic machinery keeps getting more demanding. Designers shrink components while raising operating pressure, cycle rates increase, and equipment runs in hotter, colder, and dirtier environments than ever before. The seal is often the first component to feel the strain. A small ring of polymer can decide whether a cylinder holds position, whether a servo valve responds cleanly, and whether a machine stays productive. This article explains the advanced materials and design strategies reshaping hydraulic sealing and how to apply them.

Why conventional seals are reaching their limits?

Standard NBR and basic polyurethane seals have served the industry for decades, and they remain a sound choice for moderate-duty systems. However, several trends push them beyond their comfort zone:

• Higher pressure: As pressure rises, the clearance gap between piston and bore becomes a path for seal extrusion, which nibbles away the seal edge.
• Faster cycling: Higher speeds raise frictional heat, which accelerates hardening and wear in softer elastomers.
• Wider temperature windows: Outdoor, mining, and offshore equipment may face deep cold and high heat in the same machine.
• Aggressive fluids: Bio-based oils, fire-resistant fluids, and synthetic esters can attack materials that work well in mineral oil.
• Longer service expectations: Owners want fewer shutdowns, so seals must last through extended maintenance intervals.

Advanced materials driving the change

Filled and modified PTFE

PTFE has one of the lowest friction coefficients of any engineering polymer and resists almost every hydraulic fluid. Pure PTFE tends to creep under load, so manufacturers blend it with fillers such as bronze, carbon, glass fiber, or graphite. These fillers improve wear resistance, reduce cold flow, and raise load capacity while keeping friction low. Modified PTFE grades add further gains in extrusion resistance and dimensional stability. Because PTFE has little natural elasticity, it is normally energized by an O-ring or spring, which supplies the sealing force.

High-performance polyurethane

Modern polyurethane formulations offer outstanding abrasion and tear resistance, which makes them a favorite for rod seals, wipers, and heavy-duty piston seals. Newer grades improve resistance to hydrolysis (breakdown in the presence of water) and to heat, which were traditional weak points. Polyurethane also has excellent extrusion resistance compared with conventional rubber compounds, making it well suited to shock-loaded applications such as excavators and presses.

PEEK and engineered thermoplastics

Polyether ether ketone (PEEK) is rarely used as the sealing element itself. Instead, it shines as a backup ring or anti-extrusion element. Its high stiffness and strength let it bridge large clearance gaps under extreme pressure while tolerating high temperatures. Other engineered thermoplastics, such as polyamides and polyacetal, serve as guide rings and wear rings.

HNBR and FKM elastomers

HNBR improves on standard nitrile with better heat resistance, ozone resistance, and mechanical strength, while staying cost-effective. FKM (fluoroelastomer) handles higher temperatures and tolerates a broad range of fluids, including many synthetic and fire-resistant types. Specialty compounds such as low-temperature FKM and EPDM (for phosphate-ester or brake-type fluids) fill specific niches. Always confirm fluid compatibility, since the best elastomer for one fluid can fail quickly in another.

Designing for high-pressure performance

Material alone does not solve high-pressure sealing. Geometry matters just as much:

• Backup rings: PEEK or hard polyurethane rings placed on the low-pressure side of the seal close the extrusion gap and protect the sealing element.
• Tight clearance control: Smaller extrusion gaps allow higher pressure ratings, so accurate machining of the bore, rod, and gland is essential.
• Optimized lip geometry: Modern profiles shape the contact stress curve so the seal builds sealing force as pressure rises without excessive drag at low pressure.
• Pressure relief features: Some rod seal systems use a secondary seal or relief design to prevent pressure trapping between stages, which can cause damage.

A well-engineered system uses these design elements together with the right material, rather than depending on one or the other.

Low-friction technology

Low friction is not only about efficiency. In precision hydraulics, friction causes stick-slip, the jerky movement that occurs when static friction exceeds dynamic friction. Servo-hydraulic systems, test rigs, and robotic equipment depend on smooth, repeatable motion.

PTFE-based seals lead in this area because their static and dynamic friction values sit close together. Advanced designs add surface features, such as micro-texturing and optimized contact widths, to hold a thin lubricating film and reduce wear. Lower friction also means less heat, which extends fluid life and protects nearby elastomers. For energy-conscious operations, reduced seal drag can contribute to measurable savings in pump load over millions of cycles.

Composite and multi-material seal designs

Many of the best-performing seals today combine materials so each does what it does best. A typical piston seal might use a PTFE-based sliding element for low friction, an elastomer energizer for consistent preload, and PEEK backup rings for extrusion protection. Rod seal systems often stack a buffer seal, a primary seal, and a wiper, each tuned for a different job: absorbing pressure spikes, sealing the oil, and excluding dirt.

This modular approach lets engineers tailor performance to the application rather than accept compromises in a single-material seal.

Selecting the right material

When choosing an advanced seal, work through the operating conditions in order:

1. Pressure and shock loads: Define both working pressure and peak spikes, since spikes drive extrusion.
2. Temperature range: Consider ambient conditions plus frictional heat in the seal zone.
3. Fluid type: Verify compatibility with mineral oil, water-glycol, HFC, HFDU, or bio-based fluids.
4. Speed and stroke: High speed favors low-friction PTFE-based designs.
5. Contamination level: Dirty environments call for a robust wiper and abrasion-resistant polyurethane.
6. Surface finish and hardware: Rod and bore finish strongly influence seal life, so match the seal to the surfaces available.

If an application falls outside normal ranges, consult the seal manufacturer, since material data sheets and application guides provide limits that general rules cannot.

Installation and maintenance considerations

Even the most advanced seal fails if installed poorly. PTFE-based seals in particular need careful handling because they do not stretch like rubber. Use proper installation tools and sizing sleeves, protect seals from sharp threads and edges, keep components clean, and lubricate with compatible fluid during assembly. Check gland dimensions and surface finish before installation.

In service, maintain fluid cleanliness, monitor operating temperature, and watch for early signs of leakage. Clean oil is one of the most effective ways to protect seals of any material.

What comes next

Seal development continues in several directions. Improved polymer blends aim to extend temperature and pressure limits. Better fluid compatibility supports the shift toward biodegradable and fire-resistant fluids. Additive manufacturing is opening faster prototyping and custom geometries. Condition monitoring, including sensors that track temperature and leakage, may eventually let operators schedule seal replacement before failure occurs.

1. What is the best material for high-pressure hydraulic seals?

There is no single best material. High-pressure systems typically combine a sealing element, such as polyurethane or filled PTFE, with PEEK backup rings that prevent extrusion. The right choice depends on pressure, temperature, fluid, and speed.

2. Why is PTFE used for low-friction hydraulic seals?

PTFE has an extremely low friction coefficient, and its static and dynamic friction are similar, which reduces stick-slip. It also resists most hydraulic fluids and handles wide temperature ranges.

3. What is the purpose of a PEEK backup ring?

A PEEK backup ring fills the clearance gap on the low-pressure side of a seal. Its strength and stiffness stop the sealing element from extruding into the gap under high pressure.

4. Are advanced hydraulic seals worth the higher cost?

In demanding applications, usually yes. Longer service life, fewer leaks, and reduced downtime often outweigh the higher purchase price. For light-duty systems, conventional seals may remain the more economical choice.

5. How do I know if a seal material is compatible with my hydraulic fluid?

Check the manufacturer's compatibility charts and data sheets for your specific fluid, including additives. When in doubt, request guidance from the seal supplier or run a compatibility test before committing to a full installation.
