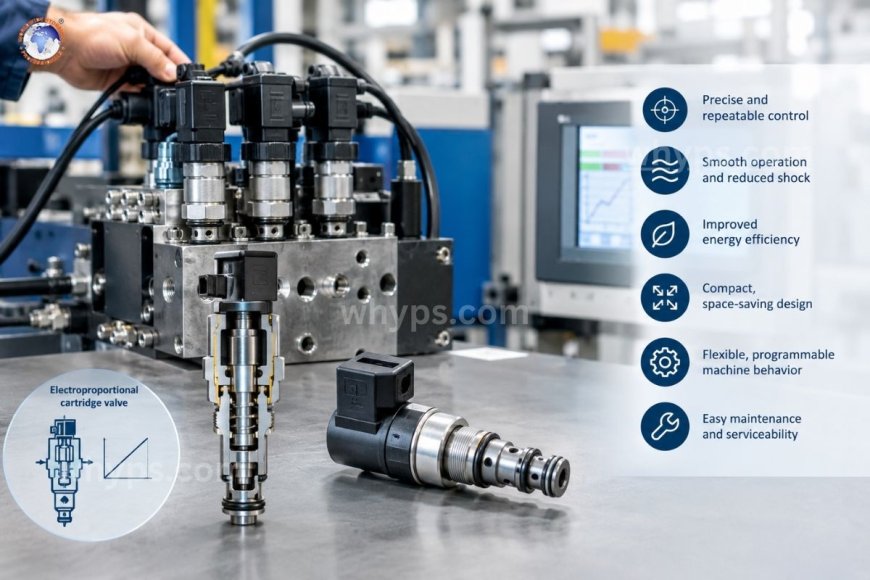

What are electroproportional cartridge valves, and what are their benefits?

Electroproportional cartridge valves are compact hydraulic valves, installed in a manifold cavity, that use a proportional solenoid to continuously vary flow, pressure, or direction in step with an electrical command signal. Unlike on/off valves, they modulate rather than snap open or shut, which delivers smoother motion, tighter process control, lower energy loss, and a smaller footprint in both mobile and industrial machinery.

Understanding electroproportional cartridge valves

Modern hydraulic machines are expected to do more than simply push and pull. Presses must follow pressure profiles, excavators need fine implement control, and injection molding machines demand repeatable speeds from one shot to the next. Meeting these demands with basic switching valves is difficult, which is why electroproportional cartridge valves have become a core building block of advanced hydraulic circuits.

A cartridge valve is a functional valve element, such as a poppet, spool, or seat assembly, that is designed to be threaded or inserted into a standardized cavity machined in a manifold block. The word "electroproportional" tells you how it is actuated: an electrical current drives a proportional solenoid, and the valve's output changes in proportion to that current. Increase the signal, and the valve opens further or raises the pressure setting. Reduce it, and the output falls smoothly.

How electroproportional cartridge valves work

Understanding the working principle makes it easier to see why these valves perform so well.

The proportional solenoid

A proportional solenoid differs from a standard on/off solenoid. Its design produces a force that is nearly linear with the coil current across its working stroke. A control signal, commonly 0 to 10 V or 4 to 20 mA, is converted by an amplifier into a pulse-width-modulated coil current. The resulting solenoid force acts on the valve element, or on a pilot stage, to set its position or spring compression.

The valve element

Depending on the function, the cartridge may contain a spool, a poppet, or a combination of both. Poppet designs offer very low internal leakage and excellent load-holding. Spool designs allow finer metering and are common in flow and directional functions. In larger sizes, a small proportional pilot stage controls a main stage, so a low-power solenoid can govern high flow rates.

Amplifiers and feedback

Most systems pair the cartridge with an electronic amplifier or a machine controller. Some valves add position feedback through an integrated LVDT sensor, allowing closed-loop control that compensates for friction, temperature, and pressure variations. Dither, a small high-frequency oscillation applied to the coil current, is often used to reduce stiction and hysteresis, which improves response and repeatability.

Main types of electroproportional cartridge valves

Electroproportional technology is available across all three basic hydraulic functions.

• Proportional pressure control cartridges: These include relief and reducing valves whose pressure setting follows the electrical signal. They allow pressure ramps, multi-level pressure settings, and remote adjustment without manual spring changes.
• Proportional flow control cartridges: These meter flow according to the command signal, often with pressure compensation so actuator speed stays consistent even when load changes.
• Proportional directional cartridges: These shift a spool progressively to direct and meter oil to an actuator, combining direction and speed control in a single element.
• Proportional 2-way poppet or slip-in elements: Used for large flows, they act as high-capacity, low-leakage metering or logic elements piloted by a small proportional valve.

Key benefits of electroproportional cartridge valves

Precise and repeatable control

Because output follows the input signal continuously, operators and controllers can set exact speeds, forces, and pressure levels. With good amplifier tuning and clean fluid, repeatability from cycle to cycle is excellent, which is vital in applications such as plastic injection molding, metal forming, and test rigs.

Smooth operation and reduced shock

On/off valves create abrupt flow changes that generate pressure spikes, noise, and mechanical stress. Proportional cartridges allow programmable ramps for acceleration and deceleration. The result is gentler starts and stops, less hydraulic hammer, reduced wear on seals, hoses, and fittings, and a more comfortable ride in mobile equipment.

Improved energy efficiency

When a valve can match flow and pressure to the actual demand, less oil is dumped over a relief valve as heat. Proportional pressure control, load-sensing arrangements, and metered flow all help reduce wasted energy. Lower heat generation also eases the burden on coolers and extends oil life.

Compact, space-saving design

Cartridge valves sit directly in a manifold, eliminating many external pipes, fittings, and subplate-mounted bodies. A single integrated manifold can hold several proportional functions in a fraction of the space needed by conventional line-mounted valves. Fewer connections also mean fewer potential leak points.

Flexible, programmable machine behavior

Since the valve is controlled electronically, its behavior can be changed in software. Operators can store different pressure or speed profiles for different products or tasks without touching the hydraulics. Integration with PLCs, CAN bus networks, and mobile machine controllers makes these valves a natural fit for automated and smart systems.

Easy maintenance and serviceability

A cartridge can usually be removed and replaced without disturbing pipework. Standardized cavities also give designers freedom to change a function by swapping the cartridge rather than redesigning the manifold. This shortens downtime and simplifies spare parts management.

Low leakage and strong load holding

Poppet-style cartridges seal tightly, helping actuators hold loads without drifting. This is valuable in lifting, clamping, and safety-critical circuits where position stability matters.

Common applications

Electroproportional cartridge valves are widely used in:

• Mobile equipment such as excavators, cranes, loaders, and aerial work platforms
• Injection molding and die-casting machines
• Hydraulic presses and metal forming equipment
• Agricultural and forestry machinery
• Test benches and industrial automation systems
• Marine and offshore deck equipment

What to consider when selecting one

Choosing the right valve involves more than matching port size.

• Rated flow and pressure: Confirm maximum flow at the expected pressure drop and the highest system pressure, including spikes.
• Cavity standard: Check that the cartridge matches the cavity profile, such as common screw-in or ISO slip-in formats.
• Response and hysteresis: Review step response time, hysteresis, and repeatability against your control accuracy needs.
• Electrical interface: Match coil voltage, command signal type, and amplifier requirements, and decide whether on-board electronics or position feedback is needed.
• Fluid compatibility and cleanliness: Check seal materials and the recommended ISO 4406 cleanliness level, since proportional valves are more sensitive to contamination than simple switching valves.
• Environmental conditions: Consider temperature range, vibration, moisture, and the required ingress protection rating.

Maintenance and best practices

Proportional valves reward good housekeeping. Keep oil clean through proper filtration, because particles can cause spool sticking and drift in performance. Monitor oil temperature and viscosity, as both affect response. Check coil connections and wiring for corrosion or damage, and periodically verify amplifier settings such as minimum current, maximum current, ramps, and dither. Use correct torque when installing cartridges to avoid distorting the body, and replace O-rings and back-up rings whenever a cartridge is removed. If performance drifts, test the valve with a known current signal before assuming the cartridge has failed.

Electroproportional cartridge valves bring electronic precision to hydraulic power. By modulating flow, pressure, and direction in direct proportion to an electrical signal, they give machine designers smoother motion, better efficiency, and highly repeatable performance in a compact, serviceable package. When specified correctly and supported by clean oil and well-tuned electronics, they help hydraulic systems meet the demands of modern automation and mobile equipment.

1. What is the difference between a proportional valve and a standard solenoid valve?

A standard solenoid valve is either fully on or fully off. A proportional valve changes its output continuously in relation to the electrical signal, allowing variable speed, force, or pressure control.

2. Do electroproportional cartridge valves need an amplifier?

Yes, in most cases. The amplifier converts a low-power command signal into the controlled coil current. Some valves have on-board electronics built in, while others use an external amplifier card or machine controller output.

3. Are electroproportional cartridge valves sensitive to contamination?

They can be more sensitive than basic switching valves because small particles may cause spool sticking or hysteresis. Following the manufacturer's recommended cleanliness code and using quality filtration is important.

4. What is dither, and why is it used?

Dither is a small, high-frequency oscillation added to the coil current. It keeps the valve element in slight motion, reducing static friction and improving response and repeatability.

5. Can electroproportional cartridge valves replace manually adjusted relief or flow valves?

In many circuits, yes. They allow remote and programmable adjustment of pressure and flow, which removes the need for manual setting and makes it easy to change machine behavior through the control system.
