What are spring-energized PTFE seals, and where are they used?

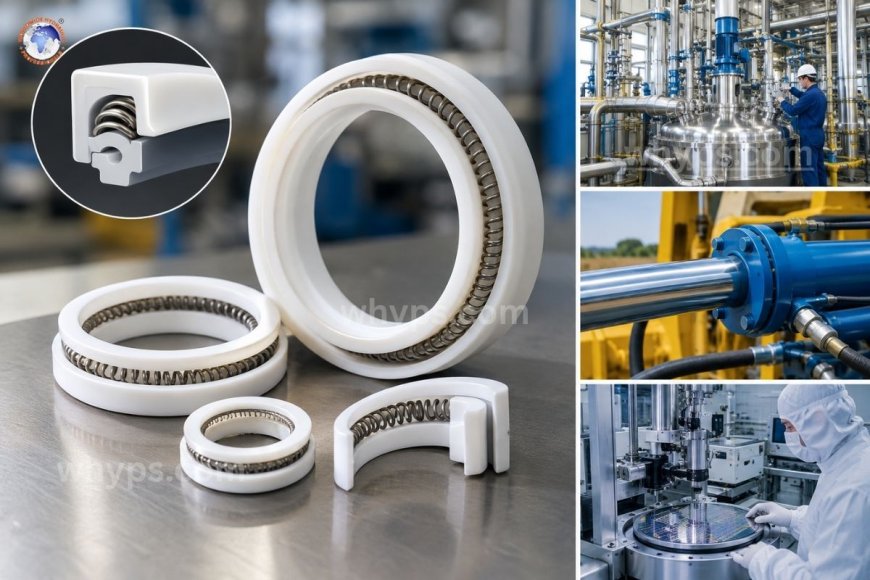

Spring-energized PTFE seals are sealing elements made of a PTFE (polytetrafluoroethylene) jacket with a metal spring inside it. The spring pushes the jacket lips against the sealing surfaces, so the seal holds at low pressure in extreme temperatures and in aggressive chemicals, where rubber seals harden, swell, or fail. They are used in chemical processing, semiconductors, oil and gas, aerospace, cryogenic, food and pharmaceutical, and demanding hydraulic applications. Standard elastomer seals such as NBR and FKM work well in many hydraulic systems, but they have limits. They age, swell in some fluids, become brittle in the cold, and can break down in harsh chemicals. PTFE handles those conditions very well, but the material has no natural elasticity. Spring-energized seals solve that problem by pairing the chemical and thermal strength of PTFE with the constant force of a metal spring.

How a spring-energized PTFE seal works

A spring-energized seal has two main parts: the jacket and the energizer.

The jacket is a machined or molded PTFE body, usually U-shaped in cross-section. It forms the sealing lips that contact the shaft, rod, bore, or flange face.

The energizer is a metal spring seated in the open channel of the jacket. It does two jobs:

• It supplies the initial sealing force. PTFE does not spring back the way rubber does, so the spring presses the lips outward and the seal makes contact even at zero system pressure.
• It compensates for wear and movement. As the lip wears or the shaft shifts, the spring keeps pushing the lip against the mating surface.

Once the system pressurizes, fluid enters the jacket cavity and adds to the spring force. Higher pressure therefore produces a tighter seal, the same self-energizing principle used in conventional U-cup seals.

Types of springs used

The spring choice changes how the seal performs, so it is one of the key design decisions.

Cantilever (V-Spring)

A formed metal strip with a V-shaped profile. It gives high loading and is the usual choice for high-pressure and static sealing, as well as cryogenic work, where the strong preload keeps the seal in contact as materials shrink.

Helical spring

A coil spring that delivers light, even loading with low friction. It suits slow dynamic motion and applications where low breakaway torque matters.

Canted-coil spring

A coil spring with slanted coils, which produces a nearly constant force over a wide range of deflection. It handles tolerance variation, frequent cycling, and rotating service.

Spring material matters too. Stainless steels such as 301 and 316 are common general-purpose choices, while corrosive media call for high-nickel alloys such as Elgiloy, Hastelloy, or Inconel.

PTFE jacket materials

Pure PTFE is soft and can cold-flow, meaning it slowly deforms under constant load. Seal makers therefore blend in fillers to improve strength and wear resistance:

• Virgin PTFE: Best chemical resistance and lowest friction. Often required for food, pharmaceutical, and ultra-pure applications, and gentle on soft mating surfaces.
• Glass-filled PTFE: Better wear and creep resistance for general use, though it can be abrasive on soft surfaces.
• Carbon- and graphite-filled PTFE: Good wear resistance and thermal conductivity, well suited to dry-running and higher-speed conditions.
• Bronze-filled PTFE: High load capacity and good heat dissipation for demanding dynamic hydraulic service.

The right filler depends on the fluid, mating surface hardness and finish, speed, and pressure. Always check filler compatibility with the media.

Key advantages

• Wide temperature range: Depending on grade and spring, these seals operate from cryogenic temperatures to roughly 260°C, conditions where most elastomers fail.
• Outstanding chemical resistance: PTFE resists almost all industrial chemicals, solvents, acids, and fuels.
• Low friction and no stick-slip: Less heat and energy loss, plus smooth movement at low speed, which helps precision and servo-controlled hydraulics.
• Long service life: Little swelling or aging, and the spring compensates for wear, which reduces downtime.
• Excellent shelf life: PTFE does not harden or crack in storage, so spare seals stay ready for use.

Limitations to keep in mind

• Higher cost. The saving comes from longer life and less downtime, not a lower purchase price.
• Tighter hardware requirements. Mating surfaces need the right hardness and finish, or the seal wears quickly and leaks.
• Installation care. PTFE does not stretch back like rubber, so closed grooves need care. Many designs use open or split grooves or special tools.
• Cold flow. Even with fillers, PTFE can creep under sustained load, so groove dimensions and design must control it.

Where spring-energized PTFE seals are used

Chemical and process industries. Pumps, valves, mixers, and reactors handle acids, solvents, and caustic fluids that attack elastomers.

Semiconductor manufacturing. Wafer processing uses aggressive gases and cleaning chemicals and demands very low contamination, so high-purity virgin PTFE seals with corrosion-resistant springs are common.

Oil and gas. Downhole tools, wellheads, valves, and subsea equipment see high pressure, high temperature, and corrosive media.

Aerospace and cryogenics. Aircraft fuel and hydraulic systems and LNG or rocket equipment run at extreme temperatures. Elastomers turn brittle in the cold, while spring-energized PTFE keeps contact.

Food, beverage, and pharmaceuticals. FDA-compliant PTFE grades support clean, non-contaminating sealing in filling and dosing equipment, including systems that go through high-temperature cleaning and sterilization.

Hydraulic and pneumatic equipment. In hydraulic cylinders, servo valves, and rotary joints, low friction and high pressure capability support precise control and long life, especially with fluids that are hard on standard seals.

Medical, automotive, and general industry. Medical devices, fuel and air-conditioning systems, compressors, and industrial valves use them where reliability or chemical resistance outweighs unit cost.

How to choose the right seal

1. Fluid compatibility: Confirm both the jacket and the spring material against the media.
2. Temperature range: Include startup, shutdown, and peak excursions.
3. Pressure level and spikes: Higher pressure often calls for a cantilever spring and backup support.
4. Motion type and speed: Static, reciprocating, rotary, and oscillating duty favor different profiles, springs, and fillers.
5. Hardware condition: Check mating surface hardness, finish, and groove dimensions.
6. Approvals: Food, pharma, and semiconductor use may require specific purity or regulatory grades.

When in doubt, share the full operating data with the seal supplier. A small change in spring type or filler can make a large difference in service life.

Spring-energized PTFE seals combine the chemical resistance, wide temperature range, and low friction of PTFE with the reliable force of a metal spring. They are not the cheapest option, but in harsh, critical, or hard-to-service applications, they usually cost less over the life of the equipment than repeated seal replacements and unplanned downtime.

1. What is a spring-energized PTFE seal?

It is a seal with a PTFE jacket and an internal metal spring. The spring presses the jacket lips against the mating surface, keeping the seal effective at low pressure and as it wears.

2. Why is a spring needed in a PTFE seal?

PTFE has very little natural elasticity and can cold-flow. The spring provides the constant loading force that rubber would normally supply and compensates for wear.

3. What temperature range can these seals handle?

Depending on the PTFE grade and spring, it can go from cryogenic temperatures to about 260°C, much wider than most elastomer seals.

4. Where are spring-energized PTFE seals most commonly used?

In chemical processing, semiconductor equipment, oil and gas, aerospace and cryogenic systems, food and pharmaceutical machinery, and demanding hydraulic equipment.

5. Are spring-energized PTFE seals better than elastomer seals?

They are better where chemical resistance, temperature extremes, low friction, or long life matters most. For mild, low-cost applications, elastomer seals are often sufficient and cheaper.
