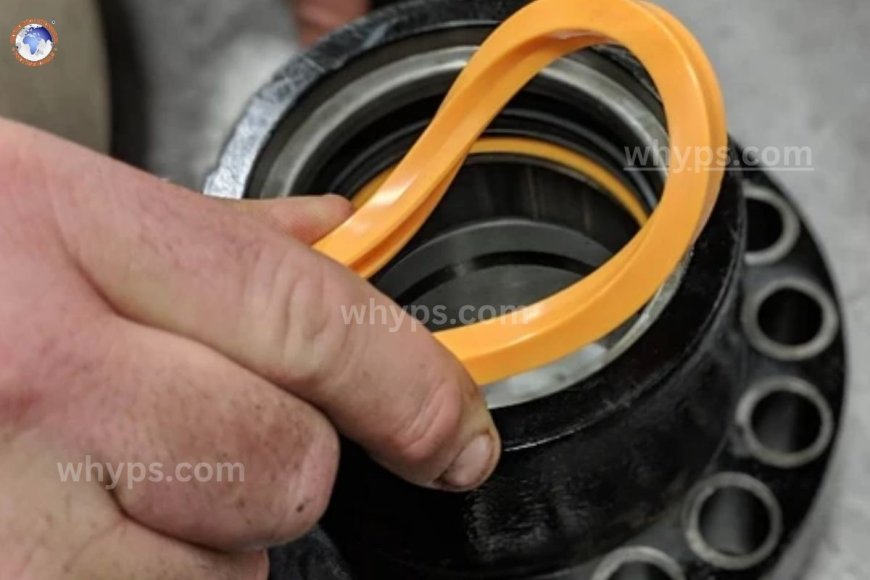

4 Simple mistakes killing your cylinder seals

A technician detects tiny rod leaks on a backhoe. He installs a new seal kit, then restores the machine to service. A routine service takes a couple of hours. In 2 weeks the engine starts crying again. This time, the fluid is gritty and dark.

The rod is visible with a score line running along the entire length of its stroke zone, and the bore of the gland displays circular scratching that wasn't present before. What began as a normal sealing job has now become an entire cylinder rebuild. The seal was not the issue. The root of the issue was not recognized, which exacerbated both the damage as well as the repair costs.

Four different conditions are responsible for most failures of seals on hydraulic cylinders in agriculture, construction, and fleet machinery. Each has its own unique signature of failure, and each requires a different correction prior to a new seal kit to have any chance of being able to hold.

1. Ingress of contaminants through seal lips

A seal failure caused by contamination appears as a circumferential score in the rod and wiper seal zone. It is common to find a metallic or gritty fluid with suspended particles.

Seal lips degrade in a fraction of their intended service life, and tiny circular scratches on the surface of the gland bore are visible when viewed under a light. The issue appears like premature wear; however, the cause is in fact the fluid.

Take the rod seal off and the wiper to look at the seal's lip under a magnifying glass. The abrasive micro-cuts are sharp and directional, whereas compression deformation is smooth and uniform. The two distinct physical patterns suggest completely different underlying causes.

Then, you should check the cleanliness of your fluid by comparing it to ISO 4406 target ranges. Most hydraulic systems require ISO 16/14/11 or cleaner, and contamination that is above this threshold directly correlates with any acceleration observed in wear on seals.

Examine the condition of the filter, check the bypass indicator, filter condition, and the breather cap. Check reservoir fill points and rod boot seals to determine pathways to ingress. Prevention requires maintaining filter service intervals using high-collapse-resistance elements rated to system pressure.

Install rod wipers that are rated specifically for the operating conditions. Sand, mud, and construction debris require different specifications for wipers. Sealed reservoir breathers are a standard procedure in logging, mining, and road grading settings in which airborne contamination is constant.

2. Overlooking the surface of the rod and plating the rod surface.

If seals fail on a regular basis even after correct installation and demonstrably clear fluids, then the rod's surface is in need of immediate inspection. A visible pitting, chrome flaking, or longitudinal marking on the rod swiftly ruins the new seals, whereas an uneven film of oil following extension typically shows streaks of dryness or dry patches. Leaks that get worse over a brief period of working hours suggest that the finish of the rod has deteriorated and is cutting the new seal lips.

Clean the rod and examine it in direct light to check for spalling, pitting, or delamination of chrome. Any damage to the surface sufficiently sharp to catch the fingernail could cause damage to seal lips during service. Verify rod straightness with V-blocks or an indicator dial.

Runout beyond manufacturer-specified tolerances indicates a bending load or misalignment that will continue destroying seals regardless of kit quality. Examine the mounting pins, bushings, and rod-end bearings to determine the extent of play. The worn-out pivot hardware causes side load that increases wear on the seal asymmetrically.

Replace or re-chrome rods that have obvious surface damage before putting in new seals. Installing a good seal kit on damaged rods is a waste of the parts and the labor.

Replace worn pins and bushings in the same manner to seal the cylinders, rather than performing repairs in stages. In road grading and logging applications, examine the rod's surface condition and pivot hardware with shorter intervals because of the tension generated by the contact with terrain.

3. Inattention to pressure spikes and problems with cushioning

When seals are broken, extruded, or blown, instead of gradually worn, the failure mechanism changes from mechanical abrasion to pressure overload. The displacement of backup rings and the sudden leaks in cylinders that occur following a heavy-impact load event indicate systemic issues. Seals that fail frequently after the stroke can be an indication that the pressure system requires examination.

Examine the damaged seal's geometry thoroughly. Extrusion from clearance gaps typically is seen as cutting or peeling of the surface. This is one of the main causes of failing in applications that are dynamic. These marks are distinct from the gradual thinning caused by wear caused by abrasion.

Examine the valve's system relief setting and its function. A valve that is set over the cylinder seal's pressure rating will transmit pressure spikes direct to the valve with no attenuation.

Examine cylinder cushions and check valves at the stroke's end. Cushion valves that are restricted or stuck allow full velocity impacts at the end of the stroke, causing malfunctions in high-cycle telehandlers and wheel loader systems. Check and set the relief valve pressure to be at or below the design of the cylinder seal limits prior to installing a rebuilt cylinder.

Replace or service the cushion assemblies with each cylinder rebuild instead of just waiting until symptoms manifest. Use seals with ratings for pressure or backup ring designs that are matched to the pressure range of operation. range.

4. Dimensions match, not operating conditions

Seals that expand or soften or create the appearance of tackiness on the surface are a sign of an incompatibility with fluid. Seals that crack, harden, or lose elasticity are signs of thermal degradation or a material that is not operating within its temperature range. If you are looking for signs of thermal degradation, look for a compression set.

This measure measures how much the seal hasn't recovered after compression in the 100 percent number, which means no recovery from the size it was in its initial form. Seals that have been compressed often display obvious discoloration or expand beyond the clearance limit, which proves that the material itself is not correct.

First, identify the fluid in use that you are looking for, such as water-glycol-based, petroleum-based, biodegradable, or phosphate ester. Compare this information with seal compound compatibility charts derived from the data published by the manufacturer. NBR compounds are the norm for petroleum services, but they are degraded when exposed to high temperatures for long periods of time.

FKM as well as HNBR compounds are able to handle higher temperature loads and aggressive fluid chemistry significantly more efficiently. PTFE compounds are used when mechanical resistance as well as low friction is needed at the same time.

Be aware of the duty cycle for the application in conjunction with the type of fluid. Seals with high-cycle requirements must be compounded to resist fatigue, but not just chemical compatibility. Check that replacement kits include the correct compound, not only the cross-section and bore diameters.

Kits for seals of source determined by the model of the equipment and type of fluid. Check for compatibility with the compound prior to ordering kits for machines that run non-petroleum fluids.

The selection of the correct replacement parts for older equipment is vital in preventing repeated failures. Technicians who maintain Case machines can utilize Case replacement parts or aftermarket components to make sure they match the rebuilding requirements to the specific repairs needed for their equipment. Finding the root of the issue will ensure that the repair is able to stand up to the demands of operation.

The path to follow

Check these six things before you purchase any components for a rebuild of a cylinder. Each step will determine if sealing kits are the entire solution or the beginning point for a more extensive repair.

1. Surface condition of the rod Re-chrome or replace the rod before fitting new seals in the event of pitting or chrome flaking; scoring is catching a fingernail within the stroke area.

2. Cleanliness of the fluid: Remove any issue of contamination prior to rebuilding the cylinder in case the particle count is higher than the specifications of the system or if filters show bypass indications.

3. Failure of the seal The cause is extrusion or chaffing points towards the pressure system lips that wear with abrasive material to contaminate and hardening or swelling points to create a compound of incompatibility.

4. Hardware for mounting: Replace bushings and pins and rod-end bearings that show measurable play prior to rebuilding the cylinder to prevent the side loading.

5. Pressure system: Check the setting of the relief valve and cushion valve operation in the event that seals fail at the end of the stroke following a severe impact event or in a pattern in line with pressure fluctuations.

6. Check the sealant compound Make sure that the material used in the replacement kit is compatible with the type of fluid that you are using and the operating temperature, instead of using only bore dimensions from a cross-reference of a general nature.
