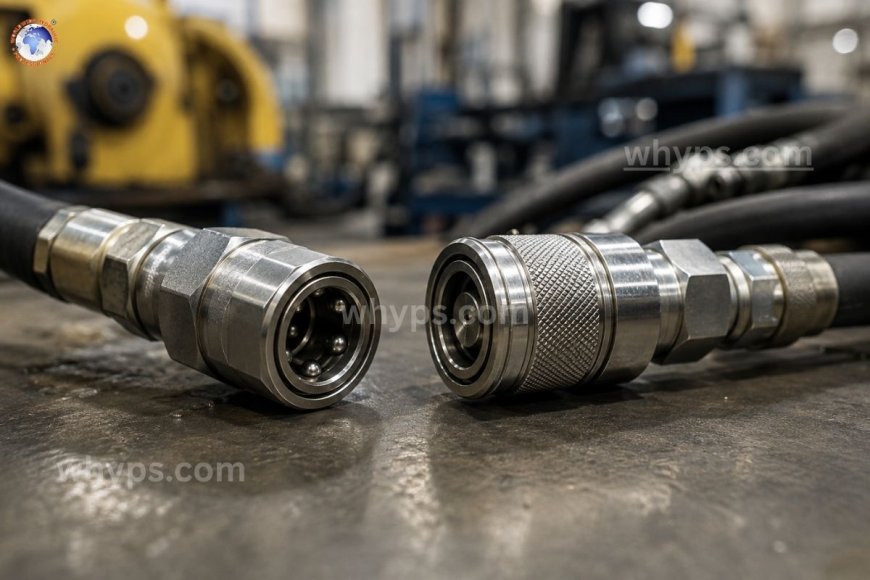

What factors determine coupling durability?

Hydraulic coupling longevity is determined by the choice of material and seal design, pressure rating versus the actual pressure of the system and connection method and fluid compatibility, as well as vibration exposure, contamination control, and the environmental conditions, such as corrosion and temperature. The couplings that fail prematurely always have a problem with one or more of these areas. It could be due to an inappropriate material for the fluid, an inadequate level of pressure, or a repeated cycle that the design was not designed to withstand.

Permanent and quick-connect hydraulic couplings are located at the most strained points of an electrical system that runs on fluids. Every disconnection cycle and pressure rise and temperature change test the coupling's capacity to be sealed reliably. Understanding the factors that drive the life of couplings helps engineers and maintenance personnel select the correct components in advance instead of replacing damaged couplings on a whim.

Selection of materials and base construction

The material used for the body of a coupling is the most important quality factor. It's usually chosen based on price instead of fitting the application.

Alloy and steel bodies

Carbon-steel couplings are used in industrial hydraulics generally because they provide high pressure ratings with a reasonable price. But plain carbon steel is susceptible to rust when it's not coated or plated. Special alloys and stainless steel are more expensive, but they resist corrosion better, making them the most popular choice for food processing, marine chemical, outdoor, and mobile equipment.

Coatings and plating

Zinc plating as well as nickel plating and PTFE-based coatings can all prolong the longevity of couplings through the creation of an effective barrier to chemicals and moisture. In humid or coastal areas the quality of the plating is more important than the base metal, since even high-quality steel can corrode quickly after a coating has been affected.

Design of seal and elastomer compatibility

The seal is often the first component to fail within a hydraulic coupling before the body of the metal is worn out.

Material seal that is compatible with

NBR (nitrile) seals are compatible with petroleum-based standard hydraulic oils, but they degrade rapidly when used in high-heat or fire-resistant applications. FKM (Viton) seals stand out more in the presence of temperatures and are more chemically resistant. Polyurethane seals provide abrasion resistance when working in high-cycle or dirty environments. The choice of a seal that isn't compatible with the fluid used in the system is among the main causes of early failures in couplings and can be prevented by examining the compatibility chart prior to specifying components.

Redundancy and sealing geometry

Double-seal or poppet-valve designs limit the possibility of spillage when disconnection occurs and provide a layer of protection should the seal be damaged. Flat-face couplings in particular utilize this redundancy to limit the loss of fluid and air ingress, both of which directly impact couplings and system durability.

Pressure rating versus actual operating conditions

A coupling designed for the system's nominal working pressure doesn't mean it's durable in the system.

Pressure spikes and surges

Hydraulic systems often encounter pressure spikes that are well over the operating pressure in the steady state, especially when the direction of the cylinder adjustments shifts in valves and pump start-up. A coupling must be rated with enough space above the pressure at which it is operating that it is not only normal pressure. Repeated high pressures can wear down the body and seal in time.

Cyclic fatigue

Couplings used in systems that have frequent connection and disconnect cycles, like mobile attachments to equipment, suffer from strain that's different from couplings that are static and rarely disconnected. Quick-connect models designed for high-cycle usage typically come with strong locking mechanisms as well as seals designed specifically to withstand hundreds of connection cycles without deteriorating seals.

Installation quality and connection technique

Even a properly specified coupling could fail quickly due to improper installations.

Achieving the correct torque and alignment

Threaded couplings that are over-torqued can break threads and seals, whereas the under-torquing of connections can lead to leaks and loosening when subjected to the force of vibration. Misalignment during connection—particularly with flat-face and screw-to-connect designs—accelerates seal wear from uneven contact pressure.

Contamination during connection

The dirt that is introduced during the connection process can be a significant durability damager. Dust that gets trapped within the seal interface during coupling could damage the sealing surfaces instantly, creating the possibility of leaks that get worse each time you repeat the cycle. Clean connections and dust cap methods are more important than the majority of maintenance teams think.

System cleanliness and contamination of fluids

Durability of couplings is closely linked to the quality of the fluid flowing through it.

Particulate contamination

Hydraulic fluids with abrasive particles cause wear and tear on the seal face and valve internal components each time the coupling runs. Systems that have poor filters or operate in environments that are dusty will experience reduced life of the coupling even if the coupling is properly defined.

Water and moisture ingress

The presence of water can cause internal corrosion and may degrade certain sealants over time. Couplers that are used in washdown or outdoor environments benefit from designs that include environmental seals to keep water away from the interface when not in use.

Mechanical stress and vibration

Vibration is a commonly overlooked element in determining the durability of a coupling, particularly in off-highway and mobile equipment.

Loosening under vibration

A continuous vibration may gradually loosen threaded connections even if they are properly torqued at the beginning in the absence of locking components or thread-locking compounds. This is especially true when couplings are mounted near pumps, engines, or other sources of vibration.

Hose whips and flex fatigue

Couplers connected to hoses, which are subject to repeated whip or flexing movement, absorb the cyclical stress at the crimp as well as the connecting point. In time, this wear may cause cracks to the coupling body or cause seal seating to loosen, especially in coupling designs that are not designed for dynamic flexing.

Temperature extremes as well as thermal cycling

The temperature can affect and affect both coupling materials as well as the seal compound, usually in ways that bind the two.

Operation at high temperatures

The elevated temperature of the fluid or ambient temperature increases the rate of cracking and hardening of seals, especially in NBR seals that aren't designed for long-term exposure to heat. High-temperature applications require FKM or other elastomers with high temperatures made to remain flexible in the face of constant thermal loads.

Brittleness of cold climates

In cold conditions conventional sealants tend to stiffen and lose their effectiveness of sealing, resulting in leaks that are only apparent at the beginning of freezing temperatures. Cold-rated couplings use low-temperature-flexible seal compounds specifically to avoid this failure mode.

Chemical exposure and type of fluid

The kind of hydraulic fluid flowing through the system is directly dependent on the longevity of the coupling, independent of temperature or pressure.

Fluids made of water-glycol and phosphate esters, as well as biodegradable hydraulic fluids, have different interactions with seals than normal mineral oils. A coupling that is effective for a long time in a mineral oil system could fail in a matter of months when the fluid is changed to a fire-resistant or biodegradable substitute without checking seal compatibility.

Inspection frequency and maintenance practices

Durability isn't just a result of design or material; it's also a matter of ongoing maintenance that is a major factor in the length of time the lifespan of a coupling.

Regular inspection of cracks, swelling, or cracks in the seal or surface pitting can identify early-stage degradation before it leads to failure. The scheduled sealing replacement on high-cycle couplings instead of waiting for visible leaks increases the life of the coupling body and prevents any unplanned downtime.

The longevity of hydraulic couplings is attributed to matching the material of the coupling sealing compound, the material, and the pressure rating to the actual operating conditions it's likely to encounter in the future, and then safeguarding that match by maintaining a clean connection practice and regular inspection. There is no single factor that determines the coupling's longevity on its own, but it's the combination of the compatibility of fluids, stress on mechanical systems, contamination control, and environmental exposure that differentiates couplings that last for a long time and those that fail in a matter of months.

1. Which is the main prevalent reason for failure of the hydraulic coupling?

Seal degrading is the most frequent reason, usually due to a mismatch in the sealing material and the hydraulic operating temperature or fluid or due to contamination that is introduced in connection.

2. How often do you need to inspect hydraulic couplings?

High-cycle couplings must be checked at the beginning of every scheduled maintenance interval. This includes an inspection of the seal for cracks, swelling, or wear on the surface. Static couplings that are low-cycle can be examined less frequently along with regular fluid analysis.

3. Does the coupling pressure rating have to be exact with the pressure of the system?

The couplings must be rated at least a few times above the maximum system pressure, not just the average working pressure, in order to be able to handle pressure spikes when valves are moved or pump start-up, as well as the direction of the cylinder.

4. Does the same coupling allow for different types of hydraulic fluid?

It's not always. Moving between different types of fluids, like switching to a biodegradable or fire-resistant fluid, could require different seal materials, as elastomers that work well with mineral oils may be degraded quickly when mixed with different fluid chemistry.

5. How come hydraulic couplings break earlier in mobile systems than stationary equipment?

Mobile equipment couplings also face stress from vibrations, frequent connecting and disconnecting, as well as temperatures that stationary industrial systems do not experience, and all of these can increase wear on the seal and body.
