Why do some engineers avoid using accumulators in certain hydraulic circuits?

Engineers steer clear of using accumulators in particular hydraulic circuits due to security risks posed by stored pressurized energy, the added complexity and maintenance burdens along with higher upfront and lifetime costs, space and weight restrictions in mobile or compact equipment, and the regulatory requirements for inspection that certain applications aren't able to justifiably. Accumulators provide many advantages, such as energy storage and shock absorption, as well as emergency backup power, but they also have compromises that make them not a good fit for a variety of circuit designs.

Accumulators are usually viewed as a common option for pressure smoothing and energy storage; however, experts in hydraulics know that they are not all-purpose for the purpose. Understanding why some designers do not include them in the circuit is as important as knowing when you should define one.

The main trade-offs that prompted the decision

1. The storage of energy can be a long-lasting danger to safety.

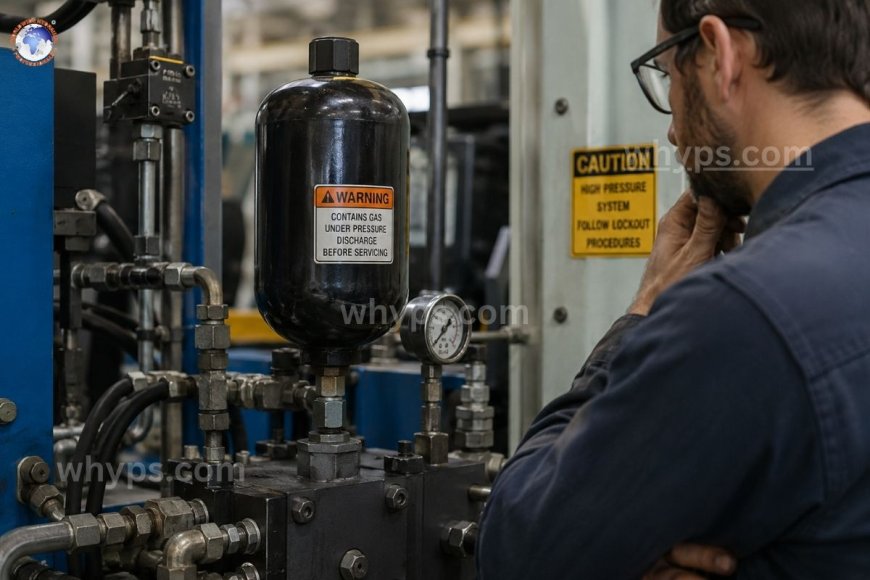

The whole function of an accumulator relies on the storage of hydraulic fluid under pressure, which is backed by an energized gas (usually nitrogen) or an accumulator spring. The stored energy isn't lost after shutting the system down. The machine could be shut down and still be able to have an accumulator with thousands of PSI internally.

This can lead to a lockout or tagout issue that engineering teams would prefer to avoid completely. Technicians working on maintenance of the circuit that has an accumulator need to adhere to additional depressurization steps prior to making any connections. The omission or neglect of this procedure has led to serious injuries occurring in the field and even injuries to the injection line caused by sudden pressure release. In circuits where the operating benefit is negligible, most engineers believe that the risk of energy loss isn't worth it.

2. The added complexity of the system

Each accumulator has additional components like isolators, relief valve provisions such as gauges, and sometimes an individual charging valve to pre-charge nitrogen. Each of these is an opportunity for failure and an item to be included in the schedule of maintenance.

In circuits that are straightforward—like a fixed-displacement pump that is feeding one actuator that has constant demand, for instance—adding an accumulator may result in more failure scenarios than it can solve. Engineers working on reliability-related designs in unmanned or remote locations in which a technician isn't able to react quickly to a problem tend to prefer keeping the circuit as simple as is possible.

3. The overhead of maintenance and inspection

Accumulators need periodic gas pre-charge checks, as nitrogen gradually permeates the piston seals or bladder with time. A pre-charge that is too low can reduce the efficiency of the accumulator and may result in the bladder being forced to leak into the valve's poppet, which can cause damage to the valve. A pre-charge excessively high may limit the flow of fluid or alter the valve's response.

In many countries the accumulators also are covered by the pressure vessel code (such as ASME Section VIII in the U.S.), which may trigger periodic inspection as well as certification and record-keeping regulations. For facilities that operate a lot of machines that use hydraulics, this burden of compliance can quickly add up. Some engineering teams do not use accumulation systems specifically to keep their equipment out of the pressure vessel regulations.

4. Cost doesn't always pencil out.

An accumulator of high quality, specifically one with a piston or bladder designed for high pressure, isn't cheap, and the price goes well over the purchase. The ongoing nitrogen charging service, as well as the replacement of seals, bladders, or other components, as well as the special equipment needed to properly manage them all, add to the costs over the life of the product.

If the benefit of the function is something like a leveling of tiny pressure ripples that the system would otherwise accept, or supplying an alternative stroke that is rarely or never used, the ROI is questioned. Engineers operating on strict capital budgets, especially on large-scale machines, typically eliminate accumulators during value engineering if the process could be modified to eliminate the need for one.

5. Weight and space restrictions

Compact and mobile equipment, like skid steers and aerial lifts, and other agricultural equipment are subject to strict limitations in the places where they are able to be positioned. An accumulator big enough to function occupies a significant amount of space and also includes the weight of the machine, whether it is elevated or unsprung, which affects machine stability as well as payload capacities.

In these cases engineers are often looking for alternative options: bigger reservoirs or variable displacement pumps that have more responsive characteristics or software-based pressure control through valve systems, instead of dedicating space to an accumulator.

6. Contamination sensitivity

Accumulators, especially diaphragm and bladder models, are prone to contamination by fluids in ways that may reduce their life span significantly. Particulate contaminants can cause damage to bladder materials or block the valve that pops up, which can result in complete gas loss without warning. In systems where the cleanliness of fluids cannot be controlled with precision (older equipment, harsh field conditions, or systems that have a legacy of filtering—certain engineers steer clear of accumulators since they are a recurring issue rather than an improvement in reliability).

7. The application doesn't really require one.

There aren't all circuits with an appropriate load profile to benefit from an accumulation device. Systems that have a steady, continuous demand and directional valves that aren't switched don't cause the high pressures or flow deficits that accumulators are made to take on. Incorporating one into a system that doesn't require protection from shocks, backup flows, and energy recuperation is excessively complicated. A good engineering judgement is recognizing that a design issue could be resolved through the selection of a pump and valve sizing or the design of a reservoir instead.

If accumulators are the right choice

All of this doesn't mean that accumulation devices aren't good components; they are able to solve real problems that no other solution can solve in the same way. They're still the right option for situations such as emergency steering or braking backups as well as leak compensation for long dwell times, taking the shock load in press and forging processes as well as reducing the frequency of pump cycling when there is a fluctuating flow demand. The decision to not use these devices isn't a general decision; it's an individualized judgement dependent on your risk tolerance and maintenance capabilities, the regulatory environment, and whether the operational benefits are worth the extra amount of work.

Making the right choice for your circuit

The designers who do not use accumulation devices aren't slacking. They're usually making a more shrewd design decision by determining if the issue can be resolved with less effort and if it is able to safely manage pressure stored throughout the duration of the equipment's life. Before deciding whether or not to include an accumulator, you should consider drawing out the load profile as well as the maintenance environment and the regulations the machine is operating under.

Do you think it is risky to use an accumulator within the hydraulic circuit?

Accumulators aren't necessarily dangerous. They conserve pressurized energy that is in the system even after it is shut down. Proper isolation valve discharge methods, as well as lockout and tagout procedures, are vital to avoid injury during maintenance.

When should the nitrogen level of an accumulator's pre-charged be examined?

A majority of manufacturers recommend checking the pressure of the precharge every three-to-six month period, although high-temperature or high-cycle applications might require more frequent testing since gas permeation is more rapid under these conditions.

Do all accumulators require pressure vessel certification?

In many areas there are accumulations above certain volumes, and pressure thresholds are covered under codes such as ASME Section VIII, requiring periodic inspections and documentation. Specific requirements differ by region and the size of the accumulator, so local regulations should be reviewed.

What are other options to use an accumulator to smooth the pressure?

Based on the needs of the project, an alternative could be variable displacement pumps that have a faster response, appropriately sized reservoirs, and pressure-compensated valves. designing the circuit to decrease the pressure transients and flow, which would normally necessitate an accumulator.

Does a contaminated hydraulic fluid harm the accumulator?

Yes. Particulate contaminants can cause damage to the piston seals or bladder or block the anti-extrusion valve and lead to rapid or abrupt loss of pre-charged gas, significantly reducing the service life of the accumulator.
