Check for wet dry brakes in heavy equipments?

Wet brakes are examined primarily through level and oil condition tests since the braking elements are enclosed in the housing, which is soaked in transmission or hydraulic fluid, whereas dry brakes require visual inspection of the brake pads, discs, linkages, and pads as they're exposed to air. The type of brake the vehicle is equipped with is the basis for your inspection process. Wet brake issues generally manifest as metal-flecked or contaminated oil, and dry brake issues are visible as wear, glare, or dust. Knowing the difference will make the distinction between spotting an issue early and ignoring it until brakes fail.

Operators of heavy machinery and fleet management and maintenance technicians typically employ the words "wet brake" and "dry brake" without understanding the different ways they should be inspected. This guide dissects each system, walks through the steps to inspect them, and provides warning indicators that differentiate regular wear from the onset of an issue.

Knowing the difference between dry and dry brakes

What do we mean by wet brakes?

The wet brakes, often referred to as oil-immersed disc brakes or oil-cooled discs, are sealed multi-disc assemblies that are continuously submerged in oil. This kind of design is typically found on wheel loaders as well as articulated dump trucks, graders, and various other heavy off-road machines in which braking produces substantial heat and brakes are exposed to water, mud, and abrasive material.

The oil has two purposes. It disperses the heat that is generated by brakes and helps protect the discs from dirt. Because the whole assembly is sealed, wet brakes are likely to last for a longer time than dry brakes with the same conditions. They're also less prone to environmental sludge.

Are dry brakes the same as wet ones?

Dry brakes work without a fluid bath and rely on the friction between pads and drums, or rotors, which are exposed to air. This is the type of design that people have come across from the automotive brake systems as well as on smaller equipment, excavators, and other equipment in which cost and ease of use are more important than high duty cycles.

Dry brakes are simpler to check visually since they're accessible to the components however they are susceptible to the effects of heat fade, water intrusion and contamination by dust or mud.

What is the best way to test brakes that are wet?

Step 1: Examine the oil level and condition.

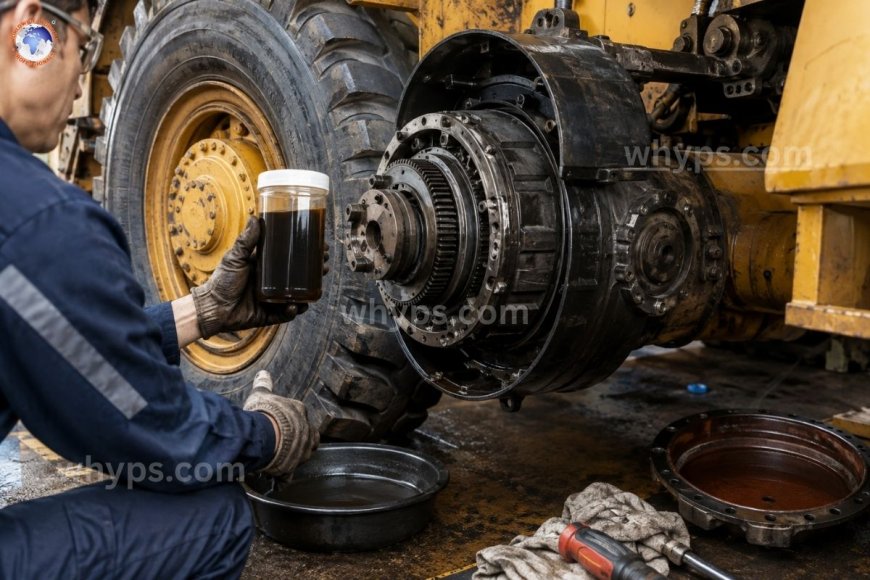

Since wet brake components are in the housing, an oil analysis is the primary diagnosis tool. Start by comparing the level of the fluid against the manufacturer's sightglass or dipstick specifications. Insufficient oil levels could deprive discs of cooling as well as lubrication, leading to accelerated wear.

Then, look at the oil. Fresh wet brake oil ought to be fairly clear, with the expected viscosity required for the specified specification. The indicators of trouble are

• Oil that smells burnt or dark This indicates the excessive heat generated by using brakes too much or dragging them.
• Metal particles, or even sediment that indicates disc or plate wear.
• A cloudy or milky oil that indicates water intrusion and an unfit seal
• Foaming, which could point to an aeration issue from the seal leak or an insufficient fill level

Step 2: Sample the oil and send the oil to be analyzed.

When it comes to equipment that is critical, you shouldn't just rely on your only visual inspection. Take a sample and send it to oil analysis to determine wear metals such as iron bronze and copper, which will reveal the extent to which separator plates and friction discs are getting worn. The trending of this data over time is more reliable than just a spot-check, as it allows you to spot an issue that is developing before it turns into a problem.

Step 3: Ensure there are no external leaks

Check the seals, housings, and fittings that surround the wet brake assembly to look for evidence of leakage. A small leak might not affect the oil level enough to cause alarm, but it can result in long-term contamination or operation with low fluid.

Step 4: Test the brake response and drag.

The brakes that are wet should operate effortlessly, without a lot of pedal or lever movement. Drag brakes—in which discs aren't completely disengaged—are among the main causes of wet brake failure that is premature, as it produces continuous heating that heats up the oil and glares the discs. If you observe unusual heat build-up in the brake housing following operation, this could be an indication of drag.

The 5th step is to follow the manufacturer's schedules of service for disassembling.

Wet brakes are designed to be sealed, and removing them completely isn't something you can do routinely. The OEM's recommended time frame to open the housing and visually inspect the disc thickness as well as the condition of the separator plate and sealing integrity. If you wait for a sign of failure prior to performing this inspection, it typically indicates that it is severe.

How do you check the condition of your brakes?

Step 1. Visual inspection of pads and drums and discs.

Dry brakes permit an immediate visual inspection. Examine the thickness of the shoe or pad in relation to the minimum specifications and observe any irregular wear patterns that could suggest a stuck caliper or components that are not aligned properly.

Step 2: Observe for glaze and heat discoloration.

The pads that are coated with a glaze appear glossy and hardened and significantly decrease friction in braking. Discoloration that appears bluish on rotors or drums suggests that the brakes may have been operating more hot than they should, usually due to dragging or repeatedly hard stops that do not have enough cooling time.

Step 3: Examine for signs of contamination.

Since dry brakes are exposed to the elements, mud, dust, oil, and water can influence the performance. Look for oil contamination caused by the seal that is leaking nearby, and clean up any dust or other debris that could impact the pad's seating.

Step 4: Verify connections, cables, and hydraulic lines

For hydraulically or mechanically actuated dry brakes, examine the entire actuation pathways, such as cables, linkages, and calipers, as well as hydraulic lines, to check for wear, corrosion, or leaks that might cause a decrease in responsiveness.

Step 5: Take a measurement of your lever or pedal travel.

The excessive travel prior to engagement usually indicates worn parts or the air inside a hydraulic line. Examine the system with OEM specifications and then adjust or bleed the system if needed.

Comparing frequency of inspections and the approach

The construction of a routine schedule for brake inspections

No matter the type of brake, the frequency of inspection should be scalable according to the duty cycle and operating conditions. Equipment that is used for mining or quarrying earthmoving activities should have its brakes regularly checked, more than those in less-demanding roles. An acceptable baseline is an inspection that is both functional and visual at every interval of service as well as oil sampling for dry brakes at the recommended frequency of OEM and complete disassembly inspections linked to hour-based milestones, instead of the calendar itself.

Keep a log of your maintenance activities, which tracks trends in oil analysis as well as pad wear rates, and any overheating or drag events gives you a better understanding of the state of your brakes as opposed to merely observing the brakes. It will help determine the timing for replacement prior to a breakdown that takes the equipment out of service abruptly.

What is the frequency that wet brake fluid be inspected on the case of heavy equipment?

The majority of OEMs suggest checking the brake oil levels and condition at each scheduled interval of service and the full analysis of oil samples every 250 to 500 operational hours based on the cycle and the manufacturer's guidelines.

Are you able to visually inspect the brakes that are wet without disassembling them?

Wet brakes are not sealed by design, which means that the condition of the oil, level, and laboratory analysis are the most important indicators of wear on the internal components until a scheduled removal is due.

What is the cause of wet brakes overheating?

Overheating in wet brakes can usually be caused by dragging brakes that don't fully disengage, low levels of oil, or even oil that's been degraded in its cool capabilities.

Do dry brakes have a higher risk of failure? vulnerable to failure more than wet ones?

Dry brakes tend to wear out faster and are more prone to heat fade and contamination due to their exposure to the elements, whereas wet brakes are shielded and are cooled by the surrounding oil.

What's the first indicator that wet brake oil requires to be replaced?

A darkened hue, smoky smell, and visible metallic particles or a milky look are the first signs that wet brake fluid has deteriorated or gotten polluted and requires replacement.
