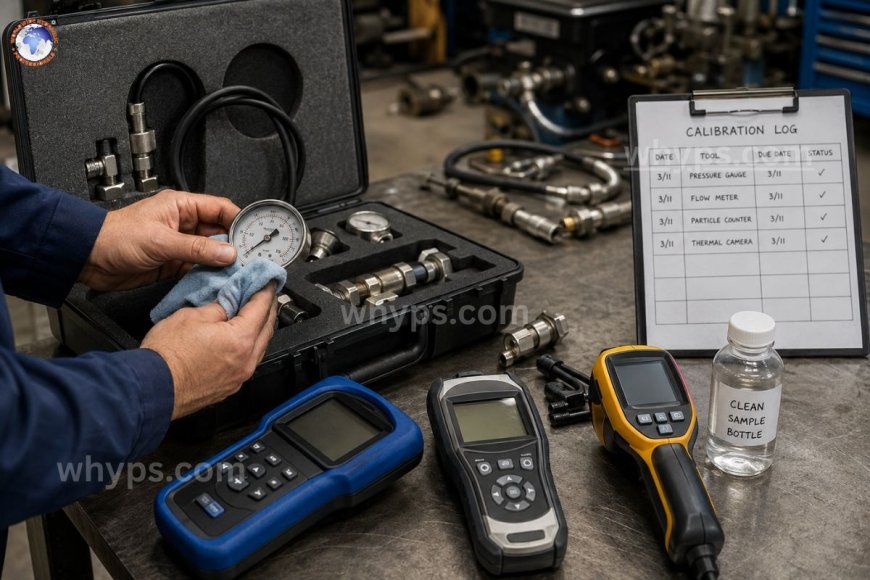

What maintenance practices extend the life of diagnostic tools?

Regular calibration, appropriate storage, contamination control, and a consistent clean-up after each use are the four methods that will significantly extend the lifespan of diagnostic instruments for hydraulics. Test gauges for pressure, flowmeters, particle counters, and thermal cameras are precise instruments. Skipping one of these practices can lead to sensor drift, seal degradation, and connector wear, making a $500 diagnostic tool into a faulty one in one year.

Hydraulic systems are dependent on accurate diagnostics to detect problems before they cause problems. But the tools that identify the problem are susceptible to the same extreme conditions, such as vibration, heat, and contamination, as well as pressure spikes, that they're designed to detect. Diagnostic tools that haven't been maintained don't simply become more worn out, but they will give you readings that don't trust, which is against the whole purpose behind using them in the first place.

How can maintenance on diagnostic tools be neglected?

The majority of maintenance schedules and budgets are designed around a hydraulic device, namely valves, cylinders, hoses, and pumps. The tools used to analyze these components are not given the same focus. A pressure gauge is placed in a toolbox during tasks. A particle counter sat on a truck bed during the Kerala monsoon. Infrared thermometers are dropped onto the floor of a shop, and no one thinks twice.

This is a backwards step. Diagnostic accuracy is the basis of every maintenance decision. If a flow gauge is reading 5% off due to the fact that it wasn't calibrated in two years, each subsequent decision in the downstream—deciding whether to repair or replace the pump or valve, whether the valve is oversized, or whether a system is functioning properly—is based on inaccurate information.

Tools and maintenance practices that are fundamental to the tool type

Test kits and pressure gauges

Pressure gauges are among the most commonly used diagnostic tools that a technician's belt as well as the most frequently used.

• Set a timetable for calibration that is but not "when it seems off." The majority of shops calibrate their equipment every 6-12 months, dependent on the intensity of use. High-cycle environments should reduce the time frame.
• It is a good idea to isolate the tube from pressure spikes. Snubbers or gauge savers obstruct spikes and pulsation, which could cause fatigue to the Bourdon tube in the course of time.
• Keep at a normal pressure. Letting a gauge connect to a line that is pressurized even when it is not being used accelerates internal wear, even when there is no data being collected.
• Beware of over-range use. A 5,000-psi gauge to check the pressure of a 6,000-psi system, even for a short time, could permanently damage the mechanism inside.

Flow meters

Flow meters are sensitive to mechanical wear as well as fluid contamination.

• The flushing should be done prior to and after the connection to avoid particulate matter from getting lodged in gear or turbine elements.
• Make sure to check the zero-flow calibration regularly, as even a small amount of drift can lead to large errors when flow rates are used.
• Beware of spikes in reverse flow that can cause damage to internal rotating components that are not specifically designed to handle backflow.

Counters for particle size as well as oil analysis equipment

They're the most sensitive and costly tools available in the diagnostic kit. They require the strictest control.

• Make sure you use a dedicated sample bottle and ensure that you are using a clean sample every time. A dirty sample will not only result in a negative reading, but it could also contaminate even the sensors.
• Recalibrate sensors at intervals set by the manufacturer usually every year using certified reference fluids.
• Sealing the housings of laser sensors during times of non-use from the air can be enough to alter particle counts during subsequent tests.

Cameras for thermal imaging and vibration analyzers

• Place them in cushioned, stable cases that are padded and climate-stable. Thermal sensors are extremely susceptible to condensation caused by rapid temperatures, which is typical when you move between a cool office and a hot-pump room.
• Clean lenses and sensor windows with manufacturer-approved materials only; standard cleaning cloths can scratch specialized coatings.
• Battery storage and charging with a fractional charge for storage over a long period in accordance with the recommendations of the manufacturer because fully charged or depleted lithium batteries will degrade more quickly when stored.

Establishing a routine for maintenance that actually lasts

Daily routines

Clean up every tool after use even if it appears clean. Fluids that are hydraulic attract dust and grit, which erodes connections and seals over time. Connectors and ports must be sealed immediately after disconnecting them—the port that is not closed could be an invitation to contamination.

Monthly and weekly checks

Check hoses, cables, and connectors on diagnostic devices for cracking, fraying, tearing, or loose fittings. A damaged cable in the pressure transducer won't only run the risk of having a bad reading, it also poses a risk of causing an injury when it fails under pressure. Examine the battery health on any powered tool and rotate them so that they aren't left empty for long durations.

The calibration is based on the usage of the instrument and annually.

Note calibration due dates similar to how you monitor a valve's maintenance time—using a log schedule, not a memory. A lot of facilities label equipment with calibration stickers, which show the date of calibration and the following due date. This also increases trust between auditors and customers when conducting inspections.

Storage conditions affect more than the majority of technicians realize.

The fluctuation in temperature, humidity, and the vibration of transport can be silently detrimental to the accuracy of diagnostic tools. Certain techniques are able to make a huge difference:

• Keep your tools in a controlled climate location away from direct light and humid fluctuation.
• Utilize foam-lined cases to shield equipment from vibrations during transportation.
• Make sure that your tools are away from magnetic fields and high-voltage equipment that can harm electronic sensors.
• Remove tools from corrosive chemicals or storage fluids—even the smells of fumes can affect sealings and electronic housings over time.

Documentation: The unnoticed maintenance procedure

The certificate of calibration is only valuable if you know the date it expires. Facilities that keep a straightforward record of the tool, the date of calibration, the last date for calibration, the date of the next calibration, and any anomalies spotted during use -- will catch the drift before it leads to an incorrect diagnosis. The documentation is important in the quality of audits and warranty claims and in creating a history of service, which supports the replacement of tools by using facts rather than the guesswork.

The price of skipping maintenance

A pressure gauge that isn't calibrated and shows a reading of 3% low may appear insignificant, but on a 3,000-psi system, that's an unintentional blind spot of 90 psi that could mask an aging seal issue or mistakenly set a relief valve. The price of a misplaced calibration isn't necessarily the cost of the tool; it's the result of an incorrect maintenance decision that was made because the diagnostic data wasn't correct.

How often do hydraulic diagnostic tools need to be calibrated?

The majority of flow meters, pressure gauges, and particle counters need to be checked every 6 to 12 months, although high-precision or high-use applications might require more frequent inspections according to the manufacturer's guidelines.

What is the most significant root of the failure of diagnostic tools within hydraulic systems?

Dust, water, moisture, and fluid residue are the primary causes, followed by pressure surges and storage conditions that are not optimal.

A diagnostic tool can be used in the event that it's due to calibration?

It can technically be used; however, readings should be considered not verified until calibration, as deviations beyond tolerance could cause improper maintenance decision-making.

Does a digital tool for diagnosing require less maintenance than analog tools?

No, digital tools require calibration of sensors and are also dependent on battery health as well as firmware updates and electronic component degradation due to the effects of humidity and heat.

Is it worthwhile to keep an account of service for diagnostic tools?

Yes, keeping a maintenance log that tracks calibration dates and anomalies can help to catch drift earlier, assist quality audits, and give information to support the decision of replacing.
