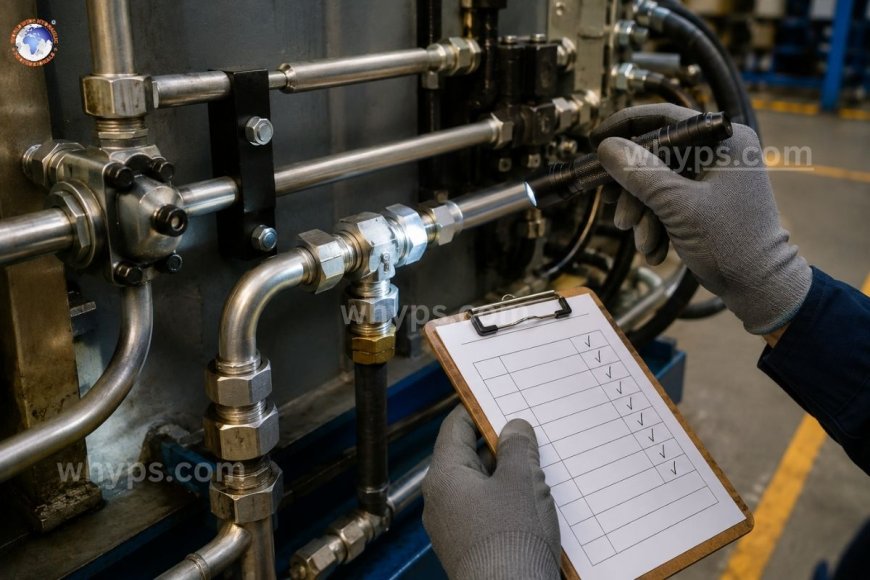

How often should non-welded piping be inspected?

Non-welded hydraulic piping—flared, flanged, and compression and push-to-connect joints should be checked visually every three months (or every 400-600 hours of operation) in normal use and every week under extreme-duty conditions and provided with a complete torque check and leak-path inspection every scheduled maintenance interval or following any pressure increase or other system disturbance. Since non-welded joints are reliant on mechanical clamping force rather than the fusion process, they are more susceptible to thermal cycling than welded joints, and that is the reason the frequency of inspections should be linked to criticality and duty cycle instead of a specific date in the calendar.

Non-welded piping is now the standard choice in modern hydraulic system design. Flare fittings and O-ring face seal retention-ring flanges, as well as compression fittings, are all able to avoid the zones that are affected by heat distortion, as well as the dependence on skilled labor that is associated with welding. However, that same simplicity in mechanics is also their biggest weakness: that a joint that is welded fails due to corrosion or fatigue over a lengthy period. In contrast, a non-welded joint may fail in a flash when a nut pulls back and an O-ring expands or a flare fractures when it is subjected to the force of vibration. The right inspection interval is what makes that failure scenario become regular.

Why do non-welded joints require an inspection pattern that is different?

Welded pipes are inspected principally for wall-thickness loss, corrosion, and weld-seam strengths that can develop slowly and are well-suited for inspection intervals that are measured in years, which is reflected in codes such as API 570. Non-welded pipes behave differently. The failure mechanisms are mechanical and may develop rapidly:

• The thermal cycle can relax the torque, permitting fittings to be back off
• Extrusion of seals or hardening in O-rings and gaskets that are exposed to heat, incompatibility with fluids, or the effects of age
• Cracks in the flaring cone due to vibration fatigue on the cone that seals
• Thread galling that is frequently disturbed in fittings
• Stresses caused by misalignment are created when equipment is installed or after moving

Since these mechanisms may progress over a period of weeks instead of years, joints that are not welded require an inspection plan that is layered: frequent visual checks and regular hands-on verification, as well as the complete teardown inspection linked to major maintenance occasions.

Recommended intervals for inspections

Checks of visuals every day or per shift (high-criticality and mobile devices)

In the case of mobile equipment for hydraulics and mining machinery and press systems operating on continuously, a quick inspection prior to starting will reveal the majority of issues that arise such as wet fittings, weeping seals, discoloration caused by the heat, lines that are chafed near the moving components, and clearly loose bolts on flanges. The inspection takes just several minutes but can avoid the breakdowns that can cause unexpected downtime.

Inspections every week (severe duty)

Systems that operate under high temperatures, high pressure, or in environments with high vibration, crushing, machinery for forestry, and offshore deck machinery should be subject to an annual hands-on inspection. This includes examining the fitting for movements and retorquing where the witness marks have changed and confirming that the fitting has shifted out of its installed position.

Inspections every month (standard duty)

For the majority of stationary industrial hydraulic systems that operate moderately, an annual inspection is the standard. It should include a visual inspection of corrosion, leaks, and the flange faces and brackets, as well as performing a spot-check on the torque of the joints that are critical instead of the entire system.

Inspections every quarter (light and intermittent)

Systems that have low pressure or low cycle counts or intermittent operation, such as auxiliary circuits and standby devices, typically can be moved to a 90-day time frame in the event that nothing unexpected comes up in between inspections. This aligns with the widely used three-month/400-600-hour rule applied across the hydraulics industry for periodic component inspection, adjusted here to non-welded joint integrity rather than hose condition alone.

Full teardown and verification of torque (annually or during important PM events)

Once a year, or at the facility's major preventive-maintenance shutdown, non-welded joints should get a complete inspection: fittings disassembled or borescoped where accessible, O-rings and gaskets replaced regardless of visible condition, flare surfaces checked for micro-cracking, and every connection re-torqued to specification with results logged.

Inspections triggered by events (any time)

No matter what the calendar schedule is, regardless of the calendar schedule, a prompt inspection is necessary following:

• An event of pressure, a water hammer, or relief valve activation
• Any collision, impact, or dropped load that falls near the pipe
• A change in fluid, particularly between types of fluids that are incompatible
• Disruption to piping or equipment in other repairs
• Any noticeable decrease in pressure in the system or unexplained loss of fluid

What is a good joint inspection that is not welded?

An in-depth inspection goes far beyond "look for leaks." At a minimum, technicians must examine:

• Witness marks and torque—Have the fittings changed since the last inspection?
• Seal condition: cracking, flattening, extrusion, or discoloration in gaskets and O-rings
• Cone and flare surfaces pitting, scoring, or hairline cracks on the seal face
• Thread condition: cross-threading damage or galling or corrosion
• Alignment—strain at the joint caused by the pipe's expansion of thermal energy, sagging, or vibration
• Support and the integrity of clampsthe absence of or a lack of pipe clamps that permit vibrations to be transferred directly into the fitting

Set your own timer.

The above intervals are starting points that are not a fixed law. The best timing for a particular system is determined by several variables:

• Continuous duty cycle high-cycle equipment requires shorter intervals than standby systems.
• Operating pressure and temperature: Greater pressure and temperatures increase the rate of seal degradation and the resulting torque reduction
• Vibration exposure—mobile and high-impact equipment loosens fittings more quickly than stationary equipment
• The consequences of failure in an area close to a person or feeding a vital process line require a shorter time frame than an auxiliary circuit with a lower-cost circuit
• Historical failure information If a particular fitting type or place has been unsuccessful before, increase the frequency of inspection until the root of the issue is identified.

The manufacturer's documentation on the particular fitting technology used—for example, flare, flange, or compression—should always prevail over general instructions when the two contradict each other.

What is the frequency at which hydraulic fittings that aren't welded are checked?

Most stationary equipment should be inspected visually every month with full inspection of the seal and torque at a minimum every year. Systems that are extremely heavy-duty or vibration-prone are best suited to weekly inspections, and mobile equipment can benefit from a quick, pre-shift visual inspection.

Do joints made of non-welded materials require more frequent inspections than pipes that are welded?

In general, yes, because joints made of non-welded materials are dependent on seals and clamps made of metal that may loosen or break over time, and welded joints are prone to failure due to more gradual mechanisms such as fatigue and corrosion that are usually inspected on multiple-year cycles.

The main reason for non-welded fitting failure during inspections?

Thermal vibration and cycling are the most frequent reasons, usually accompanied by the degradation of seals due to temperature or fluid incompatibility, which is not noticed until the leak starts to appear.

Do fittings need to be retorqued each time they're examined?

Not necessarily. Retorquing should take place based on the movement of a witness mark as well as measured loss of torque rather than being done regularly, as excessive retorquing may cause damage to threads and seals in the course of time.

When should a joint not welded be examined outside of the normal inspection schedule?

immediately following any spike in pressure or change in fluid or system disruption or any time an increase in pressure or loss is noticed that cannot be caused by a cause that is known.
