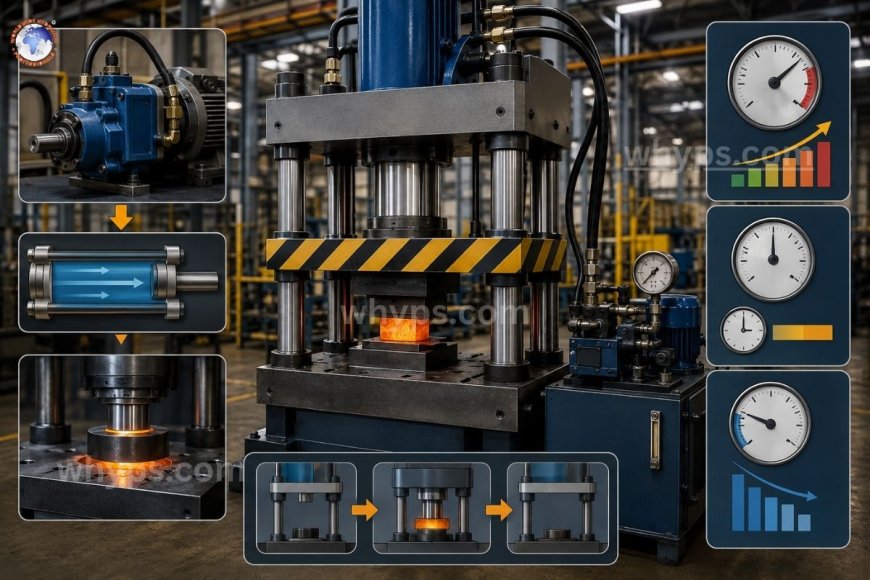

How does flow rate impact hydraulic press performance?

The rate of flow directly affects the rate of a hydraulic press and directly controls the speed of a hydraulic. A higher flows (measured in grams per minute or liters per minute) accelerates the ram as a lower flow rate reduces the speed of the cyclehowever, flow rate by itself does not determine the force output, because it's an effect of pressure in the system and the cylinder bore size. Finding the right balance between pressure, flow rate, and cylinder size is what will determine if the press is operating smoothly, safely, and profitably.

Anyone who is deciding to design, operate, or troubleshoot a press, understanding the flow rate is among the most crucial and overlooked -- aspects of the system. This guide explains the way flow rate impacts the performance of the press, as well as how it can be affected if it's incompatible with the other components of the hydraulic circuit.

What is the flow rate in the hydraulic press?

Flow rate refers to the amount of hydraulic fluid that flows through the system in a period of time, usually expressed in the form of liters per minute (LPM) or gallons per minute (GPM). It is produced by the hydraulic pump and then delivered to the cylinder, where it presses the piston and the ram forward.

The rate of flow differs from pressure in fundamental ways. The force is measured in the unit of area that is imposed on the liquid (measured in bar or psi), and flow rate is a measure of the volume and speed. One method of thinking about it is that pressure determines which way the press presses, and flow rate decides the speed at which it is able to reach.

The relationship between the rate of flow and ram speed is directly related to

It is the speed at which the press ram can be determined using a simple formula:

Cylinder Speed = Flow Rate / Cylinder Piston Area

This implies that, for a certain diameter cylinder bore, increasing the flow rate in proportion increases the speed of the ram. A press pump that can deliver 40 LPM into a cylinder will move the ram approximately twice as fast as a pump that delivers 20 LPM into the same cylinder.

This connection is directly operational and has the following consequences:

• The higher flow rate can reduce the cycle time and increases part throughput, which is crucial for high-volume stamping, forging, or assembly.
• The lower flow rate slows down the working stroke and approach This is a good thing for delicate forming processes in which controlled and gradual force application will prevent cracks or distortion of the part.

The effect of the flow rate's indirect influence on tonnage and force

It's a popular belief that an increase in flow boosts the press's capacity, which is also known as force output. However, the force output is controlled by pressure in the system and the bore of the cylinder according to the formula:

Force = Pressure x Cylinder Area

Flow rate isn't part of the equation in any way. Presses can have high flow rates and generate a low amount of tonnage when pressure in the system is not high; however, the press that has a modest flow rate can produce enormous force when pressure is very high.

But the flow rate can determine the way fast the force is built. When a cycle is pressed, the ram is moved rapidly in the stroke of approach (often supported through a prefill valve that draws fluid from the reservoir). Then it shifts into a slower, higher-pressure working stroke after the tooling is in contact with the workpiece. The flow rate determines the speed of the approach, and pressure controls the force applied in the working stroke.

Multi-stage press: Where the flow rate really counts

The majority of hydraulic presses used in industrial use three- or two-stage pump systems designed specifically to maximize the flow rate/pressure trade-off over the entire cycle:

Stage 1—A rapid approach

A low-pressure, high-flow pump (or prefill circuit) will force the ram rapidly to bridge gaps between the workpiece and the tooling. In this case, the flow rate is the most important factor since the force required isn't needed yet.

Stage 2—Pressing/forming

When resistance rises and the system is shifted into a low-flow, high-pressure mode. A pressure-compensated or variable-displacement pump reduces flow output as pressure climbs, directing hydraulic energy toward force generation rather than speed.

Stage 3. Retract and stay

The flow rate decreases to close to zero during the phase of the dwell (hold) period and reverses direction for the rapid retract stroke.

This is the reason why the flow rate specifications on the pump curve of a press as well as the spec sheet are crucial. A press designed to have an incorrect pump curve could orally waste time with an unnecessary slow process or suffer from a lack of precision control during the critical forming phase.

Effects of flow rate mismatches

The rate of flow is too high.

• Damage from impact and overshoot Overflow could cause the ram to smash into the workpiece or the tooling before the system is able to slow down, which could cause tool damage or even part failures.
• Heat generation: The excess flow that flows by relief valves (rather than performing useful work) transforms into heat, reducing the hydraulic fluid as well as stressing seals over time.
• Control loss in precision forms or coining overflow can make it difficult to achieve precise positioning control at the end of the stroke.

A flow rate that is too low

• Longer cycle times: slower travel of rams directly affects the number of parts per hour produced, which can hurt the economics of production.
• Incomplete forming during timing operations: If a process is dependent on keeping pressure within a particular dwell window, the slowest approach could take up the available time for the cycle.
• The operator's wait time is increased In presses that are loaded manually, slow speed for approach speeds increases with the load/unload times, which reduces the overall efficiency of the equipment (OEE).

The rate of flow and the hydraulic fluid's viscosity

Flow rate performance isn't only mechanical. Fluid viscosity is a major factor. Fluid that is too viscous (thick, usually due to cold start-up or the wrong grade of fluid) blocks the flow of valves and pipes, which in turn reduces the rate of flow to the cylinder even though the pump is operating at its rated speed. This is the reason that most industrial presses have heating elements for cold weather starting and why choosing the right ISO viscosity-grade hydraulic fluid for the operational conditions is vital to maintain a steady speed in the press.

In contrast, fluid that is too thin (from overheating or in error selection) can lead to internal slippage within the valves and pumps, which can reduce the flow rate and cause slow and inconsistent ram movements, even in the event that the pump itself is working properly.

Size flow rate to meet the application requirements

When determining the hydraulic press, or trying to troubleshoot an inefficient one, the flow rate must be in line with the cycle time of the application as well as the force profile:

• Blanking and stamping with high volume The priority should be a high flow rate to ensure a quick approach and retract for the maximum amount of work that can be done.
• Precision in forming, coining, or deep drawing. Controlled lower flow rate by using precise metering throughout the stroke of work to prevent the possibility of forming imperfections.
• Rubber/plastic press presses and compression molding They typically require prolonged dwell and little flow, as the process relies on constant pressure and not speed.

In collaboration with the manufacturer of the press or an engineer in hydraulic systems to calculate the complete cycle of the process—approach, dwell, press, retract—with respect to the flow curve of the pump can prevent costly mismatches between equipment capabilities and the requirements of the process.

Flow rate refers to the speed control for a hydraulic press, whereas pressure controls force. Both variables operate independently; the press's actual performance is contingent on how the flow rates and pressures are coordinated over each stage of the process. Presses that are engineered to have controlled flow in stages (high flow to approach high pressure and low flow for making) always outperform single-stage systems in both cycle times and quality of the part, making flow rate among the most crucial specifications to be considered when choosing a press or troubleshooting system issues.

1. Do increasing flow rates increase the capacity of a hydraulic press?

No. Tonnage can be determined by the pressure of the system and the bore of the cylinder but not the flow rate. The flow rate determines only the speed of movement of the ram and not the amount of force it is able to generate.

2. What is a suitable flow rate for a hydraulic press?

It is contingent on the size of the cylinder and the type of application. Flow rate is determined by using an equation: Speed = Flow rate * Piston Area, based on the preferred method and working stroke speed for the particular press and procedure.

3. Why does my hydraulic press run slower in colder conditions?

Cold hydraulic fluid is more viscous, which restricts the flow of valves and lines and reduces the flow rate to the cylinder when the pump is operating normally. A liquid heater or viscosity-graded fluid can resolve this.

4. What can cause excessive temperature in a hydraulic press?

It is usually caused by excessive flow that is directed through relief valves, rather than being used for productive work. inadequate piping, causing flow limitation or a mismatch in the fluid's viscosity. All of these use up energy from hydraulic systems in the form of heat.

5. Why do industrial hydraulic presses employ multi-stage pumps?

Multi-stage or variable-displacement pumps allow the system to deliver high flow (fast speed) during the no-load approach stroke, then automatically shift to low flow and high pressure during the working stroke—optimizing both cycle time and force control in a single system.
