What is the best filtration strategy for industrial hydraulic power units?

The best method of filtration to use for an industrial power unit is to use three levels of filtration that includes a suction strainer to safeguard the pump and a highly efficient return line filter to remove the contamination that is that is generated during operation, and an offline (kidney-loop) filter system that will continually polish the reservoir. Cleanliness targets should be tied to the most sensitive part within the system—usually ISO 4406 codes of 17/15/12 or more stringent for proportional and servo valves. The filter media must be chosen for its effectiveness in removing particles (beta ratio) as well as water/varnish control, not just for particle capture.

Contamination control is the largest lever that plants have over the reliability of their hydraulic system. Research shows that 70-80 percent of the failures of hydraulic components are due to contamination of the fluid, but the filtration process is usually thought of as a last resort—the filter housing is bolted on to conform to a specification sheet, not a system designed around the actual malfunctioning modes of the machine. It's not about getting the most efficient filter but rather making sure that the filtration method is compatible with the particular sensitivity of your equipment as well as the severity of your operating environment and the real-world maintenance capacity of your staff.

The importance of filtering strategy is greater than simply selecting a filter?

One filter, no matter how properly designed, can't make up for a poor filtering system. The contaminants that enter the hydraulic system come from several sources simultaneously: entry through the caps on breathers and seals for cylinder rods, internal wear particles from valves and pumps, and water condensation resulting from the thermal cycle, as well as even residual assembly debris. Each of these routes to contamination needs a specific controller in the circuit.

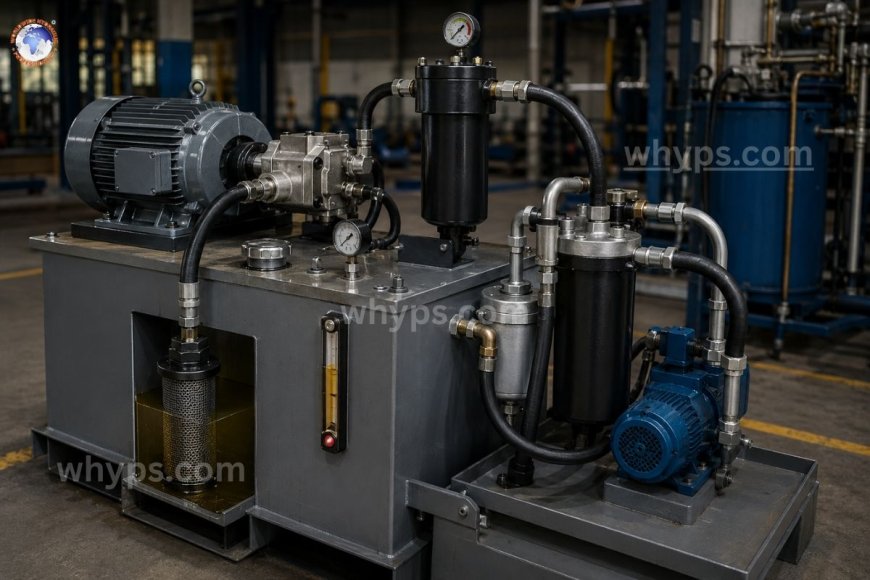

This is the reason that the most reliable power systems make use of layered filtration instead of one filtering location. Suction filtration shields the pump from devastating large particle damage. Return-line filtration is able to capture the small pieces of wear and the contaminant emitted as the fluid moves through the system prior to returns to the reservoir. Offline (kidney-loop) filtration operates independently of the operation of the system and continuously polishes the reservoir, even when the machine is idle. Pressure-line filtration, where used, provides a final safeguard directly upstream of the most contamination-sensitive components, such as servo or proportional valves.

Three-tier filtering design

Tier 1: Suction strainers

Suction strainers protect the pump from particles that can cause physical damage but do not reach the goal of achieving system cleanliness. They're generally rated coarse, 100-250 microns, as too delicate suction filtration could result in cavitation in the pump from limited flow. Suction strainers that are clogged and which are starving the pump are an incredibly common and completely preventable failure, and therefore, they should be equipped with a pressure indicator that is differential and be designed to be large in relation to the demand for pump flow.

Tier 2: Return-line filtration

Filters for return lines are considered to be the heart of all hydraulic filtering systems. Since all the fluid flowing back to the tank flows by them, they're ideally placed to catch wear debris that is generated by valves, cylinders, and motors in normal use. For the vast majority of power units in industrial use returning line filters, one that is rated at Beta(10) greater than 200 and Beta(6) greater than 200 (per ISO 16889) provides a balanced balance between filter life. Systems feeding proportional or even servo valves typically warrant tighter ratings, with a range of 3 microns absolute.

Tier 3. Offline kidney loop filtering

Offline filtration loops take fluid constantly away from reservoirs, clean it, and then return it—without regard to the duty cycle of your main unit. That's where true improvements in cleanliness occur, since the loop can be run continuously and even during time, without adding pressure drops or flow limitations to the operating circuit. A properly sized kidney loop, which typically turns over the entire reservoir 4 to 6 times per hour, can reduce a system's size from ISO 20/18/15 to 15/13/10 or better in a matter of days and hold it there. In plants that have several hydraulic units, using a mobile kidney-loop cart can be cheaper than installing fixed offline systems on each unit.

The right goal for cleanliness

A filtering strategy that isn't based on a specific goal is just speculation. ISO 4406 cleanliness codes are the most widely used reference for expressing the number of particles in three size thresholds (>=4 + 6, >=6 + 14 microns/milliliter). The right target depends on the most contamination-sensitive component in the circuit:

• Pumps with fixed displacement and valves that are directional: ISO 20/18/15 is often sufficient
• Standard proportional valves ISO 18/16/13
• High-pressure proportional valves: ISO16/14/11, or more sturdier
• Stands for testing the power of fluids and precise motion control: ISO 15/13/10 or better

Manufacturers of components provide guidelines for the cleanliness of their equipment. They should be considered the primary goal for the entire system in addition to the individual component. The risk of contamination isn't restricted to a single branch of the circuit.

Be aware of varnish and water control

Filtration by particles alone leaves two major sources of contamination not addressed: dissolved liquids and the varnish's precursors. The presence of water above 200-300 ppm increases oxidation and promotes the growth of microbes in certain fluids and reduces the strength of the film's lubricant at metal-to-metal contact points. Varnish, for instance, is formed out of the oxidized byproducts of fluids that particle filters aren't able to capture since they're usually submicron or dissolving in solution.

A complete filtration plan combines particulate filters and

• Breather filters are rated to minimum the same micron as the return line filter to prevent atmospheric ingress through the vent of the reservoir
• Vacuum or water-absorbing dehydration units designed for systems that operate in moist environments or for systems with frequent thermal cycling
• Media that are specifically designed for varnish (ion-exchange or balance charge agglomeration) for systems with signs of a sticky valve or high MPC (membrane patch colorimetry) (MPC) readings

Monitoring the feedback loop, which makes filtration work

The filtering strategy you choose to use is only as effective as the information you can get to determine if it's functioning. Pressure gauges for differentials on every filter housing let you know that elements require changing, but they're not able to reveal whether your system is meeting its goal of cleanliness. Regular oil sampling—best every month for machines that are critical and quarterly for general-purpose units—together with ISO 4406 particle counts and water content analysis, can close that loop. The portable particle counters have been made affordable to the point that many factories now do spot-check their cleanliness prior to use instead of waiting for the lab's turnaround.

Filtration mistakes that are common to avoid

Several recurring mistakes undermine otherwise solid filtration investments: filling reservoirs with new oil straight from a drum without pre-filtering it (new oil is rarely as clean as ISO targets require); using return-line filters as the only filtration stage on systems with sensitive proportional valves; ignoring breather cap condition, which turns the reservoir into a contamination entry point every time the fluid level changes; and treating filter change intervals as a fixed calendar task rather than a differential-pressure-driven decision.

Bring it all together.

The most effective filtration method isn't just one product choice. It's a system that is built around suction protection, continuous return line capture, and offline polishing. It is sized and rated according to the standards of cleanliness required by the most sensitive element in the circuit and supported by a water control system and regular monitoring. These types of power units always show longer life of the component with fewer unplanned valves or pump failures, as well as lower total costs of ownership compared to systems that rely on an individual filter to complete all the job.

Which is the best ISO 4406 cleanliness code for a hydraulic power source?

It's all about the component with the highest sensitivity within the system. General industrial equipment using fixed displacement pumps usually aims for ISO 20/18/15. Systems that use proportional or servo valves require ISO 16/14/11 or stricter.

What is the recommended frequency at which filters for hydraulics should be changed?

Filter elements must be replaced according to pressure readings from differential pressure, not a calendar-like timetable. Most filter housings come with an indicator or gauge that indicates when the element is nearing its capacity for holding dirt.

What is the difference between offline and return-line kidney-loop filtering?

Return-line filters filter fluid so that it flows back into the reservoir in normal operation. Offline kidney-loop systems constantly operate and filter reservoir fluid without relying on the main circuit, operating regardless of whether the device is not in use.

Suction strainers can be used to replace a return line filter?

No. Suction strainers have coarse ratings to protect the pump from debris, and they're not adequate to reach the cleanliness goals of the system. Offline or return line filtration is necessary for this.

How can water pollution influence hydraulic fluids even when they are filtered with good-quality particles?

The oxidation process in fluids is accelerated, which promotes the formation of varnish and reduces the strength of lubricating films that none of the particulate filters tackle. Controlling the water content is a requirement for breather filters, moisture-absorbing elements, or even vacuum dehydration according to the degree.
