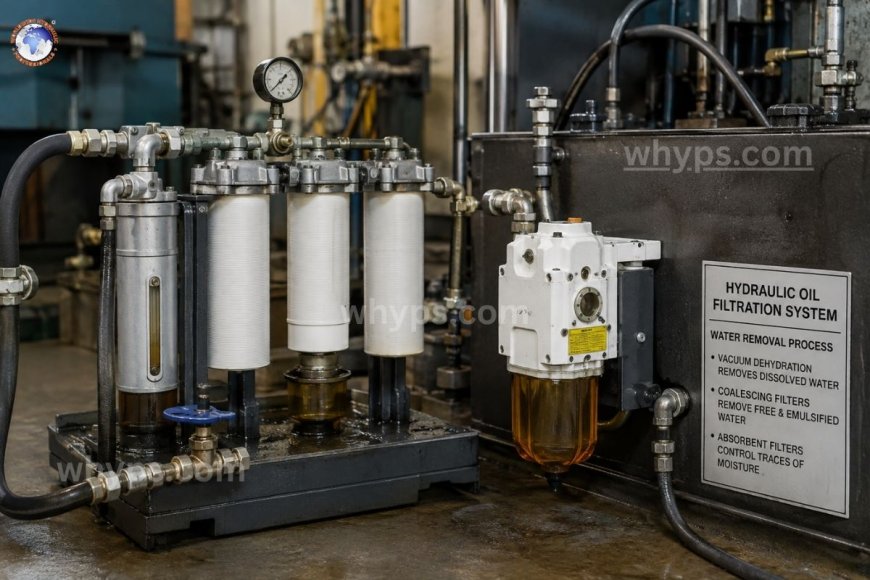

How to remove water from a hydraulic oil through filtration?

Filtration is used to remove water from hydraulic oil. This can be done by vacuum dehydration, coalescing filters, or super-absorbent (super-absorbent) polymer filters. Each of these targets a specific form of contamination—free, emulsified, or dissolved. The most efficient method to control high moisture content is vacuum dehydration. Absorbent filters are best used for low-level, ongoing moisture control.

Water contamination in hydraulic systems is a common and damaging problem. However, it is often ignored until it causes bearing failure, corrosion, or additive depletion. It is crucial to understand how filtration works and which technology best fits the contamination level. This will help you plan your maintenance program and extend component and fluid life.

Why is water in hydraulic oils a problem?

It is important to know what the water does in a hydraulic system before looking at filtering methods.

Three states of water pollution

Hydraulic oil contains water in three different forms. Each behaves differently.

• Gravity causes free water to settle at the bottom of reservoirs, as it does not mix with oil
• Emulsified Water—water dispersed in fine droplets within the oil. Often stabilized with additives or agitation
• Water that is dissolved at the molecular scale, not visible to the naked eye, and cannot be removed by settling.

Hydraulic fluids are only able to hold a small amount of water in the dissolved state before they become emulsified or free. When the saturation point is reached, damage increases quickly.

What causes water contamination?

The presence of water in hydraulic oil can cause a series of problems. It reacts with additives and forms acidic byproducts. It also promotes corrosion and rust on metal surfaces. Water in hydraulic oil can also promote microbial growth, clogging filters and valves.

Filtration for water removal

The right filtration technology depends on the amount of water and its form.

Vacuum dehydration

The vacuum dehydration method is the best way to remove large quantities of water, including dissolved water, from hydraulic oil.

This process involves exposing oil to a chamber under vacuum where the reduced atmospheric pressure lowers the boiling point of water well below its normal value of 212°F. The process allows for water to be vaporized and extracted at lower temperatures that are safe for oil, usually between 130 and 160°F. The water vapor extracted is then condensed, drained, and returned to service.

In well-controlled systems the water content can be reduced to less than 100 ppm. This method is particularly useful for systems that are prone to dissolved water, such as those in humid environments or with frequent temperature changes.

Coalescing filter

The primary purpose of coalescing filters is to remove free water and emulsified oil. They use specially designed media that cause small water droplets, as they pass through the filter, to merge together into larger water drops.

Water droplets are gathered on the fiber media as oil passes through the coalescer. These droplets combine to form larger droplets. Water is denser and therefore heavier than oil. These larger droplets are then separated by gravity and deposited in a collection tank, where they are periodically drained. A secondary separator is often used to capture any remaining droplets. Finally, a particulate filter will remove solid contaminants.

Coalescing systems are used for fuel and lubricant polishing and can be used as a portable or inline filtration system in systems with moderate contamination.

Water-absorbing (super-absorbent polymer) filters

Water-absorbing filters are a low-maintenance, simple option for achieving continuous moisture control at low levels. These filters are made with super-absorbent materials embedded in the media. They work in a similar way to diapers and moisture-control packets.

The polymer binds water molecules that are free or emulsified as hydraulic oil passes the element. Oil is not affected. These filters are capable of absorbing many times their weight in water. They can be installed in return lines or in a kidney loop filtration system where the oil is continually cycled through auxiliary filtration rather than in the main flow path.

These elements are limited in their absorption capacity and must be replaced when they become saturated. Most manufacturers offer a visual or an electronic saturation indicator.

Centrifugal separation

Centrifugal separators are designed to separate oil from water based on the density difference. They spin the fluid at high speeds so that heavier water is thrown away while lighter oil stays in the middle. This method works well for free water or larger emulsified drops, but less so for dissolved water. It is most commonly used in large industrial hydraulic systems and marine hydraulic systems.

Selecting the best filtration method

Three main factors determine the best approach: the amount of water, its form, and whether it needs to be cleaned once or protected on a regular basis.

• Vacuum dehydration, or high water content (or dissolved water), is usually required because other methods cannot reach dissolved waters effectively.
• Coalescing filtering is a great option for moderately emulsified or free water. It offers an excellent balance between throughput and efficiency.
• Absorbent filter elements offer simple and continuous protection against low-level contamination.
• Centrifugal separation is cost-effective for large-scale industrial systems

Some maintenance programs combine different methods, for example, using an absorbent filter for daily protection as well as scheduling periodic vacuum dehydration services for deeper cleaning.

Monitoring water content

Filtration is best used in conjunction with regular oil analyses to monitor water content over time. It should not be applied only when visible symptoms are present. The Karl Fischer titration method, which measures total water content to a precision of ppm, is a common testing method. Another quick and easy field test involves heating a droplet of oil on a hotplate.

Hydraulic fluid manufacturers generally recommend that water content be kept below 200-300 ppm in general-purpose hydraulic systems. Limits are tighter for high-pressure equipment or precision equipment. By setting a threshold and testing it on a regular basis, filtration can be adjusted to prevent contamination from reaching damaging levels.

It's not a simple process to remove water from hydraulic oils. You need to identify the type of water present and then match it with the appropriate filtration technology. Vacuum dehydration is the best solution for the most difficult cases, such as dissolved water. Coalescing filters and absorbents are also practical options to control moisture. The right filtration strategy, combined with routine oil analyses, protects fluid integrity and extends component lifetime, reducing the risk of expensive downtime.

1. What is the best way to remove dissolved water from hydraulic oils?

The vacuum dehydration method is the most efficient, as it can remove dissolved water from oil by lowering its pressure and boiling temperature, which coalescing filters or absorbent filters cannot do.

2. How much hydraulic oil is too much water?

The water content of most general-purpose hydraulics should be kept below 200-300 ppm, but high-pressure and precision systems may require a limit closer to 100 ppm.

3. Can absorbent filters remove water contamination of all kinds?

No. No.

4. How often should hydraulic oils be tested for moisture content?

The frequency of testing depends on the operating conditions. Most maintenance programs test systems monthly. Systems exposed to humidity, temperature fluctuations, or frequent tank openings will be tested more frequently.

5. Can removing the water from hydraulic oils eliminate the need to change oil?

No. Filtration can extend fluid life, protect components, and prolong component life, but it does not restore depleted additives or reverse oxidation. Therefore, scheduled oil changes based on the results of condition monitoring are still required.
