How to bleed air from hydraulic cylinders effectively?

In order to bleed air out of the hydraulic cylinder, you need to move it several times with low pressure, with the system in operation while releasing the bleed valve or loosening the fitting at the top of the cylinder in order to let out air trapped inside, and then tighten it when a steady stream of fluid (free from bubbles) discharges. Repeat the cycle until the cylinder runs smoothly, without hesitation, jerking, or a spongy reaction. Be sure to check the level of reservoir fluid following the purge, since air consumption consumes the amount of oil.

The trapped air inside a hydraulic cylinder is among the most frequently cited and often misunderstood factors that cause unpredictable machine behavior. Contrary to leaks or a damaged seal, air trapped inside a hydraulic cylinder does not always show up as the obvious symptoms. Instead, it manifests as a subtle stutter when in motion and a softer or "mushy" feel under load or an inexplicably loud sound that technicians may follow off in an unintentional direction over a long time. Understanding the reasons why air enters the first place and how it behaves in an enclosed hydraulic circuit and the best way to get it out properly can help save time and help prevent damage to long-term seals and precision parts.

What is the reason why air in the hydraulic cylinders is an issue?

Hydraulic systems are built on the notion that fluids are basically incompressible. That's why the hydraulic cylinder provides precise, reliable movement and force. Air, however, is extremely compressible. In the event that even a tiny amount of air is trapped within the barrel of a cylinder or the fluid line, it behaves like a spring, taking in pressure and passing it through the air in a clean manner.

This causes a number of consequences that follow:

• The motion may be spongy or awaited—the cylinder rod could delay before responding to an input signal due to pressure being first "used up," compressing the air pocket.
• Cylinder chatter or jerky movements when trapped air expands and then releases the rod; it can sway or stumble, particularly under a load that fluctuates.
• A higher rate of heat generation from the compression of air and release creates localized heat, which speeds up the oxidation of fluids and may reduce the lifespan of the hydraulic fluid.
• Pitting and cavitation—when air bubbles break down in pressure (a process known as cavitation) They can cause tiny shock waves that pit the surface of metal, like the valve seats and bores of cylinders.
• Foaming—air that is mixed in the fluid may cause foam to develop within the reservoir, reducing the fluid's lubrication and speeding up additive breakdown.

If not addressed, these issues are likely to increase. What begins as a minor issue in the cylinder's response could escalate into premature wear on seals as well as bore scoring and lower overall efficiency of the system.

Common air entry points

Before you can bleed a cylinder, it is helpful to determine the way air entered by identifying the root of the problem, which can prevent the problem from occurring again.

After maintenance or a replacement component

Every time a fitting, cylinder fitting, or hose is removed—whether for seal replacement, repair of hoses, or swapping a cylinder—air gets into the line that is open. This is the most frequent cause of trapped air and is thought to be an expected, normal part of the reassembly process.

Low reservoir fluid level

When the reservoir for hydraulics is low, the return line or pump inlet could start drawing air in with oil, especially in high-flow times. This is often referred to as "vortexing" and is an indication of poor size of the reservoir or maintenance of the fluid.

Fittings that are loose or damaged

A fitting that's not torqued to specifications or has an O-ring that is degraded may permit air to flow into the system via the suction side, despite an external leak of fluid appearing.

Cylinder orientation during installation

Cylinders filled with or mounted in a different orientation could create air pockets at the high points of the barrel, which don't naturally flow towards bleeding points in normal operations.

Step-by-step guide on how to bleed the hydraulic cylinder

1. Check the level of fluid before commencing.

Make sure to check the reservoir's sight glass or dipstick and refill with the proper type of fluid if required. A bleeding process will cause fluid loss as air is moved; therefore, beginning with a sufficient level will prevent the introduction of new air into a reservoir that is low.

2. Find the bleed points.

The majority of industrial cylinders have special bleed screws or ports at the top of both the cap and rod end, as air naturally increases. If a bleeding valve isn't in place or is not available, a fitting that has been loosened at the top of the line may be used to fulfill the same purpose.

3. The system should be run at a low pressure.

The hydraulic pump should be started, and let the system be run at a lower pressure and a lower motor or engine RPM when it is. When the pump is running at full pressure, bleeding can lead to a high-pressure spray of fluid around the loose fitting, which can pose a danger to your safety.

4. Release the valve to bleed or tighten the fitting a bit.

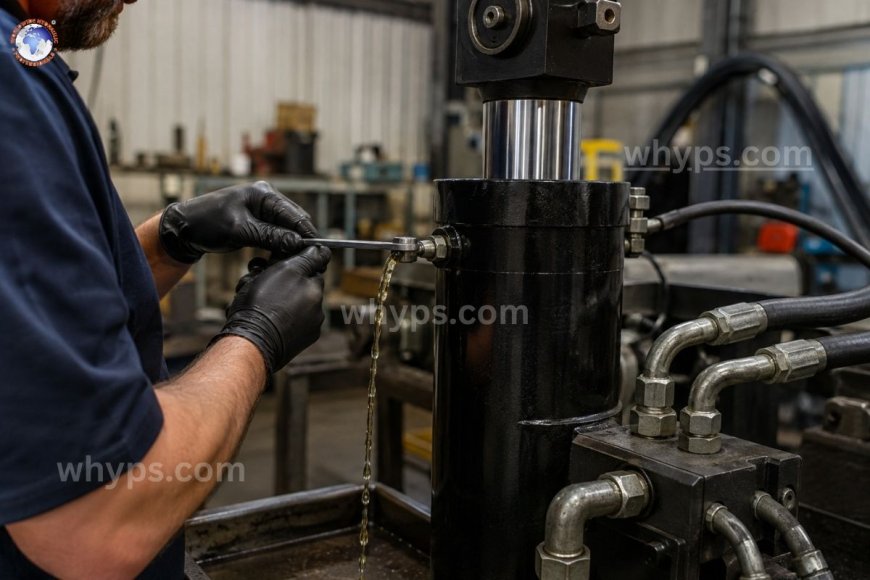

The cylinder should be oriented such that the bleed point is at the highest point; close the valve or break the fitting to allow trapped air to let out. The first sign is the discharge bubbling and sputtering.

5. The cylinder is cycled slowly.

Retract and extend the cylinder through its full stroke many times, while the bleed point remains open. This motion helps to dislodge air pockets that could be trapped within the walls of the cylinder as well as in dead areas around the piston.

6. Be sure to look for a clean and clear stream that is free of bubbles.

Continue to cycle and bleed until the liquid escaping the point of bleed is straight and smooth and there are no apparent air bubbles. This means that the air pocket in that area has been cleared.

7. Stop the bleed valve and test again.

The bleed valve should be tightened or fitted according to the proper torque specifications. The cylinder should be cycled again at normal pressure, and the motion should be observed. It should be smooth without hesitation, chatter, or the spongy resistance.

8. Recheck fluid level.

After bleeding, you should check the level of your reservoir and top off as required because the volume of fluid was reduced through the purging process.

When to call a technician

If a piston continues to exhibit spongy or irregular movement after an extensive bleeding process, however, the problem may not be air that is trapped. The persistent symptoms could indicate the piston seal being worn, allowing internal bypass, a failing pump, or a clogged or malfunctioning valve. In these instances, more bleeding isn't going to fix the problem, so a diagnostic check is the next best step.

In order to prevent air intrusion in the future

Reduced number of air-related issues from a couple of regular practices that include keeping the reservoir's level of fluid within the range of its specifications always, adjusting fittings to manufacturer specifications when performing any maintenance, following the correct fill procedure when installing new cylinders and examining suction-side connections regularly for wear that may allow air to get in, even without obvious leaks. Systems that are subject to frequent swaps of components or field repairs can benefit from a common post-maintenance bleed procedure, which is included in the technician's checklist, instead of considering it an afterthought.

1. What can I tell about the condition of my hydraulic cylinder if it has trapped air, instead of an issue with the mechanical?

The air trapped in the trap typically causes an elongated or delayed response, jerky movement, or chatter that alters as the load increases, while mechanical problems such as seal failures tend to result in more predictable, repeatable signs such as a constant drift or total loss of force holding.

2. How long will it take to flush air from a hydraulic cylinder?

Bleeding generally takes just around a half-hour for cylinders with simple cases; however, stubborn air pockets from complicated plumbing or multiple lines that have been reconnected could require several bleed and cycle repetitions.

3. Can I use a hydraulic cylinder to bleed without a bleed valve specifically for the purpose?

Yes, you can loosen fittings at the top part of the line; you can keep operating the system at a low pressure. A dedicated bleeding valve provides more control and lowers the risk of spray.

4. Is it normal for a brand-new hydraulic system to require bleeding following installation?

Most recently constructed or newly serviced hydraulic systems are stocked with air that has been trapped and requires bleeding before they can be put into full operation.

5. What happens when I run an hydraulic system that has air that is still trapped in it?

A system that is encased in air increases wear due to cavitation, which generates excessive heat, reduces the fluid's quality by foaming, and may cause a cylinder to move in unpredictable ways, which poses a risk to safety under stress.
