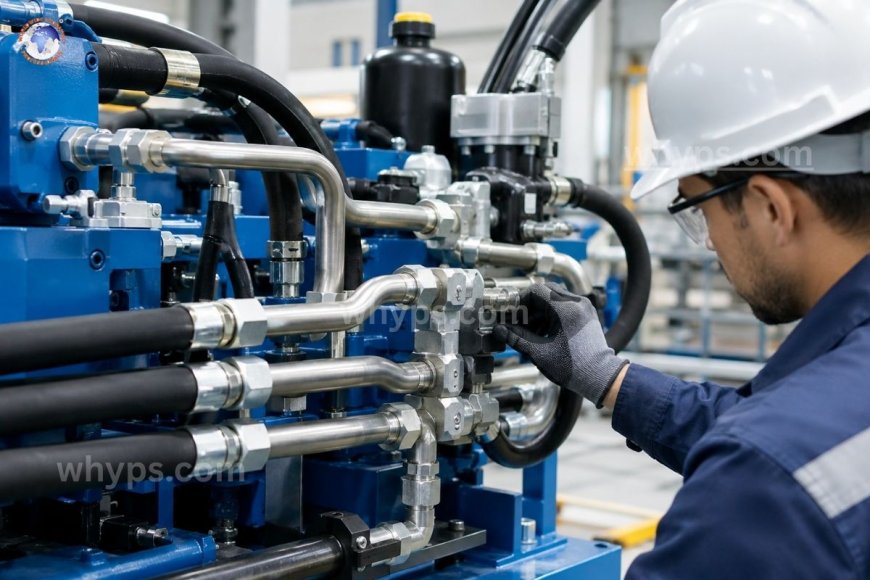

How does non-welded piping improve system reliability?

Non-welded piping improves hydraulic system reliability by eliminating the weld-related problems that shorten component life: internal scale and spatter that contaminate fluid, heat-induced distortion and cracking, hidden weld defects, and difficult repairs. Using mechanical connections such as flanges, flareless (bite-type) fittings, flared JIC joints, and O-ring face seal (ORFS) fittings, non-welded systems deliver cleaner fluid, more consistent joints, better vibration tolerance, and faster maintenance, which together reduce leaks, unplanned downtime, and long-term operating cost. Reliability in a hydraulic system depends on how well it keeps fluid clean, contained, and at the right pressure. Piping is the part of the circuit that connects every pump, valve, and actuator, so the way it is joined has a direct effect on all of them. This article explains what non-welded piping is, the specific ways it improves reliability, and where to be careful when specifying and installing it.

What is non-welded piping?

Non-welded piping joins tubes and pipes with mechanical connections instead of fusing them with heat. Common methods include:

• Flanged connections (such as SAE four-bolt split flange) that clamp a sealing element between mating faces.
• Flareless or bite-type compression fittings, where a ferrule or cutting ring grips the tube as the nut is tightened.
• Flared fittings (such as JIC 37°) that seal metal to metal on a formed tube end.
• O-ring face seal (ORFS) fittings, which compress an elastomer O-ring in a face groove for a leak-resistant seal.
• Threaded connections (NPT, BSPP, and similar) used mainly on lower-pressure or auxiliary lines.

Each method produces a joint that can be assembled, inspected, and taken apart without torches, filler metal, or post-weld treatment.

1. Cleaner fluid and less internal contamination

Contamination is the leading cause of hydraulic component failure, and welding is a significant source of it. Welding a tube or pipe creates oxide scale, spatter, and slag on the inside of the line. Even careful welders leave particles that break loose later, travel with the oil, and score pump surfaces, valve spools, and cylinder bores.

Non-welded connections avoid this at the source. Tubes are cut, deburred, and cleaned, then assembled with no heat on the inside wall. That means:

• No weld scale or spatter entering the circuit.
• Less dependence on aggressive post-installation cleaning.
• Faster, shorter system flushing at commissioning.
• Easier achievement of target ISO 4406 cleanliness codes.

Cleaner startup fluid means filters last longer, valves wear more slowly, and early-life failures drop noticeably.

2. No heat-affected zones and less material stress

Welding changes the metal around the joint. The heat-affected zone (HAZ) can be harder, more brittle, or more prone to residual stress than the base tube. Under repeated pressure cycling, these zones are common starting points for fatigue cracks.

Non-welded joints leave the tube's original properties intact. Heat distortion, warping, and thermal stress during installation are avoided, so the line holds its designed geometry and pressure rating. For systems that see frequent pressure spikes, such as presses, mobile equipment, and injection molding machines, this consistency directly supports fatigue life.

3. Fewer hidden defects and more predictable quality

A weld can look acceptable on the outside while hiding porosity, incomplete fusion, or undercut on the inside. Finding those defects requires radiography, dye penetrant testing, or other inspection that adds cost and is not always performed on every joint.

Mechanical connections are more repeatable. Fittings are manufactured to standards, torque or turn-from-finger-tight values are defined, and a correctly assembled joint can be verified visually and by marking. Quality depends on following a procedure rather than on individual welder skill, which makes results far more consistent across crews, shifts, and sites.

4. Better leak performance

Leaks waste fluid, create safety hazards, attract contamination, and signal wear. Modern non-welded designs, especially ORFS and properly specified flange connections, are engineered for high leak resistance under vibration and thermal cycling. The elastomer seal in an ORFS joint absorbs small movements and surface imperfections that would open a metal-to-metal seat.

When fewer joints weep or drip, there is less top-off fluid, fewer environmental concerns, and less unscheduled shutdown.

5. Improved vibration and shock tolerance

Hydraulic lines vibrate. Pumps produce pulsation, valves shift suddenly, and mobile equipment shakes. Rigid welded joints concentrate that stress at the weld toe, a classic location for fatigue failure.

Properly supported non-welded assemblies distribute movement differently. Compression and flared fittings allow slight flexibility at the joint, and the tube itself can be bent and routed to absorb movement rather than transmit it directly to a rigid weld. Combined with correct clamp spacing, this reduces the cracking and loosening that cause many in-service failures.

6. Faster, safer maintenance and repair

Reliability is not only about avoiding failure; it is also about recovering quickly when something does fail. Non-welded piping offers clear advantages here:

• Disassembly without cutting. Sections can be removed, inspected, and replaced using standard hand tools.
• No hot work permits. Eliminating welding in oil-contaminated, confined, or flammable environments removes a major fire risk and the paperwork and delays that accompany it.
• Shorter downtime. A failed section can be swapped with a pre-made assembly rather than waiting for a welder, fit-up, and post-weld cleaning.
• Easier modification. Circuits can be extended or reconfigured with less disruption.

For plants where an hour of downtime costs significant revenue, serviceability is a major reliability advantage.

7. Easier inspection and condition monitoring

Mechanical joints are easy to see and check. Technicians can look for weeping at a flange or fitting, verify that torque marks are intact, and spot loosening before it becomes a leak. Predictable joint locations also simplify inspection routes and make early detection of tube failure signs, such as chafing, fretting, or cracking at the tube end, more systematic.

Where non-welded piping needs care

Non-welded does not mean maintenance-free. Reliability gains depend on correct specification and assembly. Common pitfalls include:

• Poor tube preparation. Tubes must be cut square, deburred, and free of scratches at the sealing area. Imperfect ends cause leaks and bypass.
• Wrong tightening. Over-tightening can deform ferrules and crack fittings; under-tightening leaves joints loose. Follow manufacturer torque or turns-from-finger-tight guidance.
• Mixing standards. Combining different thread forms or sealing types, such as JIC and ORFS, can create joints that seem to fit but never seal.
• Inadequate support. Unsupported lines vibrate, fatigue, and loosen fittings. Use proper clamp spacing and isolate lines from sources of shock.
• Incorrect pressure ratings. Fitting and tube ratings must match the system's working pressure plus expected spikes.
• Seal incompatibility. O-ring materials must suit the hydraulic fluid and operating temperature.

Training and written assembly procedures are essential. A well-assembled non-welded joint is highly reliable; a carelessly assembled one is not.

When is welded piping still the right choice?

Welding remains appropriate for some applications, such as very large-bore lines, permanent high-pressure installations where joint count must be minimized, and systems where qualified welders and full inspection regimes are in place. The practical question is not whether welding is ever acceptable, but which method gives the best reliability for the pressure, size, environment, and maintenance capability of the specific system. For most industrial and mobile hydraulic circuits in small and medium bore sizes, non-welded piping offers the stronger balance of cleanliness, consistency, and serviceability.

Key takeaways

• Non-welded piping prevents weld scale and spatter, keeping fluid cleaner from day one.
• It preserves tube material properties and avoids heat-affected zones that initiate fatigue cracks.
• Standardized mechanical joints are more repeatable and easier to verify than welds.
• ORFS, flange, and bite-type connections offer strong leak resistance under vibration.
• Maintenance is faster and safer without hot work, which improves uptime.
• Results depend on proper tube preparation, torque, support, and component matching.

1. What is non-welded piping in a hydraulic system?

Non-welded piping connects tubes and pipes using mechanical joints, such as flanges, compression or bite-type fittings, flared fittings, and O-ring face seal fittings, instead of welding. The joints are assembled by tightening and can be disassembled for inspection or repair.

2. Why does non-welded piping reduce contamination?

Welding leaves scale, slag, and spatter inside the line that can later enter the oil and damage pumps, valves, and cylinders. Mechanical joints involve no heat on the inner wall, so these particles are never created, and system flushing is simpler.

3. Is non-welded piping as strong as welded piping?

When correctly specified and installed, non-welded connections are rated for the same working pressures as most hydraulic circuits require. Strength depends on matching tube, fitting, and seal ratings to system pressure and spikes and on following proper assembly procedures.

4. Does non-welded piping leak more often than welded piping?

Not when properly assembled. Modern designs like ORFS and SAE flange connections are engineered for strong leak resistance under vibration and temperature changes. Most leaks in mechanical joints trace back to poor tube preparation, incorrect torque, or mismatched components rather than the joint style itself.

5. How does non-welded piping reduce downtime?

Sections can be removed and replaced with standard tools, without hot work permits, welders, or post-weld cleaning. Pre-made replacement assemblies can be installed quickly, which shortens repair time and helps restore production sooner.
