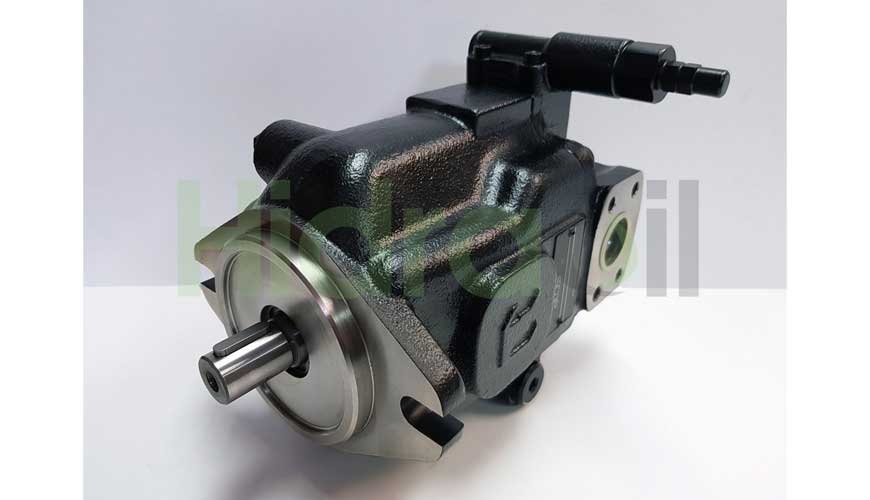

Atos Piston Pumps PVPC-PES 50 Series    The new series 50 axial piston pumps PVPC-PES (PERS) now comes with new closed loop digital drivers series 40 and a new compact angular transducer for the swash plate position feedback. Technical characteristics

Sizes, max displacements, options and overall dimensions unchanged



New PES driver in full S execution – rugged design and IP66/67 waterproof protection – with alternated closed loop P/Q controls



USB port for PC connection



Available fieldbus interfaces: PROFIBUS-DP, CANopen and new EtherCAT



Model code



The pump’s model code is slightly changed by the introduction of following additional suffix aligning the codification to current TES, LES digital valves:



SP-NP = integral P/Q control without bus interface



SP-BP = integral P/Q control with PROFIBUS-DP interface



SP-BC = integral P/Q control with CANopen interface



SP-EH = integral P/Q control with EtherCAT interface
