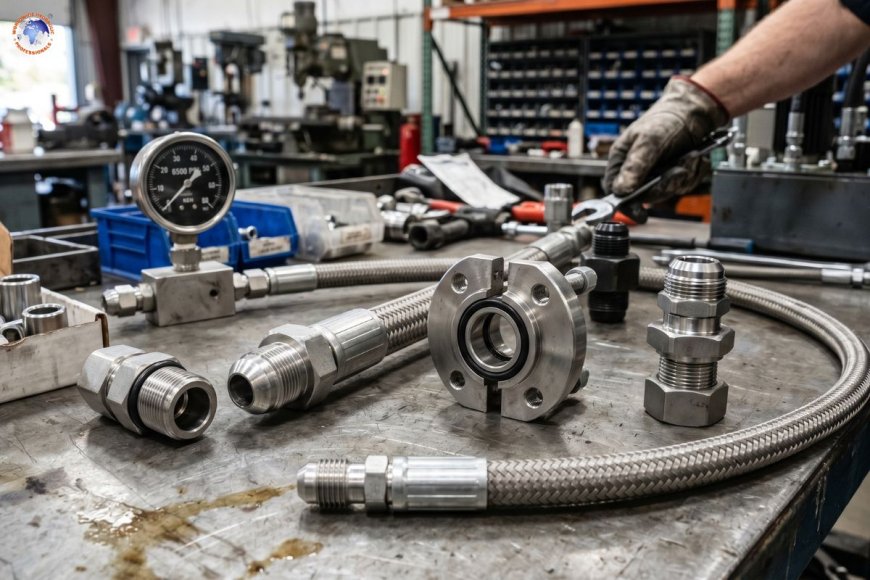

What are the best hydraulic fittings for high-pressure applications?

Hydraulic systems that operate under extreme pressure - often exceeding the limit of 3,000 PSI and occasionally exceeding 10,000 PSI--demand fittings that can stand up to extreme pressure as well as temperature fluctuations, as well as continuous loads. In industrial machinery, construction equipment, or offshore equipment, the selection of fittings for hydraulics has a direct impact on security as well as efficiency and long-term durability.

In this blog, we'll discuss the most effective hydraulic fittings suitable for applications that require high-pressure covering connections, materials' performance characteristics, and practical tips for selecting the right fittings.

Understanding high-pressure hydraulic requirements

Before deciding on fittings, it's essential to comprehend what makes high-pressure systems difficult. They expose the components to:

• Intense internal pressure
• Shock loads and vibrations
• Temperature fluctuations
• Corrosive environments
• Repetition of presseurization cycles

In light of these aspects, fittings should have strong tensile strength, a high sealing capacity, and resistance to corrosion and fatigue.

Key factors that define the best hydraulic fittings

The right fitting choice isn't only about pressure rating. The most effective fittings excel in many areas:

1. Pressure rating

Fittings need to be compatible with or exceed the pressure of the system. Many industrial fittings are capable of handling 3000-6,000 PSI, while special fittings can exceed 10,000 PSI.

2. Material strength

The high-pressure environment requires materials that can withstand cracking, deformation, and fatigue.

3. Corrosion resistance

The exposure to chemicals, moisture, or saltwater may cause the degradation of fittings over time.

4. Sealing mechanism

Connections that are leak-free are essential for security and effectiveness.

5. Temperature tolerance

Heating can weaken materials and impact the sealing properties.

Best materials for high-pressure hydraulic fittings

The material used in fittings is among the primary factors determining the suitability of a fitting for use in high-pressure applications.

1. Stainless steel - The top choice

It is widely believed to be the top material for high-pressure fittings for hydraulics.

What makes it stand out:

• handles pressures higher than 6,600 PSI (often significantly higher)
• Excellent corrosion resistance
• It is able to perform well in environments with high temperatures.
• Long service life

Best applications:

• Marine and offshore systems
• Chemical processing
• Aerospace hydraulics

The stainless steel, particularly 316 grade, provides the best resistance to extreme environments and is strong even under stress.

2. Carbon steel - strong and cost-effective

Carbon steel is among the most widely utilized hydraulic components.

Advantages:

• Durability and strength are high.
• Cost-effective
• Recommended for pressures of 6,000 PSI or more.

Limitations:

• Highly susceptible to corrosion, even without coatings
• It requires maintenance in harsh environments.

Best applications:

• Construction equipment
• Machinery for agriculture
• Industrial hydraulics

3. Alloy steel - enhanced performance

Alloy steel fittings have increased strength and resistance to fatigue in comparison to standard carbon steel that is standard.

Benefits:

• More wear resistance
• Higher pressure tolerance
• Better performance under load cycles

They are perfect for extremely heavy-duty jobs in which standard steel might not be enough.

4. Duplex and super duplex stainless steel

For extreme environments, Duplex stainless steels can provide:

• Stronger than the stainless steel standard
• Superior resistance to cracks from stress corrosion
• Excellent performance in chemical and marine settings.

These materials are used extensively in the oil and gas and offshore structures.

5. Nickel alloys (Inconel, Hastelloy)

In the most extreme of conditions, such as high temperatures, pressures, and chemical exposure--nickel alloys stand out.

Advantages:

• Outstanding resistance to corrosion
• Stability in extreme temperatures
• High mechanical strength

Applications:

• Chemical plants
• Hydraulic systems with high temperatures
• The energy and aerospace sectors

6. Brass - not for high pressure

Although brass fittings are widely used, they're not suitable for high-pressure systems.

• Typically, the limit is between 1,000 and 3,000 PSI
• Prone to deformation under stress
• Ideal for low-pressure instrumentation systems.

7. Aluminum and plastics - limited use

• Aluminum: Lightweight, but generally suitable for systems with lower pressure
• Plastics are not recommended due to their weak strength and potential for failure under pressure

Best types of hydraulic fittings for high pressure

It's not enough to have the right material, but the design plays an equally important function.

1. Cone and thread fittings

They are among the most reliable solutions for extreme pressure.

Features:

• Metal-to-metal sealing
• It can handle extremely high pressure (up to 60,000 PSI in certain instances)
• Leak-resistant design

Best for:

• Ultra-high-pressure systems
• Chemical and oil & gas industries

2. O-ring face seal (ORFS) fittings

ORFS fittings are extensively utilized in modern hydraulic systems.

Advantages:

• Great leak prevention
• It can handle high-pressure and vibration
• Installation is simple

3. JIC (37 ° flare) fittings

A very popular option for industrial hydraulics.

Benefits:

• Reliable metal-to-metal seal
• Easy to use and maintain
• Ideal for high-pressure applications

4. Compression (double ferrule) fittings

Commonly used in precision systems.

Features:

• A strong grip on tubing
• Resistance to vibrations is high
• Good sealing performance

5. Welded fittings (socket weld/butt weld)

For permanent installations that are permanent.

Advantages:

• There is no risk of the threads leaking from the threads
• Strong connection
• Perfect for critical high-pressure systems

Matching fittings to applications

Different industries require different fitting solutions:

Construction & heavy equipment

• Alloy steel, carbon, or steel
• JIC as well as ORFS fittings

Marine & offshore

• Duplex steel, also known as stainless steel
• Corrosion-resistant designs

Chemical processing

• Nickel alloys or stainless steel
• Cones and thread fittings

Aerospace

• Titan alloys or stainless steel
• Fittings engineered to perfection

Common mistakes to avoid

Even the most reliable fittings could be damaged if they are not properly selected or installed. Beware of these common mistakes:

• Fittings that are below the pressure rating
• Mixing incompatible materials
• Do not pay attention to corrosion causes
• Threads that are too tight
• Reusing broken fittings

Incorrect selection is the primary factor in system failures as well as dangers to safety in high-pressure hydraulics.

Tips for choosing the best hydraulic fittings

To ensure safety and reliability, follow these top methods:

1. Check pressure ratings carefully
2. Select the right materials based on the environment
3. Utilize tested and certified fittings
4. Check compatibility with hydraulic fluids
5. Take into consideration vibration and temperature elements
6. Follow the proper installation procedure

The most effective hydraulic fittings for high-pressure applications are those that offer toughness, long-term durability, reliability, and durable sealing. Most of the time:

• Stainless steel is the most effective material for harsh conditions
• Alloy steel and Carbon have excellent strength and are less costly
• Specialty Alloys are perfect for tough or challenging environments.

It is equally important to select the correct type for your application, like cone and thread, or ORFS, so that there is no leakage.

When it comes to high-pressure hydraulics, there's no room to compromise. Making investments in high-quality fittings does more than improve performance, but also increases security and lowers maintenance expenses.
