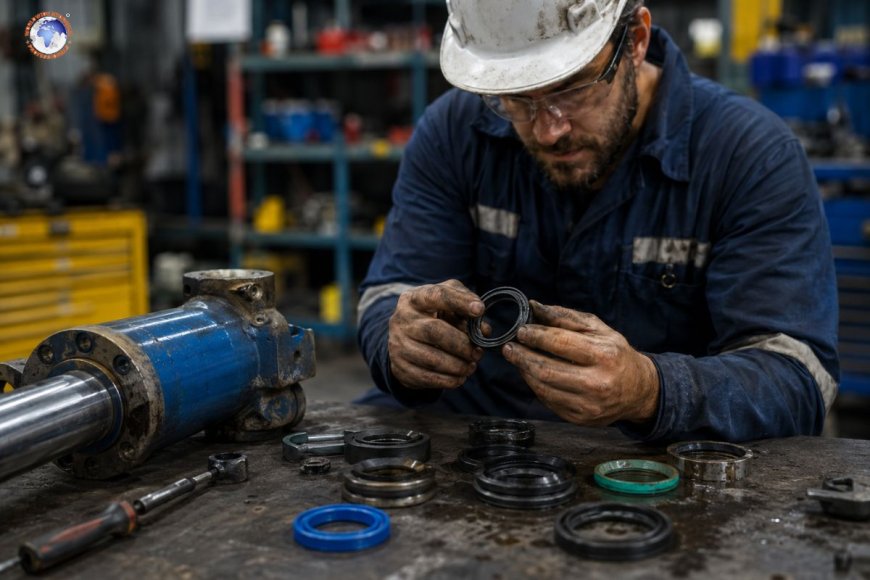

Why Hydraulic Seals Fail Prematurely and How to Prevent It?

Seals for hydraulics usually fail prematurely due to contamination, inadequate installation, chemical incompatibility, and excessive heat or pressure surges that exceed the capacity of the seal. The majority of premature failures can be prevented by ensuring the proper filtering (targeting ISO 4406 cleanliness codes) as well as the proper seal choice of material to operate in the temperature and fluid as well as careful installation techniques and regular monitoring of temperature and pressure. Addressing the root of the problem instead of simply replacing seals frequently can prolong the life of seals from a few months to years.

Hydraulic seals are a small component that can have a huge impact on the reliability of the system. When they fail, the effects spread outward, such as loss of fluids and contamination intrusion with reduced efficiency, as well as inadvertent downtime that could stop the entire process. Knowing why seals fail earlier than their service lives is the first step to avoid the issue from happening.

Common reasons for premature failure of seals

1. Contamination

Contamination is one of the main causes of failures in hydraulic seals across all industries. Particulate matter, such as metal shavings, dirt, or byproducts of degraded fluids, acts like sandpaper on the sealing lip of the seal as it slowly wears away the seal's surface with each stroke cycle. Even tiny contaminants can cause major damage over time, primarily when used in high-cycle equipment such as excavator cylinders and press systems.

Water contamination can be equally harmful. It can lead to seal swelling, decrease the effectiveness of lubrication, and accelerate the degradation of hydraulic fluids into harmful byproducts, which affect seal materials more chemically than mechanically.

2. Improper installation

Seals are precision parts, and even minor installation mistakes could be fatal in the beginning. Common errors include:

• The seal edge is cut or nicked edge when it is installed over rod threads that are sharp or burrs
• Twisting U-cups and O-rings in assembly
• Making use of the wrong tools, which slit the seal's surface
• Failure to properly lubricate seals prior to installation, leading to dry friction when the seals are first installed.
• Installing seals backwards, especially asymmetric lip seals specifically that are designed to work in a particular pressure direction.

A damaged seal could initially work but usually fails within a few days or weeks instead of being able to last the intended time.

3. Incompatible material selection

Some seals are not compatible in all liquids. Nitrile rubber (NBR) is the most popular and economical seal material and is effective with mineral-based hydraulic oils but is rapidly degraded when exposed to some synthetic fluids or phosphate esters or biodegradable oils. The fluorocarbon (FKM/Viton) seals provide superior chemical resistance and greater temperature tolerance, but at a cost. PTFE seals are able to withstand extreme temperatures and harsh chemicals but require different sealing systems.

A bad choice of material won't always result in immediate failure. Sometimes seals expand and shrink, hardening or softening slowly, and then the problem is apparent several months or even years later, and the reason for it is difficult to pinpoint.

4. Thermal degradation

The heat accelerates almost every mechanism that causes seal failure. Temperatures that are too high cause elastomers to lose their flexibility, harden, and crack. Temperatures that exceed the seal's maximum temperature will reduce the life of the seal dramatically. A seal that is rated for thousands of hours of operation at a normal temperature may last only a tiny fraction of the time in the event that temperatures increase 20-30 degrees over the design limit.

It's not always easy to identify the source of heat. Oversized reservoirs, constrained cooling systems, extreme temperatures in the air, or a high system pressure generating friction could cause seals to exceed their thermal limits without one dramatic event indicating the issue.

5. Extrusions and pressure spikes

Hydraulic systems experience pressure spikes during rapid valve shifts, cylinder direction changes, or shock loading. When the seal's pressure exceeds its capacity to withstand the load, or if the gap between extrusion parts is too big, the seal material may be forced into the gap of clearance and fail, which is known as extrusion. Extrusions that are repeated cause visible shredding or nipping around the seal's edges and eventually lead to leakage.

This is especially prevalent in systems that have worn bores in cylinders or bearing bands, as an increased clearance between the bore and piston permits more material to flow under pressure.

6. Surface problems with the finish

The finish of the surface of rods and bores plays a vital role in the durability of seals. A rough surface can cause friction against the seal, whereas the surface that is too smooth is unable to hold the thin film of lubrication that the seal requires to function correctly. The pitting of chrome plating, the rust due to erosion, or scoring caused by earlier seal failures could cause conditions on the surface that lead to premature failure of replacement seals, even the best ones.

How can we stop premature failure of seals?

Improve fluid cleanliness. Find the proper ISO 4406 cleanliness codes for the sensitivity of your component, and make sure to use filters that are rated to safeguard your most delicate components. Replace filters on a proactive schedule rather than waiting for indicator warnings, and consider upgrading filtration if contamination-related failures are recurring.

Seal materials should be compatible with specific conditions of use. Before you choose a new seal, ensure that it is compatible with the type of fluid you're using and operating temperature range and pressure requirements. When you switch to biodegradable and synthetic fluids, make sure to confirm the compatibility of the seal material, not thinking that existing seals will work.

Train installation personnel. An effective installation process, which includes deburring rod threads, making use of seal tools instead of screwdrivers, and adhering to the guidelines of the manufacturer for lubrication, will prevent many avoidable failures.

Control and monitor temperature. Check that reservoirs are properly sized and that cooling systems function and the pressure of the system doesn't create excessive heat due to inefficiency. Infrared temperature monitoring could detect emerging heat problems prior to causing damage to seals.

Check wear parts regularly. Check cylinder bores and rods as well as the bearing band for signs of wear, which increases the gap between extrusions. Take care to fix these mechanical issues prior to installing new seals or replacements will fail due to the same reasons similar to the previous.

Control pressure spikes at the root of the problem. Install accumulators or adjust valve shift timing to reduce shock loading where pressure spikes are a recurring issue, rather than simply upgrading to higher-pressure-rated seals as a workaround.

A premature failure of a hydraulic seal is not a big deal when you are aware of the right place to search. Incorrect installation, contamination, material incompatibility, pressure spikes, heat, and surface finish issues make up the majority of the cases. Instead of treating the replacement of seals as a regular maintenance expense and identifying the root reason for each failure and rectifying it, it can transform the seal's life from a constant headache to a manageable and predictable aspect of maintenance for the system.

What is the average time the seals of a hydraulic system last?

A: The life of the service depends on the application, but sealed seals that are properly maintained in systems typically last for 2-5 years or a lot of working hours. In the event of failures within weeks or months after installation, usually suggest a root cause issue instead of normal wear.

What caused the seal to fail simply by just looking at it?

A: Often, yes. Edges that are cut or nicked suggest the installation has been damaged Edges that are extruded or nipped suggest clearance or pressure issues. Cracked and hardened material indicates heat exposure, and softened or swollen seals are usually a sign of incompatibility with fluids.

Do you think that upgrading to a costlier seal material always fixes problems with failure?

A: Not necessarily. If the reason is contamination or poor installation, a superior material might fail more frequently, rather than being completely solved. Recognizing the issue first can save money in unnecessary repairs.

What is the frequency at which the hydraulic fluid should be tested in order to ensure seals are protected?

A: Most industrial equipment benefits from fluid analysis every 250-500 hours of operation; however, critical or high-duty cycle systems might need periodic tests. Regular analysis can detect degrading and contamination trends before they cause damage to seals.

Is it normal for a brand new seal to leak a bit in the break-in process?

A: A tiny amount of weeping in the initial operation may be normal for certain types of seals because they sit properly. But persistent or worsening leakage following a break-in could indicate an installation, compatibility, or wear problem with the component that requires examination.
