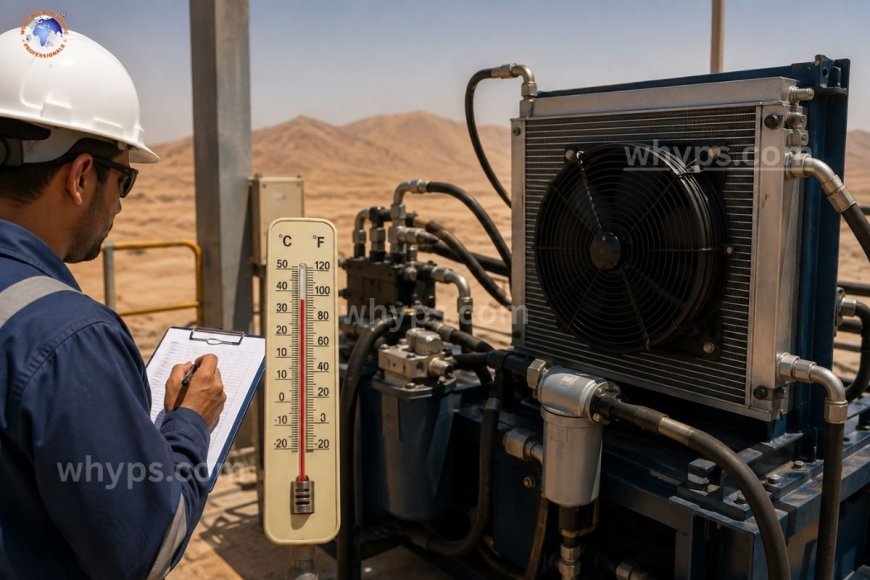

How does ambient temperature Influence hydraulic cooling system design?

Ambient temperature is the primary factor that determines how much heat a cooling system has to remove in order to cool down, since cooling capacity is calculated based on the variation between the temperature of oil and the surrounding ambient air (or water) temperature. The less of that difference, the more difficult the system must function. When ambient temperatures rise and cooler surfaces are used for airflow for fans, or coolant flow rate has to be increased to maintain the same temperatures of the oil, which is the reason systems that are designed for climates with temperate temperatures often perform poorly or fail in hot climates, which is the reason why accurate data on ambient temperature is among the most important elements in any cooling system specifications.

Hydraulic systems produce heat continuously via internal friction, compression of fluid loss, throttling, and inefficiencies of valves, pumps, and cylinders. This heat has to be moved where it is, so in many systems it's absorbed into hydraulic fluid. The fluid will then be transported to a cooler, whether air-cooled, water-cooled, or an amalgamation of both. The entire function of the cooler is to channel this heat out of the oil to the ambient temperature. The ambient temperature is the climate. It determines the effectiveness of any cooling method, and not considering it in the process of designing is among the primary reasons that system cooling overheats on the job.

The reason ambient temperatures are the first step in designing cooling systems?

Each heat exchanger, regardless of whether it's an air-cooled fin and tube unit or a shell-and-tube water cooler, depends on a differential in temperature to transfer heat. The heat is transferred from the hotter fluid to the cooler one, and the speed of transfer is inversely proportional to how big the difference between them is. A cooler that is designed to bring oil down from 80°C to 50°C in a 20°C climate will be unable to accomplish similar work in a temperature of 45°C, as the driving temperature difference has drastically decreased even though the temperature of the oil hasn't changed.

This is the reason cooling system specifications should not be based solely on a single "typical" temperature. Designers require the complete day-to-day and seasonal range of the location of installation, which includes the summer's most extreme ambient conditions and not the average. A system that is sized to an acceptable average is inadequately sized during the hottest months of the year, precisely because component hydraulics are subject to the greatest strain from heat and are least able to withstand the additional temperature stress.

Systems that are air-cooled and sensitive to climate

Air-cooled coolers are extremely sensitive to temperature variations in the air due to air being an inefficient heat transfer medium when compared to liquid. The coolers that are driven by fans draw out of the ambient air, and so the performance of their curves is related to the temperature of the air they are circulating. In hot climates, or in enclosed rooms in which air temperature is already elevated, air-cooled systems could require an even greater surface area for the heat exchanger and higher airflow rates or larger fans to offset.

Closed-in installations can cause problems. Equipment housed inside cabinet compartments for engines or in indoor plant rooms typically experiences localized ambient temperatures above outdoor conditions because of inadequate air circulation and heat recirculation. Designers who only consider the outdoor climate but not this microclimate influence often produce coolers that are effective well on paper but not in the actual setting.

Systems that cool water and indirect ambient effects

Water-cooled systems are less exposed to the ambient temperature since they channel heat into a loop in the water instead of directly into air. But the ambient conditions are important because the water supply itself is usually dependent on climate conditions—regardless of whether it is the cooling tower water intake or a closed-loop system that includes an internal radiator. Cooling towers specifically depend on evaporative cooling and are extremely dependent on the ambient temperature and humidity. In humid, hot climates, cooling tower temperatures increase, which decreases the temperature differential accessible to the downstream hydraulic heat exchanger.

Closed-loop water systems that block the heat from ambient air via an additional radiator are subject to the same constraints as air-cooled hydraulic coolers; they're only as efficient as the temperature difference between the coolant and air surrounding it permits.

Safety factors and margins

Since ambient conditions change and may exceed the norms of the past, cooling systems are generally designed with a margin of safety that is greater than the most likely ambient temperature and not the typical. The under-sizing of a cooler in order to cut down on initial costs for equipment is a typical error that manifests later as chronic overheating, rapid degrading of oil, and an increase in wear on pumps, seals, and valves operating in a range that is not their ideal viscosity.

A good design tip is to determine the capacities for cooling at the top acceptable ambient temperature at the site of installation. Then, add an additional margin, usually within the range of 10 to 20 percent, to accommodate for components that become clogged, fan performance decline over time, and extreme weather conditions. This is particularly important when it comes to outdoor or mobile equipment that is operating over a broad geographical and seasonal area instead of a single controlled facility.

Ambient interaction and fluid viscosity

Temperature fluctuations don't just impact the cooler's performance—it affects the fluid viscosity, causing it to increase the cooling requirements. The viscosity of hydraulic oil varies as temperature increases, and in cold conditions, the oil may become thick enough to cause an increase in internal pressure and friction, creating more heat during the initial phase. In hot conditions the oil's viscosity decreases and can decrease the strength of the film that lubricates it and also increase mechanical wear, which in turn increases temperatures due to increased metal-tometal contact within valves and pumps.

The design of cooling systems isn't just about removing an unchanging heat load. The goal is to manage a load that shifts in accordance with response to environmental conditions. The selection of the right viscosity grade to match the expected temperature range is an additional method that eases the burden put upon the cooling unit in the beginning.

The selection of the component for extreme temperature ranges

In installations that are in extreme climates, such as those that are constantly hot, constantly cold, or subject to large seasonal fluctuations -- the component selection is crucial. The options include cooling cores that are large as well as variable-speed fans, which ramp up automatically when ambient and temperature of the oil increase, as well as bypass valves controlled by thermostats that guard against overcooling under colder conditions, and in the most extreme conditions, hybrid water-and-air cooling systems that blend the advantages of both strategies.

Variable-speed control of fan speed is now commonplace in hydraulic power units of the present since it permits for the cooling mechanism to adjust its output to the actual demand, instead of running at a set rate that is sized to meet the requirements of worst-case conditions. This helps reduce energy usage in cooler times while allowing enough capacity for high ambient temperatures.

Practical advice for designers

If deciding on the hydraulic cooling system, the designers should collect site-specific ambient temperature data for the entire year, take into consideration the effects of enclosures and microclimates instead of relying on data from regional weather stations, size for the most extreme ambient temperatures with a suitable safety margin, and coordinate the fluid viscosity determination based on expected ambient extremes instead of considering cooling and selection of fluids as distinct decisions. Analyzing the cooler's performance curves for different ambient temperatures, and not merely a single assessed condition, offers a more accurate representation of the way in which the cooling system is likely to perform under real-world operating conditions.

1. What is the typical ambient temperature used to determine the size of a hydraulic cooler?

Designers typically size coolers based on the maximum temperature expected for ambient temperatures at the site of installation rather than the annual average because the under-sizing of coolers during heat times can cause the most operational issues.

2. Does a higher ambient temperature necessarily require a cooler that is larger?

In the majority of radiator and air-cooled systems, yes, the smaller difference in temperature between ambient air and oil lowers the efficiency of heat transfer, and therefore more surface area or airflow is required to make up for the difference.

3. What is the effect of ambient temperature on the hydraulic system that is water-cooled?

It is a direct effect on them through their water sources, specifically cooling towers, as high humidity and temperatures lower the temperature of water that can be achieved and decrease the cooling differential.

4. Can the choice of viscosity for fluids be used to lower cooling system requirements?

Yes, matching the viscosity grades to the anticipated temperature range will help reduce wear and frictional heat generated and strain on the cooling system.

5. Why are variable-speed fans helpful in regulating temperature fluctuations?

They let cooling output increase automatically according to real-time conditions, which allows for full capacity in temperatures that are extreme, while also reducing energy usage during cooler seasons.
