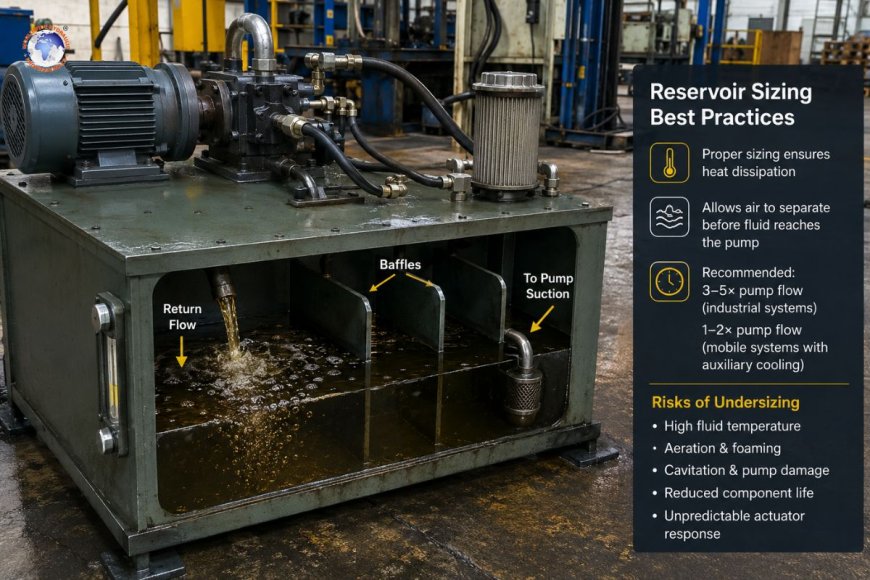

Reservoir sizing and its effect on fluid temperature and aeration

A reservoir for hydraulics should be large enough that the oil can dwell and cool before being reinserted into the pump. In general, 3 to five times the pump's recommended flow rate in gallons (or liters) in a minute is the norm for systems used by industrial companies, as well as 1 or 2 times the rate for compact mobile equipment that has an auxiliary cooling. Insufficiently sized reservoirs cause the fluid to heat up and transport air that has been drained to the pump, speeding up the degrading of oil, which causes cavitation, which can lead to unpredictable or spongy actuator responses.

The reason why the size of reservoirs isn't only about storing oil?

It's tempting to imagine that reservoir in terms of a passive reservoir—one that is a container that holds enough fluid to supply the pump with fluid. In reality, it is one of the key parts of the thermal and conditioning system within the hydraulic system. Every liter of oil that is returned from the system contains heat absorbed from tension, friction, and mechanical action, with air bubbles that are introduced through the seals of cylinder rods or loose suction fittings and turbulent return flow. The reservoir is the place where this heat is dissipated and the air escapes prior to the fluid being pulled back into the pump's intake.

If the sizing is incorrect, neither of these functions will be performed correctly. The system isn't running "a bit hot"—it is in the feedback loop, where heat accelerates the process of oxidation, and oxidation improves the viscosity of the fluid and also increases the amount of varnish formed as damaged fluid loses its capacity to seal and lubricate effectively This in turn creates more heat and air condensing.

How does reservoir size affect fluid temperature?

It is dwell time that's the main variable.

The number that is used in this case is the dwell time, the amount of time a certain amount of oil stays in the reservoir prior to being returned to the reservoir. A larger reservoir isn't able to cool oil due to the size of its surface It cools oil due to the fact that it slows the flow enough to allow heat to transfer to the tank's walls and the air surrounding it.

In general, follow these guidelines:

• Industrial stationary systems The capacity of the reservoir is 3-4x the flow (GPM or LPM), providing enough duration for naturally convective cooling.
• Small and mobile equipment The 1-2x flow rate is typical; however, it only works when these systems usually include finned coolers and fans or heat exchangers to make up for the less thermal mass.
• High-duty-cycle systems: those that run close-to-continuous cycles (presses or injection molding machinery for forestry) usually require them to be sized towards the top of the spectrum or incorporate active cooling, regardless of the reservoir's volume.

The tank's geometry and surface area are equally important.

Two reservoirs of the same size aren't cooling in the same way. A tank that is wide and shallow opens up more oil surface to air, and has a greater wall that is in close contact with its surface, which increases the efficiency of the passive heat absorption in comparison to a tall, slim design. Baffle plates in the tank also play an important part in the process. They do more than direct flow towards de-aeration, but they also lengthen the length of the path that fluids travel through the tank. thereby increasing the amount of time that it is exposed to the cooler tank's walls before the liquid reaches its suction lines.

The result of running hot

Any temperature rise of 10 degrees Celsius over the range of operation that the fluid is at will about halve its useful duration due to accelerated destruction. In addition to the chemical, it decreases viscosity, which decreases the thickness of the lubricating film between moving parts, and increases the leakage inside valve spools as well as pump clearances and reduces volumetric efficiency. A sluggish reservoir is often the cause of an oil product that "just doesn't last as long as it should," even before tracing any trace of the cause back to tank sizing.

How does reservoir size affect aeration?

How air enters the reservoir and how the reservoir is required to manage it

Air is introduced into hydraulic fluid via damaged sealing seals on rods, loose suction side fittings, low levels of fluid-exposed suction lines, and a turbulent return flow that is a whipping of air into the oil, much like a blender. Entrainment is almost inevitable in every real-world system. The reservoir's task is to allow the air the time to rise from the fluid to escape at the surface before the oil is pulled back to the pump.

This is the point where the dwell time and sizing intersect directly with the aeration control. When the size of the reservoir is not large enough and the return flow is not able to reach the suction line before the entrained bubbles have fully formed, the pump is then forced to end up ingesting the aerated oil.

The signs of insufficient de-aeration

• The cylinder's response can be delayed or even spongy Air is compressible, which means actuators can feel soft or slow when under load.
• Pump noise and cavitation: The collapsing of aerated oil at the inlet of the pump produces the characteristic whining or knocking noise and pits the pump's internals in the course of time.
• Foaming around the fill point: evident foam appearing on the surface of the reservoir is a clear indication that air isn't moving quickly enough.
• Oxidation acceleration—ingrained air can increase the exposure of oil to oxygen at operating temperatures This is one of the fastest methods to destroy the additives of a hydraulic fluid.

Baffles and the return line's placement help reduce the burden of sizing

A reservoir does not rely on volume alone for separation of air. Internal baffles divide the tank into two parts: a "dirty" return side and a "clean" suction side, making the fluid travel through a more tranquil, longer distance before arriving at the pump's intake. Placing the return line beneath the surface of the fluid, angled and diffused instead of directed straight down, reduces the amount of turbulent flow of air that swells into the oil in the first place. A properly designed, well-baffled reservoir will be superior to the larger but poorly designed one each time.

Guidelines for sizing in practice

These ratios are merely starting points and are not absolutes. Ambient conditions, the duty cycle, type of fluid, and whether the system is equipped with an exchanger shift the optimal number. An efficient system with an air-blast cooler will have a smaller reservoir than what these guidelines suggest. Systems that have no cooling at all will tend to be on the high limit, regardless of the flow rate.

The right reservoir size is achieved from the beginning

Reservoir sizing is often considered a last-minute addition to system design. It's that the dimensions of the tank are derived from a catalog instead of calculated based on actual requirements for thermal and aeration. However, the effects of undersizing are evident downstream in the form of a shorter duration of oil, wear and tear on pumps, and a lack of actuator performance. All of these require more time to determine and repair than it would cost to measure the tank properly in the beginning. If you are deciding to design the new system or fixing an existing one that is running noisy or hot, the capacity of the reservoir, its geometry, and baffle layout should be subject to the same attention to detail as the selection of a pump or valve size.

1. What is the most common norm for sizing hydraulic reservoirs?

A typical recommendation is between 3 and 5 times the pump's nominal capacity expressed in GPM as well as LPM for industrial equipment; however, mobile devices with secondary cooling may operate smaller reservoirs, usually between 1 and 2 times the flow rate.

2. Could a reservoir be too big to be used as the hydraulic system?

Yes. A reservoir that is too large increases the amount of oil in the reservoir and, consequently, can cause a delay in warming up in colder environments In some instances, it permits moisture and contaminants to build up into the liquid without offering the same benefits.

3. Does reservoir shape affect cooling performance?

Yes. The shallower, wide tanks typically are cooler than taller and narrow ones of the same size due to the fact that they expose more surface and wall surface to air, which improves passive heat loss.

4. How can baffles aid in both aeration and temperature?

Baffles increase the flow path within the tank, thereby increasing the time spent near the cooler tank's walls to aid in heat dissipation while giving the encased air the chance to separate and rise before liquid is able to reach the suction line.

5. What are some of the initial indications that a reservoir may be undersized?

Early signs include high temperature readings for fluids as well as visible foaming at the port for filling and spongy or delayed cylinder response and cavitation noise from the pump—all indicators that the dwell time is short to allow adequate cooling and de-aeration.
