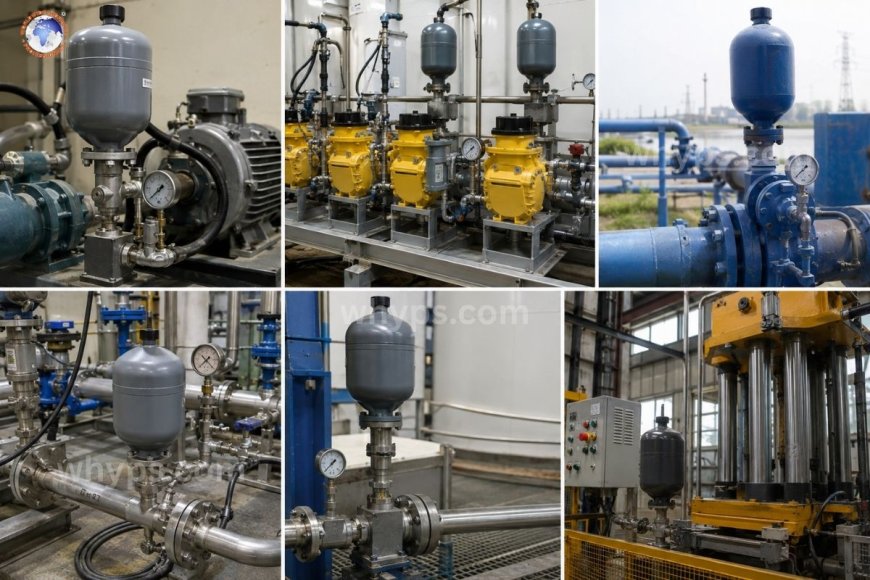

Where is Pulsation Dampeners commonly used?

Pulsation dampeners are typically employed in reciprocating pump systems, hydraulic power units, meters, and dosing pumps. Chemical injection skids pipelines for oil and gas and hydraulic presses. They help to absorb the pressure fluctuations and flow irregularities caused by plungers, pistons, or diaphragm pumps. safeguarding downstream components and enhancing the performance of the system.

Any system that relies on an oscillating or positive displacement pump creates pulsating flows by nature. Each stroke of a piston or plunger generates a jolt and then a brief dip as the pump changes between strokes. If left uncontrolled, the pressure fluctuations can accelerate component wear, cause noise and vibration, and alter readings on gauges and flow meters. Pulsation dampeners can be used to reduce the ripple and make it something that is more stable and continuous flow.

What exactly a pulsation dampener does

A pulsation dampener is sometimes referred to as an accumulator or surge suppressor dampener—it works on a basic principle that it creates a cushion that is compressible, which is typically an air charge that is separated from the process fluid through a diaphragm, bladder, or piston. The piston absorbs the energy from each spike in pressure and then releases it slowly. When the process fluid is pumped into the dampener during the stroke of a pump, the gas charge expands. When the pressure decreases between strokes as the gas expands, it allows fluid to flow out of the pipe. The result is a smoother, more constant flow and pressure profile downstream.

This is crucial when the flow of pulsation would result in physical stress or measurement errors or even process instability. Here are the industries and types of systems where pulsation dampeners appear the most frequently.

Hydraulic power units as well as fluid power systems

In hydraulic systems, pulsation dampeners are typically coupled with piston pumps as well as the radial or axial plunger pumps. They are highly coveted for their high-pressure output, yet are intrinsically designed to pulsate. With no dampening, the pulsation propagates throughout the entire circuit, causing audible noise, causing fittings and hoses that loosen in time, and causing fatigue to valve components that weren't made to run on constant pressure. Installing a dampener near the outlet of the pump smooths the discharge prior to it reaching control valves, cylinders, or motors, thus extending the life of fittings and seals across the circuit.

Chemical injection systems and metering pumps

Metering pumps are utilized to deliver precise quantities of chemical substances into the stream—they are plunger- or diaphragm-driven, and their precision is the primary goal of this application. The same motion that gives meters their precision also results in the discharge pulsating. In the chemical injection skids that are used in water treatment as well as oil and gas production and industrial process plants, dampeners are positioned immediately behind the pump in order to convert the discharge that is pulsing into a near-continuous rate of injection. This is crucial in the event that the chemical injected has to blend uniformly into the flowing stream because pulsing can cause irregular dose "slugs" that under- or over-treat certain sections in the fluid used for processing.

pipelines for oil and gas as well as wellsite equipment

Reciprocating pumps are common throughout upstream and midstream oil and gas operations—particularly in mud pumps used during drilling and in pipeline transfer pumps. The pulsation of these pumps isn't just about efficiency; it's also an injury and fatigue risk. Continuous pressure cycling of pipes, flanges, and even instrumentation could lead to the premature failure of fatigue, particularly in high-pressure drilling systems where pulses can disrupt the downhole pressure readings. Dampeners that are installed at the outlet of mud pumps as well as transfer pumps help reduce the rumble of pipe surfaces and assist in stabilizing the pressure data that is used to monitor wells.

Industrial press presses and hydraulic press applications

Hydraulic presses, specifically ones that perform high-tonnage forming molds, stamping, or forming processes, typically employ pulsation dampeners to shield their hydraulic systems from stress caused by pump cycles that are rapid and the directional valve switching. When it comes to press applications, vibrations caused by pulsation could cause quality issues for parts because the inconsistent pressures during a stroke may affect the precision of dimensional measurements or the finish of the part that is formed. A well-sized dampener can smooth pressure distribution throughout the ram cycle and ensure the longevity of the machine and reproducible output quality.

Plants for treatment of wastewater and water

Dosing pumps for adding chlorine and polymers, coagulants, and other chemicals for treatment in wastewater and water sources generally are positive displacement pumps. Additionally, the pulsation dampeners are a standard feature on the majority of skids. A consistent chemical dosage is a legal and process quality standard in the industry, and the discharge that pulsates without a dampener may cause an observable variation in the chemical concentrations across a plant's flow.

Food, drinks, pharmaceuticals, and food processing

In the sanitary processing environment, diaphragms and pistons are utilized to transfer viscous or shear-sensitive fluids like syrups as well as creams, purees, and pharmaceutical suspensions within them. Pulsation dampeners have two functions: to reduce mechanical stress on fittings and sanitary pipes as well as to ensure a smoother flow profile, which ensures consistency when filling or mixing processes. The dampener designs employed in these applications are usually made of sanitary materials to ensure cleanliness and hygiene standards that are specific to processing food and pharmaceuticals.

Industrial and automotive test rigs

The dampeners are also used in test benches for fluid power or automotive test rigs in which hydraulic actuators are used for simulated load cycles on parts being tested. In these scenarios dampening isn't only about protecting hardware; it's about data integrity. Test engineers depend on clear, precise flow and pressure signals, and pump-generated pulsations could cause noise to be introduced into the data, which makes dampeners an essential requirement instead of an upgrade option.

The right dampener to choose suitable for the job

The common thread that runs through all of these sectors is a reciprocating positive displacement pump, which generates an intermittent pressure pulse that the rest of the system was not built to handle on its own. Selecting and sizing the correct dampener depends on the specifics of every application, including the displacement of the pump per stroke, the working pressures, compatibility with fluids, and how much residual pulsation downstream equipment is able to handle. The right selection is what differentiates a dampener that effectively smooths the system from one that is too small and offers no practical benefits.

1. What is the primary function of a pulsation-dissipating device?

Its primary function is to absorb fluctuations in flow and pressure caused by reciprocating pumps, changing pulsating discharges into smoother fluid flow that is more consistent and reducing pressure on the downstream component.

2. What types of pumps need pulsation dampeners?

Positive displacement pumps, including plunger, piston, and diaphragm pumps, are the main source of pulsating flow. They are typically used in conjunction with dampeners.

3. Can pulsation dampeners increase the precision of measurements?

Yes. By adjusting pressure and flow fluctuations, dampeners cut down on the noise that could otherwise alter measurements from pressure gauges and flowmeters and other instruments used in the process.

4. Where can a pulsation dampener be placed in a system?

Dampeners are usually placed as close as they can to the point of discharge from the pump because dampening the pulsation at its point of the source is more effective than trying to fix this further.

5. Do pulsation dampeners require maintenance?

Yes. Gas-charged dampeners require periodic pre-charge pressure checks. Also, the diaphragm or bladder components must be examined for wear and fatigue, particularly in high-cycle uses like measuring pumps and presses that use hydraulic fluid.
