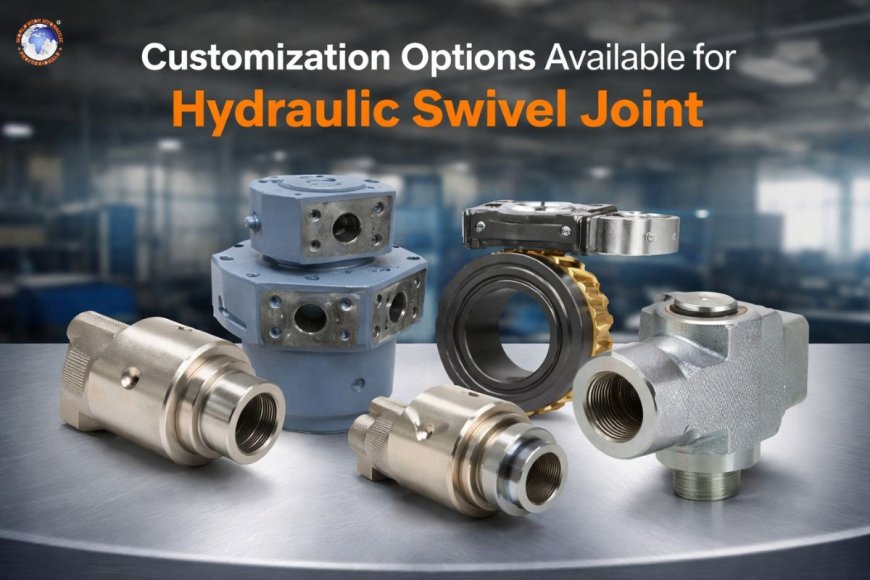

Customization options available for Hydraulic Swivel Joint

In the realm of power fluids, "standard" is often an unofficial starting point. If you're designing an excavator with a high-reach, 360-degree rotating platform for industrial use or a subsea robot The hydraulic swivel joint - also known as a rotary unit is the core of the machine's articulation.

Although off-the-shelf parts are suitable for simple applications, sophisticated machinery usually requires a degree of customization that the stock parts cannot offer. Making a hydraulic swivel joint adjustable isn't simply about changing the thread's diameter; it's about creating a piece that is able to withstand high temperatures, harsh environments, and millions of turns.

In this complete guide, we look at the extensive customization options offered by hydraulic swivel joints as well as how they can enhance the performance of your system.

1. Passage and Port Configuration

The first and most obvious modification is the structure of the fluid pathways. Swivel joints can be beyond a basic "in and out" connector.

• Multi-Passage Design: Custom swivels can accommodate anything from a single channel to more than 30 channels. This allows simultaneous transfer of water-glycol, hydraulic oil, air, and vacuum via a single hub that rotates.

• Port Size as well as Type Ports are modified to fit with the plumbing you have in place, such as SAE (O-Ring Boss), BSPP, NPT, or the 4-bolt flange pattern.

• Internal Flow Optimization Engineers are able to customize their "deep drill" and "flow groove" dimensions. A popular customization is to keep a particular flow rate (typically 25 ft/sec for pressure lines and 10 Ft/sec in return lines) to avoid cavitation and buildup of heat.

2. Advanced Sealing Technology

Seals are the most important component of wear in all swivels. Making the seals you want to use is the most efficient way to increase the lifespan that your model will provide.

Material Compatibility

Based on the type of media to be transferred, the traditional Nitrile (NBR) might not be sufficient. The options for customization include:

• Viton (FKM): For high-temperature applications and chemicals that are aggressive.

• The PTFE (Teflon) Seals that are energized: Low-friction seals that minimize the force needed to turn the joint, crucial for precise robotic movements.

• EPDM It is ideal for liquids that are water-based or phosphate ester hydraulic fluids that are fire-resistant.

Performance Sealing

For systems with high pressure (exceeding 5,000 PSI) Custom backing rings and hydrostatic seal designs will prevent the extrusion of seals. In very dusty or abrasive conditions, labyrinth seals or external seals that exclude contaminants are a good option to keep contaminants out of the primary pressure seals that are primary.

3. Material Selection and Surface Treatments

It is the "skin and bones" of the swivel joint should be selected based on the surroundings. Carbon steel is the most common choice for industrial use;e however, some applications require more.

Surface Coatings

To increase the durability Custom swivels may be treated by:

• Electroless Nickel Plate: For superior wear and resistance to corrosion.

• black Oxide and Phosphating to provide an adhesion base for special paints or to decrease the glare.

• Zinc Plating (RoHS Compliant): For standard outdoor protection from corrosion.

4. Electrical and Signal Integration

Modern hydraulics is not always purely mechanical. They usually require cameras, sensors, and control signals that pass across the same axis of rotation.

• Slip Rings with Integrated Slip Rings. You can personalize the swivel joint so that it includes the slip rings that are electrical. This allows simultaneous transfer of power from hydraulics as well as electrical power/data.

• Through-Holes (Center Bores): Custom swivels may be made with a hollowed center (a "through-bore") to enable wire harnesses, fiber optic cables, or even mechanical shafts to go through the middle of the joint, rotating.

• Sensor Ports: These holes are tapped to be incorporated into the housing to mount temperature or pressure sensors. This allows for live "Smart" monitoring of the joint's health.

5. Mechanical and Mounting Customization

The way the swivel is attached to the machine is as crucial as the way it functions internally.

• Mounting Flanges. There are a variety of bolt-on flanges that you can choose from, or welded Flanges, and maybe "end-of-shaft" mounting configurations.

• Torque Arms to stop the machine from rotating when connected to the spool, the custom bolts or torque arms may be made to suit your particular machine frame.

• Bearing options: For high-speed rotation or for heavy side-loading (common for cranes), the swivels are upgraded using high-precision ball bearings or tapered roller bearings to assure smooth rotation and to prevent internal misalignment.

6. Performance Ratings: Pushing the Limits

Customization lets you define the precise "envelope" in which the swinging mechanism must function.

• High-Pressure Ratings While most joints limit themselves to 3000 PSI, custom-engineered joints may be rated at 10000 PSI or higher.

• Extreme Temperatures Custom seals and materials packages permit swivels operating at temperatures that range from 40 °C in arctic conditions up to 200 degrees Celsius for industrial ovens.

• The speed of rotation: Most hydraulic swivels are designed for low-speed rotation (below 50 RPM). But, if your job needs the highest speed of "live" swiveling, engineers can use mechanical seals that are balanced to control thousands of RPM.

Why Choose a Custom Swivel Joint?

Although the initial cost of an individualized hydraulic swivel is more expensive than the standard part, the long-term ROI is significant.

1. Reduced time to downtime: Seals tailored to the particular temperature and fluid will last significantly longer.

2. Space Efficiency The integration of multiple signals and electronic passages into one helps save enormous quantities of space.

3. Security: Higher safety factors (often 4:1) are built into wall thicknesses of high-pressure systems.

4. Simplified plumbing: The custom port location makes it unnecessary to purchase additional elbows and adapters, which are often leak points.

A hydraulic swivel joint can be described as an essential "silent partner" in your machine's motion. With the help of customized options ranging from multi-passage flow pathways to integrated electrical slip rings that are integrated, you ensure that your equipment functions at its maximum efficiency with minimal maintenance.
