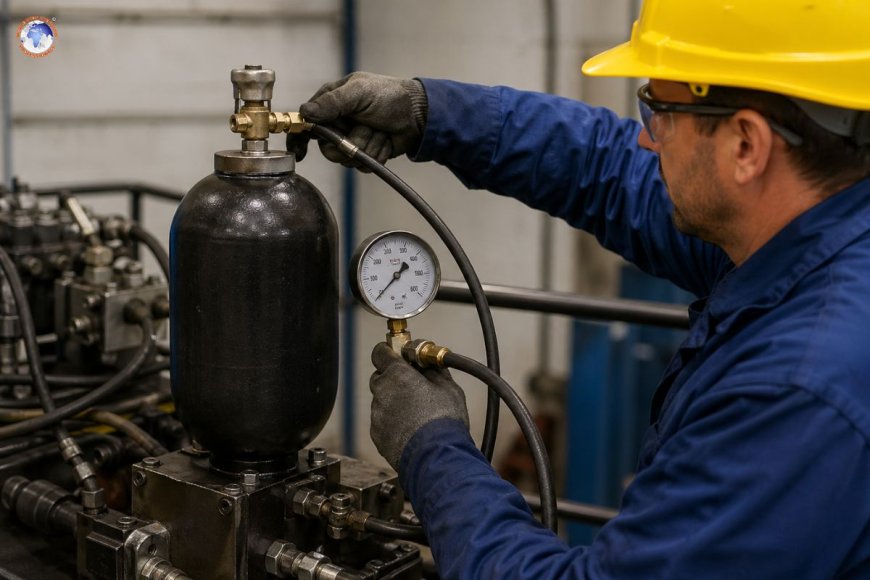

How to charge a hydraulic accumulator safely?

Hydraulic accumulators are a crucial component in a variety of fluid power systems. They serve to store energy, maintain tension, absorb shocks, and increase the efficiency of the system. However, charging an accumulator is not an easy maintenance task. It is a high-pressure operation that requires the storage of power, as well as the potential for risks. Improper charging can result in the failure of equipment as well as system inefficiency or even serious injuries.

This guide will show you all you should learn about charging your hydraulic accumulator properly by demonstrating step-by-step steps, safety tips, and the most effective methods.

Understanding the role of a hydraulic accumulator

Before tackling charges, it's essential to know what an accumulator is used for. In simple words, an accumulator stores energy from hydraulics through compressed gases (usually nitrogen). This stored energy will be released whenever needed to:

• Maintain pressure on the system
• Indemnize leaks
• Absorb shocks and pulses
• Make sure you have power in case of an emergency.

The majority of accumulators utilize the gasoline pre-charge that must be properly set for optimal performance. This pre-charge is the one you set when charging.

Types of hydraulic accumulators

The method of charging is different depending on the model of the accumulator:

• Bladder accumulation devices - Use a pliable bladder of rubber to segregate the fluid from the gas.
• Piston accumulations: Utilize the sliding piston
• Diaphragm accumulators - Use a flexible diaphragm

Of these bladder accumulators, they are the most frequently used and most often serviced.

Why safe charging matters?

Incorrectly charging an accumulator could cause:

• Over-pressurization and rupture
• The bladder or seals are damaged.
• Failure to function
• Rapid discharge of energy stored
• The risk of an explosion is increased if the wrong gas is utilized

Because accumulators store energy at extreme pressure, safety is not an option. It's crucial.

Essential safety precautions

Before making any charge to an accumulator, be sure to follow these safety guidelines:

1. Use only nitrogen gas

Avoid using either compressed or oxygen. Oxygen reacts explosively with oil. Air has moisture in it that could damage the system. Always use dry nitrogen.

2. Depressurize the hydraulic system

Check that the hydraulic portion of your system has been completely depressurized before beginning. Residual pressure can cause sudden movement or discharge.

3. Wear personal protective equipment (PPE)

Use:

• Safety goggles
• Gloves
• Clothing for protection

4. Use proper charging equipment

A dedicated accumulator charging kit is required. It typically comprises:

• Pressure gauge
• Charging hose
• Regulator
• Shut-off valve

5. Follow manufacturer specifications

Always consult the manual of the accumulator's technician to ensure that the pre-charge pressure is correct.

Tools and equipment needed

To ensure the safety of charging a hydraulic accumulator, you'll require:

• Nitrogen gas cylinder
• Pressure regulator
• Assembly for charging and gauging
• Wrenches or spanners
• Leak detection solution (soap solution)

Making use of tools that are not properly designed or equipment increases the risk considerably.

Step-by-step procedure to charge a hydraulic accumulator

Step 1: Isolate and depressurize the system

• Shut off the hydraulic system.
• Tag out and lock the power source (LOTO) the source of power.
• Eliminate all hydraulic pressure from the system.

This will ensure that there isn't stored hydraulic energy when charging.

Step 2: Remove the protective cap

• Find the gas valve located on the accumulator
• Take off the cap with care.

This exposes the charging port.

Step 3: Connect the charging kit

• Connect the charging gauge and charging system to the gas valve.
• Make sure all connections are secure and free of leaks

Do not unbolt the nitrogen cylinder until you are ready.

Step 4: Check existing pre-charge pressure

• The valve should slowly be opened on the charging kit.
• Check the gauge's pressure

If there is pressure, note it. This will help you determine if you should raise or lower the amount of the charge.

Step 5: Adjust the pressure

To increase pressure:

• Let the nitrogen cylinder open slowly.
• Gradually release gas into the accumulator.
• Continuously monitor the pressure

To decrease pressure:

• Make use of the bleed valve on the charging kit
• Slowly release gas until the pressure you desire is reached.

Make adjustments gradually to prevent sudden changes in pressure.

Step 6: Reach the recommended pre-charge level

The ideal pre-charge pressure is determined by the design of the system. A standard guideline is:

• Pre-charge pressure is 80-90% of the minimum system pressure

Always adhere to the manufacturer's recommendations.

Step 7: Isolate and disconnect

• Stop the nitrogen valve on the cylinder.
• Stop the charging kit's valve.
• Release pressure slowly from the hose that charges
• Unplug the charging assembly

Never disconnect under pressure.

Step 8: Reinstall protective cap

• Replace the cap of the gas valve with a secure fit

This helps protect this valve against contamination as well as accidental leakage.

Step 9: Check for leaks

• Place a soapy solution on the valve
• Check for bubbles that indicate leakage.

If leaks are discovered, make sure connections are tightened or replace the damaged components.

Step 10: Restart the system

• Gradually restore the hydraulic system online
• Monitor the system's performance

Check that the accumulator is operating in a correct manner.

Common mistakes to avoid

1. Using the wrong gas

Utilizing compressed air or oxygen in place of nitrogen can be extremely risky and could cause explosions.

2. Overcharging the accumulator

The excessive pressure can damage internal components, reducing the efficiency of the system.

3. Charging without depressurizing

This can lead to incorrect readings or unsafe conditions.

4. Rapid charging

Overfilling the tank too quickly could cause excessive heat to the gas and result in incorrect pressure readings.

5. Ignoring temperature effects

The pressure of gas changes as the temperature increases. Always take into consideration the ambient conditions when setting the pre-charge.

Best practices for safe operation

• Monitor the pre-charge pressure frequently (monthly or as per the recommendations)
• Always use gauges that have been calibrated.
• Securely store nitrogen cylinders
• Train personnel properly
• Keep a proper record of the pressure settings

Maintaining consistency in maintenance will ensure long-term reliability.

Signs your accumulator needs recharging

Be aware of these warning signs:

• Instability of the system's pressure
• Pump cycle increased
• Inefficiency reduced
• Unusual sound or vibration

These signs could indicate an insufficient or improper pre-charge pressure.

Maintenance tips for longer accumulator life

• Examine valves and seals on a regular basis.
• Make sure that there is no form of contamination in the hydraulic system.
• Maintain proper fluid levels
• Replace damaged components immediately

A well-maintained and maintained accumulator enhances overall system performance and security.

The safe and secure charging of a hydraulic accumulator is a crucial job that requires careful particulars, appropriate tools, and strict adherence to safety guidelines. Although the procedure is simple, the dangers involved make it imperative to adhere to the best methods at each step.

Utilizing nitrogen gas, working with the proper pressure levels, and making sure that the system is depressurized to its maximum are the foundations of a safe operation. If you take time to carry out the procedure in a safe manner and safely, you will not only secure your equipment but also guarantee that everyone is safe within the system.

No matter if you're looking after agricultural machinery, industrial equipment, or even construction equipment, an accumulator that is properly charged is crucial to effectiveness in terms of reliability, longevity, and durability.
