Making sure you use the right hydraulic oil isn't just a routine maintenance aspect; it's crucial to the efficiency, performance, and longevity of any type of hydraulic device. In agricultural tractors, construction equipment, and industrial machinery, the hydraulic oil serves multiple functions: transmission of power, lubricating parts, and sealing clearances, as well as cooling the system and preventing corrosion. If the wrong type of hydraulic oil is utilized, the results can range from a decrease in effectiveness to total system failure.

This is a comprehensive blog post on the specifics of what happens when you choose the wrong hydraulic oil, the reasons why it is important, and what you can do to avoid costly mistakes.

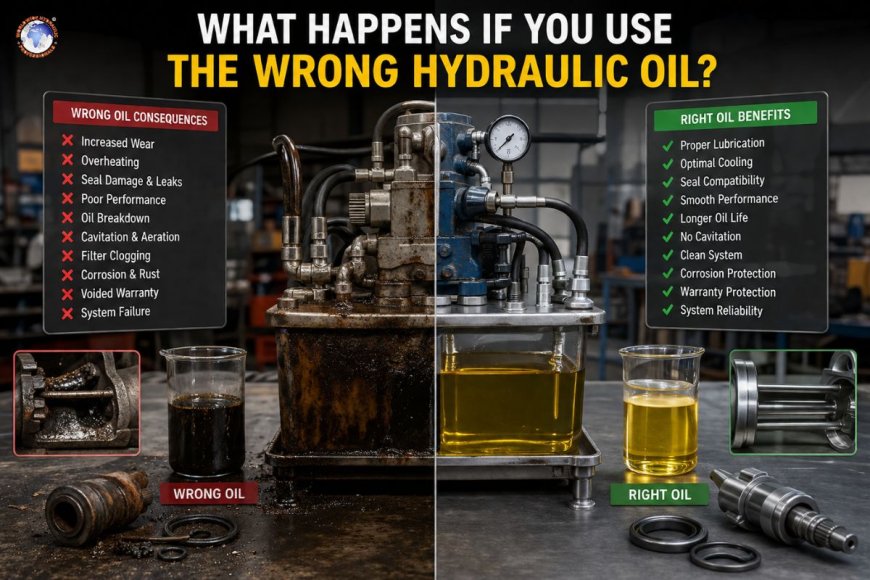

What happens if you use the wrong hydraulic oil?

Hydraulic systems are constructed with the highest level of precision. Every part, from valves and pumps to seals and cylinders, relies on fluids with particular characteristics. If an improper hydraulic oil is introduced, it upsets the delicate balance, which can lead to severe financial and operational implications.

1. Reduced lubrication and increased wear

Hydraulic oils must offer adequate oil lubrication in order to reduce friction between moving components. The different oils come with various levels of viscosity as well as additives.

When the oil does not seem thick enough:

• It is not able to keep a protective film between the components
• Contact between metal and metal rises
• Wear rates increase

If the oil becomes too thin:

• It's not flowing correctly.
• Internal friction rises
• Components might not receive enough lubrication

In time, this ineffective oil lubrication may result in:

• Walls of the cylinder that have been scored
• Worn pump gears or vanes
• Bearings damaged by damage

The wear and tear is not a quick process, but it can be costly and eventually lead to system failure.

2. Overheating of the hydraulic system

The hydraulic oil can also function as a coolant, transferring heat away from components of the system. The wrong type of oil could hinder the process of dissipating heat.

Common issues are:

• High viscosity oil causes excessive friction
• Low viscosity oils fail to absorb heat and transfer it efficiently.
• Incompatible additives can cause thermal stress

This is the reason:

• Temperatures of the system exceed the safe limit
• Oil degrades faster
• Components expand, which results in greater friction and tighter tolerances.

Overheating is among the most common ways to harm the hydraulic system and reduce the life of the system.

3. Seal damage and leakage

Seals are engineered to work with certain types of oil for hydraulics. If you use the wrong oil, it can result in chemical incompatibility.

Possible outcomes:

• Seals may swell, soften, or harden
• The loss of elasticity causes leaks
• Internal leakage decreases the efficiency of the system.

For instance:

• The use of a fluid with abrasive additives can cause damage to rubber seals
• Incompatible synthetic oils used in systems that are designed to work with mineral oils could result in extreme seal failure

If seals fail or are damaged, the system may be unable to hold pressure and may become unstable.

4. Poor system performance

Hydraulic systems are dependent on the precise dynamics of fluids. The wrong oil could disrupt this equilibrium, causing problems with performance.

The symptoms include:

• Slow or unsteady motion
• The capacity for lifting has reduced
• Controls with delayed response
• Inconsistent pressure levels

This is crucial when it comes to:

• Construction equipment where accuracy is essential.
• The timing of agricultural machinery can affect productivity
• In the field of industrial automation, the need for consistency is crucial.

Even small variations in the properties of oil can greatly alter performance.

5. Increased oxidation and oil degradation

Hydraulic oils contain additives to ward off corrosion and prolong the life of the service. The wrong choice of oil could result in inadequate protection.

Consequences:

• A faster breakdown of oil
• The formation of varnish and sludge
• Filters that are blocked or restricted in flow

Oxidation can be accelerated through:

• High temperatures
• Contaminants
• Incompatible or poor-quality oil

As soon as degradation begins, it triggers a chain reaction that further damages the system.

6. Cavitation and aeration problems

Cavitation occurs when air bubbles grow and expand within the hydraulic fluid. This causes shock waves that cause damage to components.

The wrong oil could be a factor in:

• Poor air lets properties go
• The foaming has increased
• System stability is reduced.

The effects of cavitation

• Pitting on metal surfaces
• Vibration and noise
• Pump efficiency is reduced

Air aeration (air stuck in oil) could also trigger:

• Spongy system response
• The loss of precision
• Wear and tear are increasing

This is a problem that is often ignored; however, it can cause serious, long-term harm.

7. Filter clogging and contamination

The wrong choice of hydraulic oil could cause problems with contamination, particularly in the event that it reacts with fluids or other system components.

The most common problems are:

• Incompatibility of additives forming deposits
• Filters are clogged with sludge
• Reduction in oil flow

When filters become blocked:

• Pressure drops occur
• Pumps perform better
• The risk of system failure is increased

Regular filtration is crucial. However, the wrong oil can overwhelm the most efficient filtering systems.

8. Corrosion and rust formation

The additives in hydraulic oil shield metal surfaces from rust. The wrong oil could be deficient in these properties.

This could lead to:

• Rust formation in components
• Surface and Pitting damage
• The reduced lifespan of parts

Poor oil selection can make corrosion more severe.

9. Voiding manufacturer warranty

Most equipment manufacturers will specify precise specifications for hydraulic oil. If you use the wrong oil, it could cause warranty cancellation.

This signifies:

• Repair costs are not paid for
• Repair components have to be paid out in cash
• A higher risk of financial loss for operators

The following of manufacturer's guidelines isn't necessary, but it is essential to ensure the observance of.

10. Complete system failure

In the most extreme instances, the incorrect hydraulic oil could cause disastrous failure.

This could involve:

• Pump seizure
• Valve malfunction
• Cylinder damage
• Complete elimination of the hydraulic functions

These failures could:

• Stop operations completely
• Repairs or replacements can be costly.
• Create safety risks for operators

Types of hydraulic oil mistakes

Recognizing common mistakes can help prevent them.

1. Wrong viscosity grade

Choose an oil that is neither too thick nor too thin for the temperature of operation.

2. Mixing different oils

Combining oils that are incompatible can trigger chemical reactions and cause instability.

3. Using engine oil instead of hydraulic oil

The additives in engine oils are different for packages and are not suitable for hydraulic systems.

4. Ignoring environmental conditions

Colder climates require oils with low viscosity, and high temperatures require stronger formulations that are more durable.

How to prevent using the wrong hydraulic oil?

Prevention is always more effective than repairing. Here are a few steps to make sure the correct oil is being used.

Follow manufacturer recommendations

Always check:

• Manuals for equipment
• OEM specifications
• Approved types of oil

Understand operating conditions

Consider:

• Temperature vary
• Conditions for loading
• Duty cycle

Label and store oils properly

Make sure you don't mix up:

• Labeling containers clearly
• Storage areas that are specifically designed for storage
• Staff of training

Regular oil testing

Check the condition of oil through:

• Tests for viscosity
• Analysis of contamination
• Additive health checks

Use high-quality oils

By investing in high-quality oil, you can reduce:

• Wear and tear
• Costs of maintenance
• Downtime

Real-world impact

The incorrect hydraulic oil not only impacts the machines, but it also impacts the activities.

• Reduced productivity is a result of downtime.
• The cost of repairs can strain budgets
• Equipment lifespan shortens
• Risks to safety increase

In sectors like agriculture, construction, and manufacturing, even a few minor mistakes in the selection of fluids can cause significant losses.

The importance of hydraulic oil is often overlooked, yet it is actually an extremely important component in hydraulic systems. Utilizing the wrong hydraulic oil can cause many issues, ranging from minor failures to major ones.

The most important thing to remember is:
Always ensure that you use the correct hydraulic oil for your operation and system.

By being aware of the choice of oil, maintenance techniques, and system specifications to ensure maximum performance, increase the longevity of equipment, and prevent costly breakdowns.
