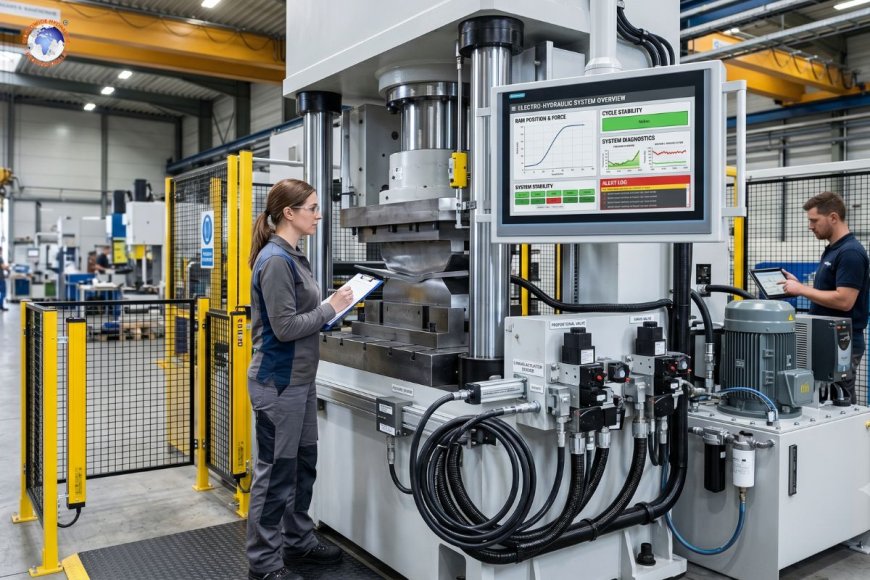

How Electro-Hydraulic automation is improving precision, safety, and maintenance in industrial machinery

Electro-hydraulic automation provides hydraulic machinery with better control over the nervous system. It still relies on pressure in the oil for force; however, sensors, valves, controllers, and software control how the force is controlled, applied, and held, stopped, or corrected throughout production.

This distinction is significant in the real-world industrial environment. A lift, press, clamp, molding machine, or test rig might have enough power to accomplish the job but be battling with issues like heat, drift, inconsistent cycles, ambiguous alarms, or inefficient troubleshooting. Automation bridges gaps between power from hydraulics and stable machine performance.

A well-designed system doesn't only make a machine more complicated. It makes it easier to run, safer to use, and more simple to maintain, as technicians can observe the process instead of guessing when an issue has already shut down the line.

What is electro-hydraulic automation?

Electro-hydraulic automation consists of electronic control sensors; sensor feedback proportional or servo-valve pumps; as well as hydraulic actuators to control the force and movement in industrial machines. Hydraulics provide high power density. Electronics include timing measurement, correction, and diagnostics.

In a traditional configuration the machine could rely on the valve's settings that are fixed as well as manual adjustments or the judgment of a knowledgeable operator. When it is automated, it compares an intended result with the actual outcome. The machine can then alter the flow, pressure, cylinder's position, speed, or force, even while the cycle is running.

The outcome is not a substitute for hydraulic energy. It's a better way to utilize it, particularly when the process requires repeated movement with fluctuating load.

This is why electrohydraulic automation is a growing and integral part of Industry 4.0 hydraulics, smart hydraulics, and smart manufacturing software. Hydraulic control systems transmit data from machines to HMIs, maintenance dashboards, and PLCs or plant-level industrial automation systems using the same signals to control motion and can assist with proactive maintenance and more general digital transformation objectives.

How does the control loop work?

Most electro-hydraulic systems run the same basic loop. A recipe, operator, PLC, motion controller, or CNC transmits a signal. The hydraulic circuit is moving. Sensors record what happened. The controller compares the feedback to the intended target and corrects the next move.

Figure 1. Closed-loop electrohydraulic control employs sensor feedback to adjust movement in the operation.

This loop is especially helpful for when the load is changing between cycles. A forming press could be able to meet a more robust sheet. Lifts can be able to handle an uneven load. Test machines may have to keep force in place longer than it is expected. Without feedback, these adjustments could turn into variations. When the controller is informed, it is able to rectify them.

What are the main components of an electro-hydraulic system?

The electro-hydraulic system functions only when power is available; sensing and control as well as fluid conditioning are constructed as a single machine. The reservoir and the pump provide the flow. Valves control that flow. Motors or cylinders cause motion. Sensors monitor pressure, position the load, temperature, and, sometimes, vibration or condition of the filter.

Electronic motors and drive electronics can also enhance performance. For applications that require more precise control of the pump, servo motor drives allow for varying the speed of pumps in accordance with the actual demand of the machine, which reduces the amount of energy consumed, heat generated, and noise rather than making the power system of hydraulics operate at a fixed output throughout the entire shift.

Figure 2. The major components include the power of hydraulics and control electronics feedback as well as fluid conditioning.

The most commonly used components are reservoirs, hydraulic pumps, proportional valves, the servo valve, and cylinders. They also include pressure transducers, position sensors, thermometers, PLCs, motion controllers, CNC controls, the HMI, cooling system filters, and various mechanical sensors. The precise mix is dependent on the specific machine; however, the goal of design is the identical controllable force that can be monitored and repeated.

How does electro-hydraulic automation improve precision?

The accuracy improves as the machine isn't depending on a single command. It continuously monitors how it is moving against the target. If the cylinder is slow under load, the control can alter flow. If the pressure increases too fast, the system may alter its motion pattern. If the temperature of the oil changes the behavior that the circuit is experiencing, it can cause feedback. This will help to minimize the impact on the final product.

In the process of metal molding, it can be a sign of an improved ram positioning and the bending force. In the case of plastic injection molding, it is able to support the stability of clamp force, pressure, and cycle timing. In testing machines, it could aid in the repetition of load profiles during fatigue compression or structural tests.

The benefits that are real generally show in fewer hand-held adjustments, smoother movements, more consistent cycle times, and less scrap generated by tiny but frequent process drift.

• Accuracy of the position: The actuator is able to reach and hold the position it is programmed to more consistently.
• Force repeatability: The system manages load and pressure instead of relying upon operator feeling.
• Cycle stability: acceleration, deceleration, return, and dwell are a predictable sequence.
• Compensation for load: the machine will react when the material thickness or weight, friction, or resistance changes.

What are the main advantages of electro-hydraulic automation?

The main benefit is the balance. Hydraulic machinery retains its force-generating capabilities, and the controls make managing this force much easier. Plant managers will appreciate this can result in a steady output. In terms of maintenance, it's more precise fault information. Operators, this typically implies fewer calls to make in difficult times.

• Improved motion control by providing feedback on speed, pressure, location, and force.
• Increased security response in the event of overloads, overtravel, or pressure spikes or sensor incompatibility.
• Reduce the amount of energy that is wasted because pump output is in line with the demand, thus reducing idle power and heat load, as well as cooling load and noise.
• Quicker troubleshooting as the HMI will display the history of alarms along with pressure trends, as well as the exact step at which the problem took place.
• A more reliable maintenance schedule due to the fact that cycle counts, heat drift, temperature, and filter restrictions are tangible indicators.
• Improved consistency of production in a process that does not rely on manually adjusted valves.

The benefits are the most obvious when machines run long shifts, use costly parts, or operate at dangerous limits. Small improvements in repeatability could be beneficial when a mistake that is similar to the one you made would otherwise be replicated numerous times prior to anyone being aware.

How does electro-hydraulic automation improve energy efficiency?

Efficiency increases as the unit that powers hydraulics ceases making full flow and pressure when the machine doesn't require it. In the majority of conventional systems, the pump and motor are operating at the same time as the output of a fixed point and convert unneeded hydraulic energy into noise, heat, and additional cooling demands.

Variable-speed pumps and the servohydraulic system permit the pump's speed to adjust according to the actual demand of the machine. In the hold, or idle parts in the process, the device will decrease motor speed, reduce the power consumed during idle, and also keep the temperature of oil more steady. This is the reason why energy-efficient hydraulic systems usually incorporate the control of motion, pumps, fluid cooling, and load sensing instead of focusing on energy efficiency as an individual component.

How does electro-hydraulic automation improve machine safety?

Hydraulic machines can be slow to move yet still create dangerous force. This is the reason safety can't be based solely on the presence of warnings, mechanical stoppages, or the attention of an operator. Electrohydraulic automation provides the machine with greater ways of detecting the dangers of a situation before it turns into an accident.

For instance, a press can track ram location, pressure rise, and guarding status prior to making the cycle begin. A material lift is able to monitor the position and load together but not as separate signals. A clamp may stop if the pressure curve suggests that the component isn't aligned correctly, rather than making the process continue.

The most useful safety features are emergency stop integration, pressure relief control, safe motion limits, load monitoring, two-hand controls for press systems, interlocks, access rights, and alarm logic, as well as automated restarts. The precise design is still awaiting an accurate risk assessment; however, the automated monitoring provides safety personnel with more data to use.

How does electro-hydraulic automation improve maintenance?

Maintenance is improved because the machine shows patterns that are difficult to spot in a simple hydraulic system. A tiny temperature increase or a lower valve response or a ripple in pressure or a swaying cylinder might seem harmless in one shift. Over time, these shifts could indicate damage to seals, contamination, the inefficiency of the pump, cooling issues, or a tuning issue and provide maintenance personnel with the necessary information to conduct prescriptive maintenance instead of merely proactive troubleshooting for hydraulics.

Figure 3. Maintenance teams can utilize trend data to plan services before small changes cause the cause of downtime.

An excellent example is the hydraulic press, which produces quality parts but takes slightly more time to achieve force every week. If it's a manual system, this issue might remain unnoticed until the machine fails or the scrap piles up. With the help of automation, technicians are able to evaluate valve response to pressure rise, temperature, and the time of cycle to determine if service is required prior to the machine being unable to produce.

Practical Example: Closed-Loop Press Retrofit

Look into a manufacturing facility that replaces manually adjusted stroke and pressure on an older forming press by using closed-loop feedback on position and proportional valve control as well as stored recipes. If you can reduce the number of setup checks between 7 and 10 per shift, this is an increase of 30% in adjustments. The greater benefit is uniformity: employees have less time to chase shifts, and maintenance personnel can evaluate the rise in pressure, valve response, and the temperature of oil before an issue becomes downtime.

Electro-hydraulic automation vs. Traditional hydraulic systems

Traditional hydraulics are durable and economical, particularly for small actions. The difference is apparent when a process requires accuracy, reliability, or a more secure control of force. Electrohydraulic automation includes measurement and correction; however, this also calls for a better plan, more efficient fluids, and skilled commissioning.

What industries use electro-hydraulic automation?

Electronic hydraulic automation is widespread everywhere a powerful force needs to be controlled by repeatable timing. The most obvious examples are those in which the variation of the machine directly affects the quality of parts and safety or maintenance costs.

• Metal pressing brakes and forming: Ram position, bending force, tooling safety, crowning, and reproducible component quality.
• Injection molding of plastic clamp force as well as injection pressure, the movement of the screw, and the timing of cycles.
• Equipment for construction and lifting: Boom movement, outrigger loading, leveling, and steering and positioning.
• Tests for aerospace and defense: Fatigue loading, actuator test benches, structural simulation, and controlled force profiles.
• Mining, energy, and offshore equipment: Heavy valves, clamps, tensioners, and other equipment that must function in extreme conditions.
• Mobile machinery and agriculture: Automated steering, lifting harvesting attachments, and load-sensitive tools.

For sheet metal fabrication For instance, automation assists machines in coordinating the hydraulic force and CNC positioning. This is one of the reasons current CNC hydraulic press brakes are usually examined as a result of their reliability, safety logic, and process control, rather than the force of bending itself.

Within these industries, the goal is not simply greater speed. The objective is to have controlled movement that is predictable in the event that temperature, load material, or the duty cycle alters.

What are the limitations of electro-hydraulic automation?

Limitations are there, and failing to recognize them is a primary reason why automation projects fail. Precision valves and sensors require well-maintained fluid. Feedback loops need proper tuning. Older machines could require new wiring or safety circuits and software as well as a control cabinet. Technicians and operators should also receive sufficient training to comprehend the new alarms and their settings.

• More upfront costs for valves, sensors, controllers, electrical work, and safety verification.
• More skill in commissioning because speed, pressure, the force limit, and feedback behaviors need to be synchronized.
• Higher reliance on the quality of the sensor due to poor feedback, which results in poor control.
• Integration work is needed on older equipment that has undocumented electrical wiring or obsolete hydraulic circuits.
• More stringent requirements for cleanliness of fluids due to proportional and servo valves that are prone to contamination.

An error that is common is to view automation as a bolt-on enhancement. The machine frame and hydraulic circuit, the tools' control logic, fluid conditions, and operator workflow all impact whether or not the system functions properly.

How to implement electrohydraulic automation in industrial machinery?

Implementation should start with the issue and not with the list of parts. Plants trying to cut down scrap might require better positioning feedback and a better motion tuning. Plants that are struggling with downtime might require sensors, alarms, and data on trends. A plant that is improving safety might require validated stops, guarded options, limits on pressure, and restarting procedures.

Review the machine you are using. Check the cycle time as well as pressure behavior, precision, motion, shift, and heat causes of downtime, as well as maintenance documents.

Determine the primary goal. Choose if you want to focus on security, precision, and energy efficiency and diagnostics or manual adjustment.

Choose the appropriate control architecture. Combine sensors, valve drivetrains, integration with PLC HMI, and controller needs with the force, speed, duty cycle, and environmental conditions.

Incorporate feedback loops as well as safety rules. Document alarms, limit operating sequences, correct behavior, and safe restarting steps.

Test under real production loads. Test for repeatability, stability of pressure, and temperature stability, as well as safety response and the handling of faults.

Learn to train the personnel who run and maintain the equipment. Operators must be aware of alarms and settings. Maintenance teams need to be aware of which trends matter.

How much does electro-hydraulic automation cost?

Costs can vary greatly because a simple retrofit is distinct from a multi-axis rebuild. A targeted upgrade could include sensors as well as valve package modifications to controllers and HMI work. A larger project might comprise a new hydraulic motor, a servo-driven control of the pump and safety equipment wires, software, validation, and time for commissioning.

The most significant factors that drive costs are the machine's size and the quantity of controlled axes in addition to flow and pressure specifications, sensor precision and accuracy, the complexity of CNC or PLC security level, fluid conditioning and installation work, and training and spare components. The most affordable option isn't always the most cost-effective option if it results in downtime, inadequate support, or a system that technicians aren't able to maintain.

The more important issue is where the upgrades will pay off. In a majority of facilities the answer lies in decreased scrap, fewer planned stops, less energy and heat waste, speedier troubleshooting, enhanced security control, improved parts consistency, or more accurate information for manufacturing programs that are smart.

What should buyers consider before choosing a system?

Buyers must match the machine to the job that the machine will be performing. Speed, force, accuracy, duty cycle, environmental safety standards, maintenance expertise, and access to spare parts all have significance. An advanced system may fail if it's selected as a brochure design instead of the production issue.

• What is the first issue that the upgrade addresses first?
• Which signals should be analyzed, and how accurate should they be?
• Can the present hydraulic circuit handle closed-loop control, or do you think it needs modification?
• How clean and stable can the fluid in your hydraulic system be that you use during the long runs of production?
• Who will tune or diagnose and then maintain the system following commissioning?
• What safety features will be verified prior to the use of the machine?
• Can spare parts, documents, and remote assistance be available?

The most effective projects are generally practical and precise. They do not include automation all the time. They only add it when measuring, controlling, and diagnostics are needed to help solve a specific safety, production, or maintenance issue.

Conclusion

Electro-hydraulic automation is transforming industrial machinery since it links hydraulic force to digital control. The machine is able to move large weights; however, it will also monitor what occurred and correct the next move or stop if it is in danger and provide maintenance teams with important information before breakdowns take longer than planned.

The value of it comes from the whole system of valves, pumps, cylinders, sensors, controllers, servo drives, hydraulic fluid, software, and the safety system, as well as educated individuals. When these components are put to work together, hydraulic equipment is more precise, simpler to fix, and more adaptable to the demands of modern manufacturing.

Heavy machinery requires power. Modern factories also require control. Electrohydraulic automation combines these two needs into one machine.
