Why hydraulic technology matters in specialized heavy lifting equipment?

Heavy lifting equipment rarely operates under simple conditions. Whether it's a 900-ton bridge crane in a steel mill, a gantry crane lifting ship hull sections, or a container crane working around the clock in a busy port, these machines face a common set of demands: massive loads, precise control, harsh operating environments, and near-zero tolerance for downtime. Meeting all of these demands with a single technology is difficult—which is why hydraulic systems remain a core part of how specialized heavy lifting equipment is engineered today.

Why is wire rope alone not enough?

Conventional wire-rope hoisting has long been the backbone of crane design, and for good reason: it's proven, cost-effective, and well understood. But wire rope has limits. It's well suited to straight vertical lifting, and it depends on drum, sheave, and rope conditions to keep operating safely over time. That said, hydraulic actuation provides distinct advantages when equipment requires functions beyond vertical hoisting. When equipment needs multi-directional movement, fine positional control, self-levelling, or repeated precision adjustment—such as steering, leg-raising, or load balancing across multiple support points—hydraulic actuation can provide distinct advantages for these functions.

Core advantages of hydraulic systems in heavy lifting

Hydraulic systems earn their place in heavy-duty equipment for a few clear reasons:

High power density. A relatively compact hydraulic cylinder can generate very high force or torque, which matters when space and weight budgets are tight on large

structures.

Precise, controllable motion. Flow-control and proportional valves allow smooth, adjustable speed and position control—useful for synchronized lifting, leveling, and fine positioning tasks that wire rope struggles to match.

Pressure and load-control functions. Relief valves and balancing valves help manage pressure and load behavior—providing important protection against sudden pressure spikes, though overall lifting safety depends on the full system design.

Support for complex, multi-axis motion. Multiple cylinders can be synchronized to move a structure evenly or to enable functions like steering and self-leveling that pure wire-rope systems cannot easily replicate.

Application spotlight: Hydraulics in port crane operations

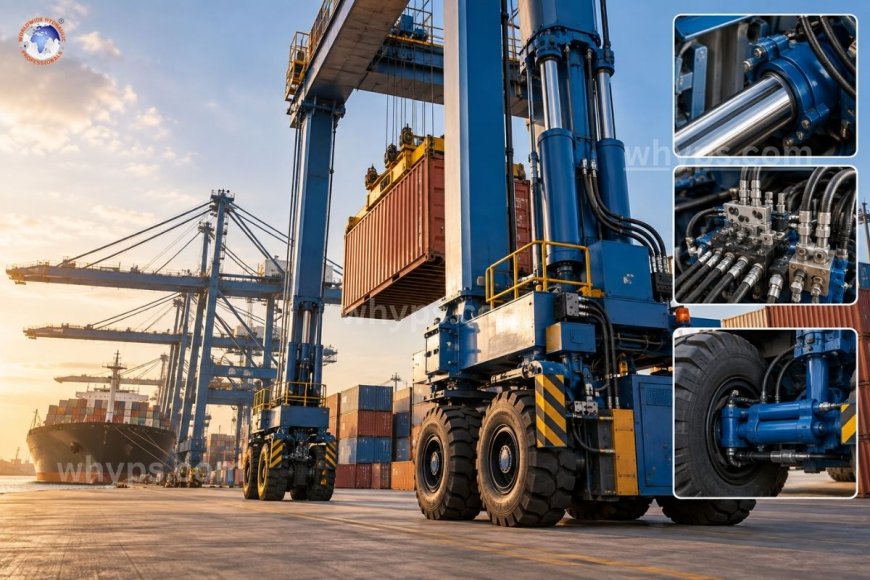

Port handling equipment is one of the clearest examples of hydraulic technology at work in heavy lifting. Among the major categories of port cranes are ship-to-shore (STS) cranes, rail-mounted gantry (RMG) cranes, and rubber-tired gantry (RTG) cranes—RTG cranes in particular make extensive use of hydraulic systems for functions such as steering, levelling, and other auxiliary movements.

Two functions stand out:

1. Steering. RTG cranes run on rubber tires rather than fixed rails, so they need a

steering system to move between container rows and align accurately for stacking. Hydraulic steering circuits are the conventional way to achieve this, since they can

deliver the torque needed to turn heavy wheel assemblies while keeping the crane precisely aligned with the container stack.

2. Leg-raising for relocation. When an RTG needs to be repositioned between yards

blocks, hydraulic cylinders are commonly used to raise and lower the crane's legs, allowing it to be transported without dismantling the structure.

These are not exotic features—they reflect how the hydraulic actuation, control valves, and cylinder engineering discussed above translate directly into everyday port operations, where uptime and precision movement are non-negotiable.

Engineering considerations: Reliability and maintenance

Hydraulic performance is only as good as the system behind it. A few factors consistently separate reliable heavy-lifting hydraulics from problematic ones:

Fluid quality and contamination control—particle contamination is one of the leading causes of premature valve and pump wear.

Seal integrity—in outdoor, high-cycle applications like port cranes, seals are exposed to dust, temperature swings, and constant mechanical stress.

Thermal management—sustained heavy-duty cycles generate heat that must be dissipated to protect fluid viscosity and component life.

Design customization—load capacity, working environment, and duty cycle all vary by application, so cylinder sizing, valve selection, and circuit layout typically need to be engineered around the specific equipment rather than treated as one-size-fits-all.

The road ahead: smarter, more efficient hydraulics

As heavy lifting equipment becomes more automated and data-connected, hydraulic systems are evolving alongside it—with proportional and servo valves enabling finer control and condition-monitoring sensors helping operators catch wear before it causes downtime. Energy efficiency is also becoming a bigger design consideration, particularly for equipment that runs long duty cycles like port cranes. Hydraulic technology isn't a replacement for wire-rope hoisting—it's a complementary tool that solves problems wire rope can't: precise multi-axis control, self-leveling, steering, and safe overload protection. In heavy lifting equipment ranging from bridge cranes to port RTGS, hydraulics quietly do the work that keeps operations safe, accurate, and moving. As the industry continues to push toward higher automation and efficiency, engineering the hydraulic side of the equation well will remain just as important as the structural design itself.
