Why do some hydraulic systems use multiple accumulators in parallel?

Hydraulic systems use multiple accumulators in parallel primarily to increase total usable fluid storage and delivery flow rate beyond what a single unit can safely provide, while also improving pulsation damping, distributing thermal and cyclic fatigue loads, and building in redundancy so the system keeps functioning if one accumulator underperforms or is taken offline for service. As system pressures, flow demands, and duty cycles climb in modern hydraulic equipment, a single accumulator often can't meet the required response time or volume without exceeding practical size, weight, or mounting limits—which is why engineers turn to parallel banks instead of one oversized unit.

The core reason: volume and flow beyond a single unit's limits

Every accumulator has a fixed gas-charged volume, and that volume determines how much hydraulic fluid it can discharge before its pressure drops below the system's usable range. When an application needs a large volume of fluid delivered quickly—such as during a press stroke, a clamping cycle, or an emergency actuator movement—a single accumulator sized to meet that demand can become physically enormous.

Large accumulators bring their own problems: longer manufacturing lead times, higher shell-thickness requirements to meet pressure vessel codes, difficult transportation and installation, and a single point of failure. Splitting the required volume across two, three, or more smaller accumulators plumbed in parallel achieves the same total stored energy and flow capacity while keeping each individual unit within a manageable size class and standard product line.

Faster response and higher peak flow

Parallel accumulator banks aren't just about total volume—they're also about how fast that volume can be discharged. Each accumulator has a port and internal flow path with a finite discharge rate. Multiple accumulators plumbed together allow fluid to exit through several ports simultaneously, multiplying the instantaneous flow rate available to the system.

This matters most in applications with very short, high-demand events: a hydraulic press that needs a burst of flow during the final stage of closing, a mobile machine cylinder that must extend quickly under load, or an emergency steering or braking circuit that has milliseconds to respond. A single accumulator might be sized correctly for total volume but still can't discharge fast enough alone; adding parallel units solves the flow-rate bottleneck without redesigning the whole circuit.

Pulsation and shock damping across a distributed system

Accumulators are widely used to smooth out pressure pulsations from pump ripple and to absorb pressure spikes from sudden valve closures (water hammer). In systems with long pipe runs or multiple actuation points, a single accumulator positioned at one spot in the circuit may not effectively dampen pulsations that occur elsewhere in the network.

Distributing several smaller accumulators at different points along the circuit—near the pump outlet, near a directional control valve, and near a cylinder subject to rapid deceleration—gives each trouble spot its own local cushioning. This localized damping is often more effective than trying to size one central accumulator to handle every pulsation source in a complex system, and it reduces stress on piping, fittings, and seals throughout the circuit.

Redundancy and continued operation during maintenance

Accumulators, particularly bladder and diaphragm types, require periodic gas pre-charge checks and eventual bladder or diaphragm replacement. In a single-accumulator system, taking that unit offline for inspection or repair means shutting down the associated hydraulic function entirely.

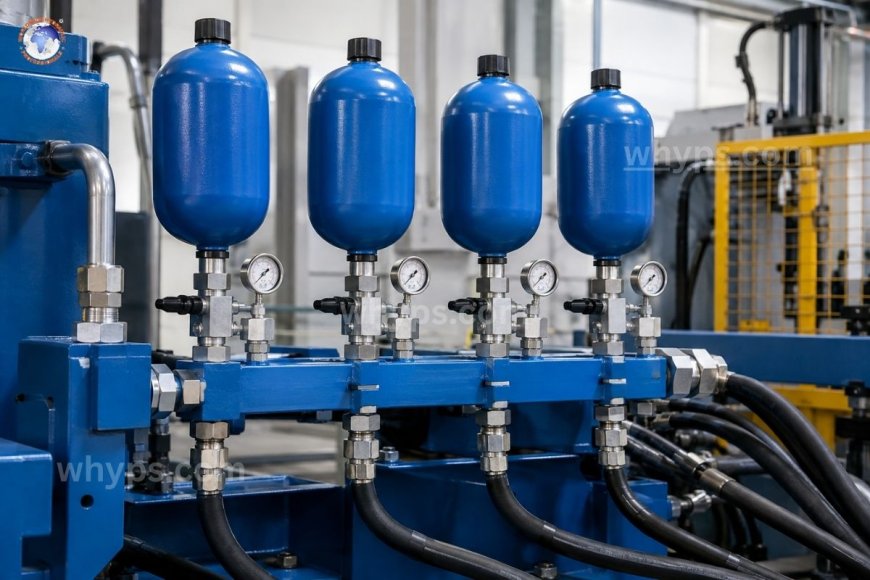

Parallel accumulator banks, when isolated with individual shutoff valves, allow one unit to be depressurized, inspected, or serviced while the others remain in service. The system may run at reduced capacity, but it doesn't have to stop completely. This is especially valuable in continuous-process industries—steel mills, injection molding, and paper machinery—where unplanned downtime is costly and scheduled maintenance windows are tightly managed.

Spreading fatigue and thermal load

Every charge-discharge cycle imposes fatigue stress on an accumulator's shell and bladder or piston seals, and repeated gas compression generates heat. Concentrating all of a system's cycling in one accumulator accelerates wear on that single unit and can elevate its internal gas temperature during rapid, repetitive cycling, which in turn reduces gas cushioning efficiency over time.

Spreading the same total cycling duty across multiple parallel accumulators reduces the number of full-depth cycles any one unit experiences and helps dissipate heat over a larger combined surface area. This tends to extend the practical service interval for the bank as a whole compared to relying on a single heavily cycled accumulator.

Matching accumulator type to the job within one bank

Parallel installations also let designers mix accumulator technologies to cover different needs within a single circuit. For example, a bladder accumulator with fast response might be paired with a larger piston accumulator that holds greater total volume but responds more slowly. Together they cover both the instantaneous pulsation damping and the bulk volume requirement that neither type could satisfy as efficiently on its own.

Practical considerations when sizing a parallel bank

Design teams don't add accumulators in parallel purely for headroom—the decision typically follows from a flow and volume study for the specific duty cycle. Key considerations include total volume needed per cycle, peak instantaneous flow demand, allowable pressure droop, available mounting space, and whether isolation valves are needed for individual maintenance. Manifold design also matters, since poorly balanced piping between parallel units can cause uneven charge and discharge rates, with one accumulator doing more work than its neighbors over time.

Multiple accumulators in parallel solve problems that a single unit — regardless of how large it's made — often cannot: they deliver higher peak flow, distribute pulsation damping across a circuit, allow continued operation during maintenance, and spread fatigue and thermal stress over more hardware. For systems with demanding duty cycles, tight response-time requirements, or high uptime expectations, a parallel accumulator bank is frequently the more practical and reliable engineering choice over a single oversized accumulator.

1. Do parallel accumulators need to be the same size and type?

Not necessarily. Systems can mix accumulator sizes and types (bladder, piston, diaphragm) in one bank, though matched units simplify manifold design and charge balancing.

2. Can one accumulator in a parallel bank be isolated without shutting down the whole system?

Yes, if each unit has its own isolation valve. This allows inspection, pre-charge checks, or replacement of one accumulator while the rest of the bank stays in service.

3. Does adding accumulators in parallel increase system pressure?

No. Parallel accumulators increase available volume and flow rate at a given pressure; they don't raise the system's operating pressure, which is still set by the pump and relief valve settings.

4. How do you prevent uneven charging between parallel accumulators?

Balanced manifold design with symmetric piping runs, similarly sized isolation valves, and periodic verification of each unit's gas pre-charge help keep parallel accumulators charging and discharging evenly.

5. Is a parallel bank more expensive than one large accumulator?

It can have a higher unit count and more fittings and valves, but it often reduces costs elsewhere by avoiding oversized pressure vessels, easing maintenance downtime, and using standard off-the-shelf accumulator sizes instead of custom large units.
