Hydraulic cylinder rod coating and plating types and applications

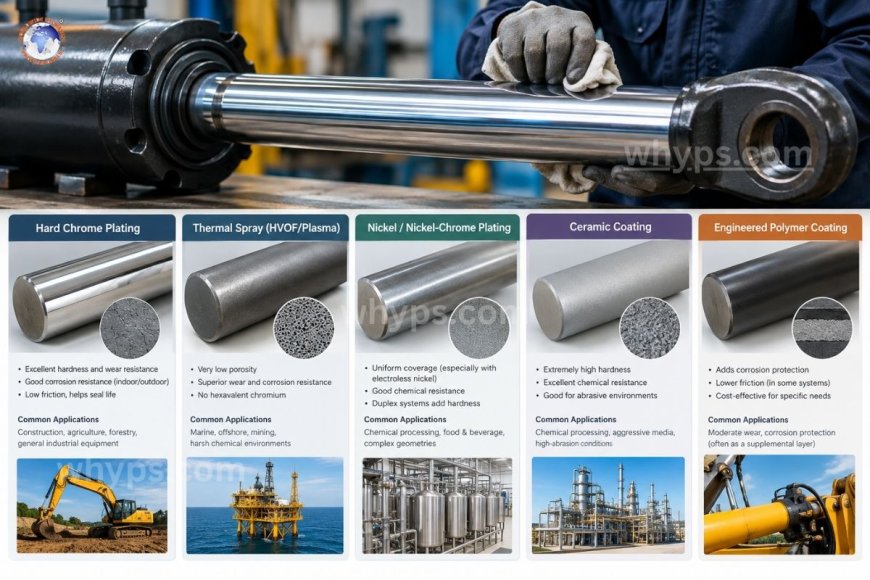

The most common hydraulic cylinder rod coatings and platings are hard chrome plating, thermal spray (HVOF) coatings, nickel-chrome and nickel-based platings, and engineered ceramic or polymer coatings—each chosen based on the corrosion exposure, side-load conditions, and wear environment the rod will face in service. Selecting the right rod surface treatment directly affects seal life, corrosion resistance, and how long a cylinder runs before it needs a rebuild.

Why does rod surface treatment matter?

The piston rod is the only part of a hydraulic cylinder that repeatedly moves through the rod seal and wiper while also being exposed to the outside environment. Every stroke drags the rod surface across the wiper, rod seal, and bearing band, and every retraction pulls whatever is on the rod—dust, moisture, chemical residue—back into the cylinder. If the rod surface is soft, porous, or poorly bonded, it will pit, scratch, or corrode, and once that happens, the rod seal cannot maintain a seal against the damaged surface. A single deep scratch or corrosion pit can turn into a slow external leak that gets worse with every cycle.

Rod surface treatments exist to solve two separate problems at once: hardness (to resist wear from the seals and any incidental contact) and corrosion resistance (to survive moisture, salt, chemicals, or UV exposure). Different coatings and platings balance these two goals differently, which is why the right choice depends heavily on the application.

Hard chrome plating

Hard chrome plating is the long-standing industry default for hydraulic cylinder rods, and for most general industrial and mobile equipment applications it remains the baseline option. In this process, a layer of chromium is electrodeposited onto the rod surface, typically to a thickness in the range of 20 to 50 microns, then ground and polished to the required surface finish.

Advantages:

• Excellent hardness (typically 65–70 HRC), which resists abrasive wear from seals and incidental contact well
• Good general corrosion resistance for indoor and moderate outdoor environments
• Low friction coefficient, which helps seal life and reduces stick-slip
• Decades of proven field performance and widely available rebuild/replating services

Limitations:

• Hard chrome is inherently micro-cracked at the microscopic level, and those micro-cracks can allow corrosive moisture to reach the base steel over time, especially in humid or saline conditions
• Traditional hexavalent chrome plating carries environmental and worker-safety regulatory burdens, which has pushed some manufacturers toward trivalent chrome or alternative processes
• Not the best choice for offshore, marine, or heavy salt-exposure applications, where it can underperform compared to thermal spray alternatives

Hard chrome plating is common on general construction equipment, agricultural machinery, forestry equipment, and general industrial press cylinders where cost-effectiveness and proven performance matter more than extreme corrosion resistance.

Thermal spray coatings (HVOF and plasma spray)

High-Velocity Oxygen Fuel (HVOF) and plasma spray coatings apply a dense metallic or ceramic-metallic (cermet) layer, such as tungsten carbide-cobalt-chromium, by spraying molten or semi-molten particles onto the rod surface at high velocity. The result is a coating with much lower porosity than conventional chrome plating and, in many cases, superior wear and corrosion resistance.

Advantages:

• Very low porosity compared to hard chrome, which significantly reduces the pathways for corrosive moisture to reach the base metal
• Excellent resistance to both abrasive wear and corrosion, making it well suited to marine, offshore, and heavy salt-spray environments
• No hexavalent chromium involved, which sidesteps the regulatory and environmental concerns tied to traditional hard chrome plating
• Can be engineered with different carbide compositions to target specific wear or corrosion profiles

Limitations:

• Higher cost than hard chrome plating, both for original equipment and for rebuild/recoating services
• Requires specialized spray equipment and trained technicians, so service availability can be more limited in some regions
• Coating thickness and finish tolerances need careful control during application to avoid surface defects

HVOF and plasma-sprayed rods are increasingly specified for offshore oil and gas equipment, marine deck machinery, mining equipment operating in corrosive slurry environments, and other high-value cylinders where downtime for rod failure is especially costly.

Nickel and nickel-chrome plating

Nickel plating, often applied as an intermediate or duplex layer beneath a final chrome layer, improves corrosion resistance by providing a more continuous barrier layer than chrome alone. Electroless nickel plating, which deposits a uniform layer without relying on electrical current density, is particularly valued for its ability to coat rods evenly even where geometry is complex, such as at shoulders or grooves.

Advantages:

• Electroless nickel provides highly uniform coverage, avoiding the thin spots that can occur with electroplated chrome at sharp edges or transitions
• Duplex nickel-chrome systems combine nickel's corrosion barrier properties with chrome's surface hardness
• Good chemical resistance in many industrial fluid environments

Limitations:

• Pure nickel plating is softer than hard chrome and offers less wear resistance on its own, which is why it's often combined with a chrome top layer
• Cost is generally higher than straight hard chrome plating

Nickel and nickel-chrome duplex systems are frequently specified for cylinders in chemical processing environments, food and beverage equipment where specific corrosion resistance profiles are required, and rods with complex geometries where uniform coverage matters more than raw wear resistance.

Ceramic and engineered polymer coatings

Ceramic coatings and specialty polymer coatings occupy a smaller but growing niche in rod surface treatment. Ceramic coatings, often applied by thermal spray methods similar to HVOF, offer extremely high hardness and chemical inertness. Engineered polymer coatings, by contrast, are typically used for corrosion protection on rods that don't see extreme wear demands or as a supplemental layer over a metallic base coating.

Advantages:

• Ceramic coatings offer very high hardness and excellent chemical resistance, useful in aggressive chemical or highly abrasive environments
• Polymer coatings can add a sacrificial or barrier layer of corrosion protection at relatively low cost
• Some polymer systems reduce friction further than metallic coatings, benefiting seal life in specific applications

Limitations:

• Ceramic coatings can be brittle compared to metallic coatings and may be more prone to chipping under impact or heavy side-loading
• Polymer coatings generally cannot match the wear resistance of hard chrome or thermal spray metallic coatings and are not appropriate as a standalone treatment for high-cycle, high-load cylinders

These coatings tend to appear in specialized applications: chemical processing cylinders exposed to aggressive media, or as supplemental corrosion protection layers in combination with a primary hard coating.

Matching coating choice to application

In practice, the decision usually comes down to three questions: What is the corrosion exposure (indoor, outdoor, marine, or chemical)? What is the wear and side-load profile (light-duty actuator or heavy mobile equipment cylinder)? And what is the acceptable total cost of ownership, including any need for periodic recoating or rebuilding?

General industrial and mobile equipment cylinders in moderate environments are well served by conventional hard chrome plating. Cylinders destined for marine, offshore, or heavy salt exposure benefit substantially from HVOF or plasma-sprayed thermal spray coatings despite the higher upfront cost, since the reduction in corrosion-driven seal failures and rod replacements often pays for itself over the service life of the equipment. Complex rod geometries or chemically demanding environments may call for nickel or nickel-chrome duplex systems, while ceramic and polymer coatings fill specific niches where their particular properties outweigh their limitations.

What is the most common coating for hydraulic cylinder rods?

Hard chrome plating remains the most widely used rod surface treatment across general industrial and mobile hydraulic equipment, due to its proven wear resistance, low friction, and relatively low cost.

Why do some rods use thermal spray coatings instead of hard chrome?

Thermal spray coatings like HVOF have much lower porosity than hard chrome, which makes them significantly more resistant to corrosion in marine, offshore, and other harsh chemical environments.

Can a hydraulic cylinder rod be recoated after damage?

Yes. Rods with surface damage can often be reground and replated or resprayed, though the extent of damage and remaining rod diameter tolerance determine whether recoating or full rod replacement is the better option.

Does rod coating affect seal life?

Significantly. A smooth, hard, well-bonded coating reduces seal wear and friction, while a pitted or corroded rod surface accelerates rod seal and wiper degradation and leads to leaks.

Is hexavalent chrome plating being phased out for hydraulic rods?

Regulatory pressure in many regions has pushed manufacturers toward trivalent chrome processes or alternative coatings like HVOF thermal spray, though hexavalent chrome plating is still used in parts of the industry where regulations permit it.
