Hydraulic systems are dependent on power, precision, and reliability. One of the most vital components in achieving every one of them is the hydraulic accumulation. Accumulators store energy in the form of pressurized liquid, smooth out pulsations and compensate for leaks, and supply the power needed in emergencies. Of the various types of accumulators available, bladder accumulators and piston accumulators are the most commonly utilized.

Although both have similar functions, their internal design, performance, and ideal application differ greatly. Understanding these differences is crucial for technicians, engineers, and all those involved in the design and maintenance of hydraulic systems.

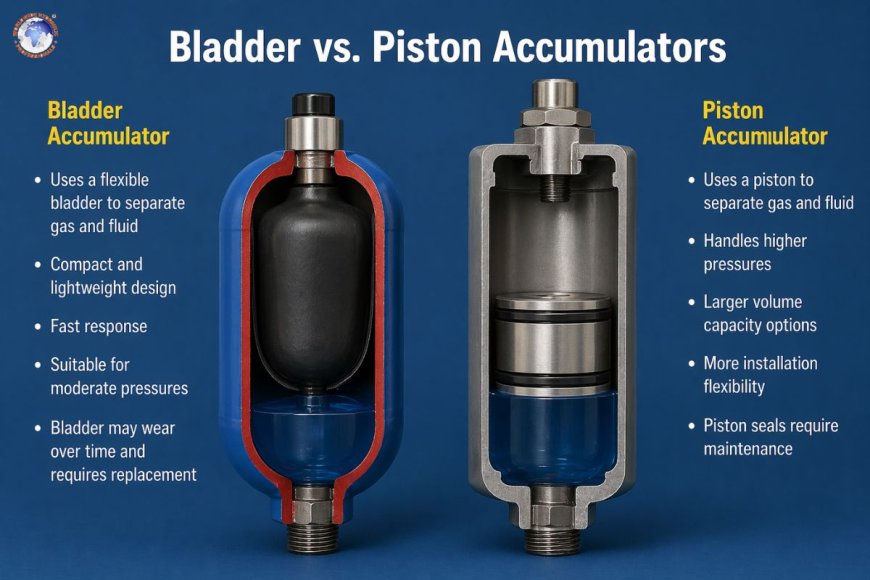

Bladder or piston accumulators: a complete guide

What is a hydraulic accumulator?

Before we dive into the analysis, it's essential to know what a hydraulic accumulator is.

A hydraulic accumulator functions as one of the energy storage devices. It utilizes a compressed gas, usually nitrogen, to store hydraulic energy as system pressure rises. As pressure decreases, it is released back to the system.

Imagine it as an electric battery for hydraulic systems.

What is a bladder accumulator?

The bladder accumulator comprises the pressure vessel that contains an elastic rubber bladder. The bladder is able to separate gases (usually nitrogen) from the hydraulic fluid.

How it works

• The bladder is charged with nitrogen gas.
• When fluid from the hydraulic accumulator enters the accumulator, it compresses the bladder.
• When pressure in the system drops, the gas is compressed, which pushes the gas back into the system.

Key features

• Flexible elastomer bladder
• Rapid response time
• Compact design
• Simple construction

What is a piston accumulator?

A piston accumulator makes use of floating pistons to separate the gas from the hydraulic fluid within an elongated chamber.

How it works

• A piston splits the chamber into two parts that are fluid and gas.
• The hydraulic fluid is injected into one side, which pushes the piston forward and expands the gas.
• When pressure is reduced, the gas expands, forcing the piston to move backwards and pushing the fluid out.

Key features

• A rigid piston separator
• High-pressure capability
• Large volume capacity
• Precise control

Key differences between bladder and piston accumulators

Let's look at the most important distinctions in more detail:

1. Design and construction

Bladder accumulator

• Utilizes a flexible rubber bladder.
• Simpler internal design
• Fewer moving parts

Piston accumulator

• Utilizes a piston made of metal with seals
• More intricate construction
• Requires precision machining

The verdict:
Bladder accumulators are less complicated, whereas piston accumulators are more robust.

2. Response time

Bladder accumulator

• Very quick response
• Perfect for absorbing shocks and pulses

Piston accumulator

• A little slower response because of the friction and movement of the piston.

Review:
Bladder accumulators are best for applications that require high speed.

3. Pressure range

Bladder accumulator

• Usually used in medium and low-pressure systems
• Limited by the strength of the bladder material

Piston accumulator

• Very high pressures are handled.
• It is suitable for applications that require heavy-duty.

Verdict:
Piston accumulators excel in high-pressure environments.

4. Fluid compatibility

Bladder accumulator

• The material used for the bladder is required to be compatible
• There are a few options available for fluids that can be aggressive.

Piston accumulator

• More flexible thanks to fluid types of
• Can handle a larger range of hydraulic fluids

The verdict:
Piston accumulations provide better compatibility with fluids.

5. Installation orientation

Bladder accumulator

• Usually, they are installed vertically
• Limits on mounting flexibility

Piston accumulator

• Installation can be done in any orientation.
• More flexible system design

Verdict:
Piston accumulators provide greater installation flexibility.

6. Maintenance requirements

Bladder accumulator

• It is easier to maintain
• The replacement of the bladder is simple

Piston accumulator

• It requires more frequent maintenance
• Wear on seals and pistons could occur.

The verdict:
Bladder accumulation devices are simpler to keep in check.

7. Volume capacity

Bladder accumulator

• Limited volume capacity
• Best for smaller systems

Piston accumulator

• Large capacity options are readily available
• Suitable for large-scale systems

Review:
Piston accumulation units are perfect for large-volume requirements.

8. Efficiency and leakage

Bladder accumulator

• Minimal internal leakage
• High-efficiency

Piston accumulator

• Possibility of leakage past piston seals
• A little lower efficiency over time

The verdict:
Bladder accumulators typically have better sealing effectiveness.

9. Cost considerations

Bladder accumulator

• Costs less initial
• Cost-effective for basic applications

Piston accumulator

• A higher upfront cost
• More long-term value with heavy-duty systems

Review:
Bladder accumulators are less expensive in the beginning.

Advantages of bladder accumulators

• Rapid response to changes in pressure
• Compact and simple design
• Low maintenance costs
• High Efficacy with low leakage
• Ideal for shock absorption as well as the damping of pulsation

Advantages of piston accumulators

• High-pressure capability
• Large capacity storage capacity
• Flexible installation orientation
• More suitable for extreme environments
• More flexibility to adapt to different fluids

Disadvantages of each type

Bladder accumulator limitations

• Capacity and size are limited.
• Sensitive to high temperatures.
• Bladder wear over time
• Not recommended for very high pressures.

Piston accumulator limitations

• Costs are higher
• More complicated maintenance
• The possibility of leakage from seals
• Slower response time

Applications of bladder accumulators

Bladder accumulators are often employed in:

• Mobile equipment (tractors, excavators)
• Agriculture machinery
• Systems for shock absorption
• Pulsation dampening in pumps
• Emergency backup power

Their rapid response makes them ideal for systems that experience rapid changes in pressure.

Applications of piston accumulators

Piston accumulators are used extensively in:

• Industrial hydraulic presses
• Mining and steel industries
• Subsea and offshore systems
• Energy storage systems
• Hydraulic circuits with high pressure

They are highly recommended when the capacity and durability are important.

Choosing the right accumulator

The choice between a bladder or piston accumulator is based on a variety of variables:

Choose a bladder accumulator if:

• You require a quick response time
• The system is operating at a moderate pressure
• Space is not unlimited
• Maintaining simplicity is essential.

Choose a piston accumulator if:

• You require a huge volume and pressure.
• The system needs to be installed with flexibility.
• You work in challenging environments.
• Long-term durability is the most important thing

Real-world example

Take a look at a hydraulic system found in the agricultural tractor:

• A bladder accumulation device is perfect for taking the shocks of uneven terrain as well as smoothing the pulsations of pumps.

Now think about a steel manufacturing plant:

• A piston accumulator is a better choice because it can handle large pressures and storage needs for energy.

Future trends in accumulator technology

As hydraulic systems advance, and accumulators also advance:

• Better bladder materials to offer greater temperature resistance
• Modern sealing technology in piston accumulators
• Integration of smart sensors to provide proactive maintenance
• Hybrid electro-hydraulic storage of energy systems

These advancements make both kinds more efficient and stable.

Both piston accumulators and bladders are essential components for hydraulics; they're not interchangeable. Each has distinct strengths and drawbacks that make it suitable for various uses.

• Bladder accumulation devices have the best speed, ease of use, and effectiveness.
• Piston accumulation systems are the most popular in terms of capacity, pressure handling, and versatility.

Choosing the right accumulator ultimately depends on your system's requirements--pressure, volume, response time, and operating conditions.

When you understand these distinctions to design more efficient, reliable, and economical hydraulic systems.
