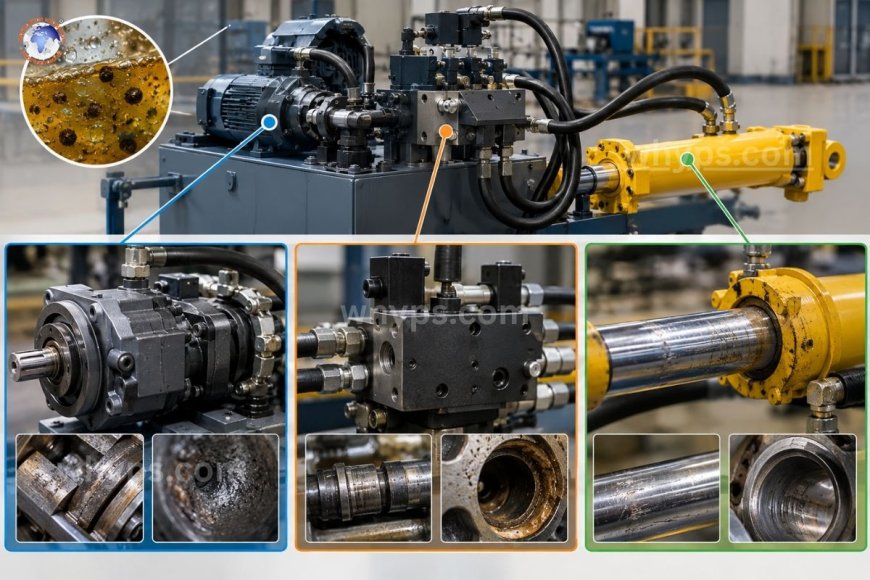

How hydraulic fluid contamination affects pumps, valves, and cylinders

Hydraulic fluid contamination damages pumps, valves, and cylinders by introducing abrasive particles, water, air, and chemical byproducts that accelerate wear, cause internal leakage, and make components stick or behave erratically. Because contamination is widely recognized as a leading cause of hydraulic failures, keeping fluid clean is one of the most effective ways to extend component life and avoid unplanned downtime. Hydraulic fluid does more than transmit power. It lubricates moving parts, carries heat away, and seals tiny clearances inside precision components. When that fluid is contaminated, every one of those jobs suffers. Understanding how contamination attacks each major component helps maintenance teams spot problems earlier and prioritize the right preventive measures.

What is hydraulic fluid contamination?

Contamination is any substance in the fluid that does not belong there. It enters through new oil, worn components, breathers, seals, hose assemblies, and careless maintenance practices. The main types are listed below.

Particulate contamination

Solid particles such as dirt, metal fragments, rust, rubber fragments, and fibers are the most common culprit. Even particles too small to see with the naked eye can damage components, because internal clearances in modern pumps and servo valves are often measured in microns.

Water contamination

Water enters through condensation, leaking coolers, worn rod seals, and washdowns. It can exist as dissolved, emulsified, or free water. It reduces lubricity, promotes rust, depletes additives, and speeds up oil oxidation.

Air contamination

Air can be dissolved, entrained as bubbles, or form foam. It typically enters through suction-line leaks, low reservoir levels, or poor return-line design. Entrained air compresses under load and collapses violently under pressure, which damages surfaces.

Chemical and heat-related contamination

Oxidation, thermal breakdown, and incompatible fluid mixing create sludge, acids, and varnish. These byproducts coat valve spools, plug small orifices, and attack seals.

How does contamination affect hydraulic pumps?

Pumps are usually the first components to suffer because they operate at high speeds and pressures with extremely tight tolerances.

Abrasive wear

Hard particles trapped between moving surfaces, such as gear tips and housings, vane tips and cam rings, or pistons and bores, act like sandpaper. This three-body abrasion gradually enlarges clearances. As clearances grow, more fluid slips internally from the high-pressure side to the low-pressure side, a condition known as internal leakage.

Reduced efficiency and higher heat

Internal leakage lowers volumetric efficiency, so the pump delivers less flow at the same speed. The lost energy turns into heat, which thins the oil, accelerates oxidation, and creates a self-reinforcing cycle of degradation. Operators often notice slower actuator speeds and rising reservoir temperatures.

Cavitation and aeration damage

Air and water in the fluid contribute to cavitation and aeration. Vapor or air bubbles collapse as they move into high-pressure zones, pitting metal surfaces and producing a distinctive gravelly noise. Clogged inlet strainers or filters can worsen cavitation by starving the pump of fluid.

Catastrophic failure

Large particles from an upstream failure can seize a pump outright. Progressive wear that goes unnoticed eventually produces debris that damages the rest of the circuit.

How does contamination affect hydraulic valves?

Valves control direction, pressure, and flow, and many of them rely on spool-to-bore clearances of only a few microns. That makes them especially sensitive to contamination.

Sticking and sluggish response

Small particles and varnish can lodge in clearances, causing spools to stick or respond slowly. In directional valves this appears as delayed or incomplete shifting. In proportional and servo valves it reduces precision, causing hysteresis, instability, and poor repeatability.

Erosion and internal leakage

High-velocity fluid carrying particles erodes sharp metering edges, seats, and poppets. Eroded edges change flow characteristics, and damaged seats allow leakage that causes drift, lost pressure control, or loads that creep when they should hold.

Relief and pressure control problems

Contamination under a relief valve poppet can prevent proper seating, which causes pressure to bleed off or relief settings to wander. In the opposite case, a stuck valve may fail to open, creating a serious overpressure risk for the whole system.

Solenoid and pilot issues

Contaminants can restrict small pilot passages and orifices, causing erratic operation that is difficult to diagnose. Technicians sometimes replace electrical components before discovering that dirt was the real cause.

How does contamination affect hydraulic cylinders?

Cylinders are more tolerant of contamination than pumps and servo valves, but they are far from immune.

Rod and seal damage

Particles carried on the rod surface, or ingested past a worn wiper seal, scratch the rod and tear into rod seals. Scoring creates leak paths, and once the rod surface is damaged, seal life drops sharply. External leaks follow, and each retraction can pull more dirt into the system.

Bore and piston seal wear

Inside the barrel, abrasive particles score the bore and wear piston seals. The result is internal bypass, which appears as cylinder drift, reduced force, and slow cycle times under load.

Corrosion from water

Water accelerates rust on rods, bores, and other components, creating pitting that damages seals and spawns additional particles. Moisture also reduces the lubricating film that protects sliding surfaces.

The domino effect across the system

Contamination rarely stays confined to one component. Wear debris from a degrading pump circulates downstream, scoring valve spools and cylinder bores. Those components then generate more particles, which return to the reservoir and cycle back through the pump. Left unchecked, this chain reaction multiplies damage and cost. This is why a single failed component often signals a deeper cleanliness problem that must be addressed before replacement parts are installed.

How to control hydraulic fluid contamination?

• Set cleanliness targets. Use the ISO 4406 cleanliness code to define a target for each system, based on its most sensitive component and operating pressure.
• Filter new oil. Fluid delivered in drums or totes is not necessarily clean enough, so filter it during transfer.
• Select proper filtration. Match filter micron and beta ratings to your cleanliness target, and use suction, pressure, and return-line filters where appropriate.
• Protect the reservoir. Fit quality breathers, often desiccant types in humid environments, and seal all access points.
• Monitor condition. Track filter differential pressure and perform regular oil analysis to catch trends early.
• Maintain seals and wipers. Replace worn rod seals and wipers before they allow ingress.
• Use clean practices. Cap hoses and ports, flush new components, and use dedicated, clean transfer equipment.
• Control temperature. Heat accelerates oxidation, so keep the system within its recommended temperature range.

Contamination affects pumps through abrasive wear and cavitation, valves through sticking, erosion, and leakage, and cylinders through seal damage, scoring, and corrosion. Each effect compounds the others, which makes prevention far more economical than repair. A disciplined program of cleanliness targets, proper filtration, sealed storage, and routine oil analysis protects every component in the circuit and keeps equipment productive for longer.

1. What is the most common type of hydraulic fluid contamination?

Solid particulate contamination is the most common. It includes dirt, metal wear debris, rust, and seal fragments, and it causes abrasive wear in nearly every component.

2. Which hydraulic component is most sensitive to contamination?

Servo and proportional valves are generally the most sensitive because of their very tight clearances, followed closely by high-pressure piston pumps. Cylinders and gear pumps tolerate somewhat higher contamination levels.

3. How does water in hydraulic oil damage components?

Water lowers lubricity, causes rust and pitting, depletes additives, and speeds up oil oxidation. It can also cause cavitation-like damage when it flashes to vapor in high-pressure zones.

4. How can I tell if my hydraulic system is contaminated?

Common signs include sluggish or erratic actuator movement, rising oil temperature, noisy pumps, frequent filter changes, discolored or cloudy oil, and unexplained leaks. Oil analysis and particle counting confirm the level.

5. What ISO cleanliness code should I target?

It depends on the system. Many general industrial systems aim for codes around 18/16/13, while high-pressure or servo systems often require 16/14/11 or cleaner. Always follow the component manufacturer's recommendation.
