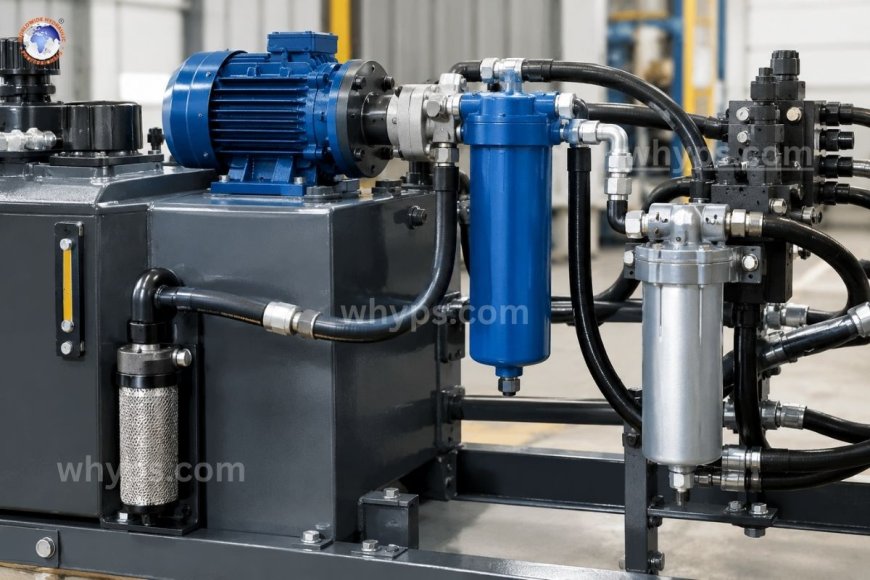

What is the difference between suction, pressure, and return-line filters?

Suction filters sit at the pump inlet and protect the pump from large particles, pressure filters sit downstream of the pump and protect sensitive valves and actuators, and return-line filters sit in the line back to the tank and capture wear debris and ingressed contamination before it recirculates. Each location has different pressure ratings, filtration fineness, and trade-offs, which is why most reliable hydraulic systems use more than one. Contamination is the leading cause of hydraulic component wear, and the filter you choose, and where you put it, determines how well your system fights it. A filter that works perfectly in one position can be a poor or even damaging choice in another. This guide explains how suction, pressure, and return-line filters differ, where each one fits, and how to decide which your system needs.

Why does filter location matter?

A hydraulic system has contamination coming from several directions at once. Particles are built into new components, generated by wear, drawn in through breathers and rod seals, and introduced during maintenance. No single filter can catch all of it at every point in the circuit.

Placement decides what a filter protects. A filter at the pump inlet guards the most expensive rotating component. One after the pump guards the precision parts that follow. One on the return side cleans up everything the system picks up as oil flows through it. Understanding these roles lets you match protection to the actual risk.

Suction filters

Suction filters are installed in the line between the reservoir and the pump inlet. They are either submerged in the tank (often called suction strainers) or mounted in-line outside it.

How they work

Oil is drawn through the element by the vacuum the pump creates. Because the pump can only pull so hard before it cavitates, suction filters use coarse media, typically in the 60 to 150 micron range, with a large surface area to keep flow resistance low.

Advantages

• Protect the pump from large debris such as weld spatter, rust flakes, or fragments from a failed component
• Simple, low-cost construction with no need for high-pressure housing
• Useful as a safeguard during commissioning, when new tanks and lines may still hold debris

Limitations

• Coarse media means they do little for fine particles, which cause most abrasive wear
• Any restriction at the inlet raises the risk of pump cavitation, noise, and rapid damage
• Hard to inspect and service, especially submerged strainers inside the reservoir
• Many designs have no bypass or indicator, so a clogged element can starve the pump before anyone notices

Because of these risks, many system designers avoid fine filtration on the suction side entirely and rely on suction strainers only as a last line of defense for the pump.

Pressure filters

Pressure filters are installed in the line immediately downstream of the pump, before the control valves and actuators.

How they work

Oil leaves the pump at full system pressure and passes through the element inside a heavy-duty housing built to withstand that pressure, often up to 350 bar or more depending on the design. Since the filter is not limited by suction conditions, it can use fine media, commonly 3 to 25 microns, with high efficiency.

Advantages

• Deliver the finest filtration in the system, protecting servo valves, proportional valves, and other tight-tolerance components
• Catch debris created by the pump itself, which is a major contamination source
• Placed right before critical components, they provide the most direct protection where it matters
• Easy to fit with differential pressure indicators and bypass valves

Limitations

• Higher cost, because the housing and element must handle full working pressure
• Take pressure drop continuously, which adds some energy loss
• A filter that bypasses or collapses under pressure spikes can release trapped contaminants downstream, so element collapse rating matters
• Cold starts and high-viscosity oil can load the element heavily and trigger bypass

Pressure filtration is the standard choice for systems with servo or proportional valves, where even small particles can cause sticking and erratic response.

Return-line filters

Return-line filters are mounted in the line carrying oil back to the reservoir, usually just before the tank or integrated into it.

How they work

All the oil that has passed through actuators, valves, and coolers returns through the filter. Operating at low pressure, typically below 30 bar, the housing is lighter and cheaper than a pressure filter, yet the media can still be fine, often 5 to 25 microns.

Advantages

• Capture wear particles and contaminants picked up during circulation before they reach the tank and the pump
• Lower housing cost than pressure filters
• Easy to access and service, since they are usually mounted on or near the tank
• Do not affect pump inlet conditions, so there is no cavitation risk

Limitations

• Do not protect the pump or upstream components from contamination already in the oil
• Return flow can be much higher than pump flow in systems with differential cylinders, so the filter must be sized for peak return flow
• Back pressure from a clogged filter can affect cylinder performance and seal life, which is why bypass valves and indicators are important

Return-line filters are the most common filter type in mobile and industrial systems because they balance cost, serviceability, and effective cleanup.

Side-by-side comparison

How to choose the right filter?

Start with what you need to protect. If the system uses servo or proportional valves, pressure filtration is close to essential. If the main concern is general wear and long-term cleanliness, a return-line filter is often the foundation. If the pump is vulnerable during startup or after major repairs, a suction strainer adds a safety net.

Next, match the filter to your cleanliness target. Set a target code under ISO 4406 based on your most sensitive component, then choose a filter with a beta ratio that achieves it. Size elements for peak flow, not average flow, and confirm the bypass setting and collapse rating suit your operating pressure.

Finally, consider serviceability. A filter that is hard to reach tends to be neglected, and a neglected filter is worse than none because it may bypass unnoticed. Choose designs with visible or electrical differential pressure indicators.

Combining filters for better protection

The best systems rarely depend on one filter. A common arrangement is a coarse suction strainer for the pump, a fine pressure filter ahead of critical valves, and a return-line filter to keep the reservoir clean. Adding an offline kidney-loop filter and a quality breather handles fine particles and moisture that inline filters miss.

Common mistakes to avoid

• Putting fine media on the suction side, which starves the pump
• Sizing return filters for pump flow instead of peak return flow
• Ignoring differential pressure indicators until performance drops
• Using filters with low collapse ratings in high-pressure circuits
• Skipping filter changes during cold weather, when bypass is most likely

Suction, pressure, and return-line filters each solve a different problem. Suction filters shield the pump from large debris, pressure filters guard precision components with fine filtration, and return-line filters keep circulating oil clean at a manageable cost. Choosing the right combination, sizing it correctly, and maintaining it on schedule is one of the most effective ways to extend component life and reduce unplanned downtime.

1. Which filter location gives the best protection?

Pressure filters give the finest filtration and the most direct protection for sensitive valves. However, no single location is best for every system, so most designs combine two or three.

2. Can I use a fine filter on the suction side?

It is generally not recommended. Fine media restricts inlet flow, which can cause pump cavitation, noise, and rapid wear. Suction filters should stay coarse and be sized with generous surface area.

3. Do return-line filters protect the pump?

Not directly. They clean oil before it returns to the tank, which reduces contamination reaching the pump over time, but they do not stop particles the pump generates or draws in from the tank.

4. Why do pressure filters cost more than return-line filters?

The housing and element must withstand full system pressure, which requires heavier construction and stronger media support, while return-line housings operate at low pressure.

5. How do I know when a filter needs changing?

Use a differential pressure indicator and follow the manufacturer's service interval. Change the element when the indicator reaches its set point, and more often after repairs, in dirty environments, or when oil analysis shows rising particle counts.
