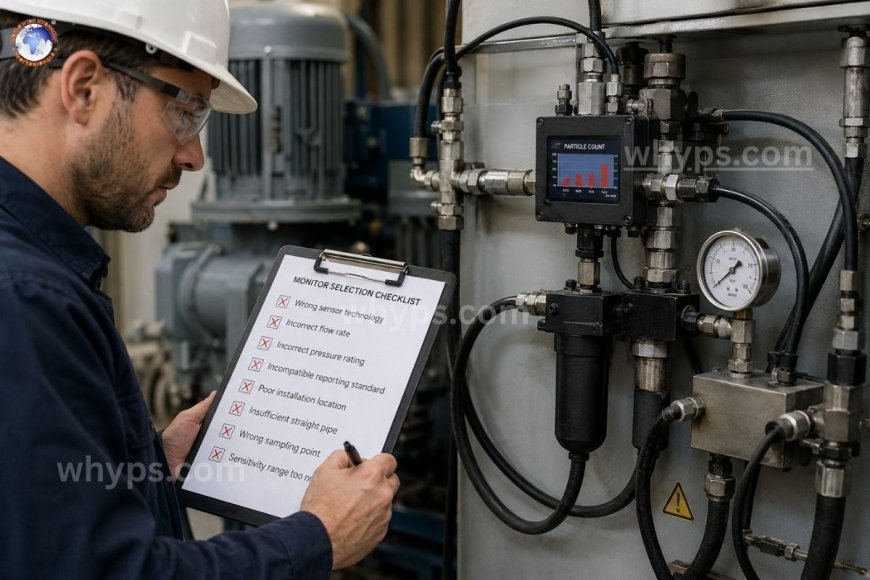

What common mistakes occur during contamination monitor selection?

The most frequent errors in selecting a monitor for contamination include selecting the wrong technology to detect the type of fluid, and sizing the monitor wrongly in terms of pressure and flow rate and not recognizing particle count reporting standard (ISO 4406 as compared to. NAS 1638 vs. SAE AS4059) and ignoring the location of the installation and access to the sample point and underestimating the monitor's sensitivities range compared to targets cleanliness codes. All of these mistakes lead to incorrect readings or false alarms, missed incidents of contamination, or premature failure of the component—all of which can undermine the entire strategy of predictive maintenance the monitor was designed to aid in.

Contamination monitors can only be as beneficial as the decisions taken prior to installation. Monitors that report incorrect data, on the wrong unit, or in the wrong place provide users false confidence instead of real security. Below are the errors that are most frequently found in the selection process, as well as what else to check.

The first mistake is choosing the wrong technology for sensing.

Contamination monitors usually use one of three principles of sensing, which are light extinguishment (laser particle count) and light scattering or blocking of pore (mesh obscurement). Each one has strengths and weaknesses, and choosing the wrong one without comparing it to the fluid is a mistake that is made in the beginning.

Sensors for light extinction and dark fluids

Light extinction sensors have a difficult time dealing with opaque or dark-colored hydraulic fluids like highly additized oils or those with high water content since the sensors are unable to distinguish elements from the fluid's intrinsic light absorption. Utilizing this method for an application with dark fluids results in non-reliable results before the system has even been installed.

High-viscosity fluids

Pore blockage monitors, which analyze the pressure differential over a mesh when particles build up, typically work better with transparent or dark fluids; however, they are more sensitive to changes in viscosity as well as temperature swings. By not considering the viscosity of the fluid during the selection process, it often results in a monitor that shows pollution trends triggered by temperature rather than particle load.

Second error: Incorrect flow rate as well as pressure rating

A contamination monitor comes with the capability of operating within a certain flow range and a maximum pressure rating. Installing a monitoring system that is certified for a bypass line in a flow that is full of the main line or vice versa is among the most harmful mistakes since it's not always evident by the data by itself.

A sample flow too small for the sample

In the event that the instrument is deprived of flow, the sample volume falls below the statistically acceptable limit for precise particle count, and the reports of ISO codes can fluctuate between readings that would otherwise be steady.

Oversized line pressure

In contrast, connecting an instrument to the pressure of a line that is greater than its capacity can result in the failure of the seal or damage to the sensor, particularly for systems that operate above 3000 psi. In this case, monitors that were designed for lower pressure sample loops can be incorrectly designed.

Error 3: Not recognizing standard reporting for compatibility

The contamination monitors do not all have the same system of cleanliness codes. This causes confusion when planning maintenance audits and audits.

ISO 4406 vs. NAS 1638 and SAE AS4059

Certain monitors use ISO 4406 three-number codes, others use NAS 1638 ranges of classes, and still others use tables of SAE AS4059. If the maintenance procedures of a facility, OEM warranty requirements, or specifications for component manufacturers are written in one standard, but the monitor's report is in a different standard, the technicians must manually convert—creating errors—or the monitor does not provide any data that can be used to determine thresholds.

Alarm threshold in alignment

If you select a monitor and do not confirm that its alarm-setting algorithm is set to be compatible with the cleanliness target of the facility (for instance, ISO 18/16/13), it means alarms could be activated too early, which can cause alarm fatigue, or may be too late, allowing dangerous particles to remain undetected.

4. Mistake 4: Not paying attention to the location of the installation

The location where the monitor is able to sample fluid is as important in the same way as how it is positioned on its monitor. An error that is common is placing the point of sampling close to a pump or filter or reservoir return line, in which the effects of filtration or turbulence can skew the reading in relation to the conditions that components of the fluid are actually experiencing.

Too near to filter

A monitor placed immediately to the left of a filter will show an artificially clear reading, which doesn't reveal contamination occurring in other parts of the circuit, for example, around cylinder rod seals and reservoir breathers.

Insufficient straight pipe run

A majority of monitors require a straight, unobstructed pipe both downstream and upstream of the sample point in order to prevent turbulent flow that could affect particle detection. The absence of this requirement in installation design—typically because of space constraints that are discovered just after the monitor has already been bought—causes limitations that decrease the accuracy.

Five-Fault: Underestimating the needed sensitivity range

Contamination monitors come with a specified particle size range of detection generally ranging between 2 and 6 microns. A monitor with the sensitivity range that isn't in line with the cleanliness target of the system is a minor but serious error.

Incorrect micron range for precision systems

Systems that use proportional valves or servo valves usually require monitoring to lower microns because they are sensitive to particles of silt size, which monitors with a wider range of capabilities simply cannot detect. Monitors with a coarser detection floor will indicate an unclean system, even when the harmful fine particles accumulate.

Overspecifying systems for simple systems

On the other hand, choosing an ultra-high-resolution laser particle counter in an ordinary fixed-displacement pump circuit that has ample clearance will result in an unnecessary expense and calibration costs without providing a similar benefit in protection.

Sixth error: Not paying attention to the calibration and maintenance requirements

An instrument for monitoring contamination is a precise instrument. Selection of decisions that disregard the need for continuous calibration can cause issues with accuracy over time.

Planning calibration intervals without a plan

Laser-based monitors usually require periodic calibration with an industry standard to ensure accuracy. Facilities that choose a monitor without planning the necessary calibration—either in the cost or downtime—typically end up with skewed readings in their first few years of operation.

Insisting on fouling resistance

In fluids that have large amounts of additive content or varnish potential, the sensor windows or mesh components can get dirty over time. If you choose a sensor without taking into account its self-cleaning design or the ability to resist fouling to the specific fluid chemical that is being used, it leads to slowly diminishing accuracy that is easily overlooked until a major incident of contamination remains undetected.

Making the right choice the first time

To avoid these errors, it's important to compare the monitor's performance to three aspects: the fluid's optical as well as chemical attributes, the system's current flow and pressure parameters, and the facility's cleaning framework. The choice of a monitor that is based on only one of these elements that is based solely on the price or availability only can produce information that appears precise but isn't necessarily reliable. The initial work of verifying the technology used to sense flow compatibility, the reporting standard, the configuration geometry, the sensitivity range as well as calibration specifications is cheaper than identifying bad data once the monitor is already in use.

Which is the most significant mistake that people make when they choose the right monitor for contamination?

The most frequent error is to select a sensing method that isn't in line with the optical properties of the fluid, in particular when using light excitation sensors for opaque or dark fluids, which can result in inaccurate particle counts from the beginning.

Do you think a monitor for contamination should be able to report on ISO 4406 or NAS 1638?

It is based on the standard currently used in maintenance procedures for the facility and OEM specifications. The monitor must be chosen to meet the existing requirements for reporting instead of introducing another standard that calls for manual conversion.

How should a pollution monitor be placed in the hydroelectric circuit?

It is recommended to install it with a straight pipe running both downstream and upstream in a way that is away from immediate post-filters, which could conceal the true source of contamination. It should be installed at a location that is reflective of the actual condition of the fluid components encountered.

What is the micron sensitivity range that impacts the selection of a contamination monitor?

Systems that use proportional valves or servo valves require monitors that can detect tiny particles. This is because they are susceptible to contamination of silt that larger monitors can't detect completely.

What's the reason why the flow rate impacts when selecting the right monitor for contamination?

If the flow of the sample is not sufficient, particle counts are no longer reliable, and readings change wildly when pressure exceeds the maximum rating of the monitor, it could cause seal or sensor failure, and both should be in line with the sampling line's conditions.
