Mobile hydraulic systems in construction equipment explained

Mobile hydraulic systems form the core of the modern-day construction machinery, allowing machines to tackle heavy-duty work efficiently, precisely, and dependably. From loaders and excavators to bulldozers and cranes, hydraulics play an essential function in providing the power required to move, push, lift, and move heavy loads. Knowing how the systems operate and their essential components can assist technicians, operators, and equipment owners in improving efficiency and extending the lifespan of their machines.

This article gives a complete review of the mobile hydraulic systems for construction equipment, focusing on their operating fundamentals, components and types, their advantages, as well as common problems and maintenance procedures.

What are mobile hydraulic systems?

Mobile hydraulic systems comprise power systems utilized in the operation of moving machines, specifically agricultural and construction equipment. As opposed to stationary hydraulic systems at factories, mobile hydraulic systems are specifically designed to work in environments with high-speed movement, in which machines are always shifting and exposed to various conditions and loads.

These systems utilize hydraulic fluid that is pressurized to transfer energy from the sources (usually the engine-driven pump) to actuators, such as motors and cylinders. The result is a smooth and controlled mechanical movement even when under high loads.

How do mobile hydraulic systems work?

In their fundamentals, mobile hydraulic systems function by relying on Pascal's Law, which states that the pressure applied to a fluid is equally distributed across all directions. This is a principle that allows tiny input forces to create massive output forces.

This is a step-by-step description of the way the typical mobile hydraulic system functions:

1. Power Generation
   The system is based on an internal combustion motor, or an electric motor, which drives a hydraulic pump.
2. Fluid Pressurization
   The hydraulic pump pulls liquid from a reservoir, then presses it to pressurize it.
3. Control Mechanism
   Control valves regulate the flow direction and flow of the fluid when it is pressurized.
4. Actuation
   The fluid flows to actuators (hydraulic motors or cylinders), which transform the hydraulic energy into mechanical motion.
5. Return Flow
   After the work is completed After completing the work, the fluid goes back to the reservoir for reuse.

This continuous cycle permits construction equipment to carry out intricate tasks with great efficiency.

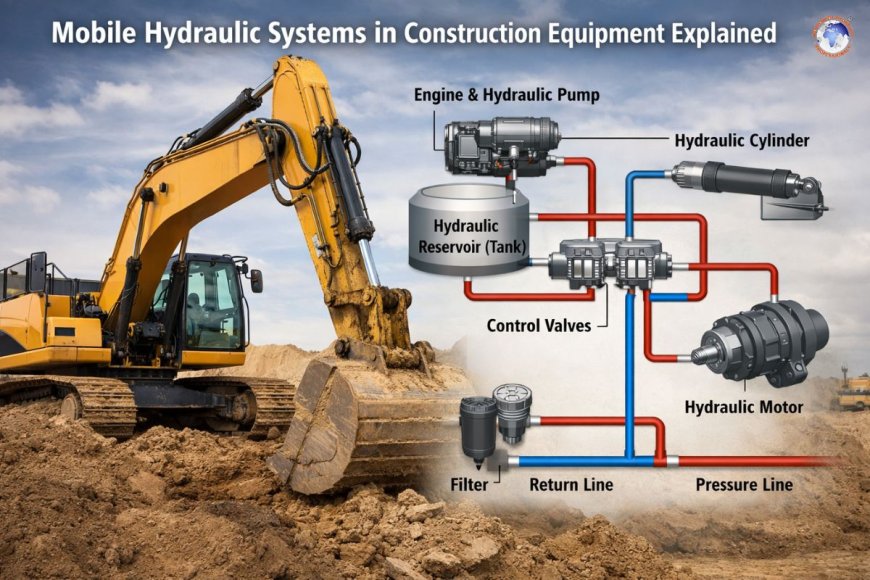

Key components of mobile hydraulic systems

Understanding the fundamental elements in mobile hydraulics is vital to troubleshooting and maintenance.

1. Hydraulic pump

The pump is the core of the entire system. It transforms mechanical energy into hydraulic energy by transferring liquid from the reservoir to the system at a pressure. The most common types are vane pumps, gear pumps, and piston pumps.

2. Hydraulic fluid

Hydraulic fluid functions as the medium to transmit power. It also lubricates parts as well as disperses heat and guards against corrosion. The condition and quality of the fluid have a significant impact on the performance of the system.

3. Reservoir (tank)

The reservoir is a storage place for the hydraulic fluid and allows for contaminants to be removed. It also helps to disperse heat and eliminate air bubbles from the fluid.

4. Control valves

Control valves control their flow, the pressure, and the direction that hydraulic fluid flows. They include directional control valves, pressure relief valves, and the flow control valve.

5. Actuators

Actuators convert hydraulic energy to mechanical motion

• Hydraulic Cylinders provide linear motion.
• Hydraulic Motors offer rotational motion.

6. Hoses and fittings

These components move hydraulic fluid across different components in the structure. They should be robust and be able to stand up to high pressure and harsh conditions.

7. Filters

Filters eliminate contaminants from the hydraulic fluid, thus preventing the risk of damage to delicate components.

Types of mobile hydraulic systems

Mobile hydraulic systems are classified according to their design and control mechanisms.

1. Open-center systems

In an open-center system, the hydraulic fluid circulates continuously throughout the system, even when actuators are being used. These systems are less complicated and are commonly found in smaller machines.

2. Closed-center systems

Closed-center systems ensure that pressure is maintained even if no actuators are operating. They're more reliable and ideal for more sophisticated, larger machines.

3. Load-sensing systems

Pump outputs are adjusted according to demand, increasing efficiency in fuel use and reducing waste. They are typically used in the latest construction equipment.

Applications in construction equipment

Hydraulic systems for mobiles are extensively employed in a variety of construction equipment:

Excavators

Hydraulics regulate the boom, bucket, arm, and swing functions, which allow the precise excavation and handling of materials.

Loaders

Hydraulic systems drive lifting arms as well as bucket tilt functions to facilitate loading and unloading operations.

Bulldozers

Hydraulics control blade motion, which allows operators to push and level material efficiently.

Cranes

Hydraulic systems offer the force needed to lift and lift heavy loads safely.

Backhoe Loaders

The hydraulics of these machines are used to perform both loading and digging operations.

Advantages of mobile hydraulic systems

Mobile hydraulic systems provide several features that make them suitable for construction projects:

High power density

Hydraulics can produce significant force from small parts, which makes them perfect for machines that are small in size.

Precision control

Operators can make effortless and precise movements even when carrying massive loads.

Flexibility

Hydraulic systems are easily modified to suit different machines and their configurations.

Durability

With regular maintenance, the hydraulic systems are able to withstand the tough operating conditions.

Overload protection

Pressure relief valves help prevent system harm by releasing pressure that is too high.

Common challenges in mobile hydraulic systems

Despite their benefits, mobile hydraulic systems are not without many challenges:

1. Fluid contamination

The presence of contaminants such as dirt or water, as well as metal particles, could damage components and lower efficiency.

2. Leakage

Leaks can cause the loss of pressure, a decrease in performance, and environmental concerns.

3. Heat generation

The excessive heat can damage hydraulic fluids and cause damage to components.

4. Wear and tear

Continuous operation at high pressure causes component wear over time.

5. Air entrapment

Air bubbles in the hydraulic fluid could result in erratic operation and decreased effectiveness.

Maintenance best practices

A proper maintenance program is essential to making sure that the life and performance of hydraulic systems for mobile use.

Regular fluid checks

Monitor the level of hydraulic fluid as well as quality. Replace fluid as directed by the manufacturer.

Filter replacement

Clean filters on a regular basis to avoid contamination.

Leak inspection

Check hoses, fittings, and seals for any leaks and make repairs promptly.

Temperature monitoring

Check that the system operates within the temperature range that is recommended.

Component inspection

Examine valves, pumps, and actuators for damage or wear.

Cleanliness

Keep the working area clean to ensure that no contaminants are getting into the system.

Emerging trends in mobile hydraulics

Construction is advancing, as are mobile hydraulic systems, becoming more sophisticated.

Electro-hydraulic systems

Integration of electronic devices with hydraulics will allow for better control and control.

Energy efficiency

Modern technology is designed to decrease energy use by using load sensing and displacement pump variable.

Smart monitoring

Sensors and IoT-based technologies allow continuous evaluation of performance, as well as proactive maintenance.

Environmentally friendly fluids

Hydraulic fluids that biodegrade are increasing in recognition to help reduce the environmental impacts.

Hydraulic systems for mobile equipment are vital for the performance and effectiveness of construction machinery. In converting the power of fluids to mechanical movement, they permit machines to complete heavy-duty jobs with accuracy and dependability.

Understanding the way mobile hydraulic systems function, along with their components and the maintenance requirements, can assist technicians and operators in improving performance and decreasing the amount of time they are in. As technology continues to improve, new developments in mobile hydraulics are expected to bring more effective control, sustainability, and stability in the construction industry.

No matter if you're an equipment operator or maintenance expert, or an industry expert, having an understanding of mobile hydraulic systems that are mobile is crucial in today's world of construction.
