Can hydraulic crushers be used for metal and scrap processing?

Yes. Hydraulic crushers are widely used in metal and scrap processing, where they compress, flatten, shear, and break down everything from end-of-life vehicles and appliances to light sheet, cans, pipe, and structural steel. Hydraulic power delivers very high force at controlled speed, which suits the heavy, irregular loads found in scrap yards, recycling plants, and demolition sites. The right machine depends on the material, the target size, and the throughput you need.

What does "hydraulic crusher" mean in metal processing?

The term covers several machine families rather than a single design. In scrap handling, "crushing" usually means one of two actions: compressing material to reduce its volume or shearing and tearing it to reduce its size. Hydraulic systems handle both well, and most scrap operations use a combination of machines.

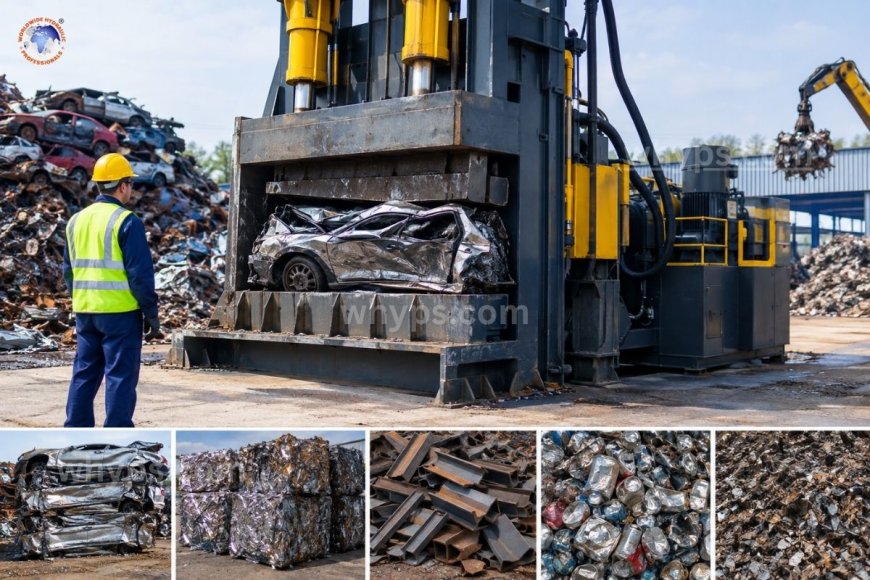

Car crushers and flatteners

Car crushers use one or more large hydraulic cylinders to press a vehicle body flat between a platen and a fixed bed or hinged lid. Flattening an end-of-life vehicle can cut its volume dramatically, which lowers transport cost per tonne and lets more material fit on each truck. Mobile versions mounted on trailers allow yards to process vehicles on-site.

Balers

Balers compress loose scrap such as sheets, turnings, cans, and light structural offcuts into dense, uniform bales. A charging box holds the material while cylinders compress it in one or more stages, and a final cylinder ejects the finished bale. Uniform bales are easier to handle, ship, and feed into furnaces.

Scrap shears and cutters

Hydraulic shears use a moving blade driven by a heavy cylinder to cut steel sections, pipe, plate, and rebar. They are common as stationary alligator or gantry shears and as excavator-mounted attachments. Cutting, rather than crushing, is often the better answer when material is thick or long.

Excavator-mounted crushers and pulverizers

Demolition crushers and pulverizers attach to an excavator and use a hydraulic jaw to crack concrete and shear the reinforcing steel inside it. They are widely used to separate rebar from concrete and to reduce large steel assemblies into pieces that are easier to load and sort.

Hydraulic-driven shredders

Large metal shredders use hydraulic motors or hydraulic drives on the rotor to tear material into fist-sized pieces. This is the step that turns bulky scrap into a consistent feed that magnets and eddy-current separators can sort into ferrous and non-ferrous streams.

Why do hydraulics suit scrap processing?

Several characteristics make hydraulic systems a natural fit for this work:

• High force in a compact package. Force equals pressure multiplied by piston area. A cylinder with a 200 mm bore at 250 bar produces roughly 785 kN, or about 80 tonnes of force, from a single actuator.
• Controlled force and speed. Operators can approach and compress material slowly, then apply full force only when needed.
• Built-in overload protection. Relief valves limit system pressure, so a machine can stall against an unyielding object without breaking a drive shaft or gearbox.

What materials can be processed

Hydraulic crushing, baling, and shearing equipment handle a broad range of both ferrous and non-ferrous metals:

• Automobile bodies and appliance shells
• Light and medium steel sheet, drums, and offcuts
• Aluminum extrusions, cans, and profiles
• Pipe, tube, rebar, and structural sections (typically shearing)
• Machining turnings and loose scrap (typically baling)

Limits to understand before you buy

Hydraulic crushers are versatile, but they are not universal. Keep these limits in mind:

• Very thick or hardened sections. Large forgings, hardened tool steel, and heavy castings may exceed a machine's rated shear or crush capacity and can damage blades or jaws.
• Fine size reduction. Compression and shearing produce pieces, not granules. If you need small, uniform particle sizes, a shredder or granulator is the correct next step.
• Sealed or hazardous items. Closed containers, pressure vessels, and tanks that may hold residual fuel or gas should never be crushed until they are verified empty and safe.

Key specifications to compare

When selecting a machine, compare these factors against your actual scrap stream:

1. Crushing or shearing force. Match the rated tonnage to the heaviest material you expect, with a margin.
2. Opening size and chamber dimensions. These decide what you can load without pre-cutting.
3. Cycle time. Faster cycles raise throughput but also raise heat load on the hydraulic system.
4. Power source. Electric drives suit fixed plants with stable throughput, while diesel drives suit mobile yards.

Hydraulic system considerations

Scrap processing is hard on hydraulic systems, so the design details matter as much as the tonnage rating.

Pressure and components

Scrap equipment commonly operates at high pressure, often in the range of about 200 to 350 bar. Cylinders, seals, valves, and hoses should be rated with a comfortable margin above working pressure to handle pressure spikes from shock loading.

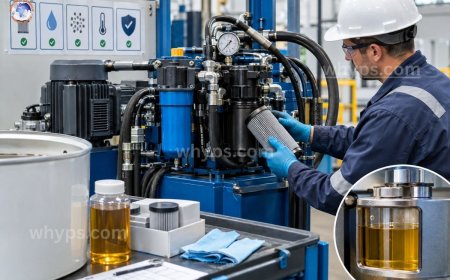

Contamination control

Scrap yards are dusty, dirty, and full of metal fines. Without good breathers, filtration, and clean handling during service, particles quickly enter the fluid and wear pumps, valves, and seals. Differential pressure indicators on filters help catch problems early.

Heat management

Long, repeated high-force cycles generate heat. Oil coolers, correctly sized reservoirs, and temperature monitoring keep viscosity in range and protect seals. Overheated oil oxidizes faster and shortens component life.

Hose and cylinder protection

Sharp metal edges, flying debris, and abrasion threaten hoses and exposed piston rods. Protective sleeves, rod guards, and well-routed hoses reduce the risk of leaks and sudden failures.

Safety practices that cannot be skipped

Because these machines apply enormous force, safe operation is essential:

• Remove fuel, oils, batteries, airbags, and other hazardous items from vehicles and assemblies before processing.
• Use guarding, interlocks, and exclusion zones around crushing and shearing areas.
• Apply lockout and tagout procedures, and safely release stored hydraulic energy, including accumulators, before maintenance.
• Treat any pinhole leak on a high-pressure line as a serious hazard, since injected fluid can cause severe injury.

Maintenance habits that extend service life

Consistent maintenance keeps a scrap machine productive:

• Schedule oil analysis to track viscosity, water, and particle counts.
• Replace filters and breathers on schedule, not just when the machine slows down.
• Inspect cylinder rods, wipers, and seals for scoring and leaks.
• Check blades, jaws, and liners for wear and rotate or replace them before they damage the machine.

Hydraulic crushers are a proven, effective solution for metal and scrap processing. Whether the job calls for flattening vehicles, baling loose scrap, shearing structural steel, or feeding a shredder, hydraulic power delivers the force, control, and overload protection the work demands. The best results come from matching the machine to the material, protecting the hydraulic system from contamination and heat, and pairing strong safety procedures with disciplined maintenance.

1. Can a hydraulic crusher process both ferrous and non-ferrous metals?

Yes. Hydraulic balers, shears, and crushers process steel and iron as well as aluminum, copper, and brass. Softer non-ferrous metals are generally easier to compress, while thick ferrous sections may require shearing.

2. What is the difference between crushing, baling, and shearing scrap?

Crushing flattens or compresses material, baling compresses loose scrap into dense blocks, and shearing cuts material with a hydraulic blade. Many yards use all three at different stages.

3. What pressure do hydraulic scrap machines typically use?

Many operate at roughly 200 to 350 bar, depending on design. Always confirm the rated working pressure and burst rating for the specific machine and components.

4. Are hydraulic crushers better than mechanical crushers for scrap?

They offer high force, controlled speed, and built-in overload protection, which is why they dominate baling, shearing, and vehicle flattening. Mechanical shredders remain preferable when fine, uniform size reduction is required.

5. How can I reduce hydraulic downtime in a scrap yard?

Focus on contamination control, cooler performance, hose protection, and scheduled oil analysis. Keeping critical spares such as filters, seals, and hoses on hand also shortens repairs.
