What Are the Mechanisms of Hydraulic Fluid Contamination?

Hydraulic systems constitute the core of modern industry, powering manufacturing lines, construction equipment, mining equipment, agricultural machines, marine systems, along with aerospace and other components. The heart of these systems is hydraulic fluid. It is responsible not just for transmitting power, but as well for lubrication, sealing, cooling, and contamination elimination.

But the contamination of hydraulic fluid is still one of the main causes of system failures around the world. The studies across the globe consistently reveal that the majority of hydraulic breakdowns can be traced directly or indirectly to contamination of fluids. Knowing the processes that cause contamination of hydraulic fluids is vital to improving the reliability of equipment, prolonging its life, and reducing time to repair.

This article examines the many ways in which hydraulic fluid can become polluted, the research on the mechanisms that cause contamination, and how they influence the system's performance.

The understandingof  Hydraulic Fluid Contamination

Fluid contamination in hydraulic systems occurs when unwelcome substances are introduced into or form inside the fluid, changing its chemical and physical properties. The contaminants could include:

• The solid particles (dust, dirt, metal shavings)

• Liquids (water, coolant, incompatible fluids)

• gases (air and gas dissolved)

• The chemical byproducts (oxidation sludge varnish)

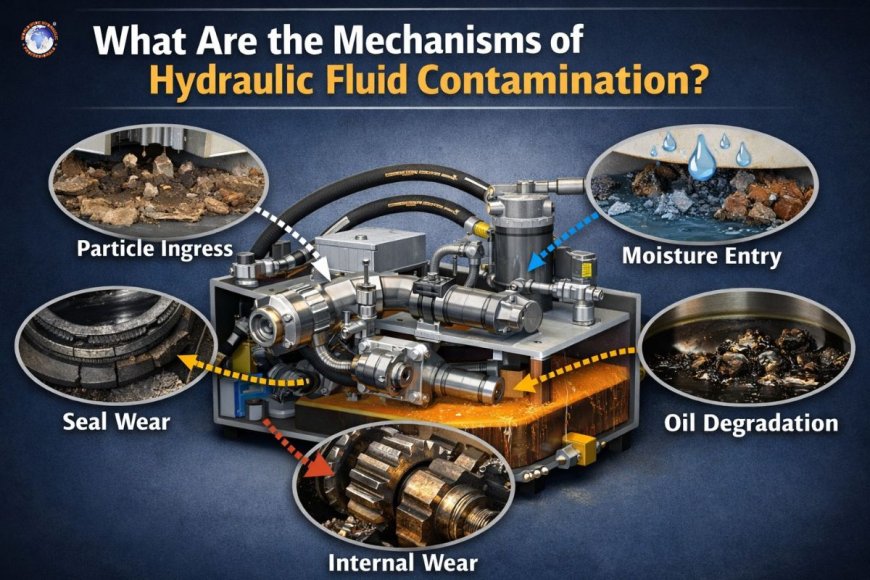

The mechanisms for contamination can be classified into four main ways:

1. The contamination of the ingress

2. Internally produced contamination

3. Chemical degradation

4. Cross-contamination

Let's take a look at each in detail.

1. Ingress Contamination Mechanisms External Entry

Ingress contamination happens when contaminants from outside are introduced into the hydraulic system through the outside environment. This is among the most frequently used mechanisms.

A. Breather and Vent Contamination

The reservoirs of hydraulics are usually vented to the air to allow the expansion of thermal energy and also to contract the fluid. When in operation:

• The fluid level fluctuates and rises.

• Air is moved into and out of the reservoir.

If the cap on the breather is not properly filtered or damaged, airborne contaminants like dust, sand, or moisture can enter the system.

This is especially challenging when:

• Construction sites

• Mining environments

• Operation in the field of agriculture

Every breath cycle can release thousands of tiny particles.

B. Seal and Gasket Failure

The deterioration of seals, cracked hoses, and gaskets allows contamination to enter the system through pressure differentials. Examples:

• High-pressure lines could draw into the air during shutdown.

• The rod seals damaged by corrosion let dirt into the chambers of cylinders.

C. Maintain-Related ingress

Unsafe maintenance practices are a primary source of contamination:

• Opening reservoir caps in dusty environments

• Use containers that are dirty or funnels

• Insufficiently cleaned replacement parts

• The hydraulic lines should not be flushed before installation

Even fresh hydraulic fluids can be contaminated if they are not filtered before filling.

2. Internally generated Contamination

Some contaminations originate from outside the system. Many of the contaminants are created in the process.

A. Wear Debris Generation

Mechanical components, such as:

• Pumps

• Motors

• Valves

• Cylinders

are subject to wear and friction during normal operations. The wear creates the metal particle that moves in the system. They are subject to wear and friction.

The most common types of wear are:

• Adhesive wear

• Abrasive wear

• Fatigue wear

• Corrosive wear

After wear has begun, the process of accelerating contamination through a chain reaction

• Particles damage surfaces

• Damage creates more particles

• System degradation accelerates

The phenomenon is sometimes described as "three-body Abrasion."

B. Cavitation Deterioration

Cavitation happens when vapor bubbles are formed in low-pressure zones and then collapse violently in high-pressure zones. It results in:

• Micro-pitting on metal surfaces

• Metal fragments

• Surface fatigue

They then circulate in the form of solid contaminants.

C. Seal and Hose Degradation

The rubber seals and hoses degrade in time due to:

• Heat

• Chemical attack

• Mechanical tension

As the materials degrade, the elastomer particles are released into the fluid and contribute to the contamination.

3. Chemical Degradation Mechanisms

Hydraulic fluid isn't chemically static. As time passes, it interacts with water, oxygen, heat, and the metal surface, which leads to degradation.

A. Oxidation

Oxidation occurs when the hydraulic liquid reacts with oxygen. This reaction is accelerated in the following ways:

• High temperatures

• Metal catalysts (iron and copper)

• Water Presence

Oxidation results in:

• Sludge

• Varnish

• Acidic compounds

These byproducts can increase viscosity, cause clogs in filters, and lower the effectiveness of lubrication.

B. Thermal Decomposition

When temperatures in fluids exceed their recommended limits, molecular structures begin to break down. This can lead to:

• Carbon deposits

• Decrease in additives

• The stability of viscosity reduced

The high operating temperatures significantly accelerate the breakdown of chemicals.

C. Hydrolysis (Water-Induced Degradation)

The contamination of water causes hydrolysis, particularly within ester-based fluids. Hydrolysis:

• Dissolves liquid molecules

• Produces acids

• Wear and tear on bearings and seals

Small quantities in water (less than 0.1 percent) can drastically reduce the duration of fluids.

4. Water Contamination Mechanisms

Water is among the most harmful contaminants found within the hydraulic system.

What is the method by which Water Enters Systems

• Condensation inside reservoirs

• Leaking heat exchangers

• Seals damaged by damage

• Contaminated fluids from the new

Types of Water Found in Hydraulic Fluid

There are three states where water is available:

1. Water that dissolves is transparent and molecule-free

2. Emulsified waters cloudy mix

3. Water for free, separate part atthe  bottom of the reservoir

Each form of it affects performance in a different way.

The Effects of Water Contamination

• Reduces lubrication film strength

• Causes corrosion and rust.

• Accelerates the process of oxidation

• Helps to promote microbial growth

• This can lead to depletion of additives.

Water contamination dramatically reduces the life span of components.

5. Air Contamination Mechanisms

Air pollution can take two types:

A. Entrained Air

Small bubbles that are suspended within liquid are caused by:

• Loose suction lines

• Low levels of fluids

• High return line Turbulence

The air that is entrained reduces the stiffness and sensitivity.

B. Dissolved Air

Air dissolves naturally in hydraulic fluids when pressure is applied. When pressure drops abruptly, and air dissolves, it comes out of the solution, creating bubbles.

This is why:

• Spongy system behavior

• Noise

• Inefficiency reduced

6. Cross-Contamination Mechanisms

Incompatible liquids mix or when contaminants move between systems.

Common Causes:

• Mixing different hydraulic oil types

• Using incorrect top-up fluid

• Equipment for the sharing transfer

• Reusing non-hygienic containers

Mixing fluids can:

• Neutralize additive packages

• Cause chemical instability

• The foaming process is increased.

• Accelerate Oxidation

Even the smallest compatibility issue can result in serious consequences.

7. The Filtration Mechanism and the Bypass Mechanisms

Hydraulic systems are heavily dependent on filtration. However, contamination can bypass filtration due to:

• Filters that are blocked go into bypass mode

• Filter ratings that are not correct

• Filter media damaged

• Incorrect installation

When filters fail, unfiltered fluid, it circulates around, which allows contamination to reach the most critical components.

8. Microbial Contamination

In water-contaminated systems, the growth of microbial organisms can occur. Fungi and bacteria:

• Feed on hydrocarbons

• Produce acids

• Make Sludge

• Block filters

This is a particular problem when systems are inactive for long periods of time.

9. Contamination during Production and Assembly

The new hydraulic systems aren't always free of contamination. The source of contamination can be:

• Remains of machining

• Debris from the assembly

• Shipping dust

• Storage exposure

If the flushing and commissioning processes aren't sufficient and the system is not properly commissioned, it will already be infected.

10. It is the Chain Reaction of Contamination

The most risky elements of hydraulic contamination are the self-accelerating nature of it.

For instance:

1. A tiny particle is absorbed by the system.

2. It scuffs the surface of a valve.

3. Surface damage produces more particles.

4. New particles harm other components.

5. The rate of wear is increasing exponentially.

Positive feedback loops can quickly degrade the reliability of the system.

Effect On Hydraulic System Performance

Contamination mechanisms directly impact:

• Pump Efficacy

• Valve precision

• Actuator smoothness

• Energy consumption

• System temperature

• Maintenance frequency

The consequences include:

• More downtime

• More expensive repair costs

• Reducing the life of components

• Security risks

In proportional and servo systems, even tiny particles could cause catastrophic failure.

Preventing Hydraulic Fluid Contamination

Understanding mechanisms allows for better prevention strategies:

1. Proper Filtration

• Use filters with a micron rating.

• Monitor the filter's condition

• Replace frequently

2. High-Quality Breathers

• Install desiccant breathing devices

• Maintain sealed reservoirs

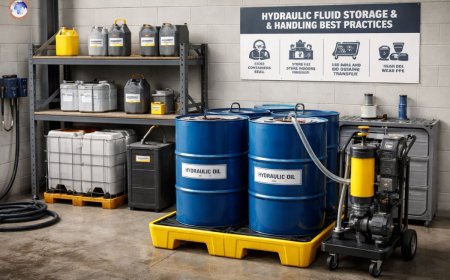

3. Cleaning Maintenance Methods

• Fill the tank with new fluid.

• Use specialized transfer equipment

• Make sure containers are sealed

4. Regular Oil Analysis

• Monitor for particle counts

• Check the water content

• Number of the measure acid

• Examine the wear metals

5. Control of Temperature

• Maintain proper cooling

• Beware of overheating.

The contamination of hydraulic fluids occurs via various interconnected mechanisms: external ingress and internal wear generation, chemical degradation, air and water contamination, cross-contamination, and filter failure. Each of these causes contributes to an intricate chain reaction that causes wear and lowers the efficiency of the system.

If they can understand these pathways for contamination maintenance, engineers and technicians can devise more effective protection strategies, increase system performance, and prolong the life of equipment.

In modern hydraulic systems where precise tolerances can be measured in microns, clean fluid isn't an option. It is essential.

In the end, a comprehensive approach to controlling contamination isn't only about filtration. It is all about controlling every mechanism that could compromise the integrity of the fluid from the time oil is introduced into the process until removed.
