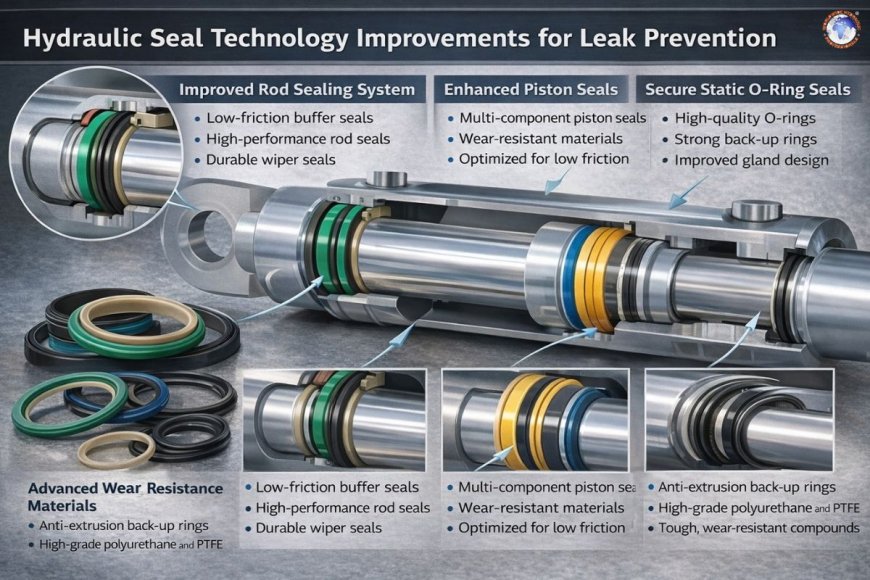

Hydraulic seal technology improvements for leak prevention

Hydraulic systems are extensively used in industries like manufacturing, construction, mining, agriculture, and aerospace. These systems depend on pressurized fluid to deliver power and execute mechanical tasks effectively. One of the key components that can ensure the safety and effectiveness in hydraulic system is the hydraulic seal. Seals that prevent leakage of fluid also maintain pressure and shield the system components from contamination.

But leakage is still one of the most frequent problems with hydraulic equipment. Even small leaks can cause a decrease in efficiency of the system, environmental contamination as well as equipment damage and higher maintenance costs. Research suggests that a large part of the failures of hydraulic cylinders result from seal issues, which highlights the importance of efficient seal design and material.

In response to these issues Engineers and manufacturers have developed a variety of technological advancements in the design and manufacturing of hydraulic seals. These advances include the creation and application of innovative materials, enhanced seal geometries, and geometries for sealing, the latest in surface engineering and monitoring techniques. This article focuses on the most important developments in hydraulic seal technology to aid in preventing leaks and improving system reliability.

The importance of hydraulic seals in fluid power systems

Hydraulic seals were designed to stop fluid from flowing between moving parts like rods, pistons, and pistons and cylinders. They also make sure that pressure is maintained within the system, so that energy can be transferred effectively.

The typical hydraulic sealing system consists of many elements:

• The rod seals stop fluid from escaping down the rods of the piston

• Piston seals help maintain the pressure between the chambers of hydraulic Cylinders

• Wiper sealing stop contaminants and dirt from getting into the system

• O-rings, backup rings, and even the occasional one-off static seal between components

Without seals that are reliable Hydraulic systems will rapidly lose pressure and fail to function as intended.

Leakage can not only affect the efficiency of the system, but also cause dangers to safety. Fluid leaks in hydraulic systems can lead to system malfunctions or environmental pollution. It can also create the risk of fire in certain situations. Therefore, the improvement of seal performance has become a primary goal in the field of fluid power engineering.

Causes of hydraulic seal leakage

To comprehend the advancements in sealing technology, it's essential to study the most common reasons for leakage in hydraulics.

1. Wear and friction

A continuous sliding between seals and metal surfaces can cause wear. In time, this may cause gaps that let fluid escape.

2. High pressure and temperature

Hydraulic systems typically operate under harsh conditions. The pressure of high temperatures can alter seals, while high temperatures could damage materials.

3. Contamination

Dust, dirt, and metal particles that enter the system may harm seals and lead to premature failure.

4. Improper material selection

Different temperatures, fluids, and pressures need different sealants. The use of a material that is not suitable could result in cracking, swelling, or deformation.

5. Poor installation or surface finish

A poor installation or rough surfaces on rods for cylinders can cause damage to seals in the course of use.

Modern sealing technology is focused on solving these issues through superior materials, enhanced designs, and the most advanced methods of monitoring.

Advanced materials for hydraulic seals

One of the biggest advancements in seal technology is the use of modern materials that have better endurance, resistance to chemicals, and low friction.

PTFE-based seals

Polytetrafluoroethylene (PTFE) has become a widely used material for hydraulic seals due to its excellent chemical resistance and low friction coefficient. Seals made from PTFE decrease friction between moving parts, which increases energy efficiency and decreases wear.

To increase the performance of PTFE Manufacturers often include fillers like:

• Carbon fiber

• Glass fiber

• Bronze

These additives increase the wear resistance, thermal stability, and load capacity, which makes PTFE ideal for high-pressure hydraulic systems.

Polyurethane seals

Polyurethane is a widely used substance in modern hydraulic seals. It has excellent resistance to high pressure, abrasion, and mechanical strain.

Recent advancements include high-performance polyurethane compounds that are designed specially for hydraulic systems. These compounds offer:

• High wear resistance

• Increased resistance to hydrolysis

• Lower friction

• Longer service life

For example, the newly created polyurethane materials surpass the conventional PTFE in specific hydraulic applications, resulting in more durability and cost effectiveness.

Thermoplastic elastomers

Thermoplastic elastomers blend the elasticity of rubber with the toughness of plastic. They provide superior sealing properties in applications where components are frequently moved.

Benefits include:

• Good elasticity

• Resistance to fluids from hydraulics

• Low friction

• Long-lasting operational life

They are replacing traditional elastomer seals on contemporary hydraulic pistons.

Improved seal geometry and design

Improvements in materials alone are not enough to stop leakage. Engineers have also come up with new seal geometries that improve sealing efficiency.

Multi-Lip seal designs

Traditional seals typically had one lip to keep contact with the cylinder's surface. Modern designs utilize Multi-lip seals with multiple sealing edges.

Benefits include:

• Increased sealing pressure

• Better leakage prevention

• Wear distribution is reduced

• Stability enhanced under pressure

Hydrodynamic seal profiles

Hydrodynamic seals are engineered to form a thin lubricating liquid film that is placed between the seal and its surface. This film decreases friction, but still maintains an effective seal.

The creation of this thin film minimizes wear and increases the energy efficiency of hydraulic cylinders.

Backup rings and anti-extrusion designs

At high pressure, seals are prone to being stretched and causing tiny gaps between the components. The backup rings are usually utilized in conjunction with primary seals to stop the extrusion.

They provide structural support and help maintain their seals, particularly in high-pressure environments like large construction machines.

Surface engineering and finishing improvements

The relationship between the seal and the face of the cylinder's hydraulic is vital for sealing performance.

Optimized surface roughness

The results of research have shown that the roughness of cylinder walls impacts the degree of leakage and friction. A controlled surface finish lets the seal keep the proper contact, while keeping a lubricating layer.

Coatings and surface treatments

The use of advanced coatings on cylinders and rods can help reduce wear and prolong sealing life. The most popular coatings include:

• Chrome plating

• Ceramic coatings

• Carbon-based diamonds (DLC) coatings

The coatings are designed to reduce friction, increase corrosion resistance, and limit the damage to surfaces that can cause leaks.

Smart seals and sensor integration

One of the latest advancements in the field of hydraulic sealing technology involves the incorporation of monitoring and sensors.

Smart hydraulic seals

Smart seals have sensors embedded that track:

• Temperature

• Pressure

• Wear and tear on seals

• Leakage of fluids

These sensors send real-time data into maintenance software, which allows engineers to identify problems prior to a failure.

Predictive maintenance

When paired together with Industrial Internet of Things (IIoT) technology, smart seals can be used to automate maintenance. Operators can track the condition of seals continually and schedule maintenance ahead of time before leaks start to form.

This strategy minimizes downtime, helps prevent catastrophic failures, and decreases the cost of maintenance.

Improved contamination control

Contamination is the most common cause of failures in seals. Modern hydraulic systems utilize a variety of methods to guard seals against particles and debris.

Advanced wiper seals

Wiper seals eliminate dust, dirt, and water from the surface of the rod prior to it entering the cylinder. Modern designs provide:

• Better scraping performance

• Rod wear is reduced

• Longer seal life

Multi-stage sealing systems

Certain hydraulic systems employ multiple seals in stages to offer additional protection against contamination and leaks.

For instance:

• A rod seal is the primary method to prevent internal leakage

• A buffer seal absorbs pressure spikes

• The wiper seal is used to remove contaminants.

This layering technique significantly increases overall sealing quality.

Sustainability and eco-friendly sealing solutions

Environmental issues have also prompted innovation in sealing technology. Leaks from hydraulics can pollute the soil and water, which makes leak prevention a top priority for numerous industries.

The latest developments are:

• Biodegradable sealing materials

• Sealing compounds that are free of PFAS

• Seals made of recycled polymer

These environmentally friendly solutions aid industries in complying with sustainability guidelines while still delivering high-performance.

Applications benefiting from improved seal technology

The advancements in hydraulic seal technology have benefited diverse industries.

Construction equipment

Excavators, loaders, and cranes are powered by high-pressure hydraulic cylinders that are high-pressure. Seals that are improved reduce downtime and maintenance expenses.

Manufacturing machinery

The precise hydraulic systems that are used in machines and in industrial automation need leak-free operation to ensure accurate performance.

Agriculture

Modern harvesters and tractors depend on hydraulics that are reliable for steering, lifting, and even implement control.

Aerospace and defense

Aircraft and military equipment need high-quality sealing systems that can operate in extreme conditions.

Future trends in hydraulic seal technology

Hydraulic seal technology continues to change as engineers create new ways to increase the efficiency of systems and ensure reliability.

Future trends could include:

• Nanotechnology-enhanced sealing materials

• Self-lubricating seals

• Seals that adapt to changing properties in response to different circumstances

• artificial intelligence-based systems for monitoring

• Custom seal geometries 3D printed

These improvements could also reduce leakage, increase durability, and improve the overall performance of the hydraulic system.

Seals for hydraulics play crucial roles in ensuring the effectiveness, security, reliability, and efficiency of hydraulic equipment. Leakage prevention is an essential problem in the field of hydraulic power engineering, and significant advances have been made in order to solve this problem.

Innovative advances in the field of materials science, such as PTFE composites, polyurethane compound and thermoplastic elastomers have enhanced sealing durability as well as resistance to wear. Hydrodynamically optimized seal geometries, optimized seal designs, and the most advanced techniques for surface engineering have improved sealing performance. Additionally, the advent of smart seals equipped with sensors is revolutionizing maintenance methods by allowing real-time monitoring and predictive diagnostics.

In a world where industries are demanding more efficient and eco-friendly hydraulic systems, the technology of sealing is expected to continue to advance. Through continuous research and technological advances the latest hydraulic seals for sealing are more durable, long-lasting and are able to function under ever-changing circumstances.

In the end, better sealing technology for hydraulics not just stops leaks, but also improves productivity of the equipment, lowers operating costs and helps to sustain industrial processes.
