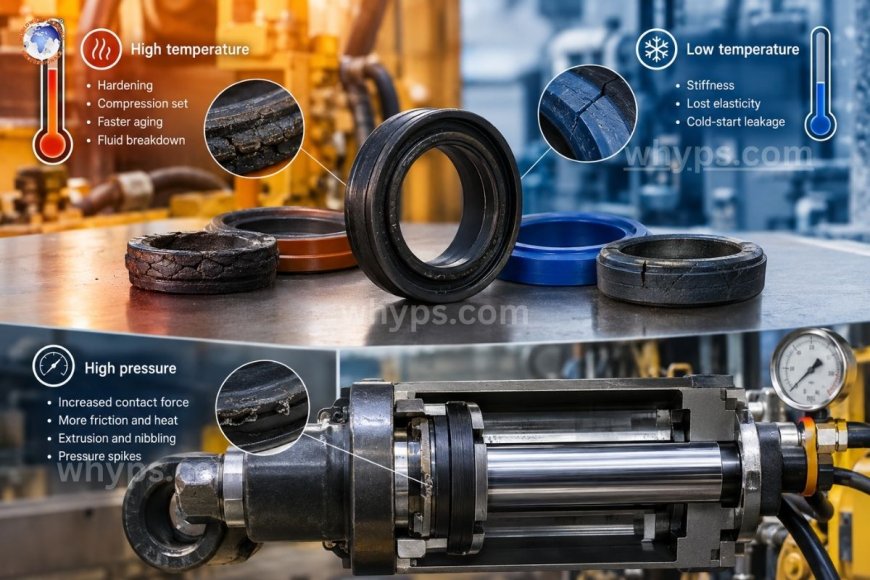

How do temperature and pressure affect hydraulic seal performance?

Temperature and pressure directly determine how long a hydraulic seal lasts. Heat hardens elastomers, increases compression set, and breaks down fluid, while cold makes seals stiff and leak-prone. High pressure pushes seal material into clearances (extrusion) and raises friction and wear. Together they shorten seal life far faster than either does alone, so choosing the right material, hardness, and support rings for the full operating envelope is essential.

Why are seals so sensitive to operating conditions?

A hydraulic seal is a small, soft component asked to hold back fluid at very high pressure while a rod or piston slides past it thousands of times an hour. It works only because the seal material stays elastic enough to press against the mating surface and strong enough to resist being squeezed out of its groove.

Temperature and pressure both attack those two properties. Temperature changes how soft or hard the material is and how fast it ages. Pressure changes how hard the seal is pushed, both against the surface and into the gaps around it.

How does temperature affect hydraulic seals?

High temperature: hardening, compression set, and accelerated aging

Heat is the most common silent killer of hydraulic seals. As temperature rises, elastomers undergo chemical changes that reduce their ability to recover after being squeezed.

• Compression set. A seal is installed and compressed. At high temperature it takes a permanent set and no longer springs back to maintain sealing force. The seal looks intact but leaks.
• Hardening and cracking. Prolonged heat drives off plasticizers and further cross-links the polymer, leaving the seal brittle and prone to surface cracks.
• Faster chemical aging. As a rule of thumb, reaction rates such as oxidation roughly double for every 10°C rise. A seal that lasts years at 60°C may last only months at 100°C.
• Fluid degradation. Hot oil oxidizes faster, forming acids and sludge that attack the seal. Thinner oil also lubricates the seal interface less effectively, adding friction and even more heat.
• Softening. Polyurethane and some thermoplastics lose strength and wear resistance near their upper limits, making them easier to extrude and abrade.

Low temperature: stiffness, lost elasticity, and cold-start leakage

As temperature falls, elastomers stiffen and approach their glass transition point, where they lose rubber-like flexibility.

• Reduced sealing force. A stiff seal cannot follow small movements of the rod or bore, so a thin leak path can open, particularly on start-up.
• Brittleness. Near the material's low-temperature limit, vibration or pressure spikes can crack the seal.
• Cold-start damage. Thick, cold oil creates drag and pressure spikes on a stiff seal, causing nibbling and tearing.

Leakage that appears when equipment is cold but disappears once it warms up is a classic sign that the seal material is not suited to low temperatures.

Thermal expansion and gland geometry

Elastomers expand far more than the steel around them. At high temperature the seal fills the groove more completely, increasing friction. At low temperature it contracts faster than the metal, reducing squeeze and sealing force. Good gland design accounts for both extremes.

How does pressure affect hydraulic seals?

Contact force and friction

System pressure energizes most seals, pressing the lip harder against the rod or bore, which improves sealing. But the same effect increases friction and wear on dynamic seals. More friction means more heat at the interface, which feeds back into the temperature problems above.

Extrusion and nibbling

The most serious pressure-related failure is extrusion. Under high pressure, soft seal material is forced into the small clearance between piston and bore, or between rod and gland. Over repeated cycles, small pieces tear away, leaving a ragged, "nibbled" edge on the low-pressure side until the seal can no longer hold pressure.

Extrusion risk rises with:

• Higher pressure, since force on the seal increases directly with it.
• Larger extrusion gaps from worn guide bands, bore wear, or side loading.
• Softer seal compounds, which deform more easily.
• Higher temperature, because a seal that resists extrusion at 40°C may fail at 90°C.

Pressure spikes

Average pressure is rarely the whole story. Rapid valve closing, load shocks, and cylinder deceleration can produce spikes far above the relief valve setting. These can push seals past their extrusion limits in milliseconds, so seals should be selected for peak pressure, not just working pressure.

Static vs. dynamic sealing

Static seals, such as O-rings in end caps, tolerate pressure well if properly supported. Dynamic rod and piston seals are far more demanding because they combine pressure with motion, friction, and heat. Pressure multiplied by sliding velocity (PV) sets practical limits on how hard a given material can be driven.

The combined effect: Why heat and pressure are worse together

A system running at high pressure also tends to generate more heat, and that heat softens seals just when they need to be strongest. Many failures occur in applications that are only moderately demanding on either measure but demanding on both at once. A typical sequence:

1. High pressure and speed raise friction and temperature at the seal.
2. Heat softens the material and accelerates compression set.
3. The softened seal begins to extrude into the clearance gap.
4. Fragments contaminate the oil, damaging other components.
5. Leakage grows, efficiency drops, and the cycle accelerates.

Choosing seal materials for your temperature and pressure range

No single material is best everywhere. These ranges are approximate and vary by compound, so confirm with the supplier's data.

Material alone is not enough. At higher pressures, add backup rings to close the extrusion gap, choose a harder durometer compound, and keep clearances tight. For wide temperature swings, PTFE-based seals energized by an elastomer or spring often outperform pure elastomers.

Practical steps to protect seals

• Monitor fluid temperature and fix cooling issues early with adequate reservoir size and clean heat exchangers.
• Use the right viscosity. Oil that is too thin when hot or too thick when cold stresses seals.
• Control pressure spikes with accumulators, cushioned cylinders, and properly set relief and shock valves.
• Maintain clearances by replacing worn guide bands and bearings before gaps widen.
• Keep fluid clean, since particles score sealing surfaces at any temperature or pressure.
• Warm up cold systems with gentle circulation before applying full load.
• Specify for peak conditions, not averages.

1. What temperature is too hot for hydraulic seals?

It depends on the material. Standard NBR degrades above roughly 100°C, while FKM handles up to about 200°C. As a practical guide, keeping fluid below 60–70°C greatly extends the life of most seals.

2. What causes seal extrusion in hydraulic systems?

High pressure forces seal material into the clearance gap. Pressure spikes, worn components that widen the gap, soft compounds, and high temperatures make it worse. Backup rings and harder materials reduce the risk.

3. Why do hydraulic seals leak more in cold weather?

Low temperatures stiffen elastomers and reduce their ability to follow the sealing surface, while cold, thick oil increases drag and spikes. Low-temperature-rated materials and a suitable fluid help prevent cold-start leaks.

4. Can high pressure damage a seal within its rating?

Yes. Ratings assume proper clearances, moderate temperatures, and no shock loads. Worn parts, heat, and spikes can cause failure below the nominal pressure.

5. How do I tell whether heat or pressure damaged a seal?

Heat damage shows as a hard, brittle, discolored seal with cracks or a flattened profile. Pressure damage usually appears as a chewed edge on the low-pressure side or seal material squeezed into the gap.
