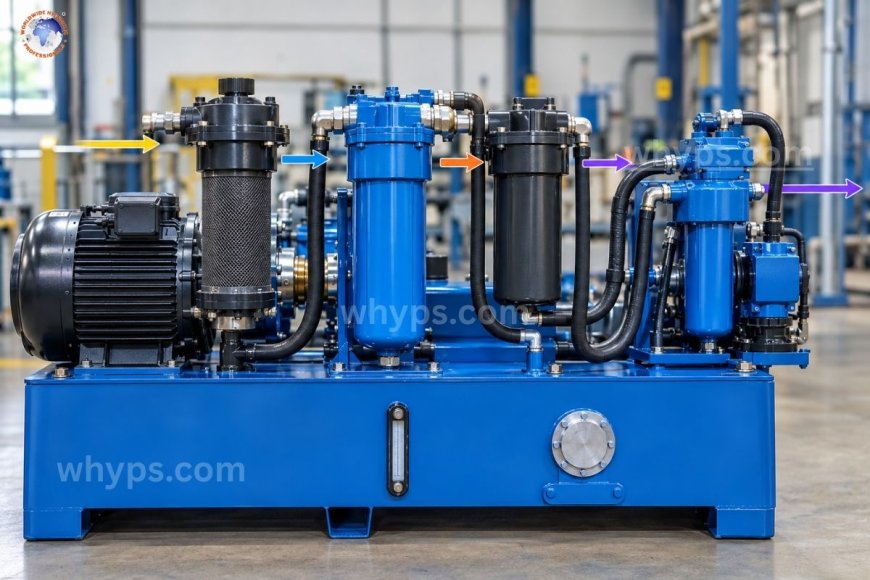

What is multi-stage hydraulic filtration?

Multi-stage hydraulic filtering is a control technique that utilizes multiple filters with various micron ratings and locations—typically suction pressure, suction, and return line—to remove gradually particulate and water from hydraulic fluid, instead of relying on one filter to remove everything in one go. This approach is layered to protect sensitive components such as servo valves or precision pumps from contaminants that are fine but still manages the coarse particles that could otherwise block the filter's high efficiency prematurely. In systems where cleanliness standards are very strict—mobile equipment and injection molding presses ground support for aerospace—multi-stage filters are often the only method that can meet and maintain an ISO cleanliness standard.

Why can't one filter be enough?

A hydraulic system is prone to pollution from a variety of sources at once: the wear and tear of the cylinders and pumps, as well as ingressed dirt that is absorbed through the cylinder rod and breather caps, seals, condensation of water, and the byproducts of oxidation of oil. Each of these pollutants has distinct particle size profiles and has a distinct source of entering the system.

Each filter, regardless of how well-specified it is, is bound to be in danger of compromising. Make it too fine (say 25 microns), and it's not able to ensure the safety of components with tight clearance, like proportional valves, which could be damaged by particles as little in size as five microns. Make it too small (3 microns, absolute) as the sole filter in the system, and it'll load up quickly with fine debris and increase differential pressure, creating bypass events, and reducing time until it becomes unpractical.

Multi-stage filtration can solve this problem by splitting the work. Filters that are coarse can eliminate bulk contamination promptly and inexpensively. Finer filters, when placed downstream or inside an individual loop, only have to take care of what's left, thus extending their lifespan dramatically, while still providing the level of cleanliness that sensitive components need.

The three stages that are common

Suction filtering

Suction filters (or strainers) are placed on top of the reservoir and also the pump's intake. They're not designed for fine filtering but for protecting the pump from debris that is large and keeping cavitation from occurring. Since pumps are sensitive to restriction of inlet, suction filters are usually small (74-149 millimeters) and are sized to reduce pressure drop. Some designs avoid suction filtration entirely in favor of a strainer for reservoirs, particularly in situations where starvation of the pump's intake is a problem.

Pressure filtration

Located downstream from the pump, these pressure filters take care of the fine work. Since they operate on the high-pressure side of the pump, their housings need to be calibrated for the entire system pressure, which means they are more expensive per unit than equivalents for return lines. Pressure filters commonly carry ratings between 3 and 10 microns and are placed immediately upstream of the most sensitive components in the circuit—proportional and servo valves in particular. This means that the contamination created by the pump is taken care of before it gets to downstream components; however, the contamination that is generated downstream (by wear on the cylinder, for instance) isn't dealt with at this particular stage.

Return-line filtration

Return-line filters filter out contaminants on their way back to the reservoir. This includes wear and tear from valves, actuators, motors, and any dirt that gets in when the fluid moves across the system. Since return-line flow operates at very low pressures, they are able to make use of lower-pressure (and more affordable) housings while running very fine micron ratings, typically 10-25 microns. This step is what prevents the reservoir from turning into an accumulation of contaminants, which is then redirected to the suction line.

Off-line (kidney-loop) filtration

A majority of multi-stage systems incorporate an additional element that's not included in the circuit, such as an offline filtration loop, sometimes referred to as a kidney loop system. A dedicated pump continually takes fluid out of the tank, runs through a high-efficiency filter (often 1-5 microns in some cases, and sometimes used in conjunction with a water-absorbing element), and then back to the tank, regardless of whether the central circuit is in operation. Since it's not constrained in any way by pressure drop or flow speed limits, an offline loop may provide more finely filtered than is suitable inline. Additionally, it continues to work even during periods of downtime, continuously pushing the entire reservoir towards the goal of a cleaner base.

How do the stages function?

The basic idea behind a properly designed multi-stage system is a sequential risk reduction. The suction filter protects the pump from damage that could be catastrophic. Pressure filtration protects the most contamination-sensitive downstream components from what the pump itself contributes. Return-line filtration keeps the reservoir from building up contaminants that are generated by the rest of the components. Offline filtration, when employed, continuously polishes the entire fluid volume towards the desired cleanliness, regardless of the duty cycle.

Every stage is unique and not incompatible with another, as each stage targets a specific contamination source and has a distinct result of failure. Eliminating any stage won't simply reduce the capacity for filtration and opens up a new failure path that the other stages were not created to handle.

The selection of micron ratings across different stages

A common design mistake is selecting filter fineness by convention rather than by matching it to the most contamination-sensitive component in the circuit. The best approach is to work backwards from the tolerance of that component. When a valve with a proportional design needs ISO 18/16/13 purity to fulfill the warranty requirements, the pressure filter that protects it must have an alpha ratio and a micron rating that is able to sustain the code under actual operating conditions. Not just in high flow conditions, but also in clean conditions.

Beta ratios are as important as the micron count itself. A filter that is rated at 10 microns, with Beta(10) of 75, will remove significantly less of this particle size than a filter rated at 10 microns, with Beta(10) of 1000. Beta(10) is 1000. Multi-stage systems must specify beta ratios for each stage, not only the nominal sizes of microns, to prevent a false sense of security.

Common configuration mistakes

A number of common mistakes undermine multi-stage filtration when it comes to practice. The suction filter's micron rating too small can make the pump weak when it is operating at a low viscosity and cause cavitation damage, which cannot be prevented by a downstream filter. By placing the most effective filter over the return line rather than the pressure line, it shields the reservoir; however, it leaves the sensitive valves vulnerable to the elements that the pump can introduce to the reservoir as well as its components. The absence of bypass indicators on any stage eliminates the ability to detect when an element is silently going into bypass, and at that point the stage is essentially filtering no filter at all. Inadequately matching the element's compatibility with the fluid type, particularly using biodegradable or fire-resistant fluids, can alter the quality of filter media quicker than what the maintenance schedule anticipates.

The implications of maintenance

Multi-stage systems don't cut down on maintenance; they just redistribute the burden. Instead of a single change interval to monitor the entire process, there are many, each with an indicator or gauge for differential pressure to track. Facilities that treat each stage as one maintenance event typically over-service the coarse filters, which have some life left, and neglect to service fine filters that are loaded up more quickly. Individual monitoring of each stage's pressure differential, tracked against manufacturer-specified change points rather than a fixed calendar interval, gets far more useful life out of each element and catches developing contamination problems before they reach downstream components.

What's the main difference between suction pressure and return line filtering?

Suction filtration protects the pump from debris prior to intake, while pressure filtering removes the fine particles in the downstream area of the pump, protecting valves from damage, and return line filtration removes wear and ingested dirt before liquid re-enters the reservoir.

Do I require an offline kidney-loop filtration system when I already have inline filtering?

Not always; however, it can be very beneficial in systems that have very rigid cleanliness requirements or periodic duty cycles since it is constantly sanding the whole volume of fluid without affecting primary circuit operation.

What micron rating should a pressure filter use in a multi-stage system?

It should be selected backward from the most contamination-sensitive component's ISO cleanliness requirement, typically in the 3-10 micron range with a high beta ratio, not chosen by convention.

Multi-stage filtration can eliminate the requirement for regular oil analysis.

No. Filtration is a way to reduce particulate contamination, but it doesn't address the issue of fluid degradation as well as additive depletion or changes in water content, which oil analysis is meant to follow.

What is the reason why my well-rated filter gets blocked more quickly than I expected in a multi-stage configuration?

This usually indicates the upstream stage failed or entered bypass or that the sequencing of the stage places the filter that is too fine too far into the path of contamination.
