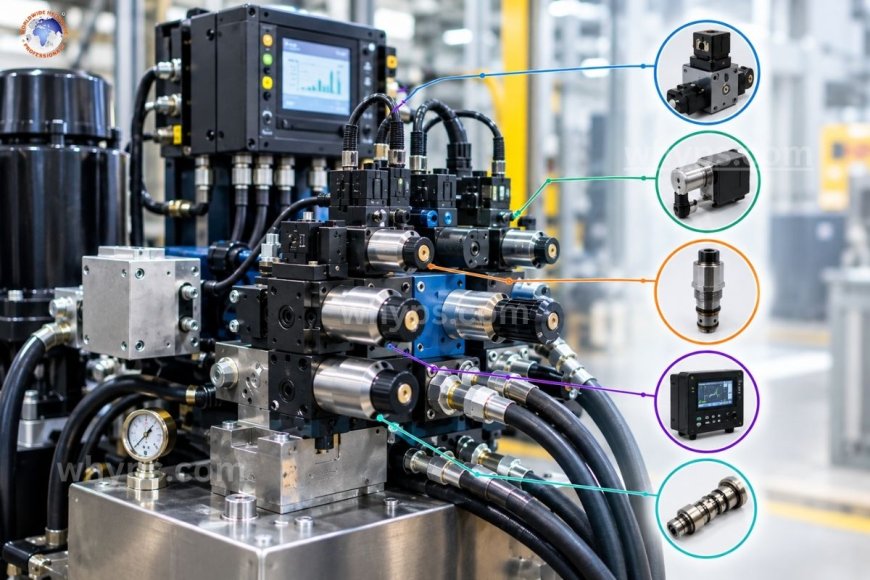

How modern hydraulic valves improve system efficiency

Hydraulic systems were always appreciated for their power density—the capacity to move huge loads through small parts. For a long time, this power was accompanied by a cost that was wasted energy and excessive temperatures, as well as inefficiencies incorporated into the valves that controlled pressure and flow. Nowadays, the equation has been changed. The advancement in technologies for hydraulic valves has transformed what was once an ordinary flow control device with a switch to turn off into a precise instrument capable of extracting significant efficiency gains from each phase of a machine's working.

For plant managers, engineers, and operators of equipment, knowing how these advancements function—and where they can be most beneficial—is vital for deciding on systems that will perform better and are less expensive to operate over the course of their life.

The efficiency problem with traditional hydraulic systems is the efficiency issue.

Conventional hydraulic circuits typically depend on fixed-displacement pumps that are paired with simple directional as well as pressure relief valves. This design is durable and cost-effective; however, it's also a waste of resources. A fixed-displacement pump provides the same amount of fluid regardless of what the actuator requires at any time. If the system requires less flow than what the pump can supply, the extra fluid needs to be moved somewhere, usually returned to the tank via the relief valve, which converts the extra power of the hydraulic system directly to heating.

This phenomenon, also referred to as "throttling loss," is one of the biggest causes of inefficiency within traditional hydraulic machines. Every energy that is pumped through a relief valve is energy that has been spent compressing and moving fluid. Now, it is lost as heat that has to be removed by a cooling system, which in turn uses more energy. In multi-actuator systems, meter-in and meter-out throttling in directionally operated valves can cause problems because each actuator's speed is controlled by limiting flow, not by making sure that the supply is in line with demand.

This results in a machine that operates faster than it is required to and consumes more electricity or fuel than is necessary and needs large cooling and filtration systems in order to handle the byproducts of inefficiency.

What is it that makes modern valves distinct?

Modern hydraulic valve designs address this issue from multiple directions simultaneously, including reducing internal leakage as well as reducing the pressure drop across the valve's body, and the most important aspect—providing intelligent control strategies that align flow distribution to the actual demand.

Properly proportional valves and servo valves represent the greatest leap. Contrary to conventional on/off directional valves, valves can alter the flow and pressure constantly according to a control signal. This lets a system provide exactly the amount of flow the actuator requires at a specific time instead of giving the highest flow and slowing down the excess. The servo valves can do this with more precise tolerances and faster response times, making them ideal in applications where accuracy and rapid performance are just as important as efficiency.

Load-sensing valves alter relationships between the pump as well as the valve completely. Rather than the pump running at a fixed pressure and flow while valves throttle the difference, a load-sensing valve communicates the actual pressure demand of the load back to a variable-displacement pump. The pump adjusts its output to meet the demands in real-time. One change could cut down on throttling costs dramatically, as the pump isn't creating pressure or flow that the system doesn't require.

Cartridges as well as the logic valves have also grown significantly. Their compact screw-in design decreases the number of connections and fittings in the circuit and minimizes the number of leak points and locations for pressure drop. Since logic valves are used for a variety of functions within the same manifold, circuits that are built around them are typically smaller flow paths and have fewer redirections and rerouting, both of which decrease pressure losses due to parasites.

Better internal geometry and the materials are more important than what they appear to. Modern valve seats and spools are constructed with more precise tolerances than their predecessors and reduce the leakage inside the spool, without needing to use excessive friction. The latest developments in surfaces and coatings can reduce wear and tear over the lifespan of the valve. This means that the efficiency gains made on day one last for a longer time throughout the life of the valve rather than deteriorating when clearances increase.

Electronic control: The multiplier effect

The mechanical advancements will be as significant without the advances made with electronic controllers. Today's servo and proportional valves are usually coupled with electronics onboard and external controls that permit closed-loop control. The valve's actual position, or the actual output of an actuator, is recorded and fed back to the control algorithm to correct for any variations in temperature and fluid viscosity or the load that might otherwise impact performance.

This closed-loop capability makes modern hydraulic systems behave more like a tool for cutting but more as an electrically controlled system in terms of their response, but still provide the high power density that hydraulics are renowned for. This also opens the way to adaptive and predictive control methods that allow a machine's controller to modify the valve's behavior according to the specific purpose being carried out instead of running each cycle at a set moderate setting that is designed to deal with worst-case scenarios.

Digital valve controllers that incorporate diagnostics offer a different efficiency aspect completely: the capability to identify a valve in a state of drift or is leaking excessively before it leads to an expensive failure or inconspicuous source of energy waste.

Where are the efficiency gains evident?

The improvements in efficiency that result of modern valve technology don't appear in a single area, but they're compounded across a variety of parts of a system's operation.

The reduction in heat production is usually the most tangible benefit immediately. Because less energy is wasted as a result of throttling losses and systems are running more efficiently. This decreases the burden on the hydraulic coolers and often allows small cooling equipment to be included in the new designs of equipment, reducing capital costs and energy consumption over time.

Lower pump and prime mover loading follows directly from load-sensing and variable-displacement strategies. If the pump is able to only produce the pressure and flow that the system requires and the electric motor that drives it uses less energy or fuel over the course of a. In mobile equipment, such as loaders and excavators, it can result in substantial savings in fuel costs over many thousands of hours of operation.

A longer life for components and fluids is a more quiet but significant benefit. Lower operating temperatures reduce the process of oxidation in hydraulic fluid, thus extending the time between service. Lower leakage in the internal system and better pressure control means less stress on downstream components, such as motors and cylinders, which could prolong their life too.

Better precision and decreased scrap or rework matter, especially for processing and manufacturing processes where proportional or servo valve control allows for more reliable pressure and speed controls. This reduces the chance that can cause scrapped parts or results that are inconsistent; that is, it's an efficiency boost, although it's not quantified in kilowatt hours.

Modern considerations to specify modern valves

Modernizing your valves isn't necessarily the right choice for every situation. Proportional and servo valves cost more upfront than simple directional valves, and they require compatible electronic controls and, often, cleaner fluid to protect their tighter tolerances from contamination-related wear. The load-sensing circuits require careful design to prevent instability, especially when multi-actuator systems are used where multiple loads are competing for output at the same time.

For single-function circuits that have low duty cycles, the gains in efficiency from modern valve technology might not justify the extra complexity and cost. However, for systems that operate for long periods of time, manage different loads, or in which the cost of energy and heating are major operating expenses, investing in the most modern valve technology pays for itself within the service life of the equipment.

The valve isn't only a gatekeeper to control the flow of hydraulic fluids. It is now one of the primary devices to improve the overall efficiency of the system. With proportional and servo control and load sensing designs as well as more precise cartridge or logic valve models and the added electronic intelligence over them, modern hydraulic valves help systems operate cooler, consume less energy, and offer more reliable performance than the valves of their predecessors. As the cost of energy and sustainability requirements continue to guide the decisions made in designing equipment, the valve industry will be the one area where better engineering translates into tangible operating savings.
