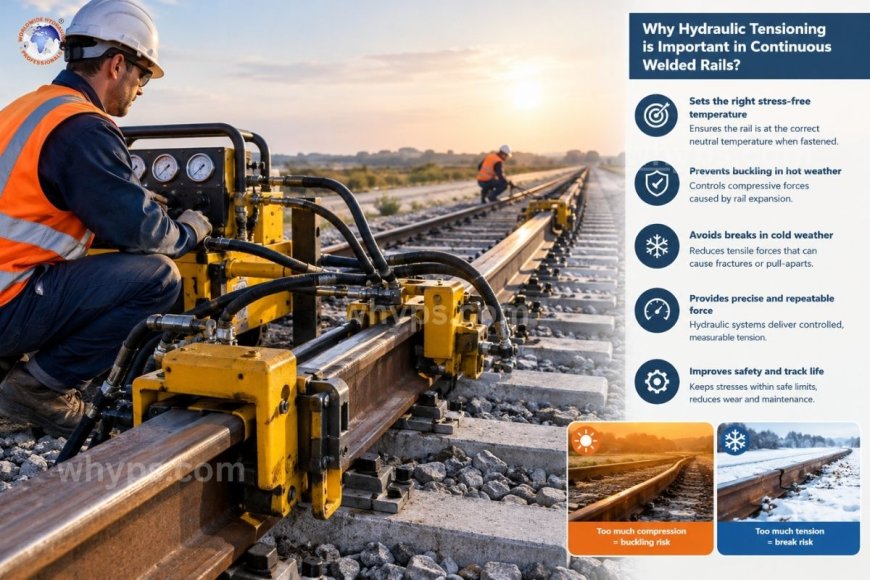

Why is hydraulic tensioning important in continuous welded rails?

Hydraulic tensioning is important in continuous welded rails (CWR) because it stretches or relaxes the rail to a controlled length so that it sits at its stress-free (neutral) temperature once fastened. This lets the rail handle summer heat and winter cold without buckling or pulling apart, and it delivers the precise, measurable force that manual methods and natural temperature adjustment cannot guarantee.

What are continuous welded rails?

Continuous welded rail is track in which individual rail sections are welded end to end into long, jointless strings. These strings can run for hundreds of meters or several kilometers. Eliminating bolted fishplate joints gives smoother rides, lower maintenance, less noise, reduced wheel and rail wear, and better fatigue life in the track structure.

There is, however, a physical trade-off. Traditional jointed track includes small expansion gaps that let each rail section grow and shrink freely with temperature. CWR has no such gaps. The rail is firmly restrained by fastenings, sleepers, and ballast, so temperature change cannot show up as movement. It shows up as internal stress instead.

The physics behind the problem

Steel expands when heated and contracts when cooled. The free length change of a rail can be estimated with a simple relationship:

ΔL = α × L × ΔT

Here α is the coefficient of thermal expansion for rail steel (about 11.5 × 10⁻⁶ per °C), L is the rail length, and ΔT is the temperature change. A 1,000 m rail heated by 30°C would try to grow by roughly 345 mm if it were free to move.

In CWR it cannot move, so that growth becomes a force. The longitudinal force can be estimated as:

P = E × A × α × ΔT

For a 60 kg/m rail section with a cross-sectional area of roughly 7,690 mm² and a modulus of elasticity of about 210,000 N/mm², each 1 °C of temperature change generates roughly 18.6 kN of force. A 30°C rise above the rail's stress-free temperature therefore produces over 550 kN of compressive force, equivalent to more than 55 tonnes-force, inside a single rail. The same swing in the opposite direction creates a comparable tensile force.

This is the core reason hydraulic tensioning matters. Track engineers cannot remove this force, but they can set the starting point so that the stresses stay within safe limits across the whole temperature range the track will see.

Understanding stress-free temperature

The stress-free temperature (SFT), also called rail neutral temperature (RNT), is the rail temperature at which the rail carries no longitudinal thermal stress. When the rail is warmer than its SFT, it is in compression. When it is cooler, it is in tension.

Track authorities specify a target SFT range for each region, usually set a few degrees above the local mean rail temperature. The idea is to balance two risks:

• Summer buckling (sun kinks): compressive force can push the track sideways out of alignment.
• Winter rail fracture or weld pull-apart: tensile force can open up a crack, a defective weld, or a joint.

If the SFT is too low, the track is at higher risk of buckling in hot weather. If it is too high, the rail is more exposed to breaks and gaps in cold weather. Getting this value right, and keeping it right, is what tensioning is for.

What is hydraulic tensioning in CWR?

When rail is laid or welded at a temperature below the target SFT, it must be lengthened so that, once clamped, it behaves as if it had been installed at the correct temperature. Hydraulic rail tensioning does this by applying a controlled pulling force to the rail using hydraulic equipment.

A typical rail tensor system includes

• Hydraulic cylinders: high-capacity double-acting cylinders that generate the pulling force.
• Clamping heads or rail clamps: grip the rail securely at each end of the tensioning zone.
• Hydraulic power pack: an electric, petrol, or diesel-driven pump supplying pressure to the cylinders.
• Pressure gauges and load monitoring: let operators see the applied force or elongation in real time.
• Rail temperature measurement: used to calculate the required elongation for the actual conditions on the day.

The operator calculates how much the rail must be stretched based on its length and the difference between the current rail temperature and the target SFT. The tensor then pulls the rail to that calculated elongation. While the rail is held under tension, the fastenings are installed, locking in the correct stress state.

Why are hydraulic systems the preferred method?

Precision and repeatability

Hydraulic cylinders convert pressure into force very predictably. Because force is pressure multiplied by piston area, operators can apply a precisely known load and confirm it on a gauge. Combined with elongation marks on the rail, this gives two independent checks that the target has been reached.

High force in a compact package

Hydraulics deliver very large forces from relatively small, portable equipment. Rail tensors can generate tens of tons of pulling force and more, which is what is required to stretch long strings of heavy rail. Mechanical alternatives would be far bulkier and slower.

Smooth, controlled load application

Hydraulic tensioning applies load gradually. This avoids shock loading of the rail, clamps, and fastenings, and it allows the operator to pause, hold, or fine-tune tension while fasteners are installed.

Independence from weather windows

Without tensioning, rail could only be installed and clipped when the ambient rail temperature happened to match the target SFT. That would delay work for long periods. Hydraulic tensioning lets crews lay and adjust rail across a wide range of conditions while still achieving the correct stress state.

Better safety outcomes

Correctly tensioned track reduces the likelihood of buckling and rail breaks, which are among the most serious track-related hazards. Hydraulic systems also keep operators at a controlled distance from the load compared with manual methods like hammering and heating.

Where hydraulic tensioning is used

Hydraulic tensioning is applied at several stages in the life of the CWR track:

• New track construction: setting the SFT when long welded rails are first laid and clipped.
• Rail renewal: adjusting rail installed during relaying, particularly in cold or hot conditions.
• Destressing: correcting rails whose SFT has drifted because of creep, curve movement, or previous rail breaks.
• Weld repairs and rail cuts: restoring correct tension after removing a defective section and inserting a closure rail.
• Preparing for switches and crossings: ensuring the rail adjoining turnouts and bridges is set correctly.

Consequences of skipping or poorly executing tensioning

If CWR is not correctly tensioned, the problems are predictable and costly:

• Track buckling: sudden lateral misalignment on hot days, which can lead to derailments or emergency speed restrictions.
• Rail breaks and pull-aparts: tensile stress in cold weather can widen cracks and fracture welds, creating dangerous gaps.
• Uneven stress distribution: localized high-stress zones accelerate fatigue, particularly near welds and defects.
• Frequent maintenance interventions: rail adjustment, realignment, and emergency repairs become routine.
• Operational disruption: temporary speed restrictions and track closures increase delays and costs.

Hydraulic equipment care for reliable tensioning

Because tensioning depends on accurate force, the hydraulic equipment itself must be in good condition. Good practice includes:

• Calibrating gauges and load cells regularly so the force readout can be trusted.
• Inspecting hoses, couplings, and fittings for wear, abrasion, and leakage before each job.
• Keeping hydraulic oil clean and at the correct viscosity to protect pumps, valves, and cylinder seals.
• Checking cylinder rods and seals for scoring and leaks that could cause pressure loss under load.
• Verifying relief valve settings so the system cannot exceed the rated working pressure.
• Following the manufacturer's service intervals for the power pack and tensor.

A tensor that drifts under load or reads incorrectly can produce a wrongly set SFT, and the error may not show up until the first extreme weather event.

Best practices for tensioning CWR

• Measure rail temperature accurately, ideally using multiple readings along the work zone.
• Confirm the target SFT range specified by the track authority for that region.
• Remove restraints, such as clips and obstructions, over the full length being tensioned so the rail can move freely.
• Use rollers or lubrication to reduce friction between the rail and the sleepers.
• Mark reference points on the rail to verify the actual elongation achieved.
• Hold tension until the fastenings are completely installed, then record the final conditions.
• Document all values, including temperature, force, elongation, and location, for future audits.

Continuous welded rail gives railways smoother, quieter, and more economical tracks, but only if its internal stresses are managed. Temperature changes will always try to expand or contract the rail, and because CWR is restrained, those changes become very large forces. Hydraulic tensioning sets the rail's stress-free temperature accurately and repeatably, giving the track the best possible margin against both summer buckling and winter fracture. Backed by well-maintained hydraulic equipment and careful measurement, it is one of the most important processes in building and maintaining safe, long-lasting welded track.

1. What is hydraulic rail tensioning?

Hydraulic rail tensioning is the process of using hydraulic cylinders to stretch a welded rail to a calculated length so that it is stress-free at a target temperature once it is fastened to the track.

2. What is stress-free temperature in CWR?

Stress-free temperature, also called rail neutral temperature, is the rail temperature at which the rail carries no longitudinal thermal stress. Above it, the rail is in compression. Below it, the rail is in tension.

3. What happens if CWR is not properly tensioned?

Poorly tensioned CWR is prone to buckling in hot weather and to rail breaks or weld pull-aparts in cold weather. It also experiences uneven stress that increases fatigue and maintenance needs.

4. Why use hydraulic tensioners instead of waiting for the right temperature?

Waiting for the rail to reach the target temperature would restrict work to short weather windows. Hydraulic tensioners allow correct installation across a wide range of conditions by calculating and applying the needed elongation.

5. How much force does it take to tension a rail?

It depends on rail size, length, and temperature difference. As an example, a 60 kg/m rail develops about 18.6 kN of force per 1 °C, so a 30 °C difference involves over 550 kN. Hydraulic tensors are selected with enough capacity to meet these loads safely.
