Hydraulic Gantry suits lifting and rigging applications

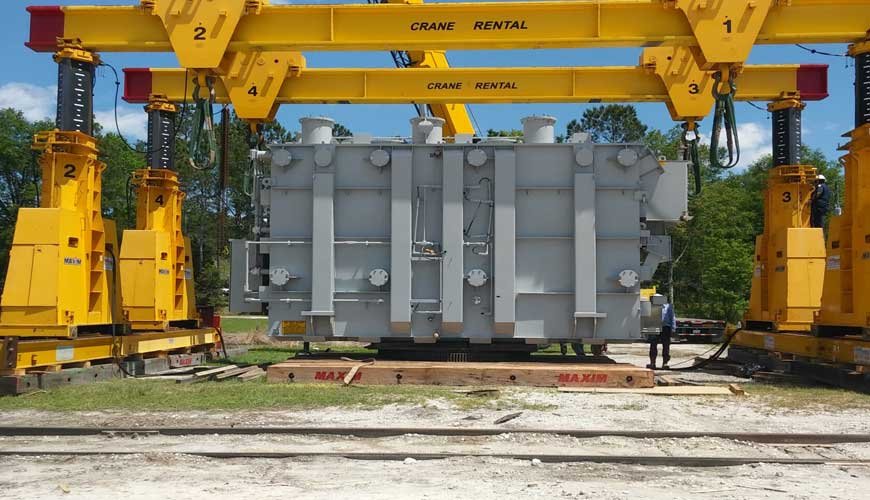

Equipped with 2 stage lifting cylinders, Model SBL900 lifts up to 37 ft and can handle up to 667 tons at top of second stage. Folding boom gantry features self-propelled drive system, self-contained hydraulics, and mechanical locking to hold load for extended periods. Users can operate lift locally at each leg or use Intellilift remote control. Wireless system ensures automatic synchronization of lifting with accuracy of 1 in. and automatic synchronization of travel with accuracy of 0.60 in.
