20 Series 6 Spool Control Valve Load Sense

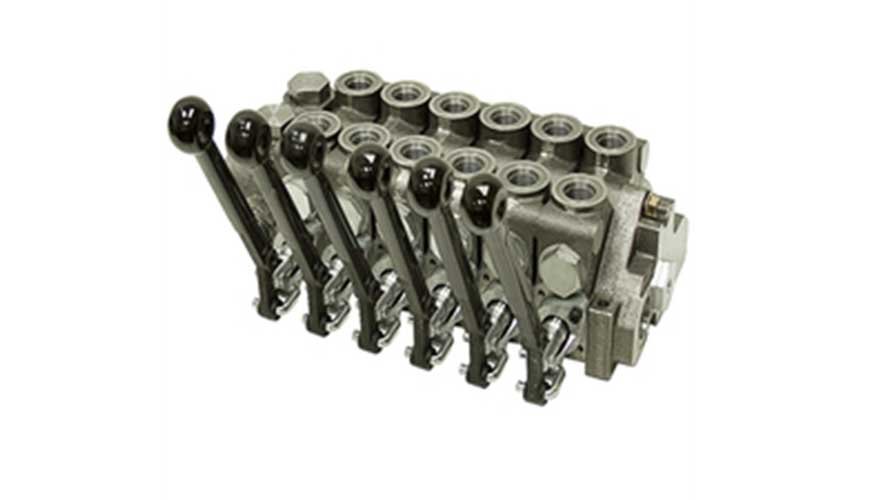

Brand new Prince "20" series hydraulic control valve. Interchangeable with other popular brands of 20 GPM sectional valves.
Use with a pressure-flow compensated pump with load sensing. Load sense port on outlet section. Choose the spool type required for your application from the drop down box above. Very fine metering for precise control. All work sections have load checks. Furnished with handle, bolt kit and all o-rings to seal between sections. Inlet section has both top and side inlet and outlet ports. Outlet section has side ports.

SPECIFICATIONS

Circuit Type
Closed center w/load sense
Spools
Flow
20 GPM max.
Pressure
3500 PSI max.
Relief Valve
In/Out Ports
SAE 12
Work Ports
