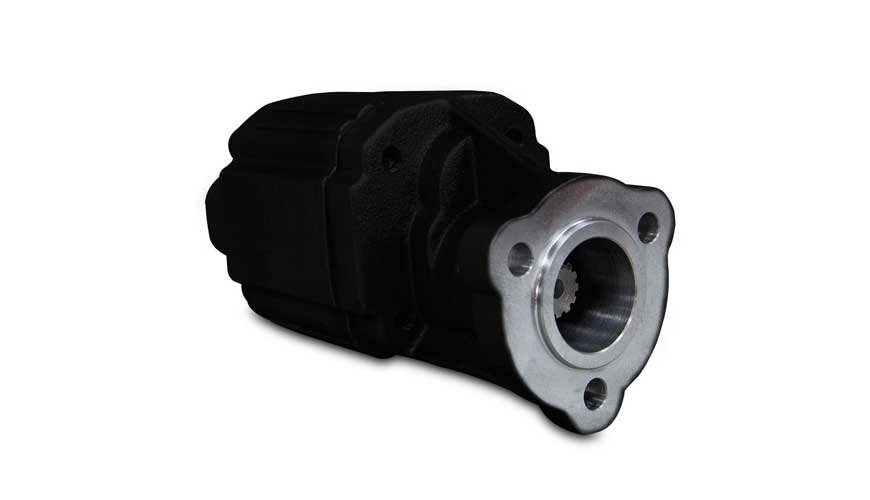

Aber Hydraulic External Gear Pump – B2 Series
This is a bidirectional hydraulic external gear pump designed for light-duty applications.

You can also order a unidirectional version of the gear pump. Get the best performance with minimal weight and size, offering displacements from 12 to 39 cc/rot (0.7 in³/rot to 2.4 in³/rot). Custom displacements are available upon request.

This hydraulic gear pump can operate at a maximum pressure of 280 bar (4000 psi) and supports a maximum continuous rotation of 2500 rpm.

Key Features of the B2 Series External Gear Pump:
Small size

Fast and easy to mount

Bidirectional

Rear inlet/outlet

Flange and Axle Options:
DIN 5462 or DIN 5463 UNI
